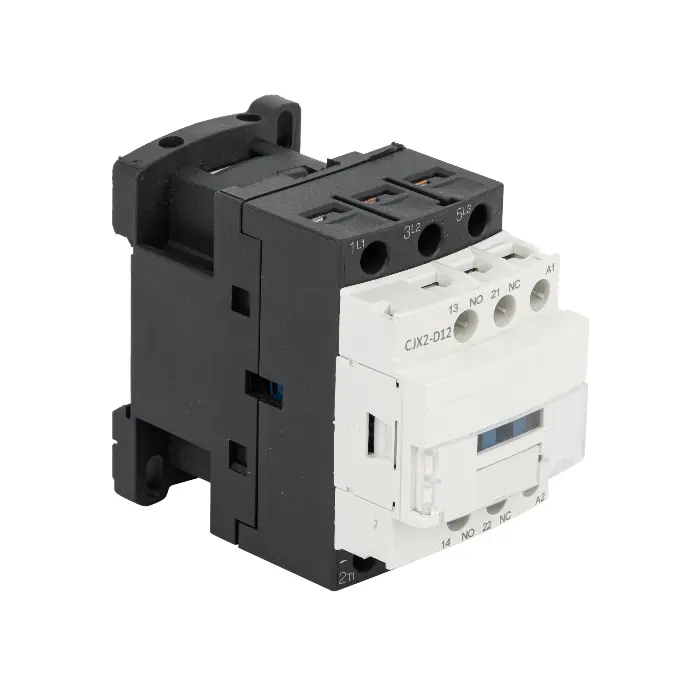

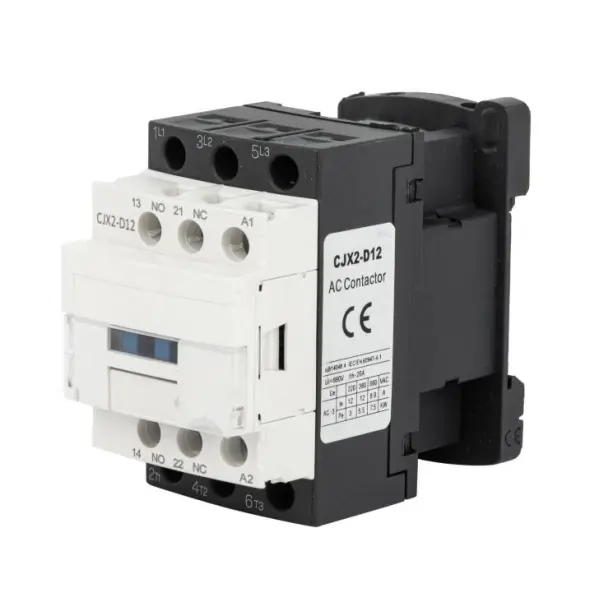

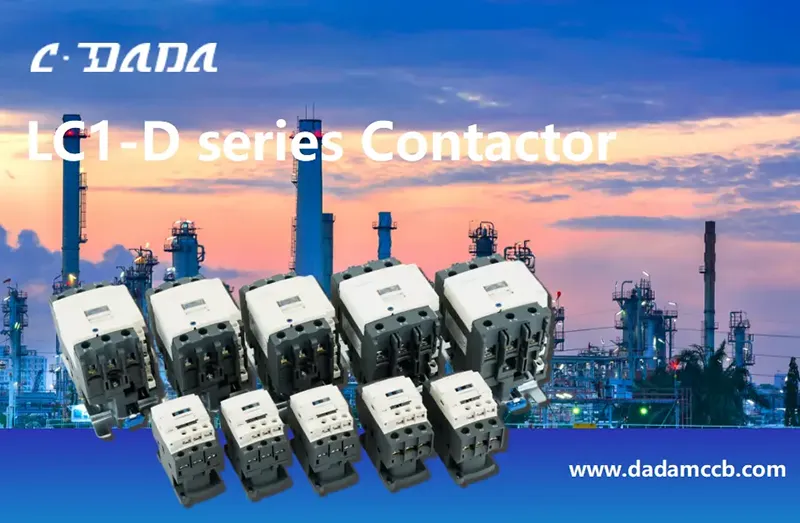

D Isixhumi

Model:LC1-D Series

I-Shanghai DADA Electric ingumkhiqizi onokwethenjelwa futhi sinemikhiqizo yethu, i-CDADA. I-D Contactor yethu (i-LC1-D Series) iqinisekisiwe i-IEC 60947-4-1, i-3P/4P, ifinyelela ku-620A, i-AC-3/AC-4 ilinganiselwe. Izinketho zamakhoyili abanzi. Sincoma lo mkhiqizo wokulawulwa kwezimoto & nezishintshayo zezimboni, xhumana nathi ukuze uthole isaphulelo.

Thumela Uphenyo

Incazelo Yomkhiqizo

Isilawuli semoto esithembekile sikanjiniyela kanye nokushintshwa kwamandla nge-CDADA LC1-D Series D Contactor isixhumi se-AC esisebenza kahle esiklanywe i-Shanghai DADA Electric CO.,LTD ukuhlangabezana namazinga e-IEC/EN 60947-4-1. Yakhelwe izinhlelo zokusebenza zezimboni, ezentengiselwano, kanye nengqalasizinda, uchungechunge lwe-LC1-D lusekela ukulungiselelwa kwezigxobo ezi-3 noma ezi-4 ezinamagagasi alinganiselwe ukusuka ku-9A kuya ku-95A (kufika ku-620A ngokuhlukahluka komsebenzi osindayo) futhi lilawula amamothoni ekheji ye-squirrel-isigaba esi-3 afika ku-45kW (ku-13V-AC4-AC4).

Ifakwe ngothintwayo abasizayo be-1NO+1NC abajwayelekile, ihlanganisa ngaphandle komthungo nama-thermal overload relays ukuze kuvikelwe ngokugcwele motor. Ngezinketho zekhoyili ye-AC noma ye-DC (24V–600V), izigaba zokusebenzisa i-AC-3 kanye ne-AC-4, kanye nomklamo oqinile olinganiselwe ngo-insulation ongu-690V, i-CDADA D Contactor iletha ukusebenza okunokwethenjelwa kumijikelezo yokuqala yokumisa, amasistimu okuthutha, amaphampu, ama-compressor, namayunithi e-HVAC—ngisho nasezindaweni ezidinga kakhulu izinga lokushisa elifinyelela ku-40m kuya ku-20m° C.

D Contactor

Imininingwane Ebalulekile

Uchungechunge: D Contactor

Igama Brand: CDADA | Umkhiqizi: I-Shanghai DADA Electric CO., LTD

Okujwayelekile: IEC/EN 60947-4-1

Isitifiketi: CE

Izigxobo: 3P noma 4P (kuyakhetheka)

Ilinganiselwe Ukusebenza Kwamanje (AC-3): 9A – 95A (kufika ku-620A ebangeni elinwetshiwe)

I-Motor Power Control (AC-3):

380/415V: 4kW – 45kW

660/690V: afinyelela ku-45kW

Izigaba ezisetshenziswayo: I-AC-3 (ama-squirrel-cage motors), i-AC-4 (i-pluging & inching)

Isilinganiso se-Insulation Voltage: 690V AC

I-Ambient Temperature: -5°C ukuya +40°C

Ukuphakama: ≤ 2000m

Ukukhweza: Indiza emile ±5°, Isigaba Sokukhweza III

Oxhumana Nabo Abasizayo: 1NO + 1NC (okujwayelekile kuwo wonke amamodeli)

Izinketho zekhoyili:

Amakhoyili e-AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Amakhoyili e-DC: 24V, 36V, 48V, 110V, 220V

Ishidi ledatha yezobuchwepheshe

Izinto		Imodeli	I-LC1-D09	I-LC1-D12	I-LC1-D18	I-LC1-D25	I-LC1-D32
Isigxobo			3/4	3/4	3/4	3/4	3/4
Oxhumana naye Osizayo			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Ilinganiselwe ukushisisa okujwayelekile kwamanje (A) AC-1			20	20	30	40	50
Ilinganiselwe ukusebenza okwamanje (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	I-AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	I-AC-3 AC-4	1.5	2	3.8	4.4	7.5
I-voltage yokufaka elinganiselwe (V AC)			690	690	690	690	690
Amandla okulawulwa 3-isigaba injini yekheji (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
Ikhoyili ye-AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
Ikhoyili ye-DC(V)			24,36,48,110,220

Izinto		Imodeli	I-LC1-D40	I-LC1-D50	I-LC1-D65	I-LC1-D80	I-LC1-D95
Isigxobo			3/4	3/4	3/4	3/4	3/4
I-Axilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Ilinganiselwe ukushisisa okujwayelekile kwamanje (A) AC-1			60	80	80	110	110
Ilinganiselwe ukusebenza okwamanje (A)	380/400V	I-AC-3 AC-4	40	50	65	80	95
	380/400V	I-AC-3 AC-4	18.5	24	28	37	44
	660/690V	I-AC-3 AC-4	34	39	42	49	49
	660/690V	I-AC-3 AC-4	9	12	14	17.3	21.3
I-voltage yokufaka elinganiselwe (V AC)			690	690	690	690	690
Amandla okulawulwa 3-isigaba injini yekheji (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
Ikhoyili ye-AC(V)			24,36,48,110,127,220,240,380,415,440,480,500,600
Ikhoyili ye-DC(V)			24,36,48,110,220

Izinto			Imodeli		I-LC1-D115		I-LC1-D150		I-LC1-D170		I-LC1-D205		I-LC1-D245
Isigxobo					3		3		3		3/4		3/4
Ilinganiselwe ukushisisa okujwayelekile kwamanje (A) AC-1					200		200		200		275		280
Ilinganiselwe ukusebenza okwamanje (A)	380/400V		I-AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		I-AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
I-voltage yokufaka elinganiselwe (V AC)					690		690		690		690		690
Amandla okulawulwa 3-isigaba injini yekheji (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
Ikhoyili ye-AC(V)					110,127,220,240,380,415,440,480,500,600
Izinto				Imodeli		I-LC1-D300		I-LC1-D410		I-LC1-D475		I-LC1-D620
Isigxobo						3/4		3/4		3/4		3/4
Ilinganiselwe ukushisisa okujwayelekile kwamanje (A) AC-1						360		430		580		850
Ilinganiselwe ukusebenza okwamanje (A)		380/400V		I-AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		I-AC-3 AC-4		190		235		290		360
						60		72		85		170
I-voltage yokufaka elinganiselwe (V AC)						690		690		690		690
Amandla wesigaba esi-3 esilawulwayo injini yekheji (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
Ikhoyili ye-AC(V)						110, 127,220,240,380,415,440,480,500,600

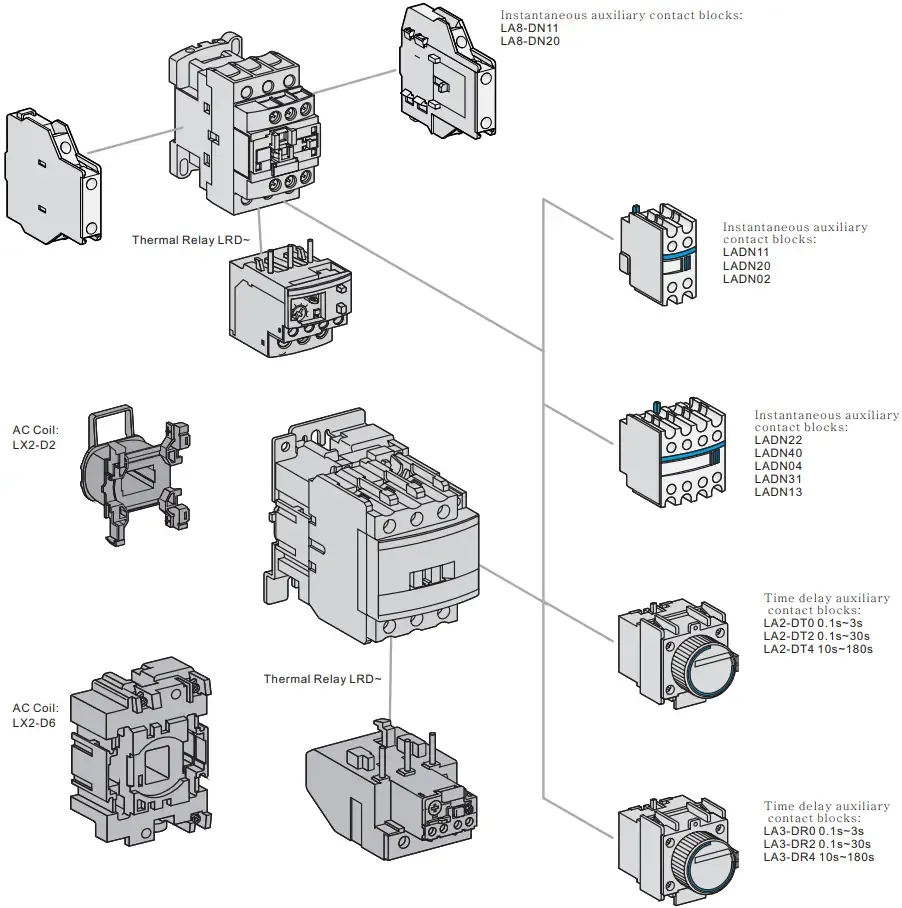

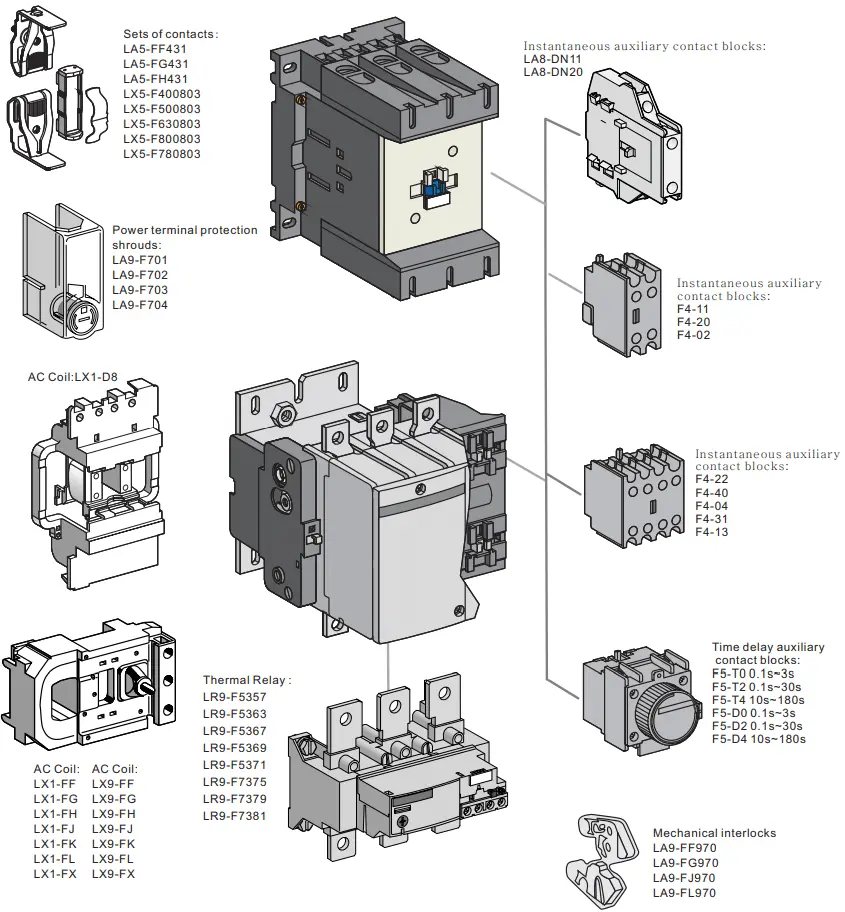

Izesekeli

D Contactor

Kungani Khetha I-CDADA D Contactor?

★ Ukuhambisana Kweqiniso kwe-IEC

Idizayinelwe futhi yahlolwa ku-IEC/EN 60947-4-1—ukuqinisekisa ukwamukelwa komhlaba wonke kanye nokusebenzisana.

★ Isixazululo Esigcwele Sokulawula Izimoto

Bhanqa nokulayishwa okushisayo kwe-CDADA kokuhlanganisa okuphelele kweziqalisi zezimoto—ukulayishwa ngokweqile + ukuhlukaniswa kwesifunda esifushane +.

★ Wide Voltage Ukuvumelana nezimo

Khetha kumakhoyili angu-13 AC kanye no-5 DC—alungele amaphrojekthi omhlaba wonke noma amaphaneli e-mix-voltage.

★ Iqine Ngomsebenzi Onzima

Isekela umsebenzi we-AC-4 (ukuhlehla/ukuxhuma njalo)—ilungele ama-cranes, amakheshi, nama-conveyor.

★ I-plug-and-Play Integration

Oxhumana nabo abasizayo abajwayelekile be-1NO+1NC banika amandla ukukhiya kalula, ukusayinda, noma impendulo ye-PLC.

★ Ukwethenjelwa kwe-Industrial-Grade

Ihlolelwe ukuqina kukagesi okuphezulu, ukumelana nokuxhumana okuphansi, nokucindezelwa kwe-arc okuzinzile—ukunciphisa isikhathi sokuphumula.

★ Izinzuzo zethu eziyinhloko yilezi: 1) Gcwalisa izitifiketi zamazwe ngamazwe, 2) Ikhono eliqinile le-OEM/ODM, 3) Isilinganiso esiphezulu sokusebenza kwezindleko, 4) Umthamo wokukhiqiza othembekile, 5) Isipiliyoni esibanzi sokuthekelisa.

D Contactor

★ Imikhiqizo yethu ithunyelwa ngempumelelo eNingizimu-mpumalanga ye-Asia, eMpumalanga Ephakathi, eNingizimu Melika, e-Afrika, e-Europe, namazwe e-CIS, ngokugxila kakhulu ezimakethe ze-Belt and Road.

D Contactor

Izicelo Ezijwayelekile

D Contactor Iziqalisi Zezimoto: Amaphampu, abalandeli, ama-compressor, ama-mixers

D Contactor HVAC Systems: Chiller & blower control

D Contactor I-Industrial Automation: Imigqa yokuthutha, imishini yokupakisha

D Contactor Ukuphathwa Kwezakhiwo: Ukulawula i-elevator, amabhange okukhanyisa

D Contactor Amandla & Amanzi: Ukwelashwa kwamanzi angcolile, izinhlelo zokunisela

imibuzo ejwayelekile ukubuzwa

Q1: Kusho ukuthini "D Contactor"?

I-A1: “D” isho igama lochungechunge (LC1-D) elisetshenziswa emhlabeni wonke kule modular, inkundla yokuxhumana ye-AC emisiwe. Akuwona umkhakha wobuchwepheshe—kodwa oqashelwa kabanzi esakhiweni samaphaneli ngenxa yokuhambisana kwaso nezinsiza ezifana nokulayishwa ngokweqile kanye nokuxhumanisa kwemishini.

Q2: Uyini umehluko phakathi kwe-AC-3 kanye ne-AC-4 duty?

A2:

● I-AC-3: Ukuqala/ukumiswa okujwayelekile kwezinjini zekheji lezingwejeje (isb., amaphampu, amafeni). Ukucindezeleka okuphansi.

● I-AC-4: Ukuxhuma njalo, uku-intshi, noma ukubuyisela emuva (isb., ama-cranes, ama-hoist). Ingcindezi kagesi ephezulu → idinga ukuxhumana okuqinile okwengeziwe. → I-CDADA LC1-D ikalwe ngazo zombili, iyenze ibe nezinto ezihlukahlukene.

Q3: Ngingakwazi ukusebenzisa lo othintana naye ngaphandle kwe-overload relay?

A3: Akunconyelwe ukulayishwa kwezimoto. Isixhumi sishintsha amandla kuphela—awavikeli ekulayishweni ngokweqile. Hlala ubhanqa ne-thermal noma i-electronic overload relay ngokuphepha kwemoto.

I-Q4: Ingabe izinguqulo ze-4-pole ziyatholakala?

A4: yebo! Wonke amamodeli e-LC1-D asekela ukulungiselelwa kwe-3P noma kwe-4P—ilungele izinhlelo zokusebenza ezishintshashintshayo ezimaphakathi noma amasistimu ezintambo ezingu-4.

Q5: Kungani ukhetha i-CDADA ngaphezu kwabanye oxhumana nabo be-D-series?

A5: I-CDADA inikeza:

● Ukuthobela kwe-IEC 60947-4-1 kwangempela nemibiko yokuhlola

● Ibanga lamandla kagesi ekhoyili elibanzi (okuhlanganisa i-415V, 480V, 600V yokuthekelisa)

● Ikhwalithi engaguquki enokuxhumana kwesiliva-alloy nama-arc chute

● Izintengo ezinobungani be-OEM kanye noshintsho olusheshayo lwesampula

● Izitifiketi zomhlaba wonke (CE) kanye nemibhalo yesiNgisi
