Uhlobo Lwezinsiza

Umsebenzi

Imininingwane Yezobuchwepheshe

Ukusebenza Okukude

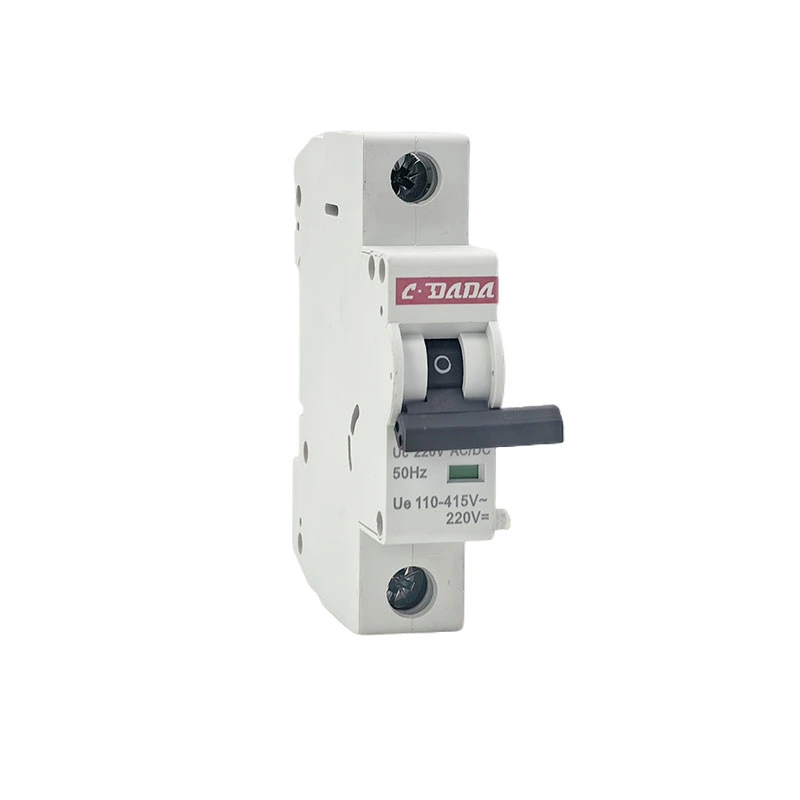

I-Shunt Trip (ST)

Ukukhubeka ngesilawuli samandla sangaphandle

I-AC: 24V, 110V, 230V, 415V; I-DC: 12V, 24V, 48V, 110V; I-Inrush 200VA (AC)/200W (DC), Ivalwe ngo-20VA (AC)/20W (DC); Isikhathi sohambo <50ms; Ububanzi: 17.5mm (1 module)

Ukukhishwa kwe-Undervoltage (UVR)

Ukukhubeka okuzenzakalelayo lapho i-voltage yehla ngaphansi komkhawulo

Ukuthatha: 0.85×Un; Ukuyeka: 0.35-0.7×Un (35-70% yesilinganiso); Ivimbela ukuvala kabusha okuzenzakalelayo; Ububanzi: 17.5mm (1 module)

Ukukhishwa kwe-Overvoltage

Uhambo lapho i-voltage yeqa imikhawulo ephephile

Ngokuvamile i-270-280V AC yamasistimu angu-230V; Ivikela ezimeni ze-overvoltage

I-Motor Operating Device

Ukushaja ugesi nokusebenza okukude UKUVULIWE/KUVALIWE

Ukunikezwa kwe-230V AC, isikhathi sokusebenza esingu-3-5s, ukubhala ngaphezulu ngesandla, impendulo yendawo

Ukusayina Isimo

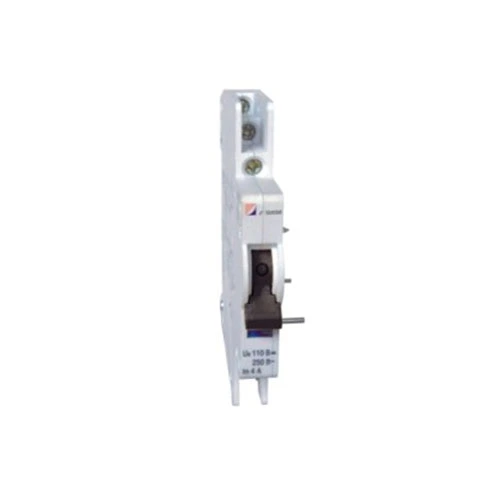

Othintana naye Osizayo (AX)

Ibonisa indawo ye-breaker (UKUVULIWE/KUVALIWE)

I-1NO+1NC noma i-2NO+2NC, i-6A ku-230V AC/3A ku-400V AC, oxhumana nabo be-alloy yesiliva; Ububanzi: 9mm (0.5 module)

Othintana Naye Nge-alamu (AL)

I-Signal breaker ikhubeke ngenxa yephutha

I-1NO+1NC, isebenza kuphela ohambweni oluzenzakalelayo (hhayi UKUVALWA kwezandla), ehlukile kokusizayo; Ububanzi: 9mm (0.5 module)

Othintana Naye Ngesiginali Yephutha

Ibonisa izinhlobo ezithile zamaphutha

I-Microswitch-based, ihlanganiswe namayunithi ohambo lwe-elekthronikhi

Ukuphepha Nokuvikeleka

Okunamathiselwe kwi-Padlock

Ivala i-breaker endaweni VULIWE noma IVALIWE

Yamukela ama-padlock angu-2 ane-4.75mm hasps; Ivimbela ukusebenza okungagunyaziwe

Ikhithi yokukhiya

Ivikela ukuguqula endaweni ethile

Ngezinqubo ze-Lockout/tagout (LOTO) yesondlo

Amasistimu webhasi

Ibha yohlobo lwe-pin

Uxhumo lokuhlinzekwa kwesigaba esingu-1 noma esi-3

1m ubude, kufika ku-56 izigxobo, 100A ilinganiselwe, ivalekile

Ibha yohlobo lwe-Fork

Ukusabalalisa kwezigxobo eziningi

Okokucushwa kwe-1P, 2P, 3P, 4P, izixhumi ezingemuva ziyatholakala

Ukuvikelwa & Ukuhlonza

Amakhava etheminali

Ivimbela ukuthintana ngephutha

IP20 kuya ku-IP40, imingcele yesigaba, idizayini ephephile ngomunwe

Ukumaka Imicu

Ukuhlonza isifunda

Imichilo yamamojula ayi-13 yokulebula, ukufakwa ngokuzenzakalelayo

Uhlakaniphile/Ukuxhumana

I-Wireless Auxiliary

Ukuqapha isimo se-Bluetooth/WiFi

I-Tuya App iyahambisana, izenzela amandla noma ibhethri, izexwayiso zesikhathi sangempela

Isakhi

Umsebenzi

Imininingwane Yezobuchwepheshe

Ikhoyili ye-Electromagnetic

Ikhiqiza insimu kazibuthe uma inikwe amandla

I-AC: I-Inrush 200VA, ivaliwe i-20VA; I-DC: I-Inrush 200W, ivaliwe i-20W; I-Insulation Class F (155°C) noma H (180°C)

I-Plunger Mechanism

Ibha yohambo yeziteleka ukuze ukhulule indlela

Insimbi eqinile, i-spring-return, stroke 3-5mm, force 2-5N

Ukukhweza

I-Snap-fit ​​ohlangothini lwesobunxele lwe-MCB

Ukufakwa okungenamathuluzi, ukuqondanisa okuzenzakalelayo nebha yohambo

Inkomba

Ifulegi likaMechanical ku-fascia

Inkomba ebonakalayo yokusebenza kwekhoyili

Ipharamitha

Ukucaciswa

Umsebenzi Wokuphepha

I-Pickup Voltage

0.85 × Un (i-breaker ingavalwa)

Ivimbela ukuvalwa kwamandla kagesi anganele

I-Voltage yokuyeka

0.35-0.70 × Un (35-70% wesilinganiso)

Uhambo oluzenzakalelayo ku-undervoltage

Isikhathi Ukubambezeleka

Ngokushesha noma 0.1-3s (izinhlobo zama-electronic)

Igwema ukukhubeka kwenkathazo kusukela ekudiphini kwesikhashana

Umsebenzi Oqhubekayo

I-voltage elinganiselwe engu-100%.

Ikhoyili inikezwa amandla ngokuqhubekayo ngesikhathi sokusebenza okuvamile

Ububanzi

17.5mm (imojuli e-1)

Ukukhwezwa kwesitimela okujwayelekile kwe-DIN

Isici

Othintana naye Osizayo (AX)

Othintana Naye Nge-alamu (AL)

Ukusebenza

Izinguquko zisho indawo yesibambo se-MCB

Isebenza kuphela ohambweni oluzenzakalelayo (ukulayisha ngokweqile/isiyingi esifushane)

Inkomba

IVULIWE/VALIWE isimo

Uhambo olunephutha kuphela

Ukucushwa koxhumana naye

1NO+1NC noma 2NO+2NC

I-1NO+1NC ejwayelekile

Isilinganiso

I-6A ku-230V AC, i-3A ku-400V AC

I-6A ku-230V AC, i-3A ku-400V AC

Ububanzi

9mm (0.5 module)

9mm (0.5 module)

Isicelo

Inkomba yesimo, ukukhiya, ukulawula amasekhethi

I-alamu yephutha, isexwayiso sokulungisa, inkomba yohambo

Isicelo

Ukucushwa Kwesesekeli

Izidingo Zobuchwepheshe

Ukuhlanganisa

Izindlu Ezihlakaniphile Zokuhlala

Shunt trip + Auxiliary + Wireless module

230V AC, WiFi/Bluetooth, Tuya App

I-automation yasekhaya, isilawuli kude, ukuphathwa kwamandla

Izakhiwo Zokuhweba

I-UVR + Isilekeleli + I-alamu

I-230V AC, ukuhlanganiswa kwe-BMS, isixhumi esibonakalayo se-alamu yomlilo

Uhlelo Lokuphathwa Kwezakhiwo, ukuvala shaqa okuphuthumayo

Ukulawulwa Kwezimboni

Shunt uhambo + 2× Isilekeleli + Umqhubi wemoto

24V DC, ukuhambisana kwe-PLC, impendulo esheshayo (<50ms)

Ukulawulwa kwe-PLC/DCS, amasekhethi okuphepha komshini

Izinsiza Zezempilo

I-UVR + Alarm + Padlock

Ibanga lezokwelapha, ukwethembeka okuphezulu, amandla e-LOTO

Ukuphathwa kwamandla abalulekile, ukuphepha kokulungisa

Izikhungo Zedatha

Shunt trip + Alarm + Busbar system

I-48V DC, ukuminyana okuphezulu, ukunwetshwa kwe-modular

Amayunithi okusabalalisa amandla (PDUs), ukuphathwa okukude

Amandla Avuselelekayo

Shunt trip + Overvoltage release

Amasistimu we-1000V DC, ukulinganisa kwangaphandle, ukuvala shaqa ngokushesha

Izinhlelo ze-Solar PV, isitoreji samandla, ukuhlanganiswa kwe-inverter

Amafutha Negesi

Izinsiza ezivikela ukuqhuma + UVR

I-ATEX/IECEx iqinisekisiwe, isendaweni eshisayo

Izinhlelo zokuvala shaqa izimo eziphuthumayo (ESD), izindawo eziyingozi

Ingqalasizinda

I-motor operator + I-Axiliary + Ilokhi yokhiye

400V AC, umsebenzi osindayo, impilo yomjikelezo engu-50,000

Izinhlelo ze-SCADA, izikhungo zokulawula kude

Isiteji

Imininingwane Yenqubo

Amaphuzu Okulawula Ikhwalithi

I-Coil Winding

Intambo yethusi ene-enameled (0.1-0.3mm), ukujikajika okuzenzakalelayo okunokulawula ukungezwani, ukumiliselwa kokuvanisha kwevacuum

I-turn count ±1%, ukumelana kwe-DC ± 5%, amandla e-dielectric 2kV/1min, ukumelana nokushisa > 100MΩ

Plunger Machining

I-SPCC yensimbi egoqiwe ebandayo noma i-iron powder metallurgy, ukunemba kokugaya, ukuqina (HRC 45-55)

Ukubekezelela Dimensional ±0.02mm, surface finish Ra 0.8, permeability kazibuthe >5000

Contact Fabrication

I-Silver-nickel (AgNi 90/10) isitembu, i-riveting kuma-copper carriers, isula ukwakheka kwejometri

Ukuqina kwe-HV 80-120, ukumelana nokuxhumana <50mΩ, amandla okubhuqa >50MPa

Ukubunjwa Kwezindlu

I-PA66 GF30 noma i-PBT GF30, 280-320°C umjovo, 17.5mm modularity ebalulekile

Ukubekezelela i-Dimensional ±0.05mm, inkomba yokulandelela >600V, UL 94 V-0, ukumelana nokushisa 160°C

Spring Manufacturing

I-oil-tempered carbon steel SWOSC-V noma insimbi engagqwali 301, CNC coiling, ukwelashwa ukushisa

Impilo yokukhathala > imijikelezo engu-100,000, izinga lentwasahlobo ±10%, ukuphumula <5%

I-Sub-Assembly

Ukuhlanganiswa kwe-coil-plunger-contact, ukulungiswa kwe-stroke, ukuhlolwa kwe-snap-fit ​​mechanism

I-voltage esebenzayo 0.85-1.1×Un, amandla ohambo 2-5N, isikhathi sokuphendula <50ms

Ukulinganiswa Kokugcina

I-Pickup/dropout voltage verification (UVR), ukulinganisa isikhathi sokusebenza (shunt trip), ukumelana nokuxhumana

Ukuhlola okuzenzakalelayo okungu-100%, ukugawulwa kwedatha, ukulandeleka kwekhodi ye-QR

Isakhi

Ukucaciswa Kwempahla

Amazinga Womphakeli

Izakhiwo Eziyinhloko

I-Coil Wire

Intambo yethusi ene-enameled Ikilasi F (155°C) noma Ikilasi H (180°C)

IEC 60317, NEMA MW 35

I-voltage ehlukanisiwe > 2kV, i-solderability 390°C/2s, ukuguquguquka

I-Magnetic Core

Ama-silicone ensimbi (0.35-0.5mm) noma insimbi eqinile

I-IEC 60404-8, JIS C 2552

Ukungena okuphezulu, ukucindezelwa okuphansi, izakhiwo ezingaguquki kazibuthe

I-Plunger/Armature

I-SPCC yensimbi egoqwe ebandayo noma i-iron powder (Fe-99%)

I-JIS G 3141, MPIF Standard 35

HRC 45-55, surface finish Ra 0.8, ukumelana nokugqwala

Oxhumana nabo

I-Silver-nickel (AgNi 90/10) noma i-silver-cadmium oxide (AgCdO)

I-ASTM B152, IEC 60368

I-Conductivity> 90% IACS, ukumelana nokuguguleka kwe-arc, i-anti-welding

Xhumana ne-Springs

I-Beryllium yethusi (CuBe2 C17200) noma insimbi engagqwali 301

I-ASTM B196

Impilo yokukhathala > imijikelezo engu-100,000, ingcindezi engaguquki, ukumelana nokugqwala

Izindlu

I-PA66 GF30 (30% i-glass fiber) noma i-PBT GF30

I-IEC 60664-1, UL 94 V-0

Inkomba yokulandelela >600V, ukumelana nokushisa 160°C, amandla okuthinta >7 kJ/m²

I-DIN Rail Clip

Spring steel 65Mn noma insimbi engagqwali 304, zinc-plated

I-GB/T 1222, ISO 3506

I-Clamp force 50-100N, ukukhathala komjikelezo we-10,000, ukumelana nokugqwala

Amatheminali

I-Brass C36000 noma i-C11000 yethusi ene-tin plating (5-8μm)

I-ASTM B16/B187

Ukuminyana kwamanje 1.0-1.5 A/mm², i-torque imelana no-1.5-2.5Nm

Okujwayelekile

Ububanzi

Izidingo Ezisebenzayo

I-I-IEC 60898-1

Ama-circuit-breaker okufakwa kwasendlini nokunye okufanayo

Isisekelo esijwayelekile sama-MCB, ukuhambisana kwezinsiza

I-I-IEC 60947-5-1

Lawula amadivayisi wesekethe nezinto ezishintshayo

Izilinganiso zokuxhumana ezisizayo, amandla kagesi, izimpawu zetheminali

I-IEC 60947-2

I-switchgear ye-low-voltage - Izinqamuli zesekethe

Shunt uhambo/UVR ukusebenza, ukuxhumanisa

EN 60898-1 / EN 60947-5-1

Izinguqulo zaseYurophu ezivumelanisiwe

Ukumakwa kwe-CE, ukufinyelela kwemakethe ye-EU

Isigaba sokuhlola

Ukuhlolwa Okuthize

Imibandela Yokwamukela

Ukukhuthazela Kagesi

10,000 imisebenzi at yamanje rated (AC-15/DC-13)

Ukugqoka kokuxhumana <50%, akukho ukushisela, ukusebenza okungaguquki

Ukukhuthazela Kwemishini

100,000 imisebenzi engalayishiwe

<5% ipharamitha yokukhukhuleka, akukho ukwehluleka komshini

Izakhiwo zeDielectric

2kV AC/1min (control circuits), 4kV impulse

Akukho ukuhlukana, akukho flashover

Izinga lokushisa liyakhuphuka

Ukusebenza okuqhubekayo ku-voltage elinganiselwe/yamanje

Ikhoyili ≤85K (Ikilasi F), amatheminali ≤80K

Ukushaqeka & Ukudlidliza

I-IEC 60068-2-27 (ukwethuka), IEC 60068-2-6 (vibration)

Akukho ukusebenza okungamanga, akukho monakalo, ukusebenza ngemuva kokuhlolwa

Ezemvelo

Ukushisa okumanzi (IEC 60068-2-30), ukushisa okubandayo, okomile

Isebenza ngemuva kokumiswa, akukho ukugqwala

I-EMC

Ukungavikeleki ekuphazameni okwenziwe/kwemisebe

Akukho ukusebenza kwenkathazo, EN 60947-5-1

Okubalulekile

Izinto Zokuhlola

Uhlelo lwesampula

Izisetshenziswa

Intambo ene-enameled

Ububanzi, i-voltage yokuphuka, ukunwetshwa, ukuqina

I-AQL 0.65

I-Micrometer, i-dielectric tester, umshini oqinile

Insimbi kazibuthe

Permeability, core ukulahlekelwa, ukwahlukanisa enamathela

Ngeqoqo ngalinye

Uhlaka lwe-Epstein, umhloli weshidi elilodwa

Oxhumana nabo abasiliva

Ubumsulwa, ubulukhuni, ukuminyana, ukubekezelelana kobukhulu

Ngeqoqo ngalinye

I-Spectrometer, isihloli sokuqina, i-CMM

Izinhlayiya zepulasitiki

Okuqukethwe kwengilazi, i-viscosity, umswakama, ukuvutha

Ngeqoqo ngalinye

I-Melt flow indexer, i-DSC, imishini ye-UL 94

Insimbi yasentwasahlobo

Amandla okuqina, ukumelana nokukhathala, ukwakha

Ngeqoqo ngalinye

Umshini oqinile, umhloli wokukhathala

Isiteshi

Lawula Amapharamitha

Imvamisa

Indlela

Ukusonteka ikhoyili

Ijika ukubala, ukushuba, ukumelana, ukwahlukanisa

Wonke amayunithi

Ukujikajika okuzenzakalelayo ngempendulo, i-ohmmeter

Plunger machining

Ukubekezelela i-Dimensional, ukuqedwa kwendawo, ubulukhuni

Njalo ngamayunithi ayi-100

I-CMM, i-profilometer, umhloli wokuqina

Xhumana nomhlangano

Ukuqondanisa, ingcindezi, ukumelana, ikhwalithi yokubhoda

Njalo ngamayunithi ayi-100

Force gauge, micro-ohmmeter, XRF

Ukwakhiwa kwezindlu

Izinga lokushisa, ingcindezi, ukunemba kobukhulu

Wonke umjikelezo

Ukuqapha kwe-SCADA, amashadi e-SPC

I-sub-assembly

I-voltage yokusebenza, unhlangothi, isikhathi sokuphendula

Wonke amayunithi

Ibhentshi lokuhlola elizenzakalelayo, ukungena kwedatha

Into yokuhlola

Okujwayelekile

Usayizi Wesampula

Ibanga le-voltage esebenzayo

0.85-1.1×Un (ukuthatha), >0.2×Un (ukukhipha i-UVR)

100%

Isikhathi sokuphendula (uhambo lwe-shunt)

<50ms ku-voltage elinganiselwe

100%

Xhumana nokumelana

<50mΩ (isilekeleli), <100mΩ (i-alamu)

100%

I-Dielectric ukumelana ne-voltage

2kV AC/1min

100%

Ukumelana ne-insulation

>100MΩ @ 500V DC

100%

Ukusebenza komshini

Imijikelezo eyi-10, ibushelelezi, akukho okunamathelayo

100%

Ukuhambisana kwe-Snap-fit

Ukukhwelana nohlaka olukhethiwe lwe-MCB

100%

Ukuhlola okubonakalayo nobukhulu

17.5mm modularity, okumaka unomphela

100%

Isampula yokubekezelela kagesi

Imisebenzi eyi-1,000 ngomthwalo olinganiselwe

I-AQL 1.0

Ubuqotho bokupakisha

Ukuhlolwa kokudedela, ukudlidliza (ISTA 3A)

Ngamunye

Isigaba Sezisetshenziswa

Ukucaciswa komshini

Umsebenzi

Amandla

I-Coil Winding

Imishini yokusonta ye-CNC (Nittoku/Marsilli) enokulawula ukungezwani

Ukukhiqiza ikhoyili eqondile

20,000 amakhoyili/ngosuku

Ukunyathela Nokwakha

Ukucindezela kwe-die okuqhubekayo okungamathani angama-60 (Bruderer)

Isitembu sokuxhumana, ukwakheka kwentwasahlobo

30,000 izingxenye/ngosuku

Ukubunjwa komjovo

80-tons thermoplastic press (Arburg)

Izindlu, izivalo, iziqeshana zikaloliwe ze-DIN

10,000 izindlu/ngosuku

Assembly Automation

Amaseli eRobhothi (ABB/Fanuc) anezinhlelo zokubona

I-sub-assembly, ukulinganisa, ukuhlolwa

5,000 izesekeli/ngosuku kulayini ngamunye

Izisetshenziswa zokuhlola

Ibhentshi lokuhlola insiza ezenzakalelayo

Izici zokusebenza, isikhathi, ukubekezela

1,000 amayunithi / ihora

Umhloli wokukhuthazela wemishini

Ukuqinisekiswa komjikelezo we-100,000

200 amayunithi kanyekanye

Igumbi lokuhlola le-EMC

Ukuhlolwa kokugomela/ukukhishwa

100 amayunithi / ngosuku

Isigaba somkhiqizo

Amandla Wanyanga zonke

Isikhathi Esijwayelekile Sokuhola

Amandla Woku-oda Okuphuthumayo

I-Shunt Trips (wonke ama-voltages)

50,000 amayunithi

4-5 amaviki

3 izinsuku

Ukukhishwa kwe-Undervoltage

20,000 amayunithi

4-5 amaviki

3 izinsuku

Oxhumana Nabo Abasizayo

10,000 amayunithi

4-5 amaviki

3 izinsuku

Oxhumana nabo be-alamu

50,000 amayunithi

4-5 amaviki

3 izinsuku

Amadivayisi Asebenzisa Izimoto

50,000 amayunithi

4-5 amaviki

5 izinsuku

Amasistimu webhasi

1,000 amamitha

4-5 amaviki

3 izinsuku

Umnyango

Abasebenzi

Uchwepheshe

Izibopho

Ubunjiniyela be-R&D

5

 onjiniyela

Idizayini ye-electromagnetic, i-physics yokuxhumana, ukuhlanganiswa kwe-IoT, ukuxhumana okungenantambo

Ukuthuthukiswa kwesesekeli esisha, izici ezihlakaniphile, iphothifoliyo yelungelo lobunikazi (30+ amalungelo obunikazi)

Ubunjiniyela Bezinqubo

15 onjiniyela

I-coil winding automation, ukunemba isitembu, ukubumba ipulasitiki, ukukhiqiza okunciphile

Ukuthuthukiswa kokukhiqiza, ukuthuthukiswa kwesivuno (>99%), ukuncishiswa kwezindleko

Ukuhlola Nokuqinisekisa

12 onjiniyela

Ukuhambisana kwe-IEC 60898/60947, ukuhlolwa kokubekezela, i-EMC, ukulingisa kwemvelo

Ukudidiyelwa kokuhlolwa kohlobo, ukuhlaziywa kokwehluleka, ukuphathwa kwezitifiketi

Ubunjiniyela bohlelo lokusebenza

10 onjiniyela

Ukuhlanganiswa kwe-MCB, izinhlelo zokulawula, isikhombimsebenzisi se-BMS/SCADA

Ukwesekwa kobuchwepheshe bekhasimende, ukwakheka kwesistimu, ukugunyazwa

Ukuqinisekisa ikhwalithi

25 ochwepheshe

ISO 9001, IATF 16949, ukulawulwa kwenqubo yezibalo, i-metrology

Ukucwaningwa kwabahlinzeki, ukuhlolwa kwenqubo, isenzo sokulungisa, ukulinganisa
