Imboni Ethembekile Yezesekeli ze-MCCB

Isigaba

Uhlobo Lwezinsiza

Umsebenzi

Imininingwane Yezobuchwepheshe

Ukusebenza Okukude

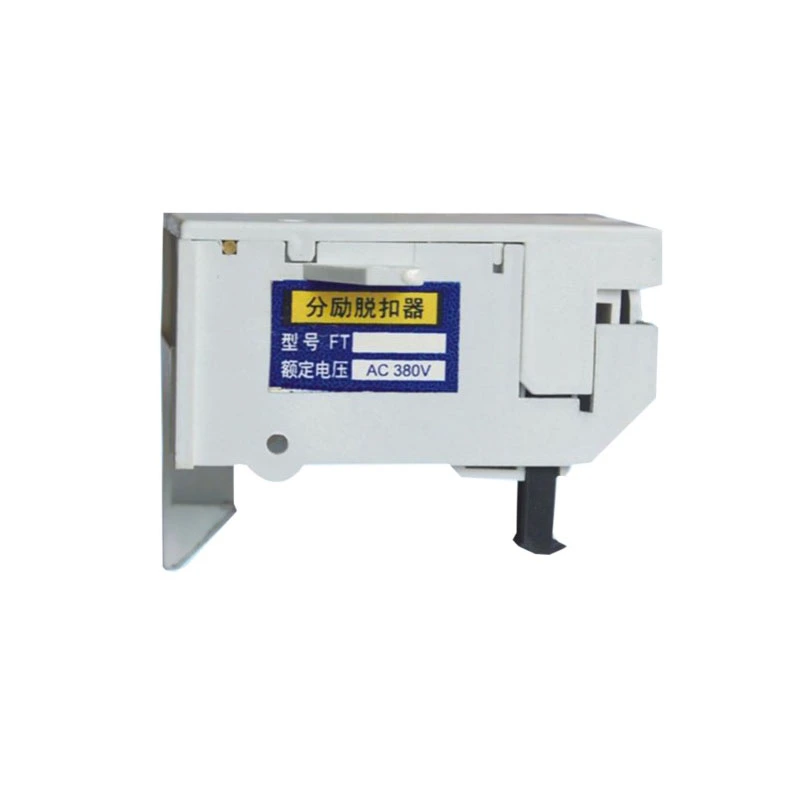

I-Shunt Trip (MX)

Ukukhubeka ngesilawuli samandla sangaphandle

I-AC: 24V, 48V, 110V, 230V, 400V; I-DC: 12V, 24V, 48V, 110V; I-Inrush 200VA (AC)/200W (DC), Ivalwe ngo-20VA (AC)/20W (DC); Isikhathi sohambo <50ms

Ukukhishwa kwe-Undervoltage (MN/UVR)

Ukukhubeka okuzenzakalelayo lapho i-voltage yehla ngaphansi komkhawulo

Ukuthatha: 0.85×Un; Ukuyeka: 0.35-0.7×Un; Ukubambezeleka kwesikhathi: 0.1s-3s (kuyalungiseka); Umsebenzi oqhubekayo

I-Motor Operator (MO)

Ukushaja ugesi kanye nokusebenza kwe-breaker mechanism

Ukunikezwa kwe-AC/DC, isikhathi sokusebenza esingu-3-5s, ukubhala ngaphezulu ngesandla, impendulo yendawo

Ukusayina Isimo

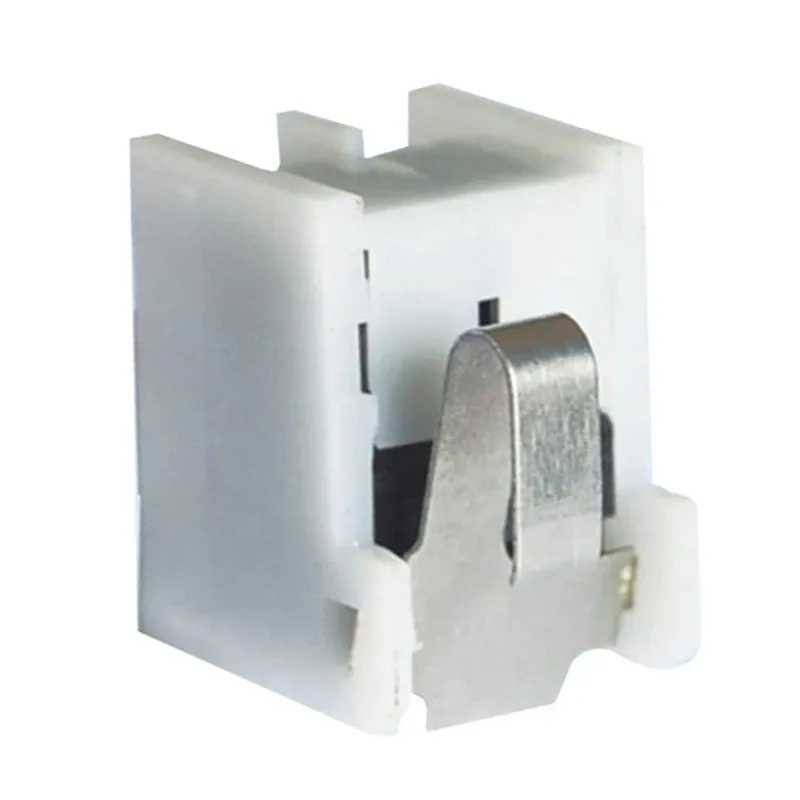

Oxhumana Nabo Abasizayo (AX)

Khombisa indawo yesiphazamiso (VULIWE/KUVALIWE)

I-1NO+1NC noma i-2NO+2NC, i-10A ku-230V AC, oxhumana nabo be-alloy yesiliva, isenzo se-snap-action

Oxhumana nabo be-alamu (AL)

I-Signal breaker ikhubeke ngenxa yephutha

I-1NO+1NC, isebenza kuphela ohambweni (hhayi UKUVALWA ngesandla), okuhlukile kokusizayo

Oxhumana Nabo Besignali Yephutha

Khomba izinhlobo ezithile zamaphutha (ukulayishwa ngokweqile, i-short-circuit, iphutha eliphansi)

I-Microswitch-based, ihlanganiswe namayunithi ohambo lwe-elekthronikhi

Ukuphepha nokuxhumanisa

I-Rotary Handle

Ukusebenza kwangaphandle ngomnyango/iphaneli

Okuqondile noma okunwetshiwe, okukhiyekayo, i-IP65, ukukhiya komnyango

I-Door Interlock

Vimbela ukuvuleka kwesicabha uma i-breaker IVULIWE

Ukuxhunyaniswa kwemishini, kuyahlulwa ekufinyeleleni okuphuthumayo

Khiya ukhiye

Khawulela ukusebenza kubasebenzi abagunyaziwe

Izinhlobo zokukhiya eziningi (i-Ronis, i-Profalux), ukhiye okhiphekayo KUVULIWE noma KUVALIWE

I-Mechanical Interlock

Vimbela ukuvalwa ngesikhathi esisodwa kwama-breaker amabili

Ikhebula noma uhlobo lwenduku, lwezinhlelo zokusebenza zokushintsha

Ukuvikelwa & Ukuqapha

Amakhava etheminali

Vimbela ukuthintana ngengozi nezingxenye ezibukhoma

IP20 kuya ku-IP40, imingcele yesigaba, enwetshiwe ekuxhumekeni kwebha yebhasi

Izithiyo Zesigaba

Khulisa imvume phakathi kwezigaba

Izinto ezivikelayo, i-400-690V elinganiselwe, idizayini ye-modular

I-Surge Protection Device (SPD)

Vikela i-breaker ekuqhumeni kombani

Thayipha 1+II, 12.5-15kA impulse current, ukukhweza okuhlanganisiwe

Ukuxhumana & Smart

Oxhumana naye Ongenantambo

Ukuqapha isimo esikude nge-Bluetooth/WiFi

I-Tuya App iyahambisana, ububanzi obungu-45mm, ibhethri noma izenzela amandla

Modbus Communication Module

Ukuhlanganiswa nezinhlelo ze-BMS/SCADA

I-RS485 interface, idatha yesikhathi sangempela, amandla okulawula kude

I-PowerTag Energy Sensor

Ukuqapha amandla okungenantambo

Ukunemba okungu-1%, idatha yemizuzu engu-15, ukuxhumeka kwamafu

Usayizi wozimele we-MCCB

Shunt Uhambo

I-UVR

Umsizi

I-Motor Operator

I-Rotary Handle

100A-250A

Ngaphakathi

Ngaphakathi

Ngaphakathi/Kwangaphandle

Kwangaphandle

Kwangaphandle

250A-630A

Ngaphakathi

Ngaphakathi

Ngaphakathi/Kwangaphandle

Ngaphakathi/Kwangaphandle

Kwangaphandle

630A-1600A

Ngaphakathi

Ngaphakathi

Ngaphakathi

Ngaphakathi

Ingaphandle/Inwetshiwe

1600A-2000A

Kwangaphandle

Kwangaphandle

Kwangaphandle

Kwangaphandle

Unwetshiwe/Umsebenzi osindayo

Isakhi

Umsebenzi

Imininingwane Yezobuchwepheshe

Ikhoyili ye-Electromagnetic

Ikhiqiza insimu kazibuthe uma inikwe amandla

I-AC: I-Inrush 200VA, ivaliwe i-20VA; I-DC: I-Inrush 200W, ivaliwe i-20W; I-Insulation Class F (155°C)

I-Plunger Mechanism

Ibha yohambo yeziteleka ukuze ukhulule indlela

Insimbi eqinile, i-spring-return, i-stroke engu-5-10mm

Isistimu Yokuxhumana

Ihlukanisiwe kumasekhethi ama-breaker amakhulu

Ukufakwa okuqinisiwe, ukumelana nomfutho we-4kV

Ukukhweza

I-Snap-fit ​​noma i-screw-efakwe ku-breaker cavity

Ukufakwa ngaphandle kwamathuluzi kuma-MCCB amaningi esimanje

Ipharamitha

Ukucaciswa

Umsebenzi Wokuphepha

I-Pickup Voltage

0.85 × Un (i-breaker ingavalwa)

Ivimbela ukuvala ku-voltage ephansi

I-Voltage yokuyeka

0.35-0.7 × Un (kuyalungiseka)

Uhambo oluzenzakalelayo ku-undervoltage

Isikhathi Ukubambezeleka

0.1s-3s (izinhlobo zikagesi)

Ivimbela ukukhuphuka kwenkathazo kusuka kumadiphu kagesi

Umsebenzi Oqhubekayo

I-voltage elinganiselwe engu-100%.

Ikhoyili inikezwa amandla ngokuqhubekayo ngesikhathi sokusebenza okuvamile

Uhlobo Lokuxhumana

Ukusebenza

Isicelo

Othintana naye Osizayo (AX)

Ishintsha isimo ngothintwayo abakhulu abaphula umthetho

Inkomba yesimo (KUVULIWE/KUVALIWE), ukuxhumanisa, ukulawula amasekhethi

Othintana Naye Nge-alamu (AL)

Isebenza kuphela ohambweni oluzenzakalelayo (ukulayisha ngokweqile/isiyingi esifushane)

Isibonakaliso sephutha, amaphaneli e-alamu, izexwayiso zokulungisa

I-alamu yesiyingi esifushane

Icacise ukusebenza kohambo lukazibuthe

Inkomba yephutha ekhethiwe

I-alamu yokulayisha ngaphezulu

Icacile ekusebenzeni kohambo olushisayo

I-trigger yokulungisa yokuvimbela

Isicelo

Ukucushwa Kwesesekeli

Izidingo Zobuchwepheshe

Ukuhlanganisa

I-Industrial Automation

Shunt uhambo + 2× Isilekeleli + Umqhubi wemoto

Ukulawula okungu-24V DC, ukusebenza okusheshayo (<50ms), impendulo yendawo

Ukuhlanganiswa kwe-PLC/DCS, isilawuli esikude se-HMI

Izakhiwo Zokuhweba

I-UVR + Isibambo Esisizayo + Sokujikeleza

230V AC, isicabha esikhiyayo, siyavaleleka

Ukuhlanganiswa kwe-BMS, isikhombimsebenzisi se-alamu yomlilo

Izikhungo Zedatha

Shunt trip + Alamu + Communication module

I-48V DC, ukusayina okungafuneki, i-Modbus/BACnet

Isoftware ye-DCIM, ukucisha ukulayisha okuzenzakalelayo

Izinsiza Zezempilo

I-UVR + 2×Isilekeleli + Ilokhi yokhiye

Ibanga lezokwelapha, ukwethembeka okuphezulu, ukufinyelela okukhawulelwe

Ukuphathwa kwamandla abalulekile, amaphaneli okuhlukanisa

Amandla Avuselelekayo

Shunt trip + Surge Protection + Wireless

Amandla we-1000V DC, ukulinganisa kwangaphandle, ukuqapha okukude

I-Solar SCADA, izinhlelo zokuphatha amandla

Amafutha Negesi

Izinsiza ezivikela ukuqhuma + UVR + Shunt

I-ATEX/IECEx iqinisekisiwe, imelana nokugqwala, isendaweni eshisayo

Amasistimu wokuvala okuphuthumayo (ESD)

Osolwandle/Olwandle

I-UVR ye-Tropicalized + Mechanical interlock

I-ambient engu-55°C, imelana nesifutho sikasawoti, ayisebenzi

I-automation yomkhumbi, ukuvumelanisa kwe-generator

Ingqalasizinda

Umqhubi wemoto + I-rotary Enwetshiwe + Iswishi yesikhundla

400V AC, umsebenzi osindayo, impilo yomjikelezo engu-50,000

Izinhlelo ze-SCADA, izikhungo zokulawula kude

Isiteji

Imininingwane Yenqubo

Amaphuzu Okulawula Ikhwalithi

I-Coil Winding

Intambo yethusi ene-enameled (0.1-0.5mm), ukujikajika okuzenzakalelayo okunokulawula ukungezwani, ukumiliselwa kokuvanisha kwevacuum

I-turn count ±1%, ukumelana kwe-DC ± 5%, amandla e-dielectric 2kV/1min, ukumelana nokushisa > 100MΩ

I-Plunger/Armature Machining

Insimbi egoqiwe ebandayo noma i-iron powder metallurgy, ukunemba ukugaya, ukuqina (HRC 45-55), ukwelashwa kwendawo

Ukubekezelela Dimensional ±0.02mm, surface finish Ra 0.8, permeability kazibuthe >5000

Contact Fabrication

I-Silver-nickel (AgNi 90/10) noma i-silver-cadmium oxide (AgCdO), isitembu, i-riveting noma i-welding kubathwali bethusi

Ukuqina kwe-HV 80-120, ukumelana nokuxhumana <50mΩ, amandla okubhuqa >50MPa

Ukubunjwa Kwezindlu

I-PA66 GF30 noma i-PBT GF30, i-280-320°C umjovo, i-modularity engu-17.5mm yokuhambisana kwesitimela se-DIN

Ukubekezelelwa kobukhulu ±0.1mm, inkomba yokulandelela >600V, UL 94 V-0

Spring Manufacturing

I-oil-tempered carbon steel SWOSC-V noma insimbi engagqwali 301, CNC coiling, ukwelashwa ukushisa

Impilo yokukhathala > imijikelezo engu-100,000, izinga lentwasahlobo ±10%, ukuphumula <5%

I-Sub-Assembly

Ukuhlanganiswa kwe-coil-plunger-contact, ukulungiswa kwe-stroke, ukuhlolwa kwe-snap-fit ​​mechanism

I-voltage esebenzayo 0.85-1.1×Un, amandla ohambo 2-5N, isikhathi sokuphendula <50ms

Ukulinganiswa Kokugcina

I-Pickup/dropout voltage verification (UVR), ukulinganisa isikhathi sokusebenza (shunt trip), ukumelana nokuxhumana

Ukuhlola okuzenzakalelayo okungu-100%, ukugawulwa kwedatha, ukulandeleka kwekhodi ye-QR

Isakhi

Ukucaciswa Kwempahla

Amazinga Womphakeli

Izakhiwo Eziyinhloko

I-Coil Wire

Intambo yethusi ene-enameled Ikilasi F (155°C) noma Ikilasi H (180°C)

IEC 60317, NEMA MW 35

I-voltage ehlukanisiwe > 2kV, i-solderability 390°C/2s, ukuguquguquka

I-Magnetic Core

Ama-silicone ensimbi (0.35-0.5mm) noma insimbi eqinile

I-IEC 60404-8, JIS C 2552

Ukungena okuphezulu, ukucindezelwa okuphansi, izakhiwo ezingaguquki kazibuthe

I-Plunger/Armature

I-SPCC yensimbi egoqwe ebandayo noma i-iron powder (Fe-99%)

I-JIS G 3141, MPIF Standard 35

HRC 45-55, surface finish Ra 0.8, ukumelana nokugqwala

Oxhumana nabo

I-Silver-nickel (AgNi 90/10) noma i-AgCdO

I-ASTM B152, IEC 60368

I-Conductivity> 90% IACS, ukumelana nokuguguleka kwe-arc, i-anti-welding

Xhumana ne-Springs

I-Beryllium yethusi (CuBe2 C17200) noma insimbi engagqwali 301

I-ASTM B196

Impilo yokukhathala > imijikelezo engu-100,000, ingcindezi engaguquki, ukumelana nokugqwala

Izindlu

I-PA66 GF30 noma i-PBT GF30, i-flame retardant

I-IEC 60664-1, UL 94 V-0

Inkomba yokulandelela >600V, ukumelana nokushisa 160°C, amandla okuthinta >7 kJ/m²

Amatheminali

I-Brass C36000 noma i-C11000 yethusi ene-tin Plating

I-ASTM B16/B187

Ukuminyana kwamanje 1.0-1.5 A/mm², i-torque imelana no-1.5-2.5Nm

I-DIN Rail Clip

Spring steel 65Mn noma insimbi engagqwali 304

I-GB/T 1222, ISO 3506

I-Clamp force 50-100N, ukukhathala komjikelezo we-10,000, ukumelana nokugqwala

Okujwayelekile

Ububanzi

Izidingo Ezisebenzayo

I-I-IEC 60947-2

I-switchgear ye-low-voltage - Izinqamuli zesekethe

Ukuhambisana nesesekeli, ukusebenzelana ne-breaker, ukumelana ne-short-circuit

I-I-IEC 60947-4-1

Oxhumana nabo kanye neziqalisi zezimoto

Ukusebenza komqhubi wezimoto, izimfuneko zesekethe yokulawula

I-IEC 60947-5-1

Lawula amadivayisi wesekethe nezinto ezishintshayo

Izilinganiso zokuxhumana ezisizayo, amandla kagesi, izimpawu zetheminali

RoHS/REACH

Ukuthobela imvelo

Imikhawulo yento eyingozi, izimemezelo zezinto ezibonakalayo

Isigaba sokuhlola

Ukuhlolwa Okuthize

Imibandela Yokwamukela

Ukukhuthazela Kagesi

10,000 imisebenzi at yamanje rated (AC-15/DC-13)

Ukugqoka kokuxhumana <50%, akukho ukushisela, ukusebenza okungaguquki

Ukukhuthazela Kwemishini

100,000 imisebenzi engalayishiwe

<5% ipharamitha yokukhukhuleka, akukho ukwehluleka komshini

Izakhiwo zeDielectric

2kV AC/1min (control circuits), 4kV impulse

Akukho ukuhlukana, akukho flashover

Izinga lokushisa liyakhuphuka

Ukusebenza okuqhubekayo ku-voltage elinganiselwe/yamanje

Ikhoyili ≤85K (Ikilasi F), amatheminali ≤80K

Ukushaqeka & Ukudlidliza

I-IEC 60068-2-27 (ukwethuka), IEC 60068-2-6 (vibration)

Akukho ukusebenza okungamanga, akukho monakalo, ukusebenza ngemuva kokuhlolwa

Ezemvelo

Ukushisa okumanzi (IEC 60068-2-30), ukushisa okubandayo, okomile

Isebenza ngemuva kokumiswa, akukho ukugqwala

I-EMC

Ukungavikeleki ekuphazameni okwenziwe/kwemisebe

Akukho ukusebenza kwenkathazo, EN 60947-2 Annex F

Okubalulekile

Izinto Zokuhlola

Uhlelo lwesampula

Izisetshenziswa

Intambo ene-enameled

Ububanzi, i-voltage yokuphuka, ukunwetshwa, ukuqina

I-AQL 0.65

I-Micrometer, i-dielectric tester, umshini oqinile

Insimbi kazibuthe

Permeability, core ukulahlekelwa, ukwahlukanisa enamathela

Ngeqoqo ngalinye

Uhlaka lwe-Epstein, umhloli weshidi elilodwa

Oxhumana nabo abasiliva

Ubumsulwa, ubulukhuni, ukuminyana, ukubekezelelana kobukhulu

Ngeqoqo ngalinye

I-Spectrometer, isihloli sokuqina, i-CMM

Izinhlayiya zepulasitiki

Okuqukethwe kwengilazi, i-viscosity, umswakama, ukuvutha

Ngeqoqo ngalinye

I-Melt flow indexer, i-DSC, imishini ye-UL 94

Insimbi yasentwasahlobo

Amandla okuqina, ukumelana nokukhathala, ukwakha

Ngeqoqo ngalinye

Umshini oqinile, umhloli wokukhathala

Isiteshi

Lawula Amapharamitha

Imvamisa

Indlela

Ukusonteka ikhoyili

Ijika ukubala, ukushuba, ukumelana, ukwahlukanisa

Wonke amayunithi

Ukujikajika okuzenzakalelayo ngempendulo, i-ohmmeter

Plunger machining

Ukubekezelela i-Dimensional, ukuqedwa kwendawo, ubulukhuni

Njalo ngamayunithi ayi-100

I-CMM, i-profilometer, umhloli wokuqina

Xhumana nomhlangano

Ukuqondanisa, ingcindezi, ukumelana, ikhwalithi yokubhoda

Njalo ngamayunithi ayi-100

Force gauge, micro-ohmmeter, XRF

Ukwakhiwa kwezindlu

Izinga lokushisa, ingcindezi, ukunemba kobukhulu

Wonke umjikelezo

Ukuqapha kwe-SCADA, amashadi e-SPC

I-sub-assembly

I-voltage yokusebenza, unhlangothi, isikhathi sokuphendula

Wonke amayunithi

Ibhentshi lokuhlola elizenzakalelayo, ukungena kwedatha

Into yokuhlola

Okujwayelekile

Usayizi Wesampula

Ibanga le-voltage esebenzayo

0.85-1.1×Un (ukuthatha), >0.2×Un (ukukhipha i-UVR)

100%

Isikhathi sokuphendula (uhambo lwe-shunt)

<50ms ku-voltage elinganiselwe

100%

Xhumana nokumelana

<50mΩ (isilekeleli), <100mΩ (i-alamu)

100%

I-Dielectric ukumelana ne-voltage

2kV AC/1min

100%

Ukumelana ne-insulation

>100MΩ @ 500V DC

100%

Ukusebenza komshini

Imijikelezo eyi-10, ibushelelezi, akukho okunamathelayo

100%

Ukuhambisana kwe-Snap-fit

Ukukhwelana nohlaka olukhethiwe lwe-MCCB

100%

Ukuhlola okubonakalayo nobukhulu

Ukumaka unomphela, i-modularity

100%

Isampula yokubekezelela kagesi

Imisebenzi eyi-1,000 ngomthwalo olinganiselwe

I-AQL 1.0

Ubuqotho bokupakisha

Ukuhlolwa kokudedela, ukudlidliza (ISTA 3A)

Ngamunye

Isigaba Sezisetshenziswa

Ukucaciswa komshini

Umsebenzi

Amandla

I-Coil Winding

Imishini yokusonta ye-CNC (Nittoku/Marsilli) enokulawula ukungezwani

Ukukhiqiza ikhoyili eqondile

20,000 amakhoyili/ngosuku

Ukunyathela Nokwakha

Ukucindezela kwe-die okuqhubekayo okungamathani angama-60 (Bruderer)

Isitembu sokuxhumana, ukwakheka kwentwasahlobo

30,000 izingxenye/ngosuku

Ukubunjwa komjovo

80-tons thermoplastic press (Arburg)

Izindlu, izivalo, iziqeshana zikaloliwe ze-DIN

10,000 izindlu/ngosuku

Umhlangano

Umhlangano wabasebenzi

I-sub-assembly, ukulinganisa, ukuhlolwa

5,000 izesekeli/ngosuku kulayini ngamunye

Izisetshenziswa zokuhlola

Ibhentshi lokuhlola insiza ezenzakalelayo

Izici zokusebenza, isikhathi, ukubekezela

1,000 amayunithi / ihora

Umhloli wokukhuthazela wemishini

Ukuqinisekiswa komjikelezo we-100,000

200 amayunithi kanyekanye

Igumbi lokuhlola le-EMC

Ukuhlolwa kokugomela/ukukhishwa

100 amayunithi / ngosuku

Isigaba somkhiqizo

Amandla Wanyanga zonke

Isikhathi Esijwayelekile Sokuhola

Amandla Woku-oda Okuphuthumayo

I-Shunt Trips (wonke ama-voltages)

300,000 amayunithi

4-5 amaviki

3 izinsuku

Ukukhishwa kwe-Undervoltage

200,000 amayunithi

4-5 amaviki

3 izinsuku

Oxhumana Nabo Abasizayo

500,000 amayunithi

4-5 amaviki

3 izinsuku

Ama-Motor Operators

50,000 amayunithi

4-5 amaviki

5 izinsuku

Amamojula Okuxhumana

30,000 amayunithi

4-5 amaviki

5 izinsuku

Umnyango

Abasebenzi

Uchwepheshe

Izibopho

Ubunjiniyela be-R&D

5

 onjiniyela

Idizayini ye-electromagnetic, i-physics yokuxhumana, amasistimu ashumekiwe, ukuxhumana okungenantambo

Ukuthuthukiswa kwesesekeli esisha, izici ezihlakaniphile, iphothifoliyo yelungelo lobunikazi (30+ amalungelo obunikazi)

Ubunjiniyela Bezinqubo

15 onjiniyela

I-coil winding automation, ukunemba isitembu, ukubumba ipulasitiki, ukukhiqiza okunciphile

Ukuthuthukiswa kokukhiqiza, ukuthuthukiswa kwesivuno (>99%), ukuncishiswa kwezindleko

Ukuhlola Nokuqinisekisa

12 onjiniyela

Ukuhambisana kwe-IEC 60947, ukuhlolwa kokubekezela, i-EMC, ukulingisa kwemvelo

Ukudidiyelwa kokuhlolwa kohlobo, ukuhlaziywa kokwehluleka, ukuphathwa kwezitifiketi

Ubunjiniyela bohlelo lokusebenza

10 onjiniyela

Ukuhlanganiswa kwe-MCCB, izinhlelo zokulawula, isikhombimsebenzisi se-BMS/SCADA

Ukwesekwa kobuchwepheshe bekhasimende, ukwakheka kwesistimu, ukugunyazwa

Ukuqinisekisa ikhwalithi

25 ochwepheshe

ISO 9001, IATF 16949, ukulawulwa kwenqubo yezibalo, i-metrology

Ukucwaningwa kwabahlinzeki, ukuhlolwa kwenqubo, isenzo sokulungisa, ukulinganisa
