I-DIN Rail Changeover Switch 125A

Thenga i-CDADA DIN Rail Changeover Switch 125A, njengomkhiqizi waseShayina oneminyaka engu-40+ yesipiliyoni, umkhiqizo wethu uqinisekisiwe we-IEC60947-3, 3-position (I-O-II), yokudlulisa imithombo yamandla amabili afika ku-400V. Imanuwali, ifakwe nge-DIN, ilungele ukwenza isipele sejeneretha namaphaneli ezimboni.

Thumela Uphenyo

Incazelo Yomkhiqizo

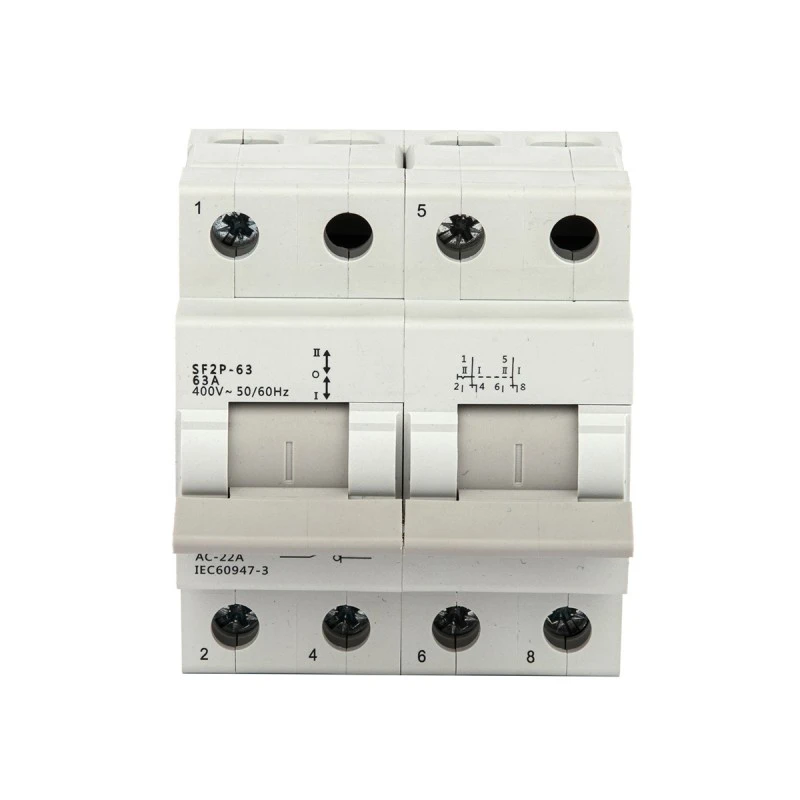

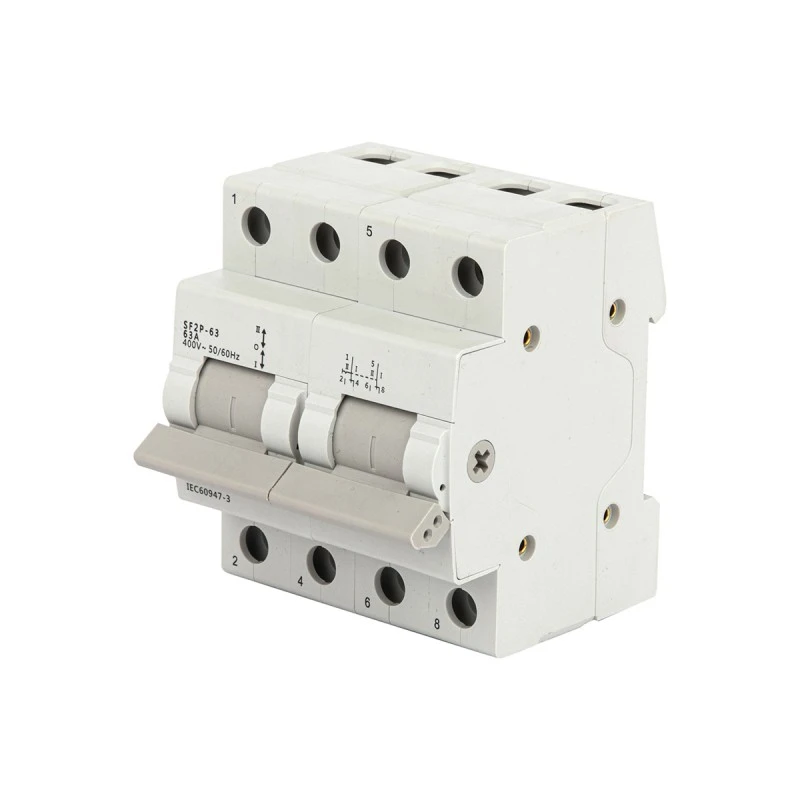

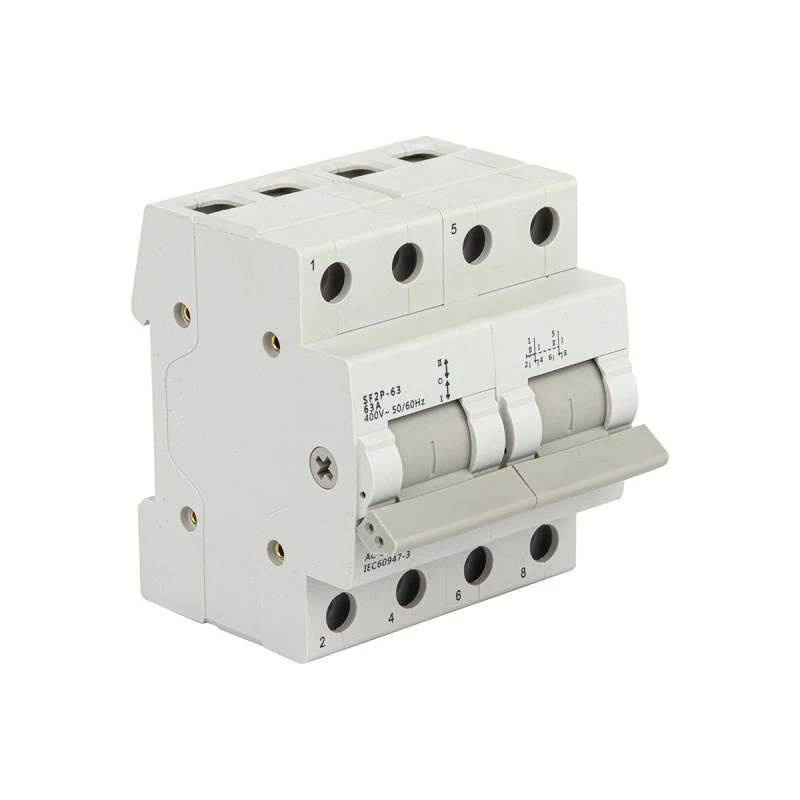

I-CDADA SF Series DIN Rail Changeover Switch 125A iyisixazululo esiqinile, esisebenza mathupha esiklanywe i-Shanghai DADA Electric CO.,LTD ukuze uthole umthombo wamandla ombaxambili onokwethenjelwa noma ukuguqulwa komthwalo kwezentengiselwano, izimboni, nezinhlelo zokusebenza zengqalasizinda. Ithobelana ne-IEC 60947-3 kanye ne-EN 60947-3, le swishi isekela amasistimu e-AC 50/60Hz kufika ku-400V futhi iphatha amaza aqhubekayo afika ku-125A ngaphansi kwesigaba sokusetshenziswa kwe-AC-22A (imithwalo ehlanganisiwe yokumelana ne-inductive).

Ifaka isibambo semanuwali esinezindawo ezi-3 esicacile (I – VALIWE – II), sinika amandla ukushintsha okuphephile phakathi kwegridi eyinhloko kanye nejeneretha eyisipele, ama-transformer akabili, noma amasekhethi angasebenzi, kuyilapho indawo ye-OFF OFF iqinisekisa ukuhlukaniswa okuphelele—okubalulekile ekunakekeleni nasekuphepheni. Idizayinelwe ukukhwezwa kwesitimela okujwayelekile kwe-TH35 DIN, ihlanganisa ngaphandle komthungo kumabhodi okusabalalisa esimanje eduze kwama-MCB, abathintwayo, nabavikeli bokuhlinzwa.

Ngoxhumana nabo abasezingeni eliphezulu, indlela yokwenziwa okusheshayo/yekhefu esiza entwasahlobo, kanye nezingxenye zangaphakathi ezigcotshwe ngokunemba, imodeli ye-125A iletha imisebenzi yemishini engu-8,500 kanye nemijikelezo kagesi engu-1,500 ngaphansi kwezimo ezilinganiselwe. Qaphela: ayinakho ikamelo lokucisha i-arc, ngakho-ke kufanele isetshenziswe namafuse akhuphuka nomfula noma ama-circuit breaker ukuze kuvikelwe isiyingi esifushane.

Ukucaciswa Okubalulekile (125A Model)

Imodeli:	I-SF Series DIN Rail Changeover Switch – 125A
Ibhrendi:	ICDADA \| Umkhiqizi: I-Shanghai DADA Electric CO., LTD
Izigxobo:	Itholakala ku-1P, 2P, 3P, 4P (chaza njengoba kudingeka)
Ikalwe okwamanje:	125A (iphakathi ukuya ku-100A uma i-ambient>40°C)
I-Voltage elinganiselwe:	230V / 400V AC, 50/60Hz
I-Insulation Voltage (Ui):	500V
Isigaba sokusetshenziswa:	I-AC-22A
Ukumelana Nesikhathi Esifushane (Icw):	12 × 125A = 1, 500A isekhondi elingu-1
Amandla okwenza:	20 × 125A = 2, 500A ku-t=0.1s
Impilo Yemishini:	8, 500 ukusebenza
Impilo kagesi:	1, 500 imisebenzi (ngaphansi komthwalo)
Iziqu Zokungcoliswa:	II
Ukukhweza:	Isitimela se-TH35 DIN, ukufakwa okuqondile kuphela
Ukusebenza:	Isibambo sendawo engu-3 (I – O – II)
Amatheminali:	Ikhebula noma ibha yebhasi, ubuningi bentambo yethusi engu-50mm²
I-Torque yokuqinisa:	3.5 N·m
Ukuthobela Ukuphepha:	I-IEC 60947-3, EN 60947-3
Ukuphazamiseka kwe-Arc:	❌ Alikho igumbi le-arc → hhayi ngenxa yokuphazamiseka kwamanje okuyiphutha

Kungani Khetha I-CDADA DIN Rail Changeover Switch 125A?

★ Ukuthembeka Okuphezulu Kwamanje

Iklanyelwe umsebenzi oqhubekayo we-125A—ilungele amaphampu amakhulu, amayunithi e-HVAC, noma amasistimu ayisipele esikhungo sedatha.

★ Ukuzihlukanisa Kweqiniso nge-OFF Position

Indawo ethi “O” emaphakathi inqamula yomibili imithombo, isusa ingcuphe ye-backfeed noma amandla ngephutha.

★ I-DIN-Rail Ready for Modern Panels

Yonga isikhala futhi yenza kube lula ukufakwa kumabhodi okusabalalisa ahlangene noma ajwayelekile.

★ Ukwakhiwa Kwebanga Lemboni

Oxhumana nabo abalayishwe intwasahlobo, i-spindle egcotshiwe, kanye nomthamo wetheminali ongu-50mm² kuqinisekisa ukuzinza kwesikhathi eside.

★ Ukuthobela Amazinga Omhlaba

Igunyazwe ku-IEC 60947-3-yamukelwe emhlabeni wonke ukuze isetshenziswe kwezohwebo nezimboni.

★ Safe Operation Isiqondiso

Kubandakanya isincomo sokubamba esinwetshiwe samamodeli we-125A—iqinisekisa ukushintsha okulawulwayo, okuhamba ngokugcwele.

Izicelo Ezijwayelekile

Ukudlulisa Amandla Esimo Esiphuthumayo: Igridi eyinhloko ↔ Ijeneretha (izibhedlela, imibhoshongo yocingo)
