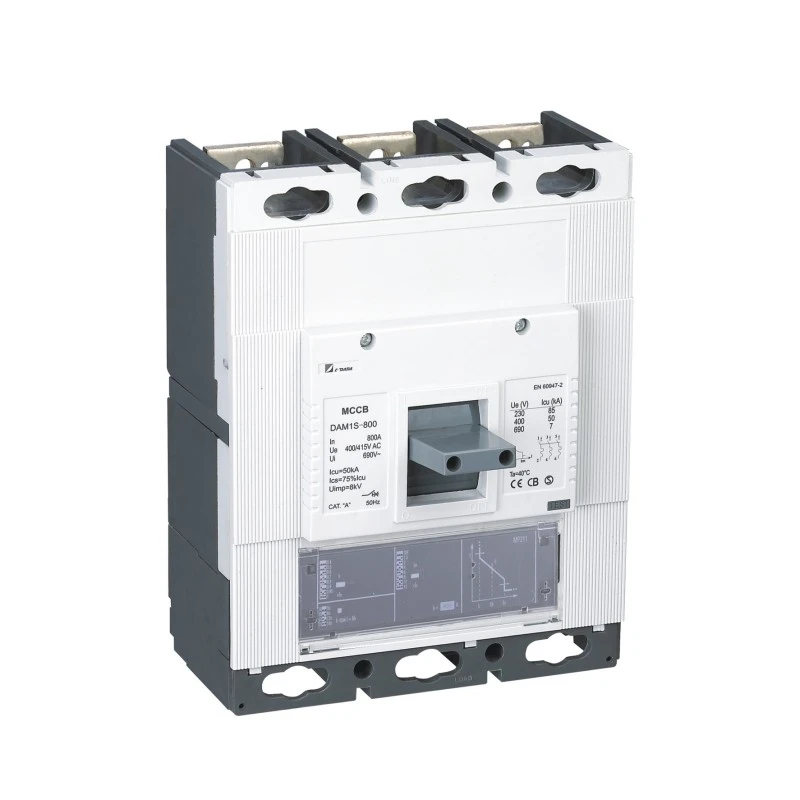

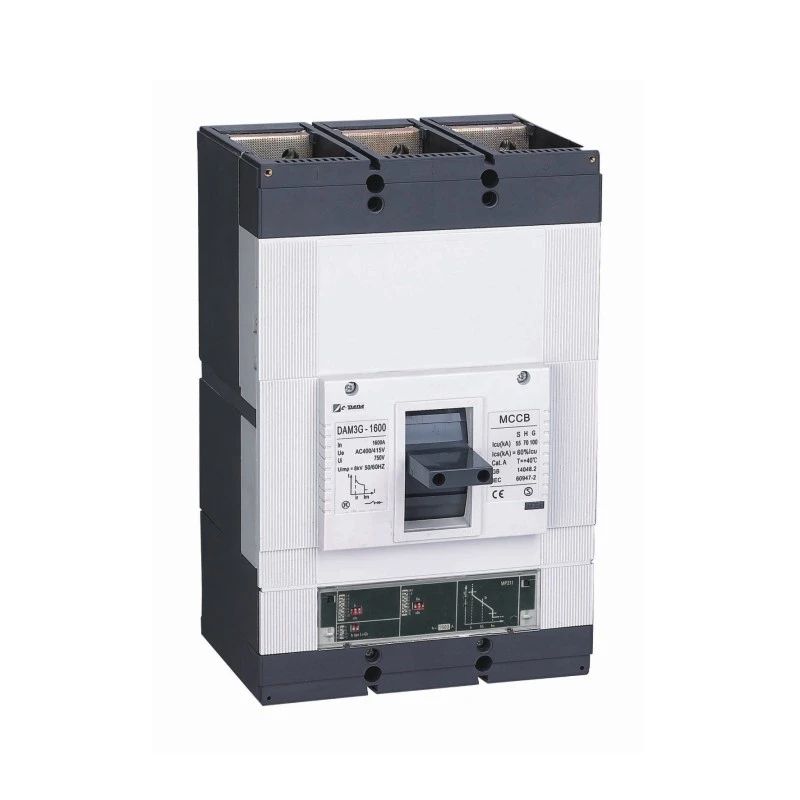

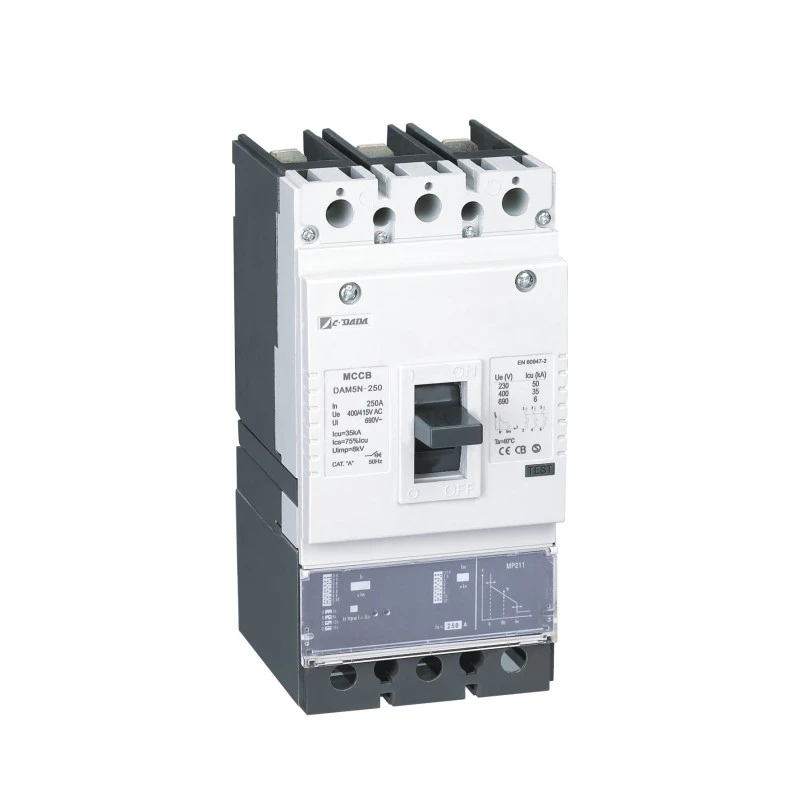

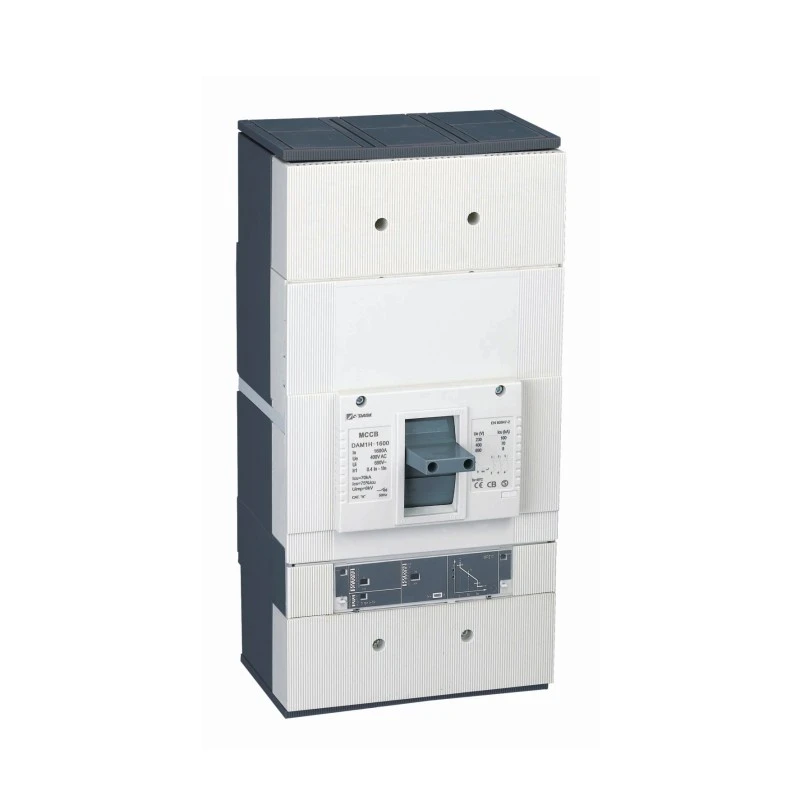

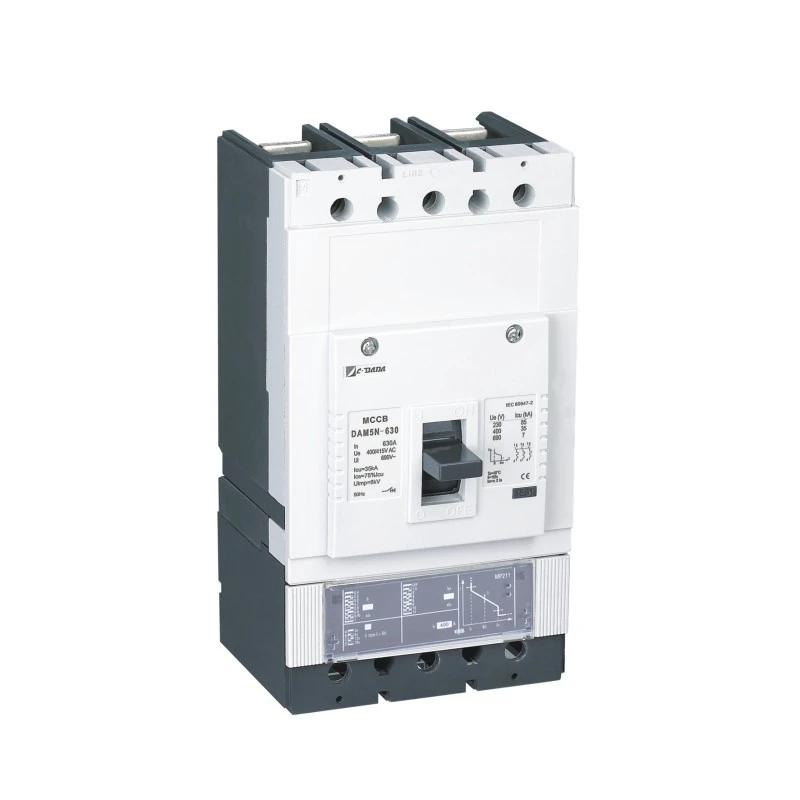

I-Electronic Type Molded Circuit Breaker

Ngamasistimu wamandla esimanje adinga ukunemba, ubuhlakani, nokuthembeka, i-Electronic Type Molded Case Circuit Breaker yi-Shanghai DADA Electric CO., LTD. usetha izinga elisha ekuvikelweni kwe-voltage ephansi. Ngokungafani nezinqamuli ze-thermal-magnetic ezivamile, le-MCCB ehlakaniphile isebenzisa iyunithi yohambo ye-electronic esekelwe ku-microprocessor ukuze ilethe ukuvikela okudlulele okunembe kakhulu, okuhlelekayo—ukushintshashintsha kwamasosha omzimba ekuguquguqukeni kwezinga lokushisa.

Ngezilungiselelo ezilungisekayo kusuka ku-40% kuya ku-100% Ku (thermal) kanye ne-1.5× kuya ku-12× In (magnetic), inikeza ukuguquguquka okungenakuqhathaniswa kokuxhumana okuyinkimbinkimbi ezikhungweni zedatha, izitshalo zezimboni, izibhedlela, nezinhlelo zamandla avuselelekayo. Ilinganiswe kusuka ku-100A kuya ku-1600A ku-400V/415V, ihlanganisa umklamo ohlangene nokusebenza okuthuthukisiwe—futhi ihlanganisa uhambo oluqondile olungaphephile phakathi kwamaphutha amakhulu, ngisho noma izinto zikagesi zihluleka.

Imininingwane Ebalulekile

Imodeli: I-CDADA DAM2 / DE Series (I-Electronic Type Molded Circuit Breaker)

Uhlobo: I-Electronic Molded Case Circuit Breaker

Izigxobo: 3P / 4P

I-Voltage Elinganiselwe (Ue): 400V / 415V AC

Kukalwe Okwamanje (Ku): 100A - 1600A

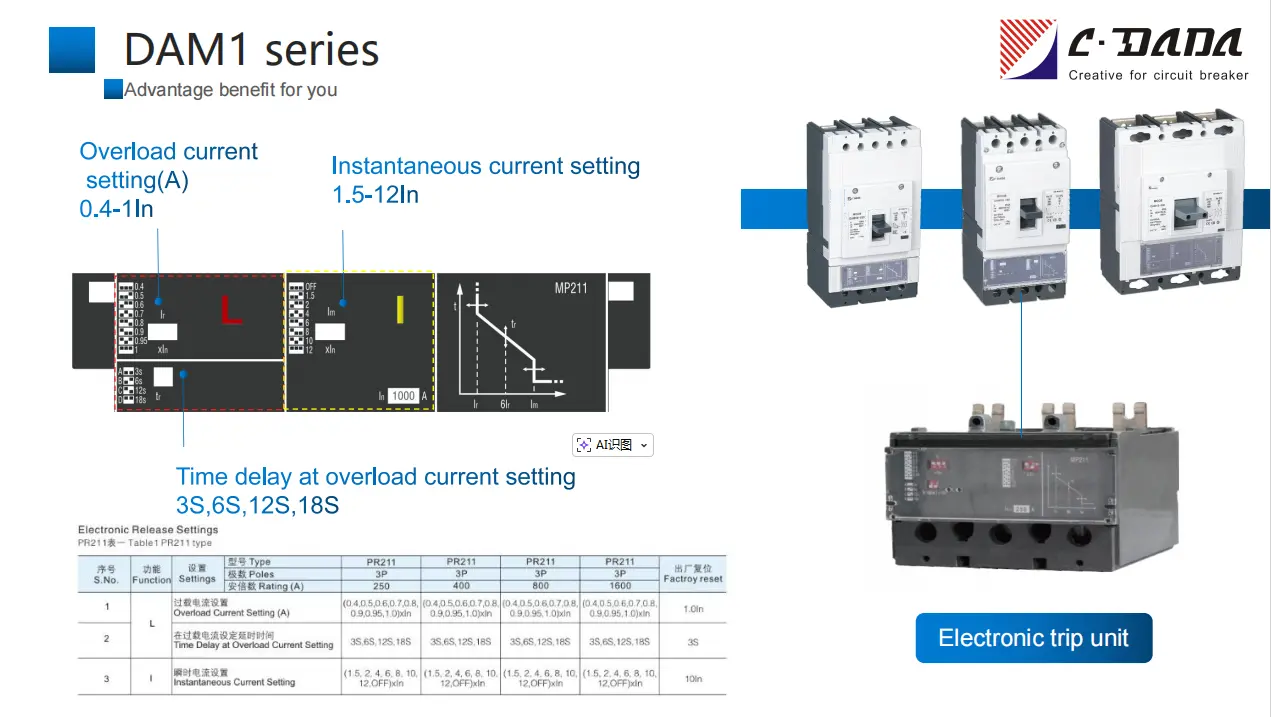

Iyunithi Yohambo: Ukukhishwa kwe-elektroniki okususelwa ku-Microprocessor

Ukulungiswa Kokushisa (Ir): 40% - 100% we-In

Ukulungiswa Kwezibuthe (Im): 1.5× – 12× Ngaphakathi

Izinzuzo

★ Ibanga elibanzi:100A ukuya ku-1600A(AC)

★ Ubukhulu obuncane

★ Isilungiselelo sokushisa esishintshayo(40-100%)In.

★ Isilungiselelo sikazibuthe esilungisekayo(1.5-12times)In.

★ Ukuhlinzekwa kwenkinobho yokuphusha ukuya kuhambo.

★ Hlukanisa othintana nabo abakhulu kanye ne-arcing

★ Uhlu olubanzi lwezesekeli.

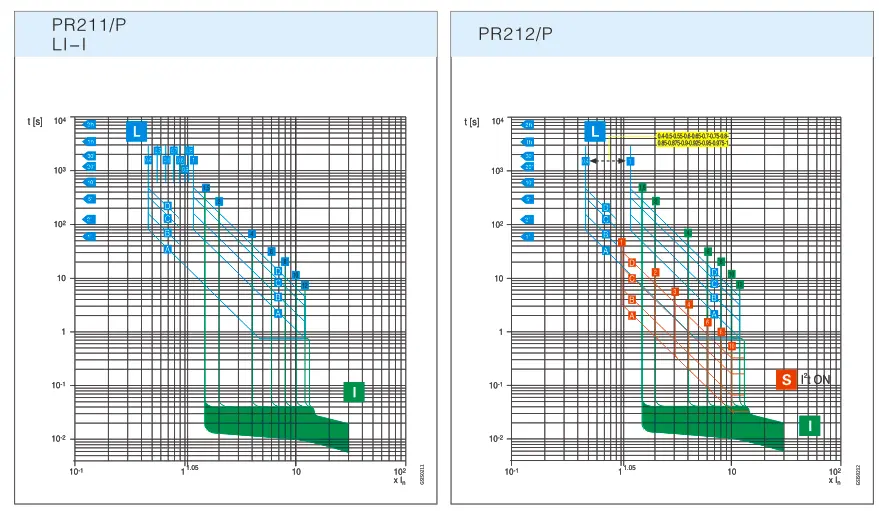

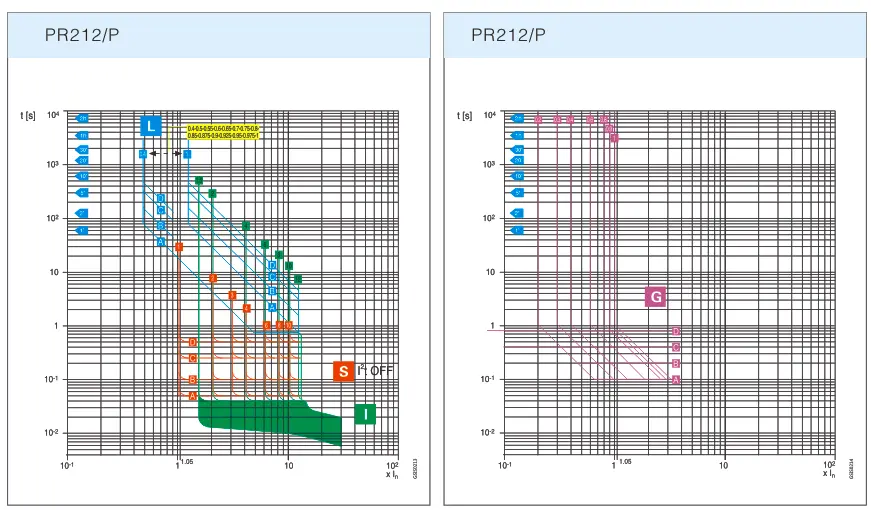

Ijika lesici sokukhishwa kwe-elekthronikhi

Imingcele kagesi

Ithebula 1 uhlobo lwe-PR211

S.No.

Umsebenzi

Izilungiselelo

Uhlobo

PR211

PR211

PR211

PR211

Ukusethwa kabusha kwefekthri

Izigxobo

3P

3P

3P

3P

Isilinganiso (A)

250

400

800

1600

1

L

Isethingi Yamanje Yokulayisha Okuningi (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0In

2

Ukubambezeleka Kwesikhathi Esilungiselelweni Samanje Sokulayisha Okugcwele

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Isilungiselelo Samanje Esisheshayo

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10ku

Ithebula 2 PR212 uhlobo

S.No.

Umsebenzi

Izilungiselelo

Uhlobo

I-PR212

I-PR212

I-PR212

I-PR212

Ukusethwa kabusha kwefekthri

Izigxobo

3P

3P

3P

3P

Isilinganiso (A)

250

400/630

800

1600

1

L

Isethingi Yamanje Yokulayisha Okuningi (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0In

2

Ukubambezeleka Kwesikhathi Esilungiselelweni Samanje Sokulayisha Okugcwele

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Okufushane - Isilungiselelo Samanje Sesekhethi (A)

(1, 2, 3, 4, 6, 8, 10, CALIWE)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

(1, 2, 3, 4, 6, 8, 10,OFF)xIn

6ku

4

Ukubambezeleka Kwesikhathi Kusilungiselelo Samanje Sesekhethi Esifushane

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Isilungiselelo Samanje Esisheshayo

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

(1.5, 2, 4, 6, 8, 10, 12,OFF)xIn

10ku

6

G

Isethingi Yamanje Yephutha Eliphansi (A)

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, VALIWE)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, VALIWE)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, VALIWE)xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, VALIWE)xIn

1.0In

7

Ukubambezeleka Kwesikhathi Ekusethweni Kwephutha Laphansi

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

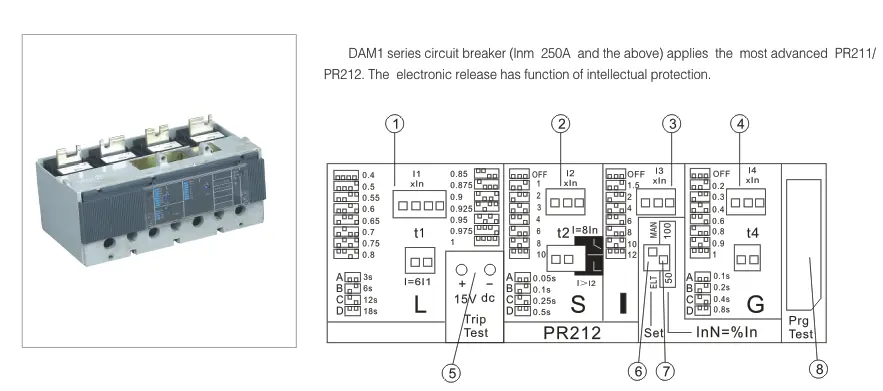

Ukukhethwa kwamapharamitha kagesi noma kagesi asethiwe

I-Functional SET (shintsha i-ELT/MAN)

9

Isetshenziselwa ukusetha amapharamitha we-dip switch yomugqa onguziro

I-InN=%Ngenisa, shintsha 50/100

10

Isokhethi yedivayisi yokulinganisa uxhumano

Isokhethi yephaneli

Kungani Khetha i-CDADA Electronic MCCB?

★ Intelligence True, Hhayi nje Automation
I-microprocessor ihlaziya ngokuqhubekayo ama-waveform amanje, inika amandla isikhathi esiqondile esiphambene, isikhathi esiqondile, kanye nokuvikela okusheshayo—ngaphandle kokukhukhuleka ngenxa yokushisa noma ukuguga.

★ Idizayini Yehlulekile-Ephephile
Noma ngabe isifunda se-elekthronikhi sihluleka, i-latch ye-electromagnetic eqondile iqinisekisa ukuhamba kwe-breaker ngesikhathi samasekethe amafushane anzima-ehlangabezana nezidingo ze-IEC 60947-2 zokuphindaphindeka kokuphepha.

★ Superior Coordination
Ububanzi bokulungiswa okubanzi kakhulu (40–100% Ir, 1.5–12× Im) buvumela ukusebenzisana okuphelele namadivayisi akhuphuka nomfula/ezansi nomfula—ukunciphisa izindawo zokucisha.

★ Ingqalasizinda yobufakazi besikhathi esizayo
Ihambisana namamojula okuxhumana ozikhethela (i-Modbus RTU, i-Profibus) ukuze ahlanganiswe ku-Building Management Systems (BMS) noma amagridi ahlakaniphile.

★ Ikhwalithi Yomhlaba Wonke, Intengo Yokuncintisana
Kwenziwe ngaphansi kwe-ISO 9001 e-Shanghai, enezitifiketi zamazwe ngamazwe—okunikeza ukusebenza kwezinga laseYurophu ngezindleko eziphansi zase-Asia.

★ Sineqembu elizinikele lonjiniyela abayi-15 eligxile ekuthuthukisweni komkhiqizo, ekuthuthukisweni nasekuhleleni ngokwezifiso.

Izicelo Ezikahle

Izikhungo Zedatha: Vimbela ukuhluleka kwe-cascading ngokukhetha okunembile

Izibhedlela: Qinisekisa amandla angaphazamiseki ezinhlelo ezisekela ukuphila

I-Industrial Automation: Hlanganisa nama-VFD, iziqalisi ezithambile, namarobhothi

Amapulazi eSolar/Wind: Zijwayelane namaphrofayili esizukulwane esiguquguqukayo

Izakhiwo Zezentengiselwano Ezihlakaniphile: Nika amandla ukuqapha kwamandla ngaphandle kwamamitha engeziwe

Imibuzo Evame Ukubuzwa (FAQ)

Q1: Yini eyenza i-MCCB ye-elekthronikhi ihluke kune-thermal-magnetic?

I-A1: I-Electronic Type Molded Case Circuit Breaker isebenzisa i-microprocessor ukuhlaziya uhambo lwamanje kanye nokucupha uhambo ngokunemba okuphezulu. Akuthintwa izinga lokushisa le-ambient, anikeza ububanzi bokulungisa ububanzi, futhi anganikeza ukuloga kwedatha yokulayisha—ngokungafani nezinhlobo ze-bimetal/solenoid-based thermal-magnetic.

Q2: Ingabe i-1600A electronic MCCB iyatholakala ekucushweni kwezigxobo ezi-4?

A2: Yebo—wonke ama-CDADA electronic MCCBs kusuka ku-250A kuya ku-1600A ayatholakala kuzo zombili izinguqulo ze-3P ne-4P.

Q3: Kwenzekani uma iyunithi yohambo lwe-elekthronikhi ihluleka phakathi nesekethe emfushane?

I-A3: I-breaker ihlanganisa ikhophi yasenqolobaneni yomshini: ngesikhathi sokusebenza okungalungile okwedlulele (>12×In), i-latch kazibuthe ibangela ukuvuleka okuqondile-ukuqinisekisa ukuphepha ngisho noma kungaxhunyiwe ku-intanethi.

Q4: Ngingakwazi ukuqapha amanani wamanje wesikhathi sangempela?

I-A4: Yebo—iyunithi yohambo lwe-elekthronikhi ibonisa ngokushesha, okukhulu, okuncane, kanye nesilinganiso samanje samafasitela esikhathi esikhethekayo (isb., 24h), awusizo ekulawuleni amandla.

Q5: Kungani ukhetha i-CDADA kunezinye izinhlobo ze-MCCB ezihlakaniphile?

A5: I-CDADA inikeza:

● Ukulungiswa kweqiniso kobubanzi obukabili (izimbangi eziningi zikhawulela i-Im ku-≤10×)

● Ikhophi yasenqolobaneni engasebenzi kahle (akuwona wonke ama-MCCB “e-electronic” analokhu)

● Usayizi ohlangene—ulingana namaphaneli efa ngaphandle kokuguqulwa

● Iphothifoliyo yesitifiketi somhlaba wonke esiqinile (ASTA, KEMA, CE)

● Intengo evumelana ne-OEM enosekelo lobuchwepheshe ngesiNgisi
