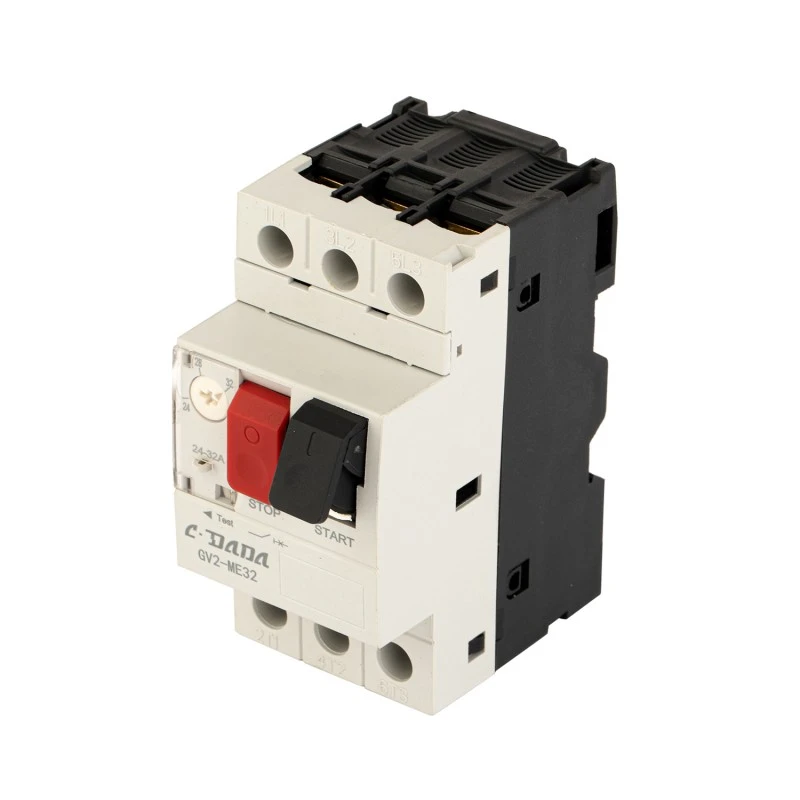

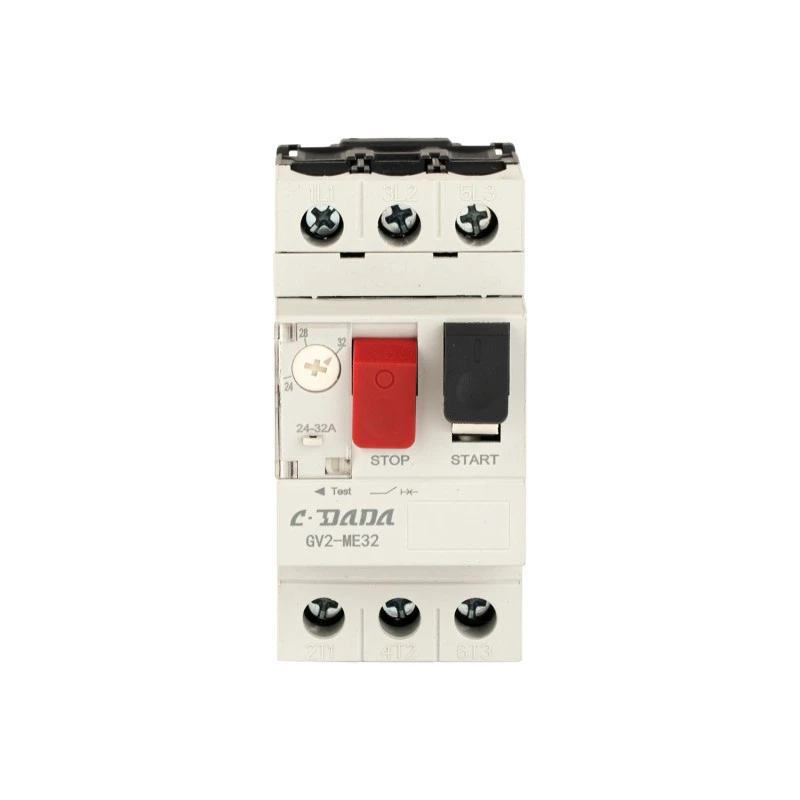

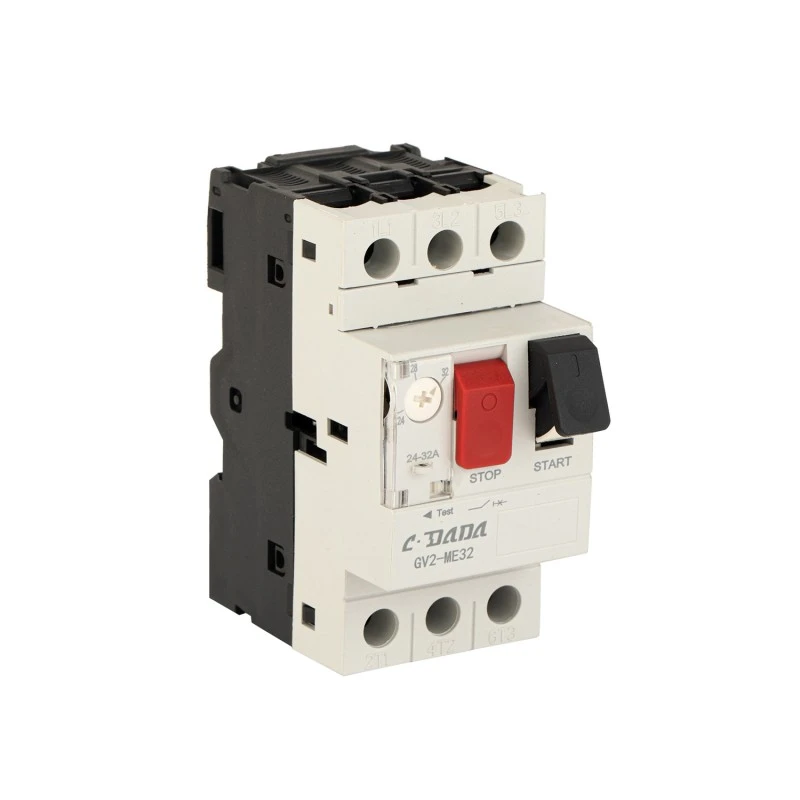

I-GV2 2P Motor Protection Circuit Breaker

Yenza kube lula ukuvikelwa kwemoto nge-CDADA GV2 2P Motor Protection Circuit Breaker (MPCB) isisombululo esinembayo, esihlangene esiklanywe i-Shanghai DADA Electric CO., LTD. kusetshenziswa inkundla yobuchwepheshe yesizukulwane esilandelayo kanye nokukhiqiza okuzenzakalelayo ngokugcwele. Idizayinelwe amasekhethi ezimoto esigaba esisodwa noma ezigaba ezimbili, i-GV2 2P ihlanganisa ukulayisha ngokweqile, isifunda esifushane, ukulahlekelwa kwesigaba (kuzinhlelo zokusebenza zesigaba esingu-3 uma isetshenziswa kumasethi), kanye nemisebenzi yokuhlukanisa kudivayisi eyodwa efakwe i-DIN-rail.

Ngebanga lokusetha elilungisekayo le-0.1A ukuya ku-32A, isinxephezelo esishisayo sokuhlukahluka kwezinga lokushisa elizungezile, kanye ne-voltage elinganisiwe yokufaka engu-690V, iqinisekisa ukuvikelwa okuthembekile kwamamotho amancane kumaphampu, amafeni, ama-compressor, ama-conveyor, nezinhlelo ze-HVAC. Igunyazwe kumazinga e-CE, afaka ukusebenza kwemishini nogesi okungu-110,000, futhi ifakwe izinto ozikhethela zona njengoxhumana nabo abasizayo, ukukhishwa kwe-shunt, nokukhishwa kwe-undervoltage, i-CDADA GV2 MPCB iletha ukusebenza kwezinga lezimboni ngefomethi yezigxobo ezi-2 ezonga isikhala.

Imininingwane Ebalulekile

Uchungechunge lwemodeli: GV2 2P MPCB

Igama Brand: CDADA | Umkhiqizi: I-Shanghai DADA Electric CO., LTD

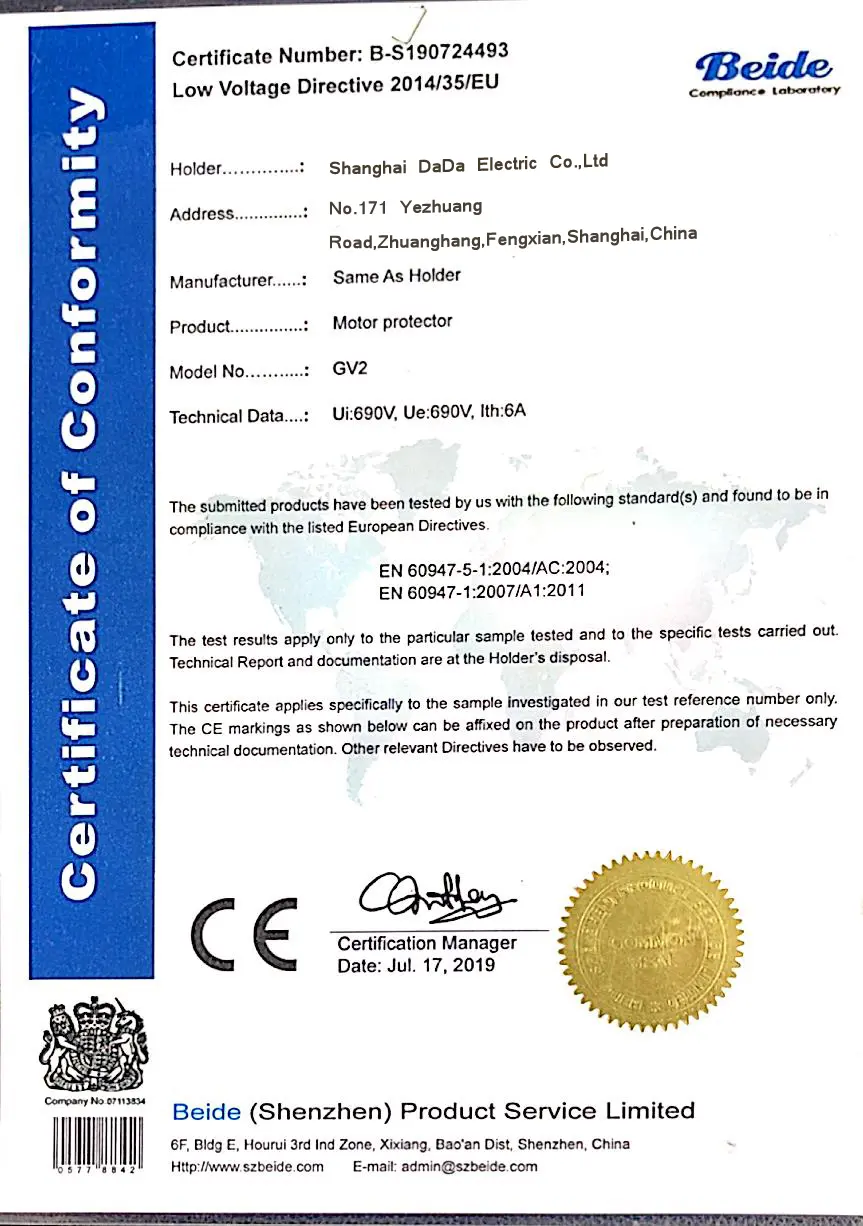

Isitifiketi: CE

Izigxobo: I-2P (ilungele amamotha esigaba esisodwa noma njengengxenye yesethi yokuvikela yesigaba esingu-3)

Ukusetha Ububanzi Bamanje: 0.1A – 32A (iyalungiseka ngokudayela)

Isilinganiso sozimele: 32A

Isilinganiso sikagesi esisebenzayo: 690V AC

Isilinganiso se-Insulation Voltage (Ui): 690V

I-Ipulse Withstand Voltage (Uimp): 6000V

Imvamisa yokusebenza: 50/60Hz

Ikilasi Lohambo: 10A (okujwayelekile kumamotho anenjongo ejwayelekile)

Imisebenzi yokuvikela:

★ Ukuvikelwa kokugcwala okushisayo

★ Ukuvikelwa kwesifunda esifushane

★ Ukuvikelwa kokulahlekelwa kwesigaba* (*uma kusetshenziswa ekucushweni kwezigxobo ezi-3 noma isethi ehlanganisiwe)

★  Umsebenzi wokuzihlukanisa (ikhefu elibonakalayo)

★ Isinxephezelo sokushisa esakhelwe ngaphakathi

Impilo Yemishini: 110,000 imisebenzi

Impilo kagesi (AC-3, 400V): 110,000 imisebenzi

I-Tightening Torque: 1.7 N·m

Uhlobo Lokusebenza: Inkinobho yokucisha VULIWE/YIVALIWE enenkomba yohambo ecacile

Ukukhweza: 35mm DIN ujantshi

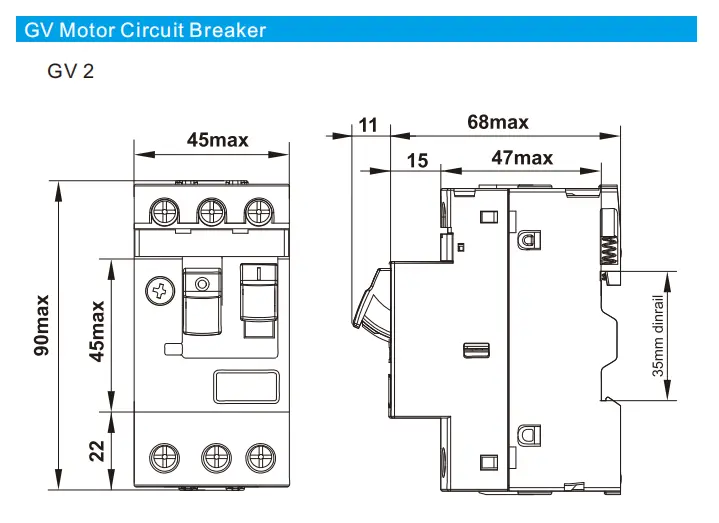

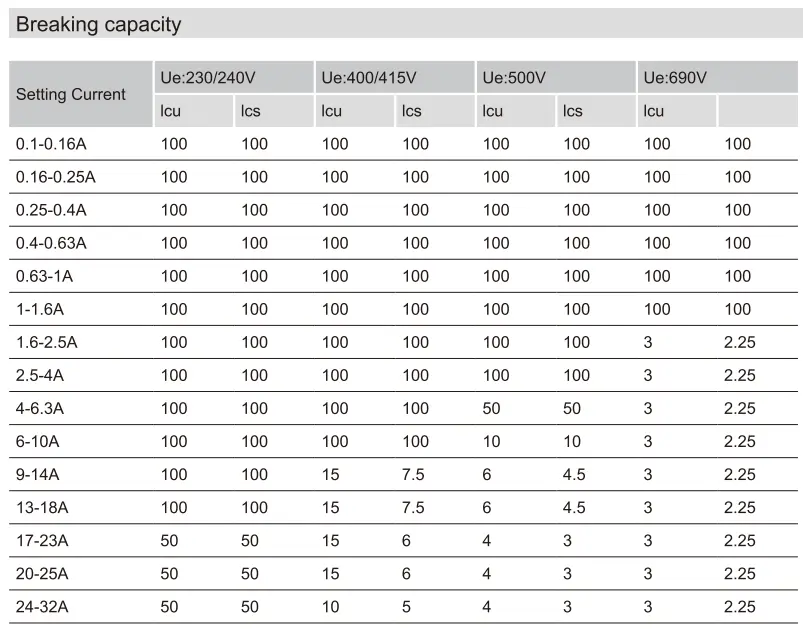

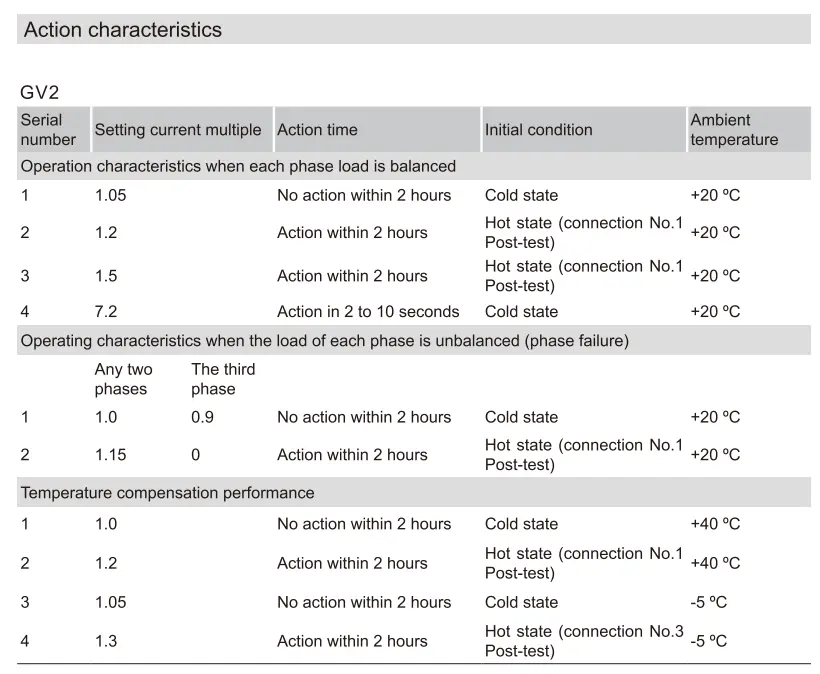

Ishidi ledatha yezobuchwepheshe

Kungani Khetha I-CDADA GV2 2P Motor Protection Circuit Breaker?

★ All-in-One Motor Protection

Ihlanganisa i-circuit breaker + i-thermal overload relay + isolator—isusa isidingo sezingxenye ezihlukene.

★ Ukunemba & Ukuzinza

Indlela yenxephezelo yezinga lokushisa iqinisekisa ukukhubeka okungaguquki kungakhathaliseki izinguquko ze-ambient (isb., izindawo zokusebenzela ezishisayo noma amagumbi angaphansi abandayo).

★ Ukuqina Okuphezulu

Imijikelezo yemishini/kagesi eyi-110,000—edlula izimbangi eziningi ngokwethembeka kwesikhathi eside.

★ I-Space-Saving 2P Design

Ilungele amaphaneli okulawula okuhlangene, imishini ye-OEM, namaphrojekthi wokubuyisela kabusha lapho indawo ethengiswayo yephaneli ilinganiselwe.

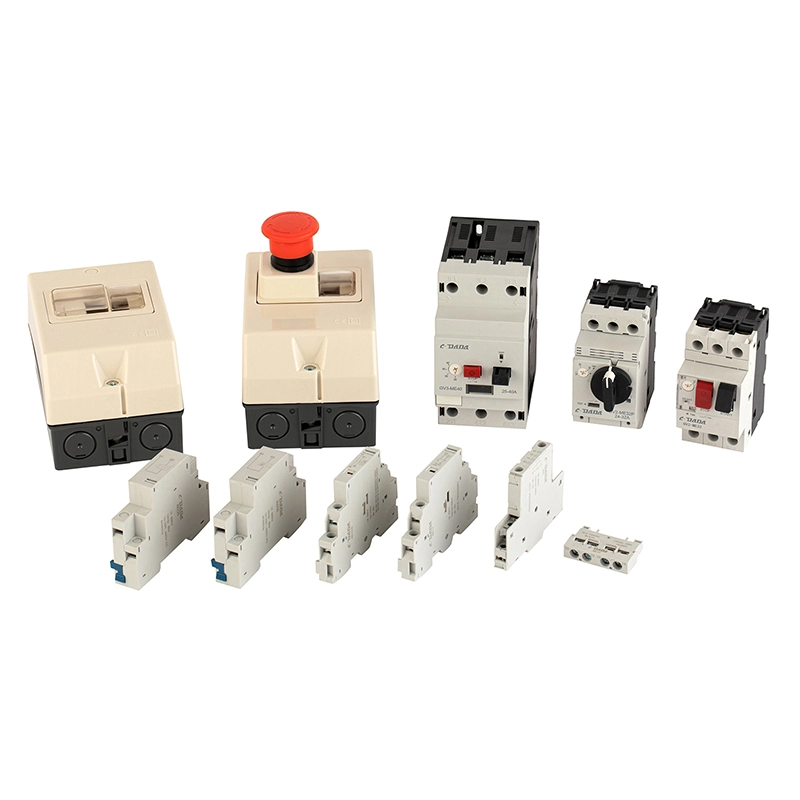

★ Full Accessory Ecosystem

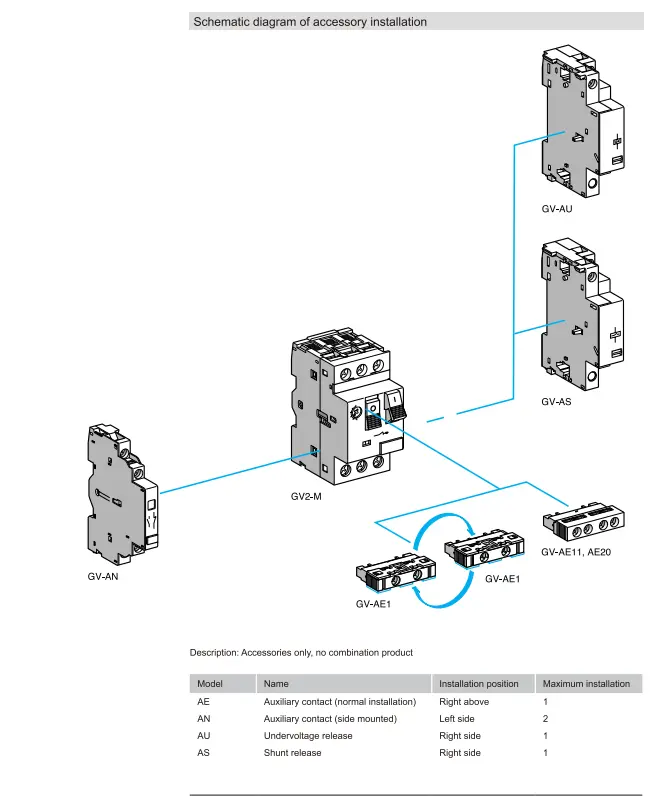

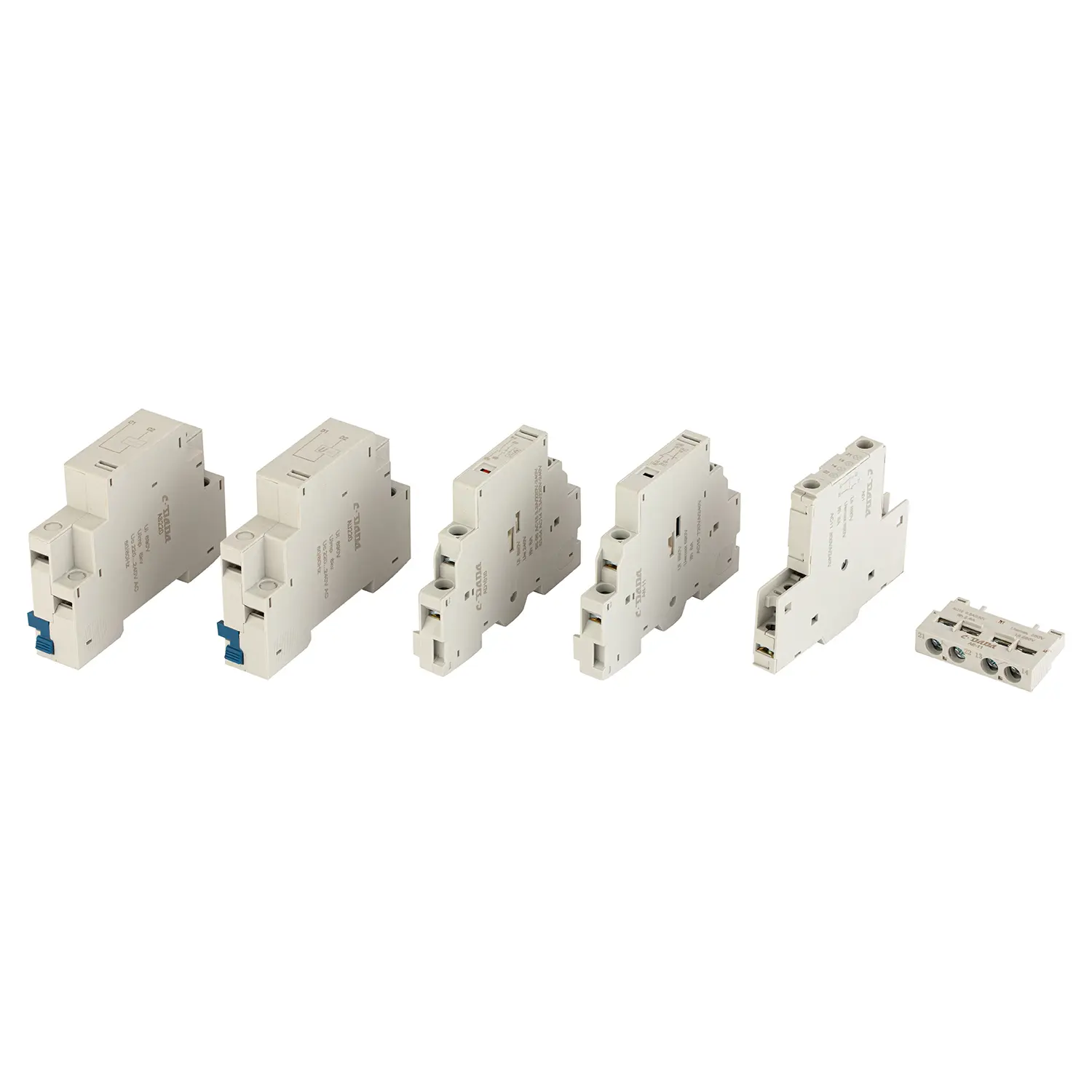

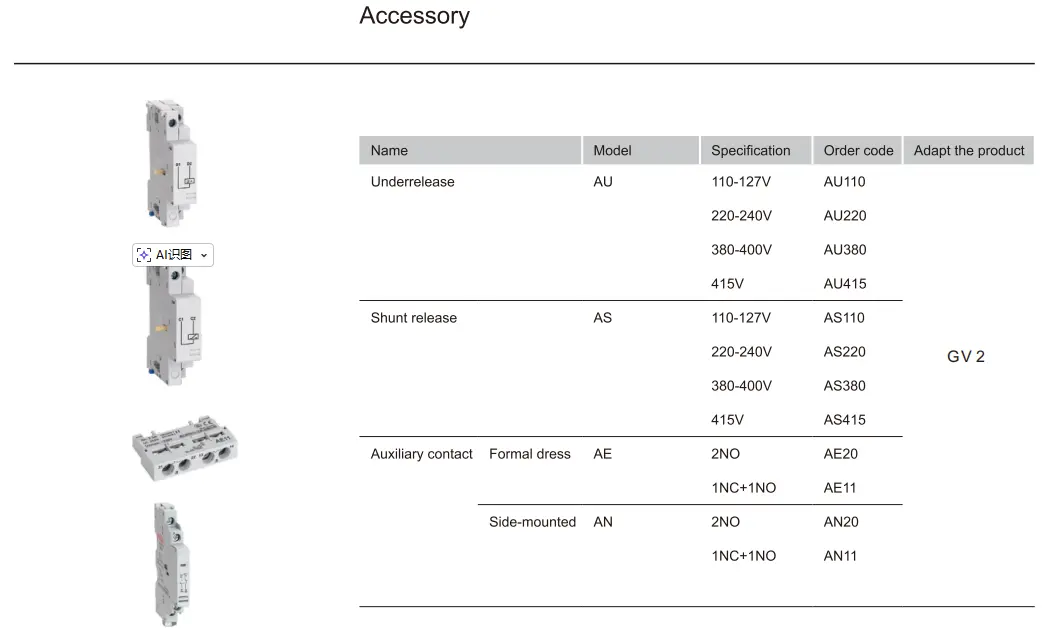

Isekela i-AE (insiza yangaphambili), i-AN (insiza eseceleni), i-AU (ukukhishwa kwe-undervoltage), i-AS (uhambo lwe-shunt)—inika amandla ukusayinda okukude, ukuvala shaqa okuzenzakalelayo, noma ukuhlanganiswa kwe-PLC.

★  Ukuthobela Umhlaba Wonke

I-CE iqinisekiswe ngesilinganiso esingu-690V—ifanele izimakethe zaseYurophu, zase-Asia, zase-Afrika, naseLatin America.

★ Ukungaguquguquki kuqinisekiswa ngemishini yokukhiqiza ezenzakalelayo, izinqubo zokusebenza ezijwayelekile, ukuhlolwa okuqinile kwempahla engenayo, ukuhlolwa okusetshenzwayo, kanye nokuhlola kokugcina okungu-100% kokusebenza kwemingcele ebalulekile.

Izicelo Ezijwayelekile

I-Single-Phase Motors: Amaphampu, izivula zeminyango yegalaji, ama-compressor amancane

Imishini ye-OEM: Imishini yokupakisha, imishini yokucubungula ukudla

Amasistimu we-HVAC: Amayunithi wekhoyili yabalandeli, ama-chiller amancane

I-Automation yokwakha: Izinsiza ze-Elevator, izilawuli zokungenisa umoya

I-Retrofit Projects: Ukushintsha amafuse + ama-thermal relay nge-MPCB edidiyelwe

imibuzo ejwayelekile ukubuzwa

Q1: Uyini umehluko phakathi kwe-MPCB ne-standard circuit breaker?

I-A1: I-Motor Protection Circuit Breaker (MPCB) efana ne-GV2 inikeza:

● Ukuvikelwa kokulayisha okushisayo okulungisekayo (kufaniswe nemoto FLC)

● Ukuvikela i-short circuit

● Ukutholwa kokulahlekelwa kwesigaba (ngezinguqulo ze-3P)

● Umsebenzi wokuzihlukanisa

→ Ama-MCB ajwayelekile anikeza kuphela isivikelo somjikelezo omfishane nomthwalo ongashintshi—hhayi ukuthuthukiswa kwenjini.

I-Q2: Ingabe i-2P GV2 ingavikela i-motor yesigaba esi-3?

A2: Hhayi yedwa. Kumamotho ezigaba ezi-3, udinga amayunithi amathathu e-GV2 (eyodwa ngesigaba ngasinye) ahlanganiswe ndawonye, ​​noma usebenzise i-3P MPCB. Nokho, i-2P GV2 ilungele amamotho esigaba esisodwa noma amasekhethi okulawula.

Q3: Kusho ukuthini "I-Trip Class 10A"?

I-A3: Ichaza ukuthi i-breaker ihamba ngokushesha kangakanani ngaphansi kokugcwala ngokweqile. I-Class 10A isho ukuthi izohamba phakathi kwamasekhondi angu-10 ngo-7.2× wokusetha wamanje—ilungele amamotho ajwayelekile ekheji yesquirrel ngaphandle kwetorque ephezulu yokuqala.

Q4: Ingabe ikhokhela ngempela izinga lokushisa?

A4: yebo! Umugqa we-bimetallic unxeshezelwa ngokushisa, ngakho ukukhubeka kuhlala kunembile noma kufakwe endaweni yokugcina impahla engu-0°C noma endaweni ebiyelwe engu-50°C.

Q5: Kungani ukhetha i-CDADA GV2 kunezinye izinhlobo?

A5: I-CDADA inikeza:

● Isitifiketi se-CE sangempela esinemibiko yokuhlola

● Ukukhiqiza okuzenzakalelayo → ikhwalithi engaguquki nezinga lokukhubazeka eliphansi

● Ukuhambisana kwezinsiza ezigcwele (AE/AN/AU/AS)

● Amanani aqhudelanayo ama-OEM nabasabalalisi

● Usekelo olusheshayo lobuchwepheshe kanye nemibhalo ngesiNgisi
