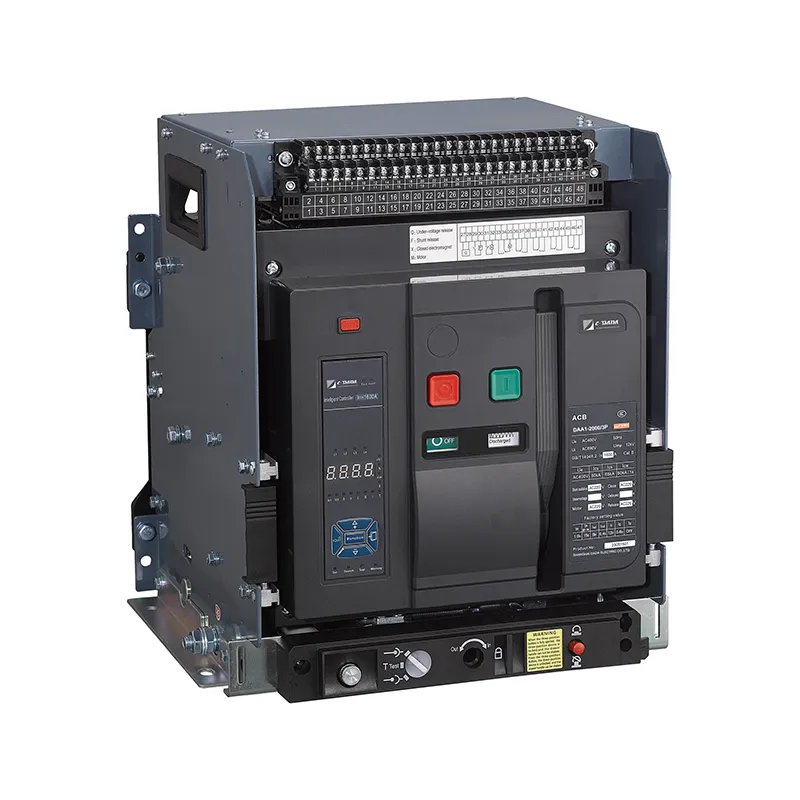

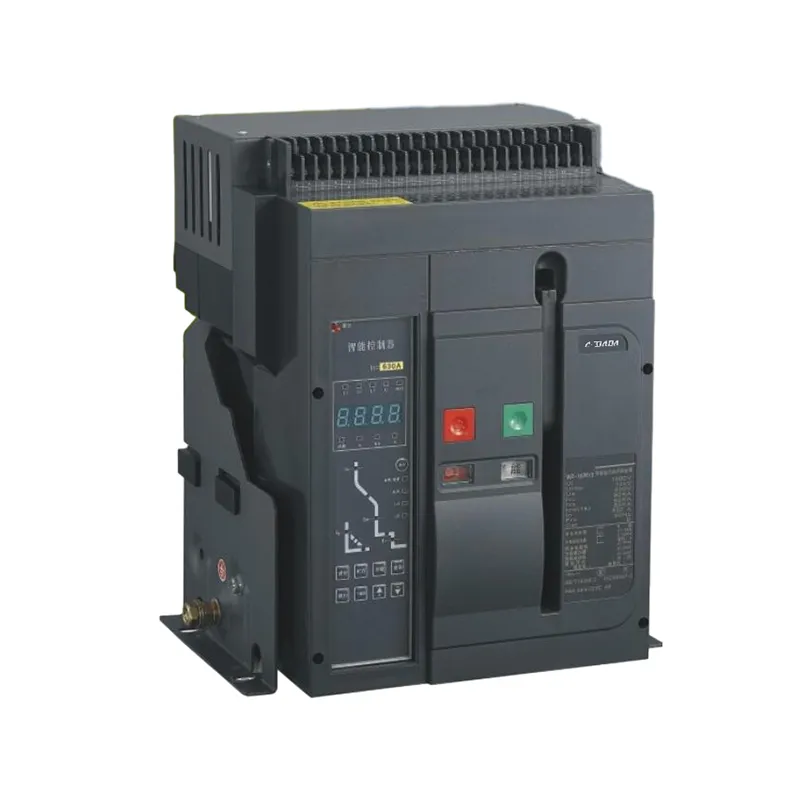

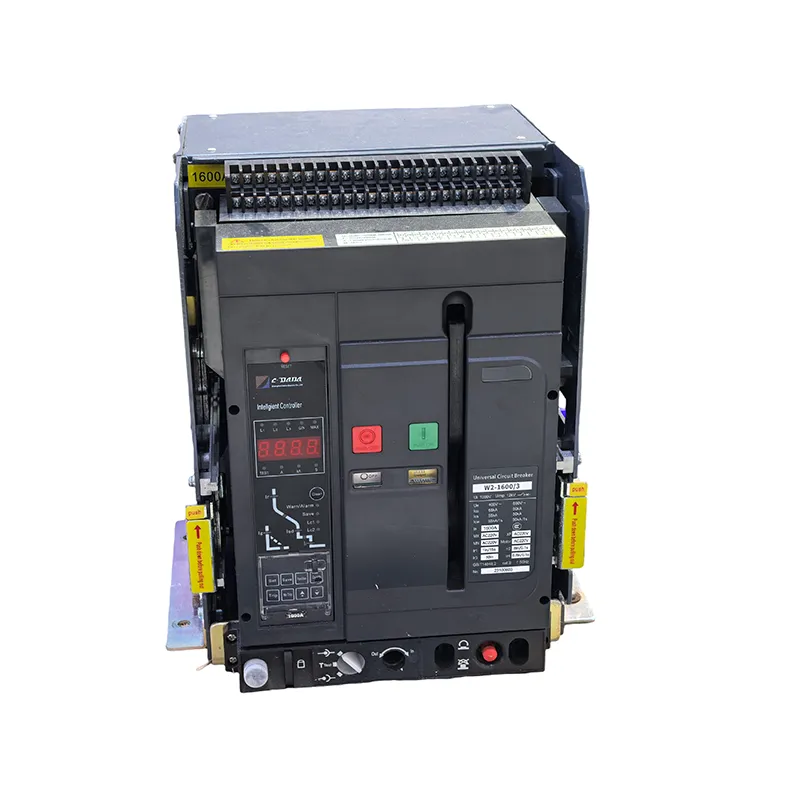

1600A Air Circuit Breaker
Model:DAW2-1600 Series
I-CDADA ingumkhiqizi othembekile we-1600A Air Circuit Breaker, egunyazwe nge-CB ngokuvikelwa okuhlakaniphile, eyakhelwe izidingo zokusabalalisa amandla ezimboni ezisindayo. Senziwe ngezinto ezisezingeni eliphezulu kanye nokwakhiwa okuqinile, lesi sihlukanisi somoya kulula ukusisebenza nokuyinakekela, singena ngaphandle komthungo ezinhlelweni zamandla ezimboni. Kuyinketho ephezulu yokuthengwa kwe-wholesale ne-OEM, iletha ukusebenza okuzinzile, okuthembekile kuzo zonke izimfuno zokuvikela amandla ezimboni.

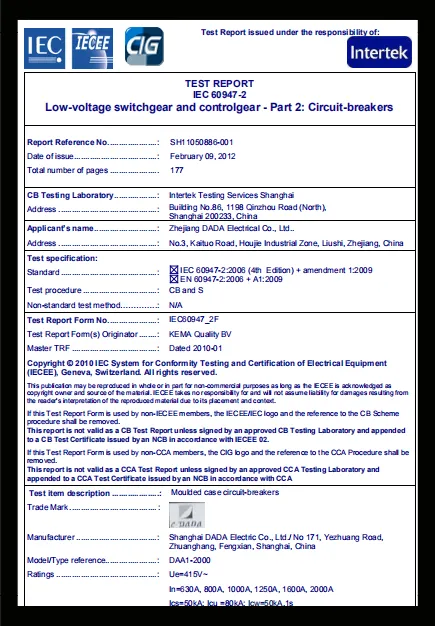

I-CDADA iyimboni yobungcweti enganikezela nge-1600A Air Circuit Breaker (DAW2-1600 Series), elungele ukuthengwa kwempahla ngobuningi, ngesitifiketi se-CB nokuthobelana nezindinganiso ze-IEC60947-2. Isebenzela amanethiwekhi e-AC 50Hz, 690V, enikeza ukulayishwa okunembile okunembile, isifunda esifushane, i-undervoltage kanye nokuvikelwa kokuvuza.
Yenzelwe ukusetshenziswa ezimbonini, isekela ukuqapha okukude, kulula ukuyifaka, futhi ifanelana nezidingo zabasabalalisi ze-switchgear eqinile ephansi ye-smart low-voltage.
Ipharamitha yomkhiqizo (Ukucaciswa)
Imodeli: DAW2-1600 Series
Uhlaka Olulinganiselwe Lwamanje (I-Inm): 1600A
Ilinganiselwe Okwamanje (Ku): 200A / 400A / 630A / 800A / 1000A / 1250A / 1600A
Isilinganiso se-Insulation Voltage (Ui): 690V
Isilinganiso samandla kagesi wokusebenza (Ue): 400V / 690V
Ukuthobela Amazinga: IEC 60947-2
Izici Zokuvikela: Ukugcwala Okugcwele, Isekethe Emfishane, I-Undervoltage, I-Ground Fault (ene-transformer yokuvuza ongayikhetha)
Ukuxhumana: Iphrothokholi evulekile yokuhlanganiswa kwe-fieldbus (isekela imisebenzi "emine eyirimothi")
Uphawu lokuzihlukanisa: “-x_”
|
Imodeli |
I-DAW2-1600 |
|||||||
|
Isilinganiso samanje sebanga le-Inm lozimele wegobolondo (A) |
1600 |
|||||||
|
Ilinganiselwe i-ln yamanje (A) |
200, 400, 500, 630, 800, 1000, 1250, 1600 |
|||||||
|
I-voltage yokusebenza elinganiselwe i-Ue(V) |
AC400,AC690 |
|||||||
|
Imvamisa yokusebenza (Hz) |
50Hz/60Hz |
|||||||
|
Isilinganiso se-voltage engu-Ui(V) |
1000 |
|||||||
|
I-voltage yokubekezelela umthelela elinganiselwe i-Uimp(kV) |
12 |
|||||||
|
I-voltage yokubekezelela imvamisa yamandla U(V)1min |
3500 |
|||||||
|
Inombolo ye |
3, 4 |
|||||||
|
I-N-pole ilinganiselwe njengamanje ku-(A) |
100%cln |
|||||||
|
Sebenzisa Isigaba |
I-GB14048.2 |
B |
||||||
|
Umkhawulo olinganiselwe wokuphulwa kwesekethe emfushane umthamo weLcu (kA)(inani elisebenzayo) |
I-AC400V |
65 |
||||||
|
I-AC690V |
50 |
|||||||
|
|
I-AC400V |
55 |
||||||
|
Ilinganiselwe umthamo wokuphulwa kwesekethe emfushane |
I-AC690v |
42 |
||||||
|
I-LCS (kA)(inani elisebenzayo) |
I-AC400V |
143 |
||||||
|
I-AC690V |
105 |
|||||||
|
Ilinganiswe ngamakhono okuxhumana kwesekethi emfushane |
I-AC400V |
50 |
||||||
|
I-AC690v |
42 |
|||||||
|
Isikhathi sokuphumula esigcwele (akukho ukubambezeleka okwengeziwe)(MS) |
25 |
|||||||
|
Isikhathi sokuvala (MS) |
Ubukhulu 70 |
|||||||
|
Impilo kagesi (izikhathi) |
I-AC400V |
ln=200A~630A |
1500 |
|||||
|
Ku=800A~1250A |
1000 |
|||||||
|
Ku=160OA |
800 |
|||||||
|
I-AC690v |
ln=200A~630A |
100o |
||||||
|
I-ln=80OA~1250A |
650 |
|||||||
|
ln=1600A |
500 |
|||||||
|
Impilo yemishini (izikhathi) |
Ukugcinwa kwamahhala |
15000 |
||||||
|
Yiba nesondlo |
20000 |
|||||||
|
Ubukhulu (ububanzi X ukuphakama X ukujula)mm |
Uhlobo olungaguquki |
3P |
260×310×240 |
Uhlobo lwekhabethe |
3P |
275×345×330 |
||
|
4P |
330×310×240 |
|
4P |
345×345×330 |
||||
Isici somkhiqizo kanye nesicelo

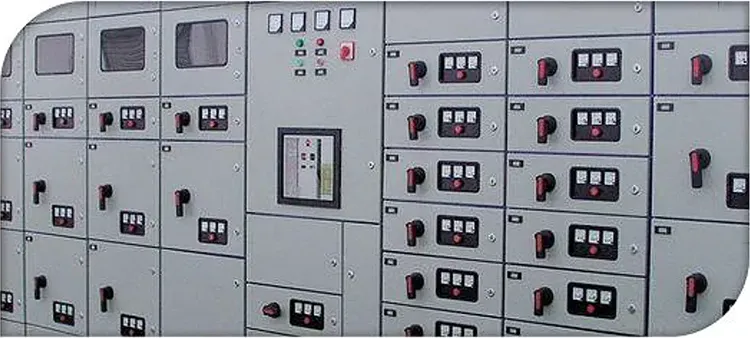

I-CDADA 1600A Air Circuit Breaker iyaphumelela ezinhlelweni zokusebenza ezinzima ezifana nezitshalo zamandla, izikhungo zedatha, nengqalasizinda kamasipala. Isilawuli saso esihlakaniphile sivumela ukubandlululwa okunembile kwamaphutha, kunciphise isikhathi sokuphumula—okubalulekile kubathengi ababeka phambili ukuzinza kwegridi. Ngendawo ebiyelwe enesilinganiso se-IP20 kanye nedizayini eyimojuli, kulula ukukuhlanganisa kumaphaneli akhona e-switchgear.
Izinzuzo Eziyinhloko:
★ Iminyaka engu-5 yokusebenza kwempilo ngaphansi komthwalo ogcwele
★ Ukuvikelwa kokuvuza okungakhethwa kokuphepha okuthuthukisiwe
★ Isekela ukuvikelwa kwemoto (≤1600A amamodeli)
★ Ikhono lokushintsha okungajwayelekile lokuqalisa kwemoto
Imininingwane Yokukhiqiza
Ikhiqizwe yi-SHANGHAI DADA ELECTRIC CO., LTD., njalo ngo-1600A ACB ihlolwa ngokushisa okushisayo kanye ne-dielectric. Ulayini wethu wokukhiqiza ozenzakalelayo uqinisekisa ukubekezelela okungu-±2% kuzilungiselelo zohambo—izimbangi ezijwayelekile ezisebenza kahle kakhulu. Izindlu ze-aluminium alloy zinikeza ukuchithwa kokushisa okuphezulu, kuyilapho othintana nabo be-silver-plated baqinisekisa ukumelana okuphansi ngokuhamba kwesikhathi.
Uma kuqhathaniswa neziqephu ezijwayelekile, amayunithi e-CDADA anikeza:
★ 30% impendulo esheshayo kumaphutha aphansi

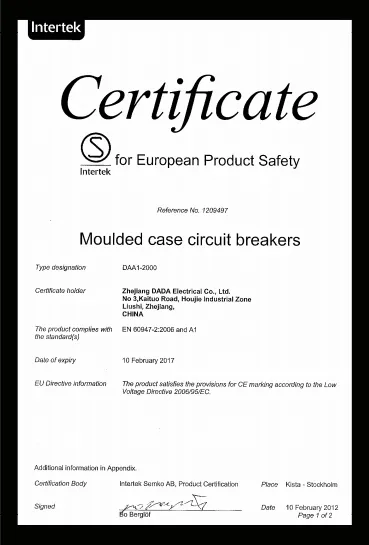

★ Ukulungela ukuqinisekiswa okukabili (CE ngesicelo)
★ Ukulebula ngokwezifiso nokupakishwa kwabathengi belebula yangasese
Kungani i-Dada's 1600A Air Circuit Breaker Idlula Izimbangi
Uma uqhathaniswa nezimbangi, umkhiqizo wethu unikeza izinzuzo ezihlukile.
Izindleko ezengeziwe - zisebenza kahle ngaphandle kokudela ikhwalithi.
Isikhathi sokuphendula esisheshayo uma kwenzeka kuba namaphutha kagesi.
Uhlelo oluphelele lwangemva kokuthengisa.
Inzuzo:Isiza amakhasimende ukwenza isinqumo esinolwazi, ukukhetha umkhiqizo ohlanganisa ukusebenza okuphezulu, ukwethembeka, kanye nezindleko - ukusebenza kahle.

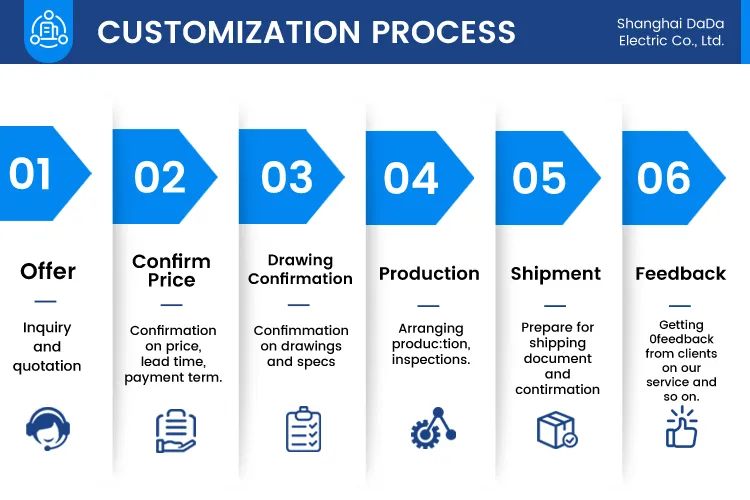

Kwa-Shanghai DADA Electric CO., Ltd, siyaqonda ukuthi ibhizinisi ngalinye linezidingo ezihlukile. Umnikelo wethu wokwenza ngendlela oyifisayo uklanyelwe ukukunikeza isixazululo esiqondene nawe. Kungakhathaliseki ukuthi udinga umkhiqizo onezici ezithile, izici zebhrend, noma ukusebenza, ithimba lethu lilungele ukuklama okunikezwayo okungokwezifiso kwakho.
