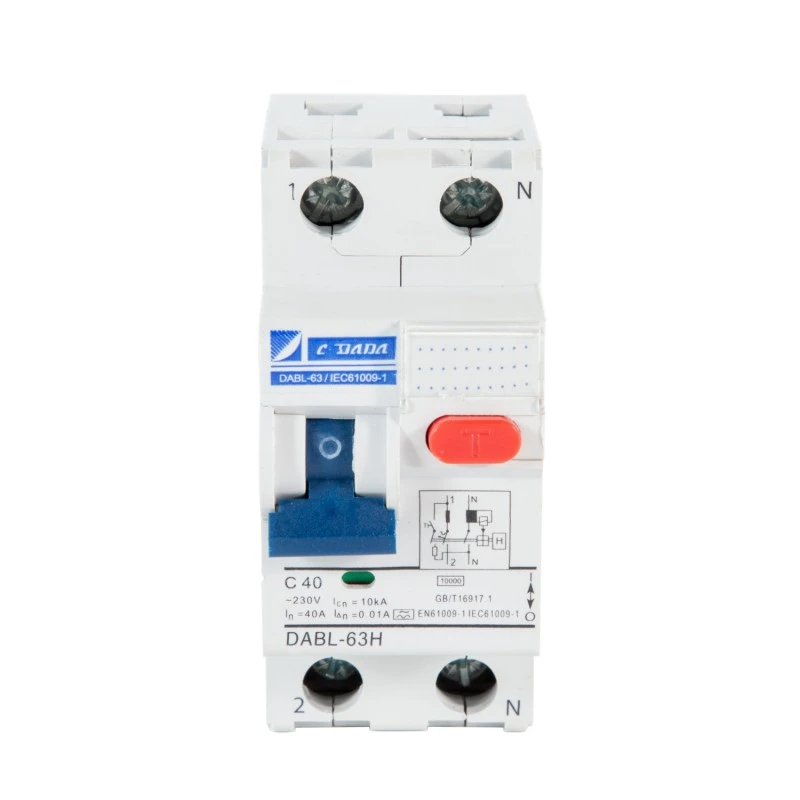

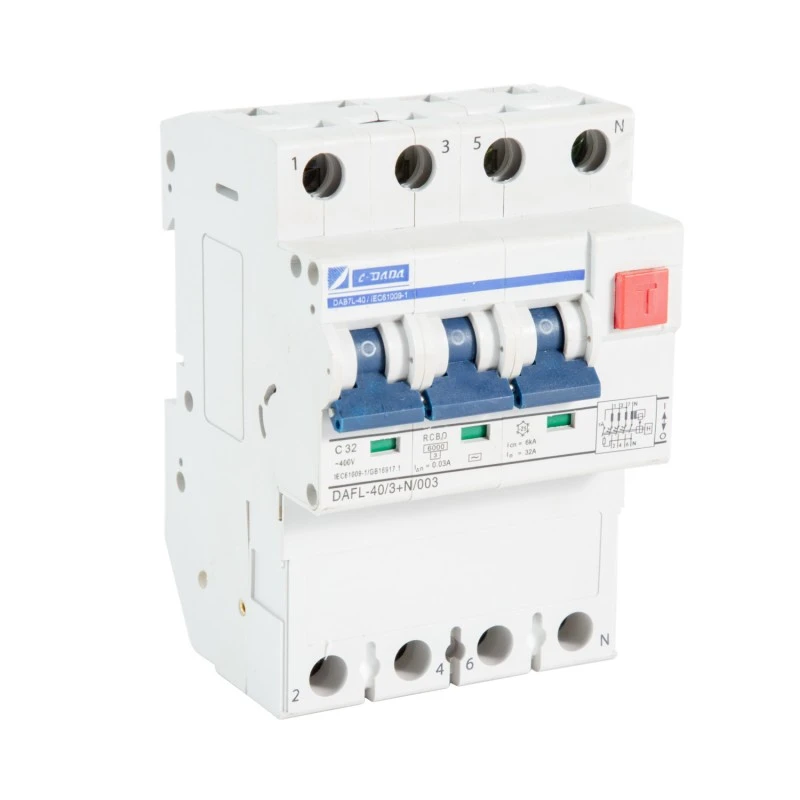

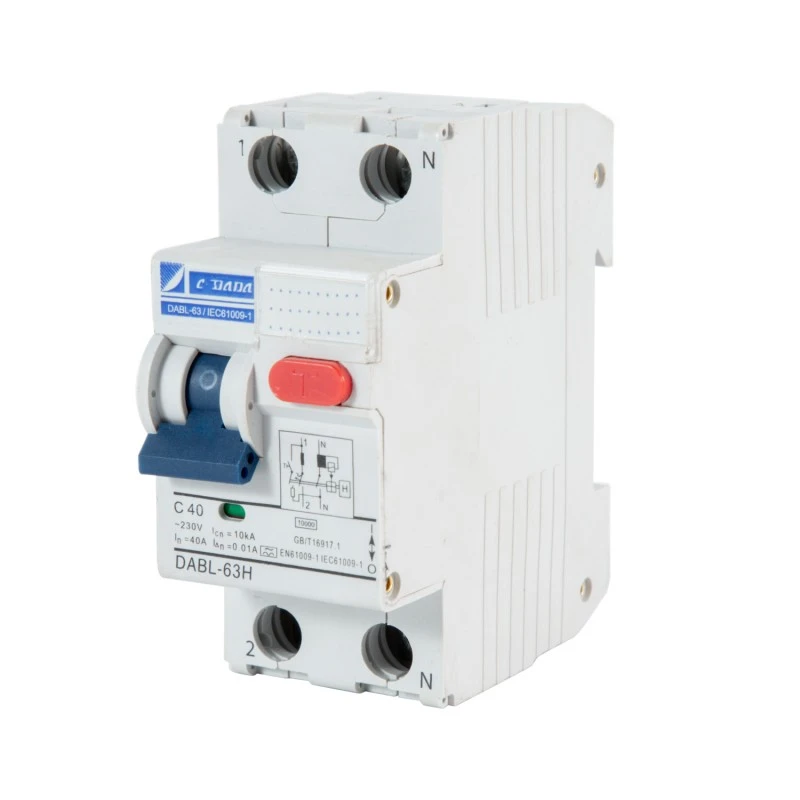

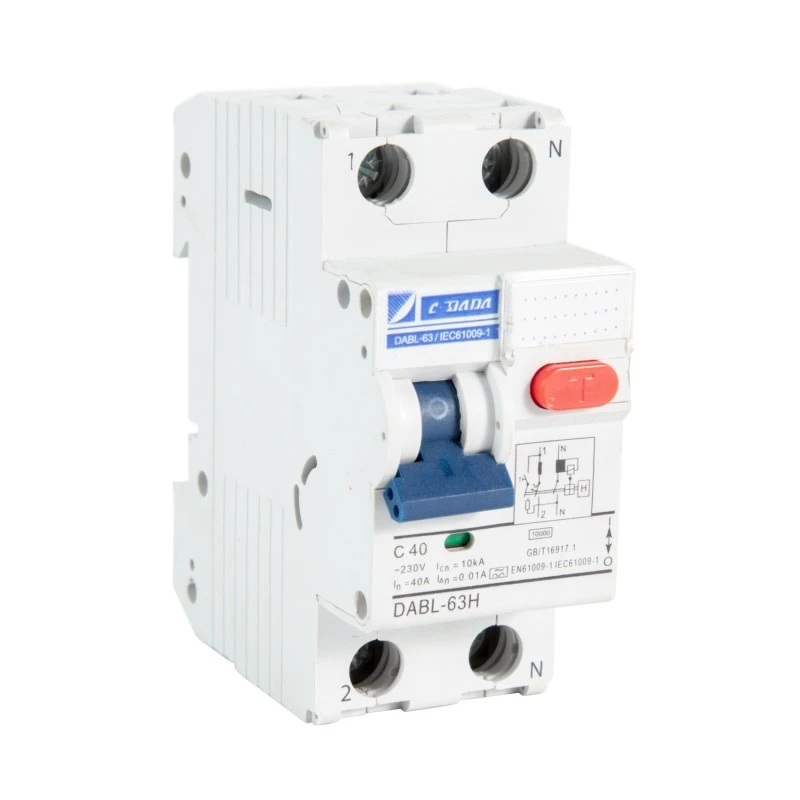

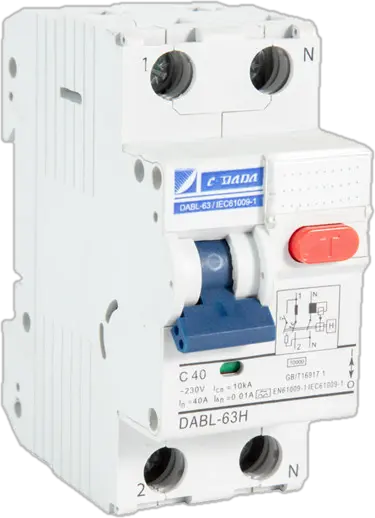

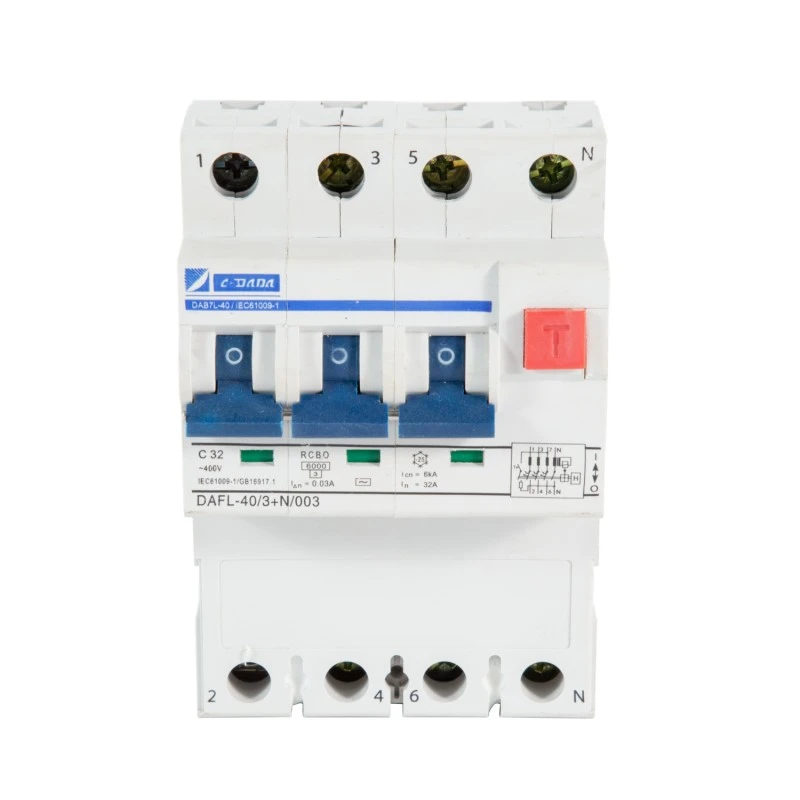

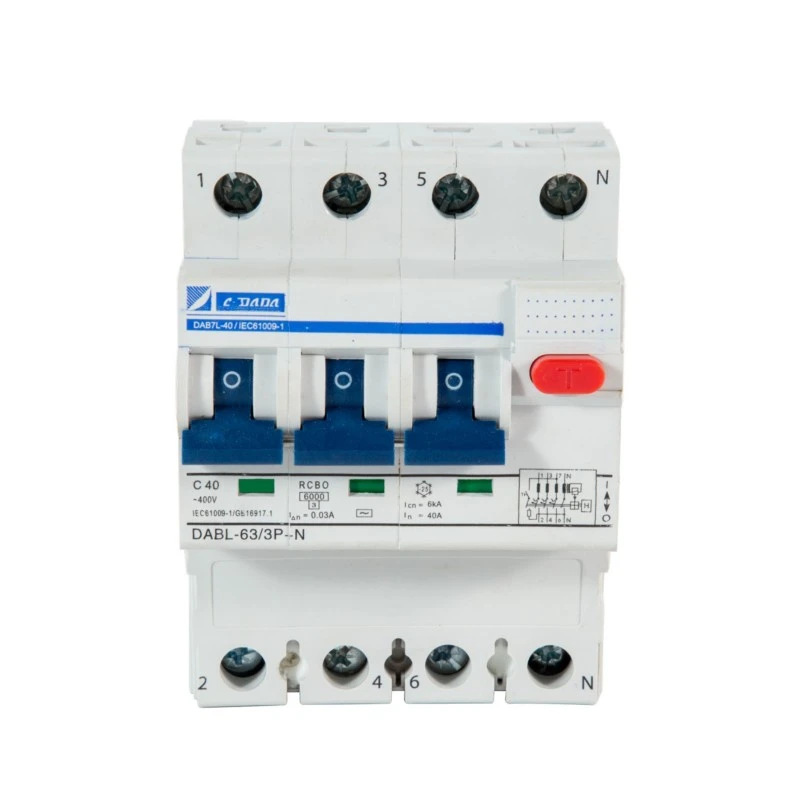

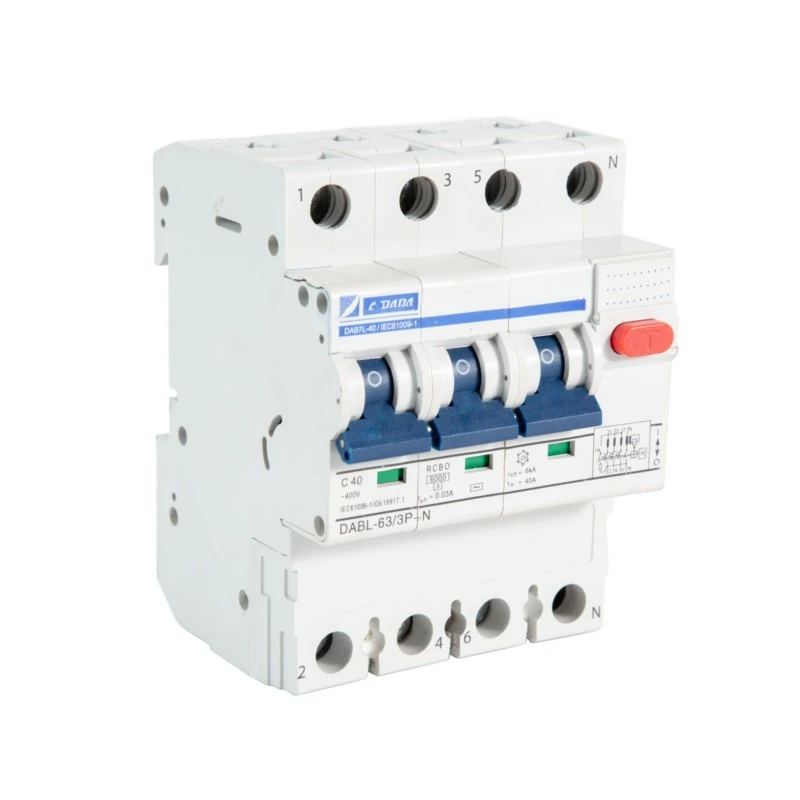

2P 4P Electromagnetic RCBO

Ngokuphepha okungaguquki ezindaweni lapho ukuthembeka kwamandla kungaqinisekile, i-Shanghai DADA Electric CO., LTD. iphrezenta i-CDADA DABF-63 2P 4P Electromagnetic RCBO i-electromagnetic RCBO yangempela eyi-2P/4P yesihlukanisi sesekhethi samanje esinokuvikela okudlulele esisebenza ngaphandle kwanoma yiziphi izingxenye ze-elekthronikhi noma ukunikezwa kwamandla kwangaphandle. Idizayinelwe amazinga e-IEC, le RCBO inikeza izivikelo ezintathu ezibalulekile kudivayisi eyodwa:

★ Ukuvimbela ukushaqeka kukagesi (ngokutholwa kwensalela yamanje engu-30mA),

★ Ukuvikelwa kokulayishwa ngokweqile (indlela yokushisa),

★ Ukuphazamiseka kwesifunda esifushane (ukukhululwa kazibuthe, 6kA).

Inconyelwe amasokhethi angaphandle, amagaraji, amagumbi angaphansi, nokufakwa kwezindawo zasemaphandleni, i-DABF-63 iyaqhubeka nokusebenza noma ngabe ukungathathi hlangothi kulahleka, ukuwa kwamandla kagesi, noma phakathi nokucima kukagesi—inzuzo ebalulekile kunezinye izindlela zikagesi. Ngenkomba yesikhundla sokuxhumana esizimele, -25°C kuya ku-+40°C ububanzi bokusebenza, kanye nomklamo oqinile wetheminali, iletha ukusebenza okungehluleki lapho kubaluleke kakhulu.

Imininingwane Ebalulekile

Imodeli: DABF-63 Series

Uhlobo: Electromagnetic RCBO (Awekho ama-electronics, awekho amandla asizayo adingekayo)

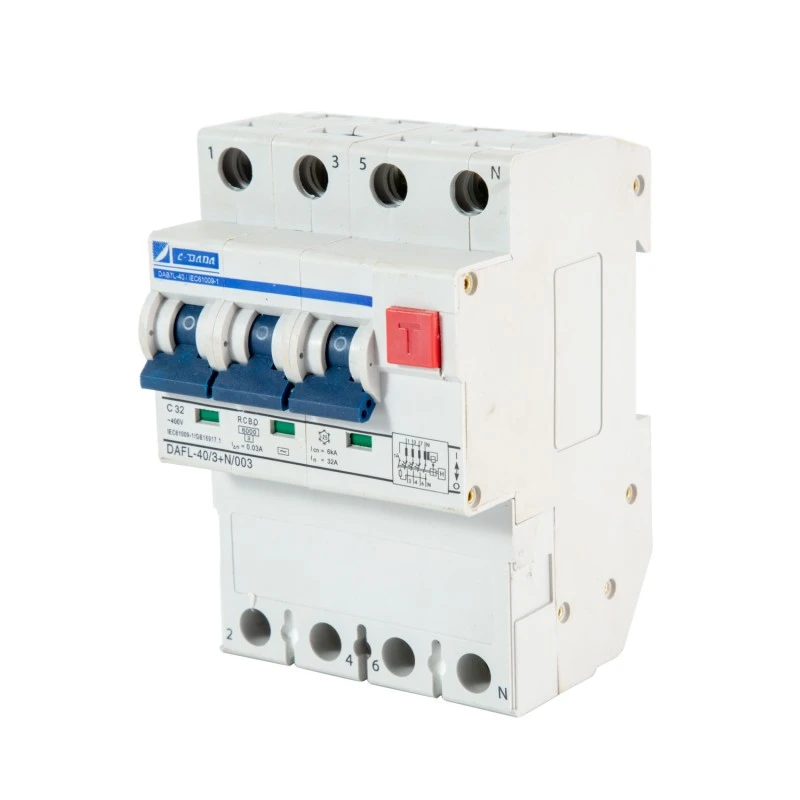

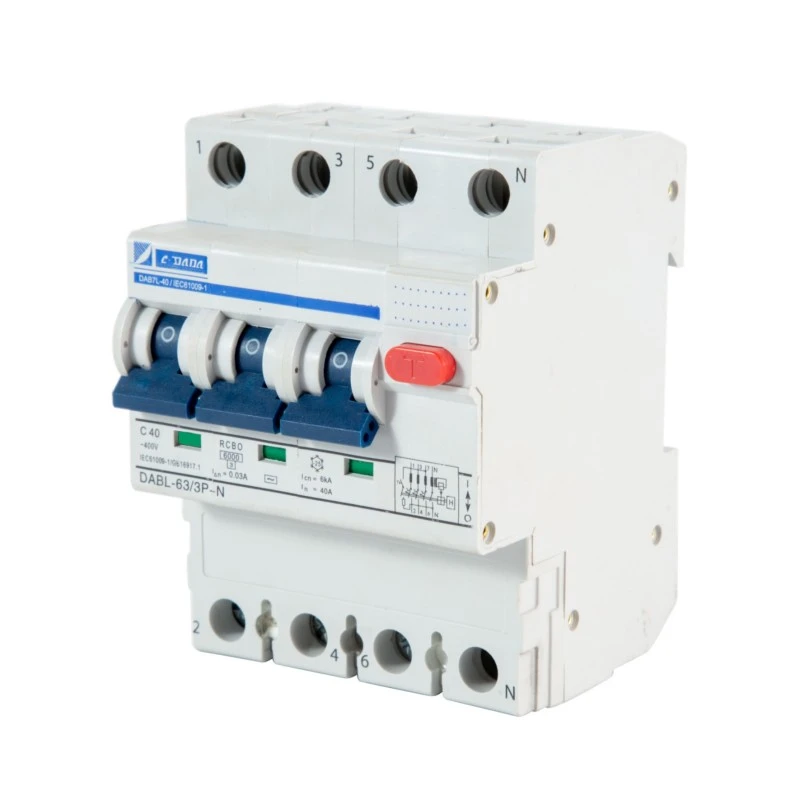

Izigxobo: 2P (1+N) noma 4P (3+N)

Kukalwe Okwamanje (Ku): 6–63A (ububanzi obujwayelekile busekelwe kuplathifomu ye-DAB7)

Ukuzwela Okusele (I△n): 30mA (okujwayelekile ukuze kuvikelwe umuntu; 100mA ngokuzithandela)

I-Non-Tripping Current: 0.5 × I△n

Isikhathi Sohambo e-I△n: ≤ 0.1s

Amandla okuphula: 6kA

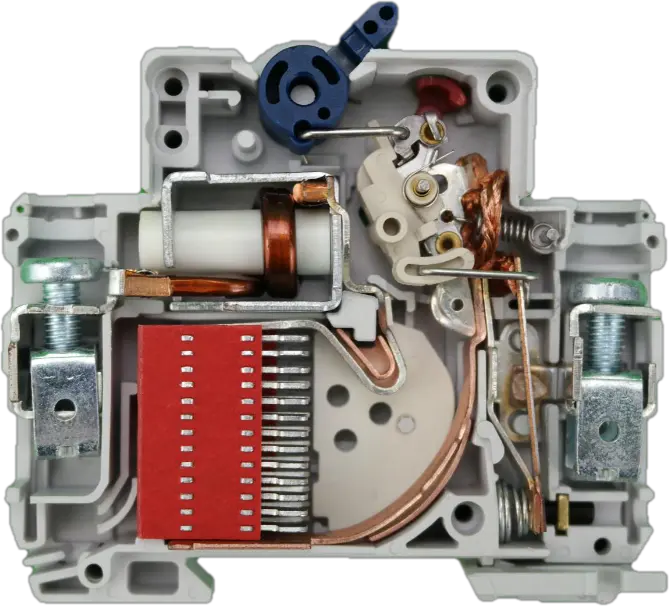

Imisebenzi yokuvikela:

I-Residual current (ukuvuza) - inzwa ye-electromagnetic

★ Overload - bimetallic ezishisayo

★ Isifunda esifushane - ukukhululwa kazibuthe

★ Izinga Lokushisa Lokusebenza: -25°C kuya +40°C

Ukukhweza: 2-module ububanzi ku-35mm DIN ujantshi

Izici Eziyinhloko:

★ Pure electromagnetic umehluko indlela

★ Inkomba yesikhundla soxhumana naye ozimele (isimo sokuvula/ukucisha/sohambo lwangempela)

★ inkinobho ethi "TEST" yokuhlola ukusebenza kwanyanga zonke

★ I-clamps ye-terminal ene-Notched → ukulahlekelwa okushisayo okuphansi, ukubamba okuqinile

★ Oxhumana nabo abanesiliva → ukuqina okuphezulu, ukumelana okuphansi

★ Izikulufu ezisebenzayo (+/-) → ukufakwa kalula

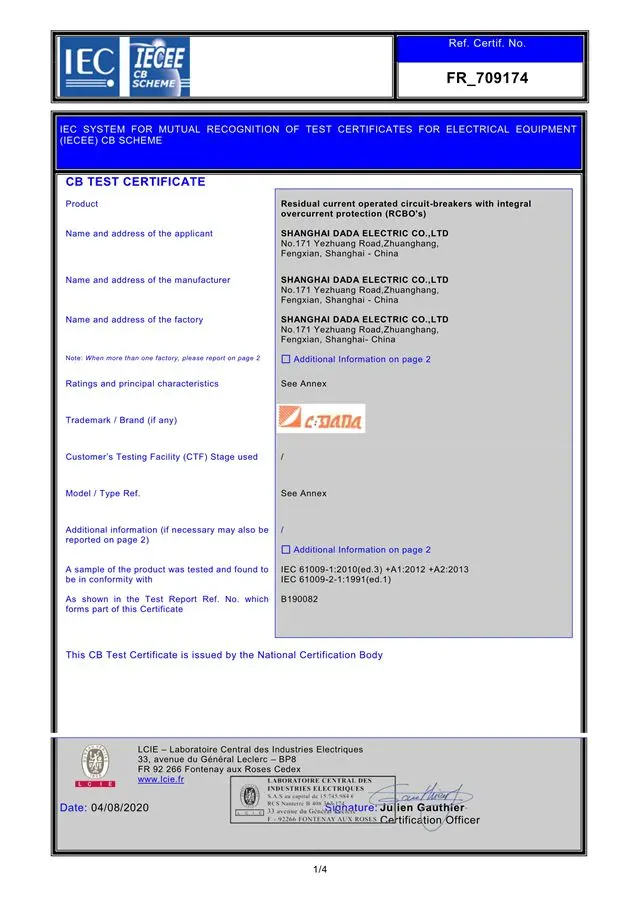

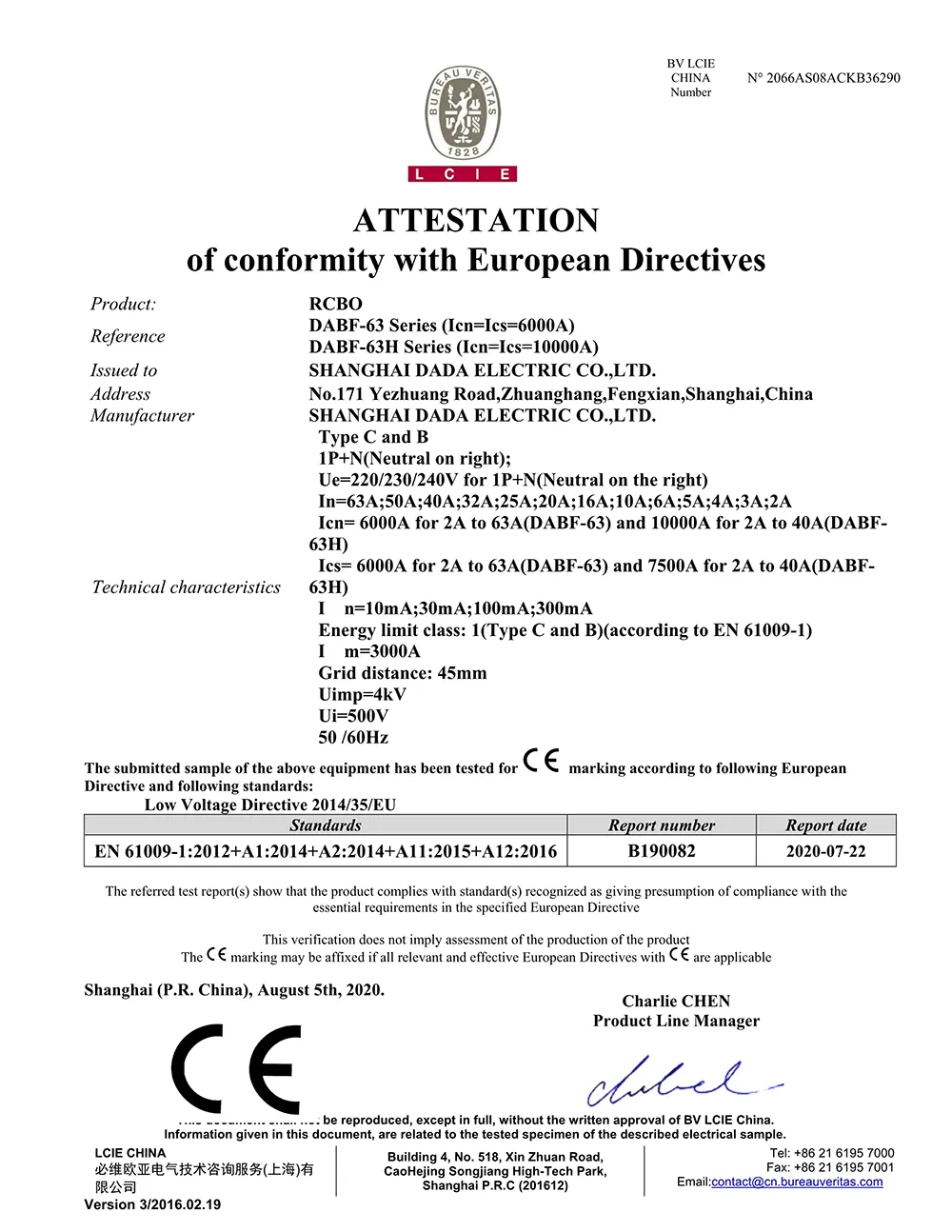

★ Izitifiketi: CE, CB (Izinto ezihambisana ne-RoHS)

Kungani Khetha i-CDADA Electromagnetic RCBO?

★ Isebenza Ngaphandle Kwamandla - Ever

Ngokungafani nama-RCBO e-electronic, i-2P 4P Electromagnetic RCBO yethu ayidingi ulayini we-voltage ukuze ibone ukuvuza—ukuqinisekisa ukuvikeleka phakathi nokwehluleka kokungathathi hlangothi, ama-brownout, noma ukucisha ngokuphelele.

★ Ilungele Izindawo Eziqinile noma Ezikude

Ilungele izindawo zasemakhaya, izindawo zokwakha, amapulazi, amathaneli, nezifunda ezinamagridi angazinzile lapho izinto zikagesi zingase zingasebenzi kahle.

★ Yehlulekile Ngokwemvelo Ephephile

Awekho ama-semiconductors = akukho ukuguga, awekho amaphutha esoftware, akukho ukuzwela kwe-EMI. I-physics efakazelwe nje ye-electromagnetic.

★ Sula Isimo Sokusebenza

Inkomba yokuxhumana ozimele ibonisa isimo sangempela sokuxhumana—sibalulekile ekugcinweni nasekuhlolweni kokuphepha.

★ Compact & Reliable

Usayizi wamamojula angu-2 usindisa isikhala sephaneli, kuyilapho oxhumana nabo be-silver-alloy namatheminali aqinile aqinisekisa impilo ende yesevisi.

★ Global Compliance

Igunyazwe kumazinga e-IEC, CE, kanye ne-CB—okuthenjelwe ukuthekelisa kanye namaphrojekthi aphesheya.

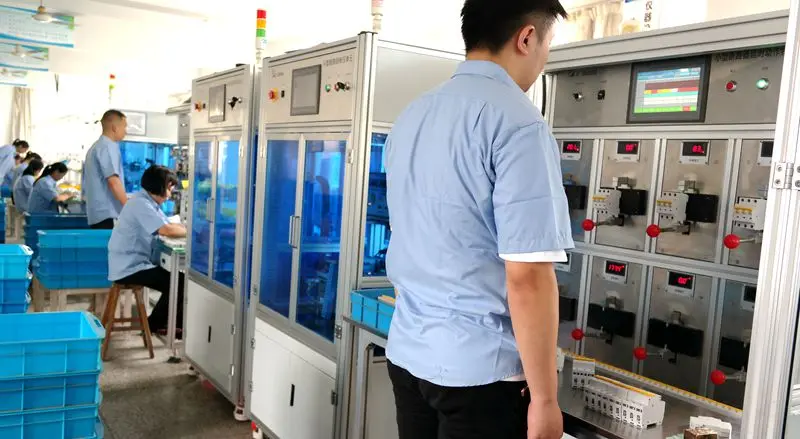

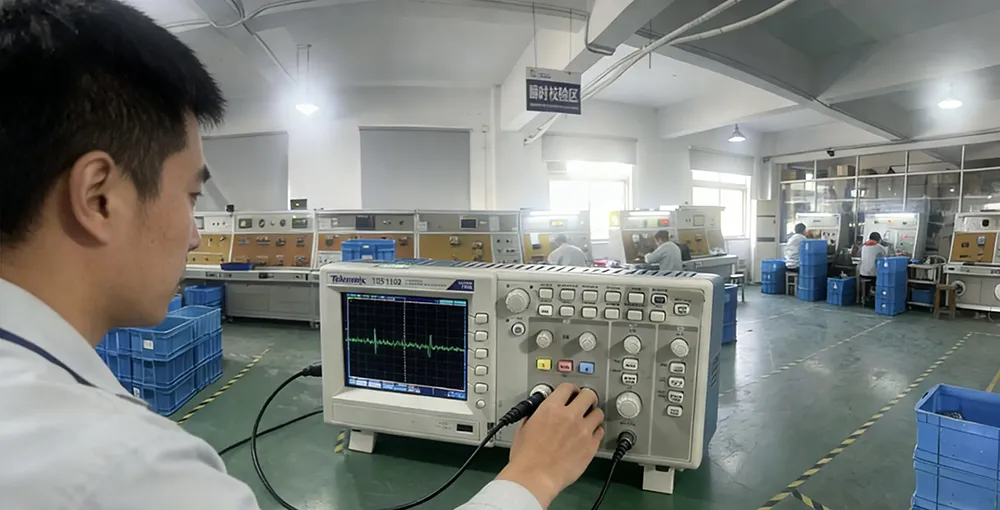

★ Njengoba kuyinqubomgomo yethu ukuhlola ngo-100% yonke imikhiqizo eshiya indawo yethu, singaqinisekisa ngokuqiniseka okuphelele ukuthi umkhiqizo unembile ngo-100% ngaphambi kokuba uphume endaweni yethu.

★ Sizoqhubeka nokwakha ubuchwepheshe bethu bezobuchwepheshe ngokutshala imali ezintweni zokusebenza, izinqubo, abantu, kanye nezitifiketi ezizobonakala emkhiqizweni wethu futhi ekugcineni eneliseke amakhasimende ethu.

Izicelo Ezijwayelekile

Amaphrojekthi Kagesi Wasemakhaya

Amasokhethi angaphandle namaphoyinti okushaja e-EV (isendlalelo esiyisisekelo)

Amagaraji, Izindlu zangaphansi nezindawo zokusebenzela (izindawo ezinomswakama, ezibandayo)

I-TT Earthing Systems (lapho ubuqotho obungathathi hlangothi bubuthakathaka)

Sekela ngokulondoloza Imibuthano namaphaneli ezimo eziphuthumayo

imibuzo ejwayelekile ukubuzwa

Q1: Uyini umehluko phakathi kwama-RCBO kagesi nawe-electromagnetic?

A1:

Q2: Ingabe le RCBO inikeza ukuvikelwa kokuhlinzwa?

A2: Cha. Ama-RCBO kagesi eqiniso awabandakanyi ama-varistors noma ukucindezelwa kokuhlinzwa—lawo adinga izingxenye ze-elekthronikhi. Uma kudingeka ukuvikelwa kokuhlinzwa, kubhanqe ne-SPD ehlukile (idivayisi yokuvikela yokuhlinza).

Q3: Ingabe i-30mA yanele ukuvikela ukushaqeka komuntu siqu?

A3: Yebo. I-30mA iwumkhawulo ojwayelekile we-IEC wokuvikela okusindisa impilo ekuthinteni okuqondile kumasekethe okuhlala nawokuhweba.

I-Q4: Ingasetshenziswa njengesivikelo esikhulu somtholi?

I-A4: Yebo-ngomthamo wokuphulwa kwe-6kA, i-DABF-63 ingasebenza njengesivikelo esingenayo kumabhodi amancane okusabalalisa, ikakhulukazi ezinhlelweni ze-TT.

Q5: Kungani ukhetha i-CDADA ye-RCBO kagesi?

A5: I-CDADA inikeza:

● Idizayini ye-electromagnetic yangempela (ayikho i-electronics efihliwe)

● Amandla okusebenza we-0V wangempela

● Usayizi ohlangene wamamojula angu-2—akuvamile ezinhlotsheni ze-electromagnetic

● Inkomba yokuxhumana ezimele yokuqinisekisa ukuphepha

● Izitifiketi zomhlaba wonke (CE/CB) nosekelo olulungele i-OEM
