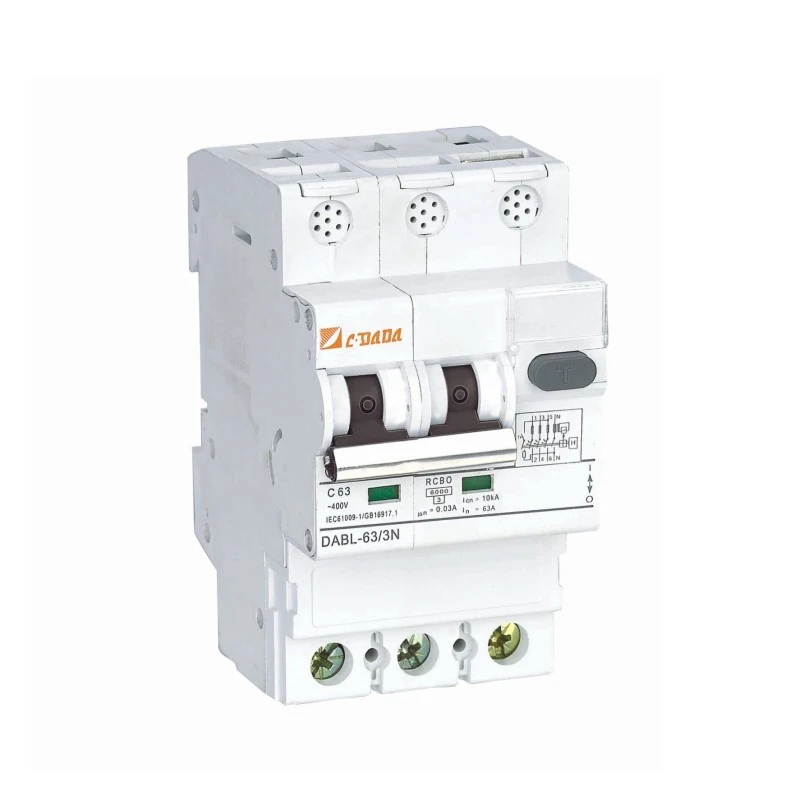

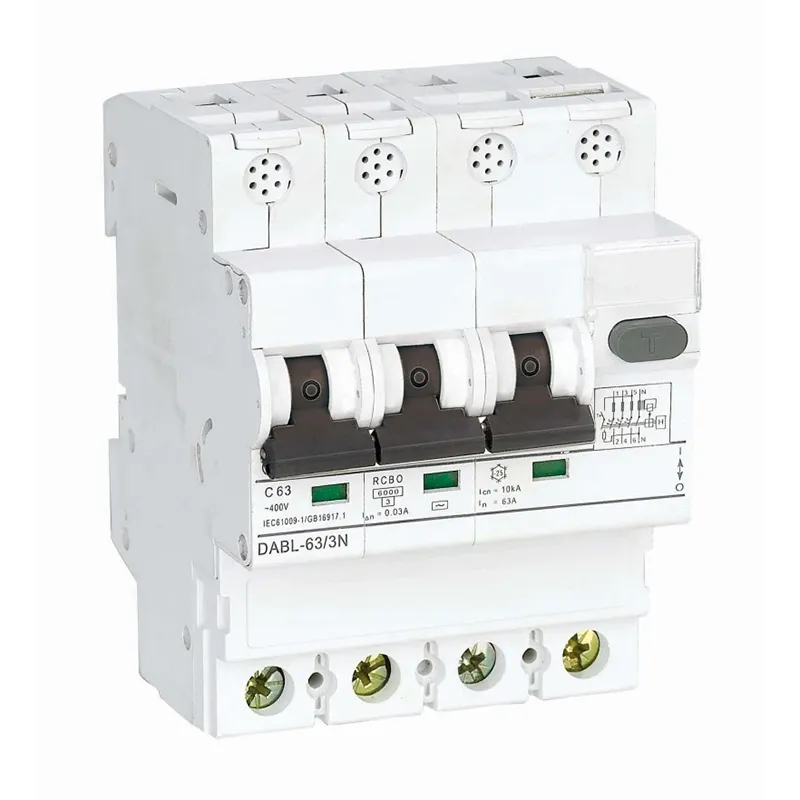

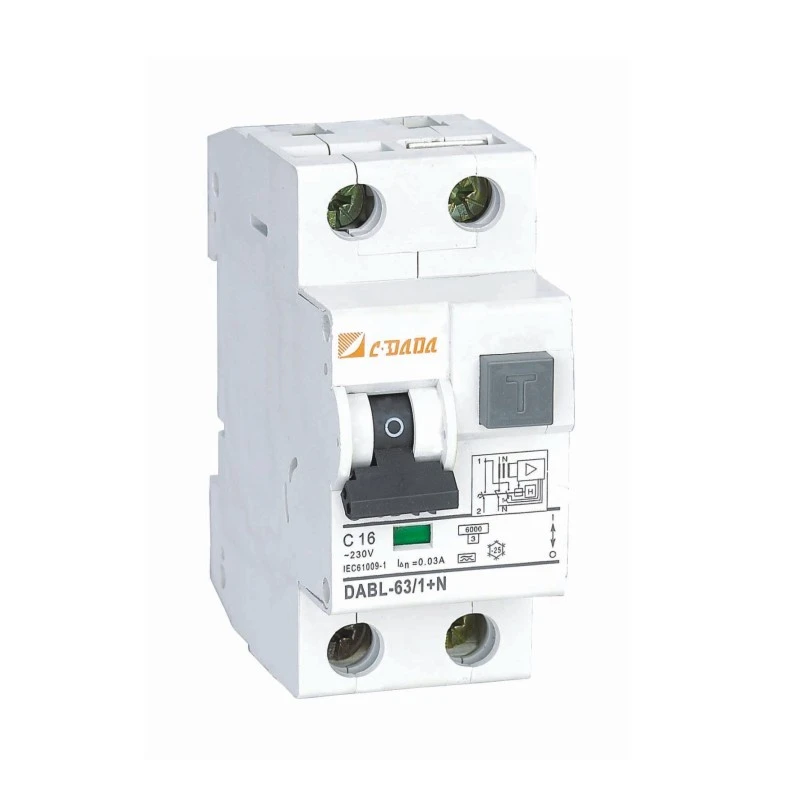

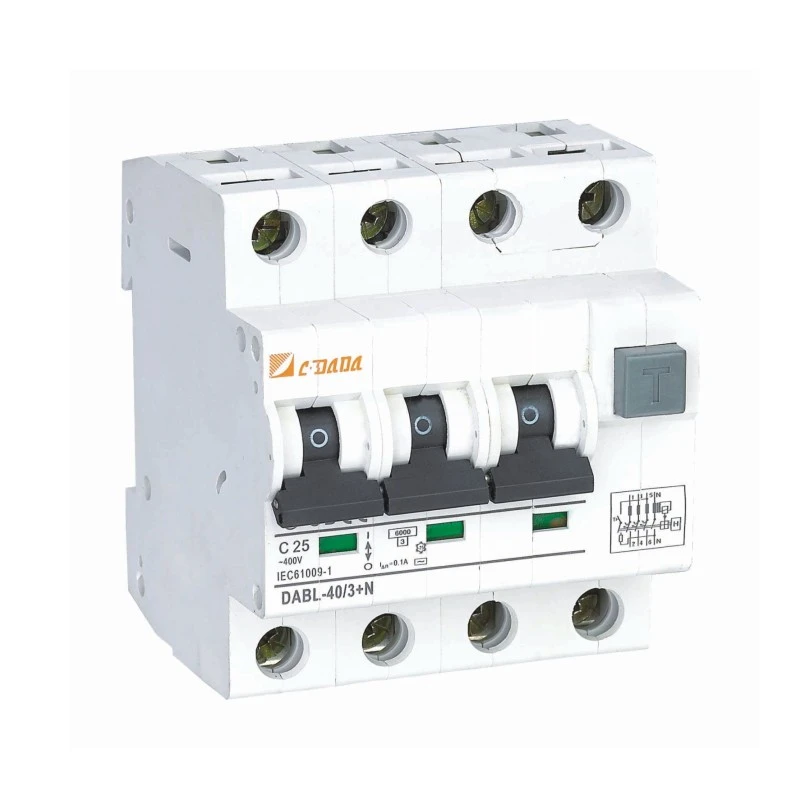

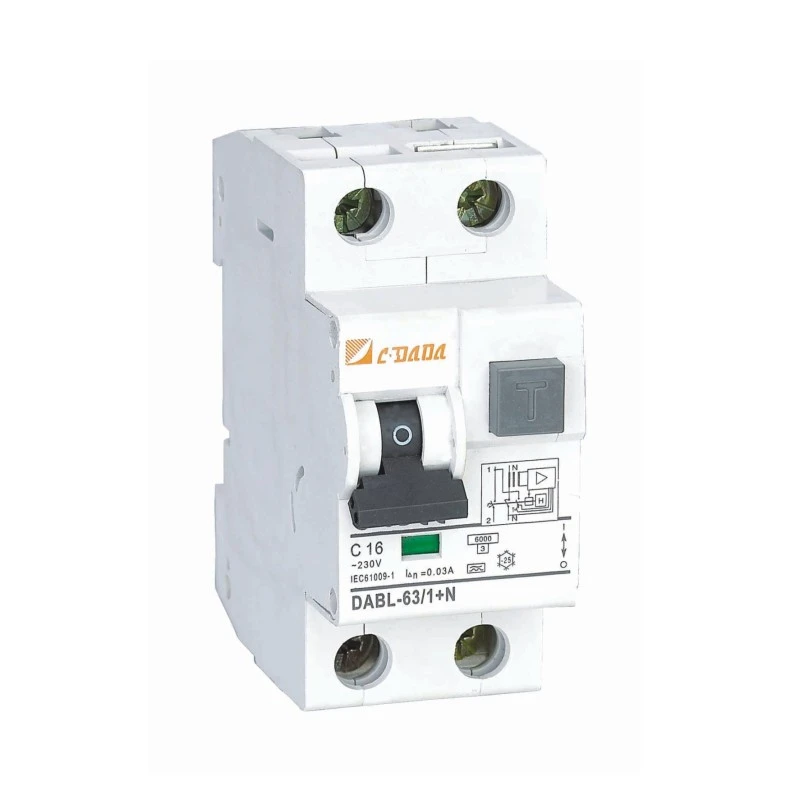

2P 4P Electronic Uhlobo RCBO
Model:DABL-63
Ungaqiniseka ukuthi ukhetha i-CDADA njengomkhiqizi nomphakeli wakho we-2P 4P Electronic Type RCBO (DABL-63). Umkhiqizo wethu uqinisekiswe yi-CE/CB/RoHS. Ihlanganisa ukuvuza okungu-30mA + ukugcwala ngokweqile + ukuvikelwa kwesiyingi esifushane. 6kA, -25°C kuya +40°C, ilungele amasekhethi angaphandle/egaraji.
Khulisa ukuphepha ekufakweni kukagesi kwesimanje nge-CDADA DABL-63 2P 4P Electronic Type RCBO—isiphambano sesekhethi esihlangene, esihlakaniphile esinokuvikela okudlulele okunjiniyela i-Shanghai DADA Electric CO., LTD. Idizayinelwe izinhlelo zokusebenza ze-2P (1+N) kanye ne-4P (3+N), le RCBO ye-elekthronikhi iletha ukuvikela okune kokukodwa:
Ukuvimbela ukushaqeka kukagesi (ngokutholwa kwensalela yamanje engu-30mA),
Ukuvikelwa kokulayisha ngokweqile,
Ukuphazamiseka kwesiyingi esifushane (umthamo wokuphuka we-6kA),
Ukucindezelwa kokuhlinzwa (i-varistor ehlanganisiwe ye-D-class).
Ilungele amasokhethi angaphandle, izibani zasegaraji, amasekhethi angaphansi, neziphakeli zikagesi, i-DABL-63 ihlangabezana namazinga e-CE, CB, kanye ne-RoHS futhi ifaka imojuli ehlukile ye-elekthronikhi yokutholwa kwamaphutha azwela kakhulu. Ngobubanzi be-DIN yamamojuli angu-2, inkomba yendawo yokuxhumana ozimele, kanye -25°C ukuya ku-+40°C ibanga lokusebenza, yakhelwe ukwethembeka kuzo zonke izimo zezulu ezihlukene kanye nezilungiselelo zendawo yokuhlala/zezentengiselwano.
Imininingwane Ebalulekile
Imodeli: DABL-63 Series
Uhlobo: I-Electronic RCBO (I-Residual Current Breaker enokuvikela okudlulele)
Izigxobo: 2P (1+N) noma 4P (3+N)
Kukalwe Okwamanje (Ku): Ngokuvamile 6–63A (kusekelwe kungxenyekazi ye-DAB7-63)
Ukuzwela Okusele (I△n): 30mA (okujwayelekile ukuze kuvikelwe umuntu siqu)
Amandla Okuphula: 6kA, 10kA
Imisebenzi yokuvikela:
I-Residual current (ukuvuza)
Ukulayisha ngokweqile (okushisayo)
Isifunda esifushane (i-electromagnetic)
I-surge overvoltage (nge-varistor eyakhelwe ngaphakathi ye-D-class)

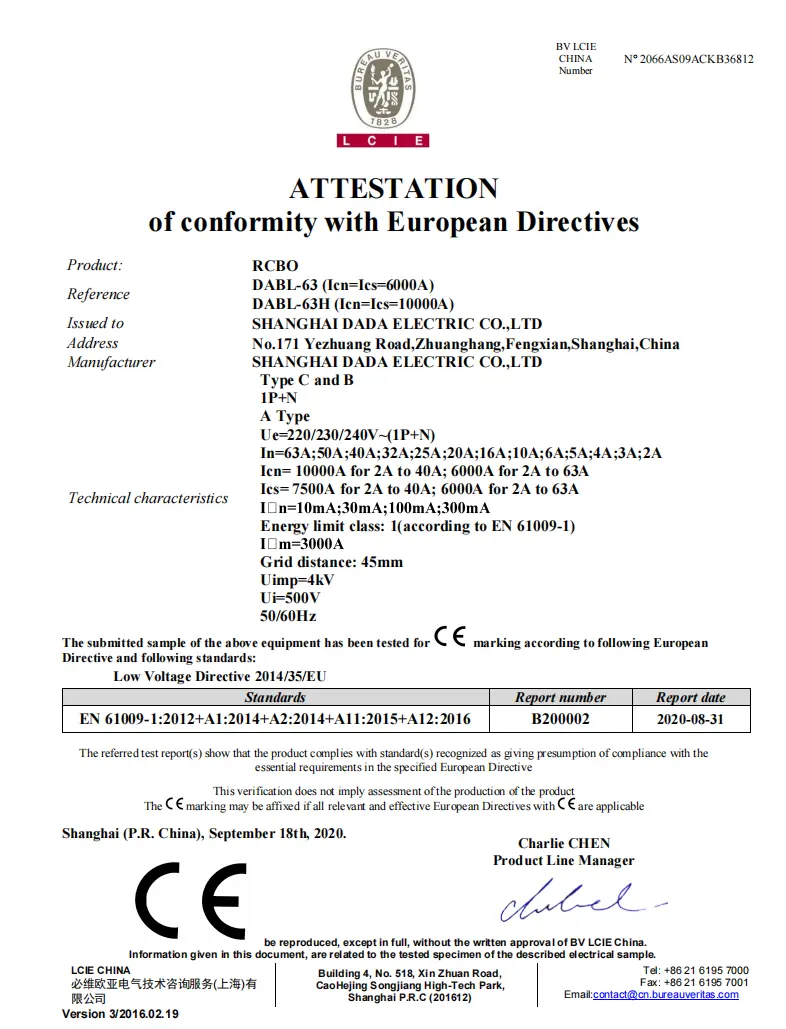

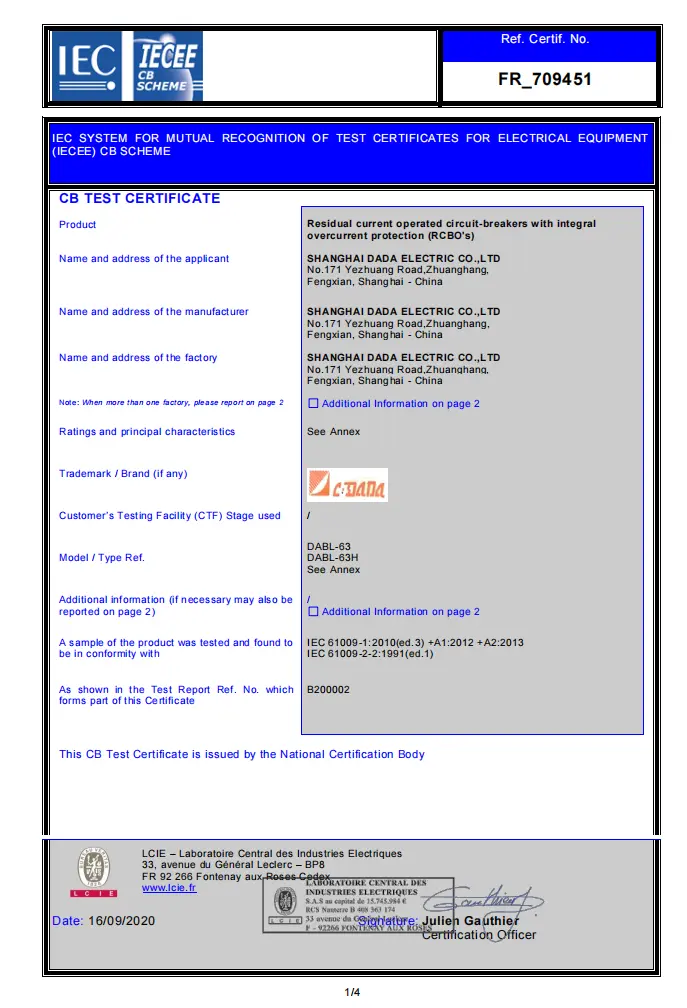

Izitifiketi: CE, CB, RoHS
Izinga Lokushisa Lokusebenza: -25°C ukuya +40°C
Ukukhweza: 2-module ububanzi ku-35mm DIN ujantshi
Ishidi Ledatha Yezobuchwepheshe
|
I-RCBO DABL-63 Uhlobo lwe-elekthronikhi |
||
|
Ukuze kuvikelwe ukusatshalaliswa kwamandla okuvamile (IEC/EN 61009) |
|
|
|
Izigxobo zenombolo |
1P+N |
|
|
Ukusebenza kukagesi |
||
|
Ilinganiselwe okwamanje ngo( A ) |
6,10,16,20,25,32,40,50,63A |
|
|
Uhlobo lokukhishwa |
Uhlobo lwe-elekthronikhi |
|
|
Imisebenzi |
Ukuvikelwa ekujikelezeni okufushane, ukuvuza, ukugcwala ngokweqile, i-voltage engaphezulu, ukuhlukaniswa |
|
|
Uhlobo lwamanje olusele |
I-AC kanye ne-A |
|
|
Isilinganiso sokuvama f ( Hz) |
50-60Hz |
|
|
I-voltage yokusebenza elinganiselwe i-Ue (V) AC |
230/400 |
|
|
Ilinganiselwe ukunyakaza kwamanje okuyinsalela I△n(mA) |
10,30,100,300 |
|
|
Ilinganiselwe lensalela yamanje akukho-mnyakazo I△no(mA) |
5,15,25,50,300 |
|
|
cosф |
0.5 |
|
|
I-Insulation voltage Ui |
500V |
|
|
I-impulse elinganiselwe imelana ne-voltage Uimp |
6kv |
|
|
Uhlobo lokuhamba ngokushesha |
B/C/D |
|
|
Isilinganiso sesekethe emfushane i-Icn(kA) |
6kA kanye 10kA |
|
|
Impilo yesevisi(O~C) |
Omakhenikha |
12000 |
|
Ezogesi |
6000 |
|
|
Ukuxhumana nokufakwa |
|
|
|
Idigri yokuvikela |
IP40 |
|
|
Intambo mm² |
1~25 |
|
|
Izinga lokushisa lokusebenza (ngesilinganiso sansuku zonke≤35℃) |
-5 ~+40℃ |
|
|
Ukumelana nomswakama nokushisa |
Ikilasi lesi-2 |
|
|
Ukuphakama ngaphezu kolwandle |
≤2000 |
|
|
Umswakama ohlobene |
+20℃ , ≤90% ;+40℃ , ≤50% |
|
|
Iziqu zokungcola |
2 |
|
|
Indawo yokufaka |
Gwema ukushaqeka okusobala nokudlidliza |
|
|
Isigaba sokufakwa |
Ikilasi Ⅱ , Ikilasi Ⅲ |
|
|
Inhlanganisela nezinsiza |
||
|
Oxhumana naye osizayo |
Yebo |
|
|
Oxhumana naye nge-alamu |
Yebo |
|
|
I-ALT+AUX |
Yebo |
|
|
Shunt ukukhululwa |
Yebo |
|
|
Ukukhishwa kwe-Undervoltage |
- |
|
|
Ukukhishwa kwe-Overvoltage |
Yebo |
|
|
Ubukhulu(mm) (WxHxL) |
a |
35 |
|
b |
80.4 |
|
|
c |
72 |
|
Izici Eziyinhloko:
★ Electronic umehluko module → high ukuzwela & ukusabela okusheshayo
★ Inkomba yokuxhumana ezimele (ibonisa isimo sangempela VULIWE/VILE/Uhambo)
★ inkinobho ethi "TEST" yokuhlola ukusebenza kwanyanga zonke
★ I-clamps ye-terminal ene-notched → ukushisa okuphansi, ukubambelela okuqinile
★ Izikulufu ezisebenza ngokuphambana (+/–) → ukufakwa kalula, azikho izingxenye eziwisiwe
★ Ingxubevange yokuxhumana enesiliva → impilo ende, ukumelana okuphansi
Kungani Khetha i-CDADA Electronic RCBO?
★ All-in-One Protection in 2 Module
Ifaka esikhundleni se-MCB + RCCB + isivikeli sokuhlinza esihlukile—ilondoloza isikhala, izindleko, nobunkimbinkimbi bezintambo.★ Ukuphepha Okuthuthukisiwe Ngokucindezelwa Kokuhlinzwa
Isifunda esihlanganisiwe ne-electronic module yokuvikela okuhlukile, i-D-class varistor kanye ne-circuit breaker edidiyelwe yochungechunge lwe-DAB7-63 iqinisekisa izinhlobo ezingu-4 zokuvikela: kusukela kumanje okusele (ukuvuza kwamanje), isifunda esifushane; ukulayisha ngokweqile kanye nokukhuphuka kwe-overvoltage.★ Ukubonakala Kwesimo Seqiniso
Ngokungafani nezinqamuli ezijwayelekile, inkomba yokuxhumana ezimele ibonisa isimo sangempela sokuxhumana—ngisho noma isibambo sibanjwe mathupha.★ Idizayini Elungele Isifaki
● Izinga lokushisa elibanzi → lilungele amagaraji angashiswanga noma ama-attics ashisayo
● Amatheminali anokiwe → izixhumanisi ezivikelekile, ezimelana kancane
● Izikulufu ze-Dual-drive → isebenza ngamathuluzi ayisicaba noma e-Phillips
★ Certified Global
Izimvume ze-CE, CB, kanye ne-RoHS ziqinisekisa ukuthobelana e-Europe, e-Asia, e-Afrika, nangale kwayo—ilungele amaphaneli okuthekelisa.
★ Perfect for High-Risk Zones
Kunconyelwe izindawo zokudayisa ezingaphandle, izindawo ezimanzi, amagaraji, nezindlu zangaphansi lapho ukushaqeka kanye nezingozi zomlilo ziphakeme.★ Njengoba unesipiliyoni seminyaka eminingi sokuthumela eRussia nasezweni laseYurophu ngaphezu kwayo yonke iNingizimu Melika, i-Europe, i-Asia, ne-Australia, i-CDADA ikuhlanganisele!

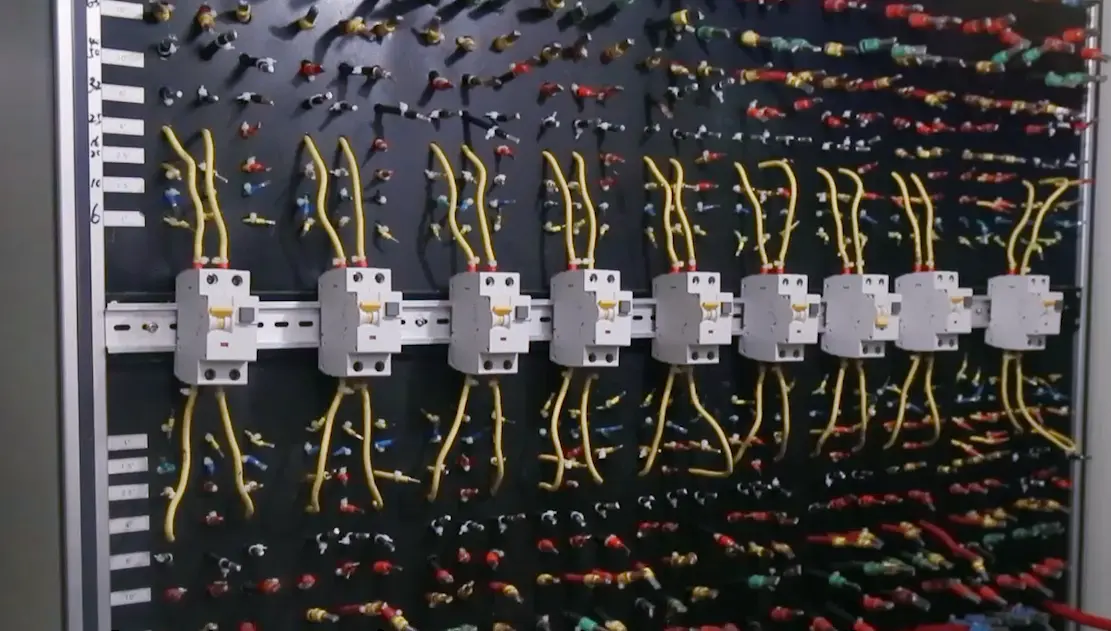

★ Njengoba kuyinqubomgomo yethu ukuhlola ngo-100% yonke imikhiqizo eshiya indawo yethu, singaqinisekisa ngokuqiniseka okuphelele ukuthi umkhiqizo unembile ngo-100% ngaphambi kokuba uphume endaweni yethu.
★ Siyajabula ukuthi usivakashele nganoma yisiphi isikhathi! Lena ukuphela kwendlela esingaba ngayo nokulawula okuphelele ezikhathini zokukhiqiza kanye nokucubungula okuphumayo.
Izicelo Ezijwayelekile
Amasokhethi Angaphandle: Okwamathuluzi engadini, amashaja e-EV, izibani zamaholide
Igalaji & Ukukhanyisa Kwaphansi: Izindawo ezinomswakama, ezibandayo
Izifunda zikagesi: Imishini yokuwasha, iziwasha izitsha, iziqandisi
Amandla Okusebenzela: Lapho amathuluzi nomswakama kuhlangana khona
Amaphaneli Angaphansi Kwendawo yokuhlala: Isixazululo esiqinile, esinokuvikela okuningi
Imibuzo Evame Ukubuzwa (FAQ)
Q1: Uyini umehluko phakathi kwe-RCCB ne-RCBO?
A1: I-RCCB ithola kuphela amandla asele (avuzayo)—ayivikeli ekulayishweni okukhulu noma kumasekhethi amafushane. I-RCBO (efana ne-DABL-63) ihlanganisa i-RCCB + MCB kudivayisi eyodwa—inikeza ukuvuza + ukulayishwa ngokweqile + ukuvikelwa kwesiyingi esifushane.
Q2: Ingabe le RCBO ivikela ngempela ekuqhumeni?
A2: yebo! Kufaka phakathi i-varistor ye-D-class eyakhelwe ngaphakathi ecindezela ama-overvoltages esikhashana (isb., kusukela ekumbanini noma ekushintsheni kokushisa)—isici esingandile kuma-RCBO ajwayelekile.
Q3: Kungani ukhetha i-RCBO ye-elekthronikhi ngaphezu kwe-electromagnetic? A3:
● Ama-RCBO kagesi anikeza ukuzwela okuphezulu, usayizi omncane, futhi angahlanganisa imisebenzi eyengeziwe (njengokuvikela ukukhuphuka).
● Adinga amandla kalayini ukuze asebenze—ngakho akulungile uma ukungathathi hlangothi kungathembeki.
● Izinhlobo ze-electromagnetic zisebenza ku-0V kodwa zinkulu futhi azinazo izici ezihlakaniphile.
→ Kumagridi okuhlala azinzile, ama-RCBO kagesi afana ne-DABL-63 alungile.
Q4: Ingabe i-30mA yanele ekuvikelweni komuntu siqu?
A4: Yebo. I-30mA indinganiso yamazwe ngamazwe (IEC) yokuvikela ukushaqeka okusindisa ukuphila kumasekhethi okuhlala.
Q5: Kungani ukhetha i-CDADA ye-RCBO kagesi?
A5: I-CDADA igqamile ngoba:
● Ukuvikelwa kweqiniso okungu-4-in-1 (ukuvuza + ukugcwala + ukujikeleza okufushane)
● Idizayini enamamojula angu-2 ahlangene ilondoloza isikhala sephaneli
● Inkomba yokuxhumana ezimele iqinisekisa isimo esinembile
● Izitifiketi zomhlaba wonke (CE/CB/RoHS)
● Ilungele i-OEM: ikhwalithi engaguquki, usekelo lwesiNgisi, intengo yenqwaba
