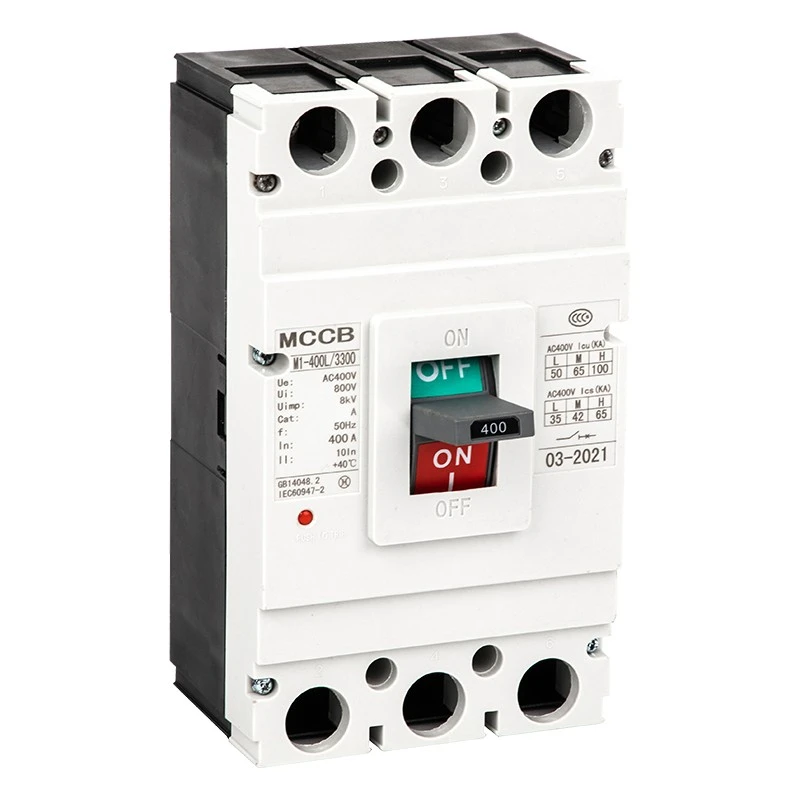

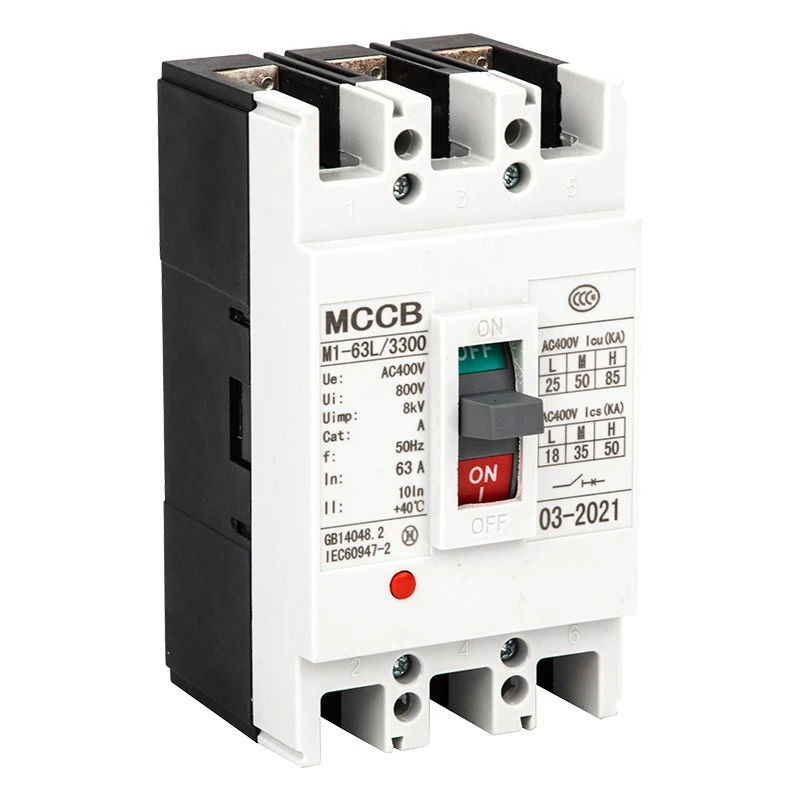

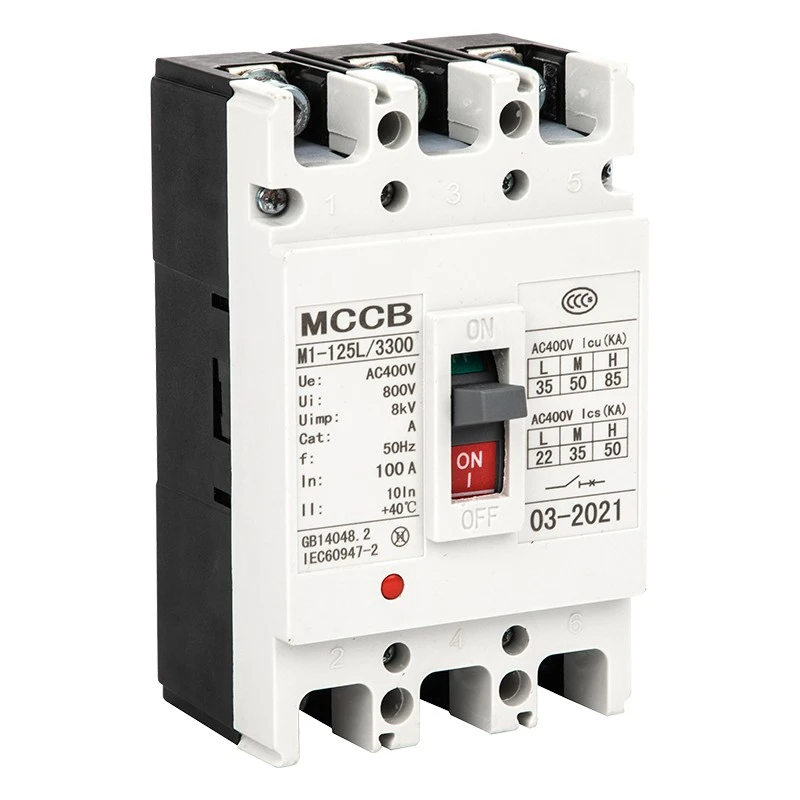

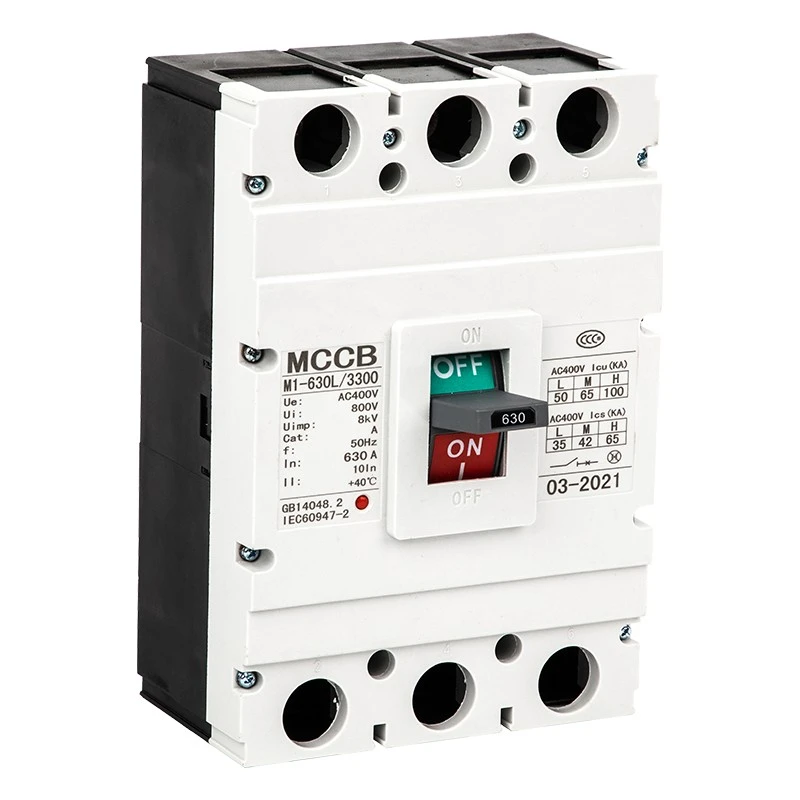

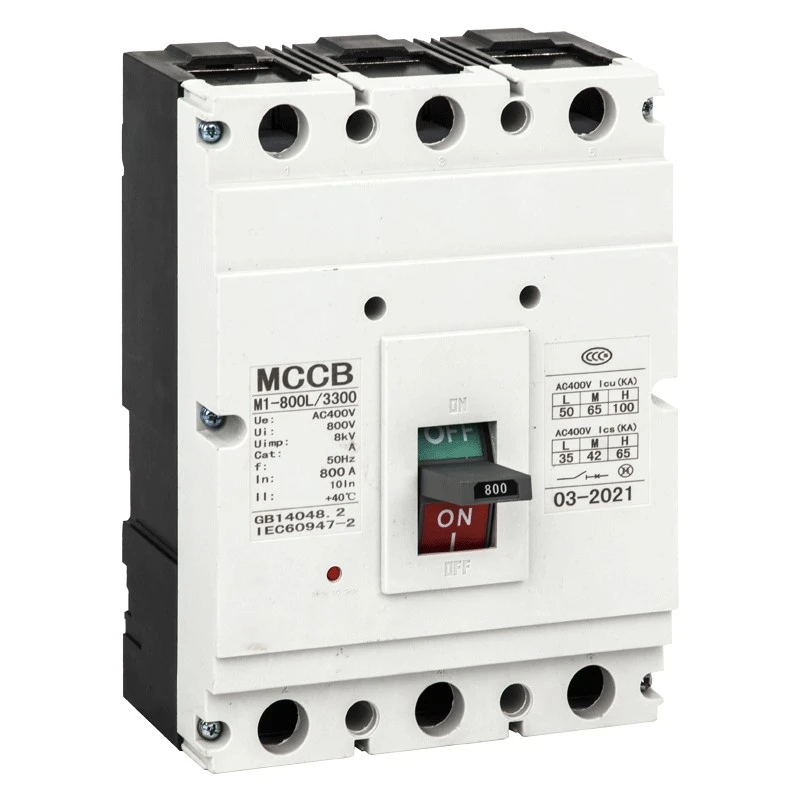

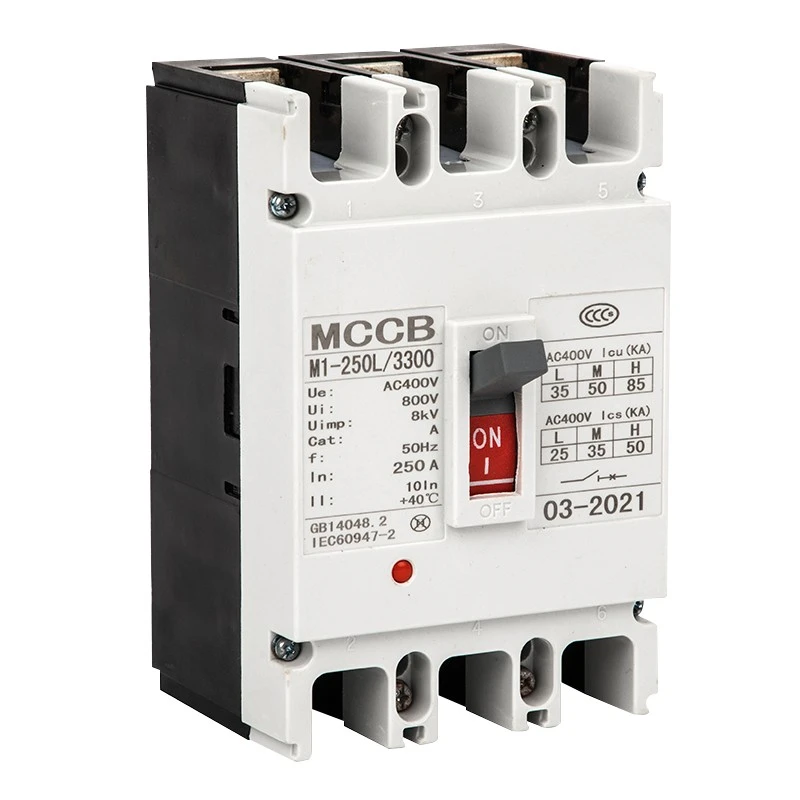

I-CM1 Molded Case Circuit Breaker
Model:DAM2 (CM1) Series
Le CDADA CM1 Molded Circuit Breaker (MCCB) yakhelwe ukuthengwa kwenqwaba, ngesitifiketi se-IEC60947-2 nokusebenza okuzinzile kwezinhlelo zamandla ezimboni. I-CM1 MCCB isebenzisa isakhiwo esinamandla aphezulu kanye nendlela ethembekile yokuhamba, kulula ukuyifaka nokuyinakekela. Ihlanganisa ukuvikela okuhlakaniphile nomklamo oqinile, okuqinisekisa impilo ende yesevisi ekusabalaliseni amandla kanye nezicelo zezimboni ezinzima.
Lolu chungechunge lwe-DAM2 (CM1) lwe-CM1 Molded Case Circuit Breaker luyidivayisi esebenza kahle kakhulu yokuvikela i-voltage ekhiqizwe i-Shanghai DADA Electric Co., Ltd., umkhiqizi nomnikezeli wempahla onokwethenjelwa e-China. Ngamandla kagesi alinganisiwe afika ku-800V, i-voltage yokusebenza elinganiselwe engu-400V/690V, futhi ikalwe okwamanje ukusuka ku-63A kuya ku-1600A, isetshenziswa kabanzi ekusabalaliseni amandla, ukuvikela isekethe, ukulawula imoto nokushintsha okungajwayelekile.
Lolu chungechunge lusekela ukufakwa okuqondile nokuvundlile, kuthobelana nezinga le-IEC60947-2, futhi luhlinzeka ngokugcwala okuphelele, ukuvikela okufushane kanye nokuvikela okungaphansi kwe-voltage kumishini yamandla.
Izici Zomkhiqizo
★ Isilinganiso se-insulation voltage: 800V; I-voltage esebenzayo: 400V/690V
★ Ibanga lamanje: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Breaking umthamo: L standard, M medium, H high breaking uhlobo
★ Izindlela zokukhululwa ezimbili ze-Thermal-magnetic & electromagnetic
★ Ukufakwa okuqondile / okuvundlile, kulungele ukusetshenziswa kokuhlukaniswa
★ Ibanga lokushisa elibanzi le-ambient: -5℃~+40℃
★ Ukuphakama ≤2000m, idigri yokungcola 3
Izinhlelo zokusebenza
I-CDADA CM1 Molded Case Circuit Breaker isetshenziswa kabanzi ezinhlelweni zokusabalalisa amandla ezimbonini kanye nezomphakathi, okuhlanganisa amafekthri, izakhiwo, izikhungo zedatha, iziteshi zikagesi, ingqalasizinda, imishini, namakhabethe okusabalalisa amandla. Ibuye isetshenziselwe ukuvikelwa kwezimoto, ukuguqulwa kwesekethe, kanye nokunikezwa kwamandla aphephile ekwakhiweni, i-metallurgy, i-petrochemical nezinye izimboni.
Imingcele Yezobuchwepheshe
★ Amazinga: IEC60947-2, GB14048.2
★ Imvamisa: AC 50Hz/60Hz
★ Isigxobo: 1P, 2P, 3P, 4P
★ Ukukhishwa: I-Thermal-magnetic (okukabili), i-electromagnetic (ngokushesha)
★ Isilungiselelo esisheshayo: Uhlobo lokusabalalisa 10In±20%; Uhlobo lwemoto 12In±20%
★ Ukufakwa: Izintambo zangaphambili, izintambo ezingemuva, uhlobo lwe-plug-in
★ Operation: Manual, electric indlela yokusebenza
|
Imodeli |
Isigxobo |
Ikalwe okwamanje (A) |
Ikaliwe ukusebenza i-voltage (V) |
Ikaliwe ukwahlukanisa i-voltage (V) |
Isilinganiso sokugcina esifushane - umthamo wokuphulwa kwesekethe (Icu) |
I-Flashover ibanga (mm) |
||
|
I-voltage yokuhlola (V) |
Icu (kA) |
I-Ics (kA) |
||||||
|
I-DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
I-DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
I-DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
I-DAM2M-100 |
2, 3, 4 |
50 |
35 |
|||||
|
I-DAM2H-100 |
3 |
85 |
50 |
|||||
|
I-DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
I-DAM2M-100 |
2, 3, 4 |
20 |
10 |
|||||
|
I-DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
I-DAM2M-225 |
2, 3, 4 |
50 |
35 |
|||||
|
I-DAM2H-225 |
3 |
85 |
50 |
|||||
|
I-DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
I-DAM2M-225 |
2, 3, 4 |
20 |
10 |
|||||
|
I-DAM2L-400 |
3 |
225, 250, 315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
I-DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
I-DAM2H-400 |
3 |
100 |
65 |
|||||
|
I-DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
I-DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|
I-DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
I-DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
I-DAM2H-630 |
3 |
100 |
65 |
|||||
|
I-DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
I-DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|
I-DAM2M-800 |
3 |
630, 700,800 |
400 |
800 |
75 |
50 |
||
|
I-DAM2H-800 |
3 |
100 |
65 |
|||||
|
I-DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
I-DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
I-DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Ubukhulu nobukhulu bokufaka
I-CM1 MCCB yethu inikeza idatha yobukhulu obuphelele yamamodeli angu-63A–1600A, okuhlanganisa izintambo zangaphambili, izintambo ezingemuva kanye nohlobo lwe-plug-in. Osayizi abahlukene bozimele (63/100/225/400/630/800/1250/1600) bafaniswe nobukhulu be-H, H1, H2 bokufakwa kwekhabethe elijwayelekile. Ubude bemishini yokusebenza eyenziwa ngesandla kanye nekagesi nayo isezingeni ukuze ihlanganiswe kalula.
Izesekeli & Imisebenzi
Izesekeli zangaphakathi
★ Ukukhishwa kwe-Shunt: 70%–110% olinganiselwe we-voltage yokuhamba okuthembekile
★ Ukukhishwa kwe-voltage engaphansi: 35%–70% ukwehla kwamandla kagesi ukuze kuvikelwe okuzenzakalelayo
★ Oxhumana naye osizayo & othintana ne-alamu: Impendulo yesignali kanye ne-alamu yephutha
★ Imitha ekhokhelwa kusengaphambili ukukhululwa okunikezelwe: Ukubambezeleka kokuhamba 0.5–2s
Izesekeli zangaphandle
★ Manual yokusebenza indlela
★ Indlela yokusebenza kagesi (motor).
★ Izihlukanisi zesigaba, izikulufo zokukhweza, amakhithi amabhasi

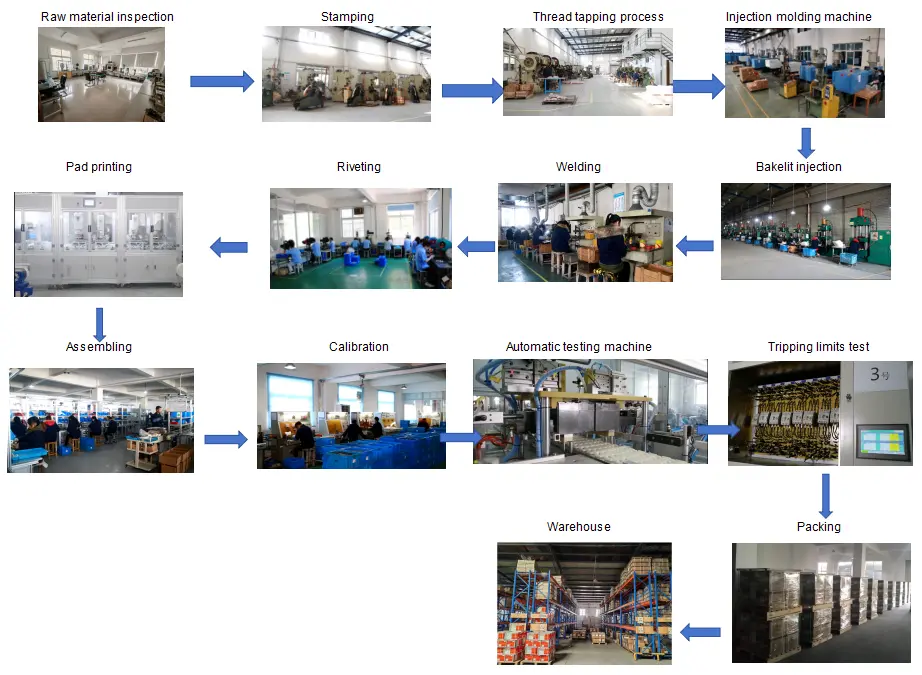

Ukugeleza Kokulawula Ikhwalithi
Ukuhlola impahla eluhlaza → Ukucutshungulwa kokukhiqiza → Umugqa wokuhlanganisa → Ukuhlolwa kwesici sohambo → Ukuhlolwa kokukhuphuka kwezinga lokushisa → Ukuhlolwa kwesifunda esifushane → Ukuhlolwa kokuguga → Ukuhlola ukubukeka nobukhulu → Ukupakisha → Ukuhlolwa kokugcina ngaphambi kokuthunyelwa

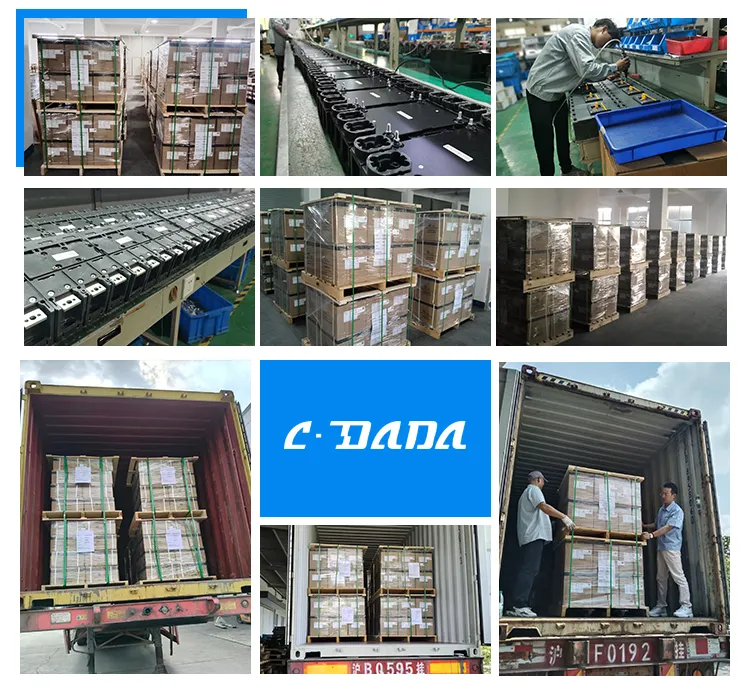

Ukupakisha & Ukuthumela
★ Ibhokisi lokuthekelisa elijwayelekile + i-pallet yokhuni yokuhamba ephephile
★ Ilebula: imodeli, yamanje, isigxobo, ubuningi, isitifiketi
★ Ifanele ulwandle, umoya kanye nomhlaba Logistics
Izitifiketi
IEC60947-2, GB14048.2, CE, CB, ROHS nezinye izimvume zomhlaba jikelele.

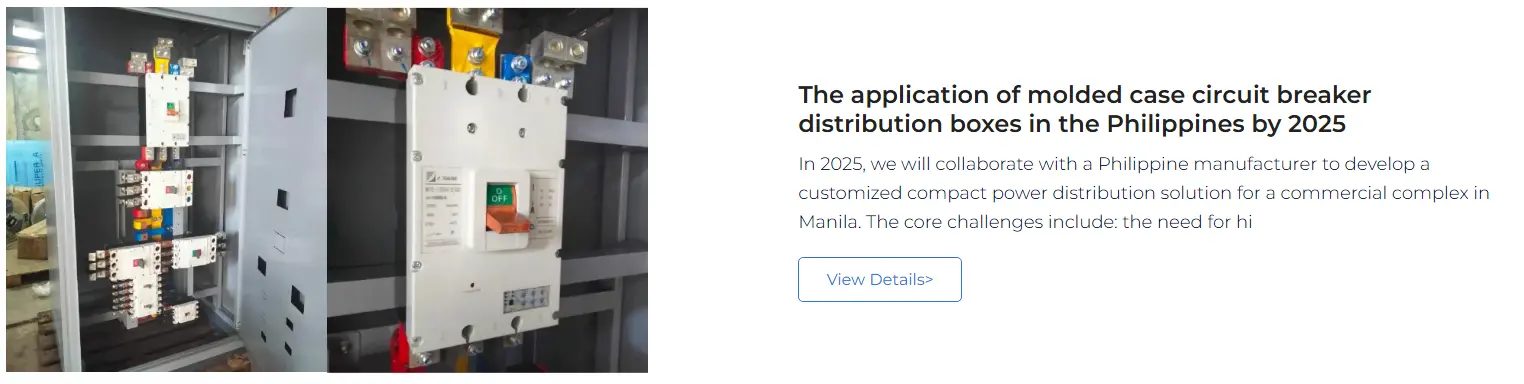

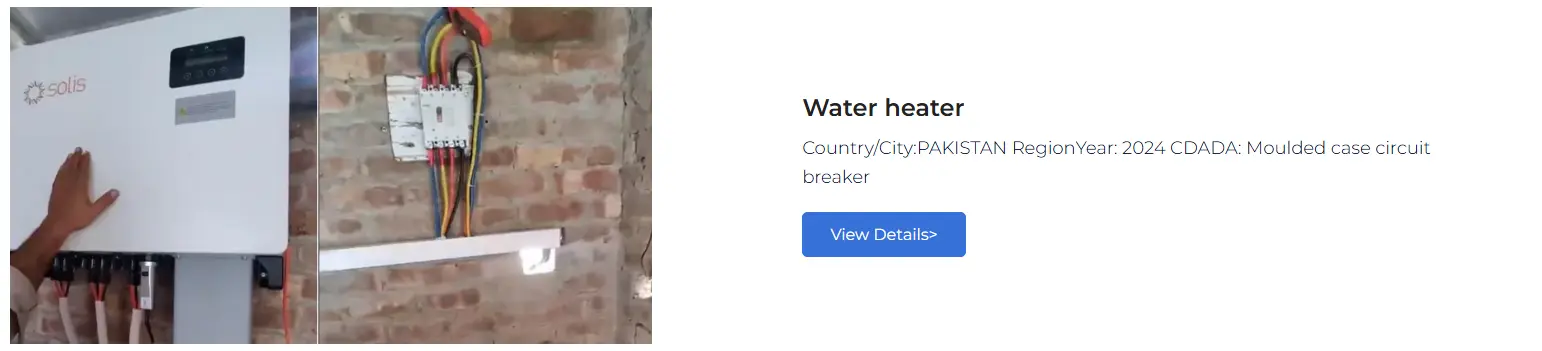

Amacala Okubambisana Kwamakhasimende
Uchungechunge lwe-CDADA DAM2 lwe-MCCB lunikezwe amakhasimende omhlaba, okuhlanganisa izihlanganisi zesistimu yokusabalalisa amandla, abakhiqizi bemishini yezimboni, izimboni ezishintshashintshayo, osonkontileka bokwakha nemikhiqizo ye-OEM eYurophu, eNingizimu-mpumalanga Asia, eMpumalanga Ephakathi, e-Afrika naseNingizimu Melika. Sihlinzeka ngokulethwa kwenqwaba okuzinzile kanye nezixazululo ezenziwe ngezifiso zozakwethu besikhathi eside.
