I-MCCB enokuvikelwa kokuvuza

Thuthukisa ukuphepha kukagesi ngaphezu kokugcwala kakhulu kanye nokuvikela isiyingi esifushane nge-CDADA DAM1L Series MCCB ene-Leakage Protection isiqephu sesekesi esihlanganisiwe esihlanganisiwe esinokusebenza kwensalela eyakhelwe ngaphakathi (RCD/ELCB). Idizayinelwe umkhiqizi ochwepheshe i-Shanghai DADA Electric CO., LTD kuya kuzindinganiso zamazwe ngamazwe, lokhu kuvuza kwe-MCCB 4P kuhlanganisa ukusatshalaliswa kwamandla okusebenza okuphezulu nokutholwa kwamaphutha komhlaba okusindisa ukuphila nokusindisa umlilo.

Ilinganiselwe ukusuka ku-10A ukuya ku-500A ku-400V/415V, inikeza ukusebenza kwensalela elungisekayo (30mA–1000mA) kanye nokulibaziseka kwesikhathi ongakukhetha—okuvumela ukuvikelwa okulungiselelwe ukuphepha komuntu siqu (≤30mA) noma ukuvimbela umlilo (100mA–500mA+). Ngama-elekthronikhi asebenza ngezigaba eziningi, ahlala esebenza noma ngabe isigaba esisodwa sihluleka noma amandla kagesi ehla aze afike ku-50V, okuqinisekisa ukwethembeka okungenakuqhathaniswa kwingqalasizinda ebalulekile njengamahubhe, izindawo eziphakeme, izindawo zokuhamba, nezitshalo zezimboni.

Imininingwane Ebalulekile

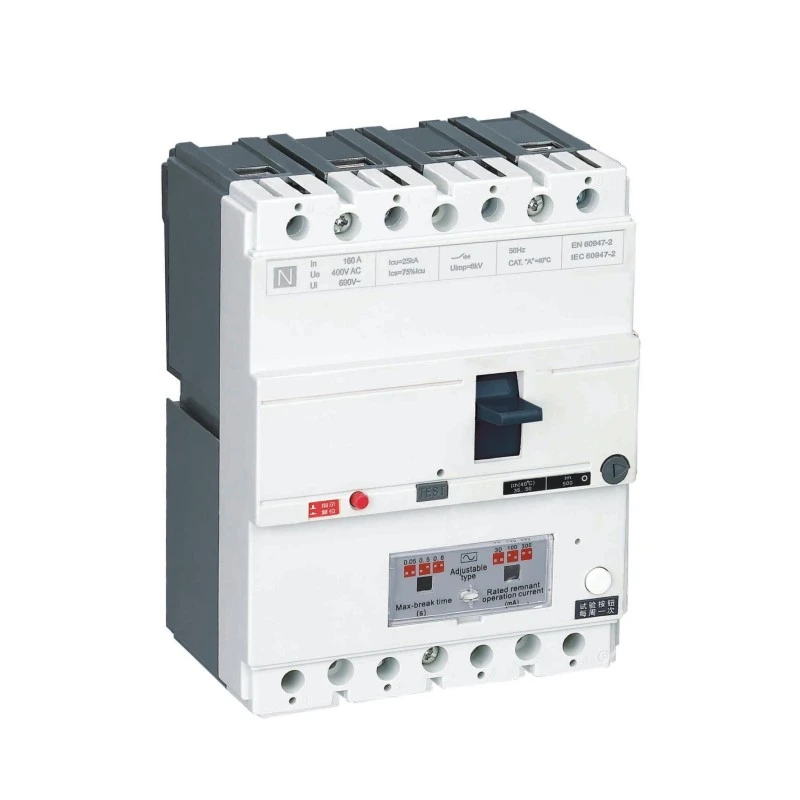

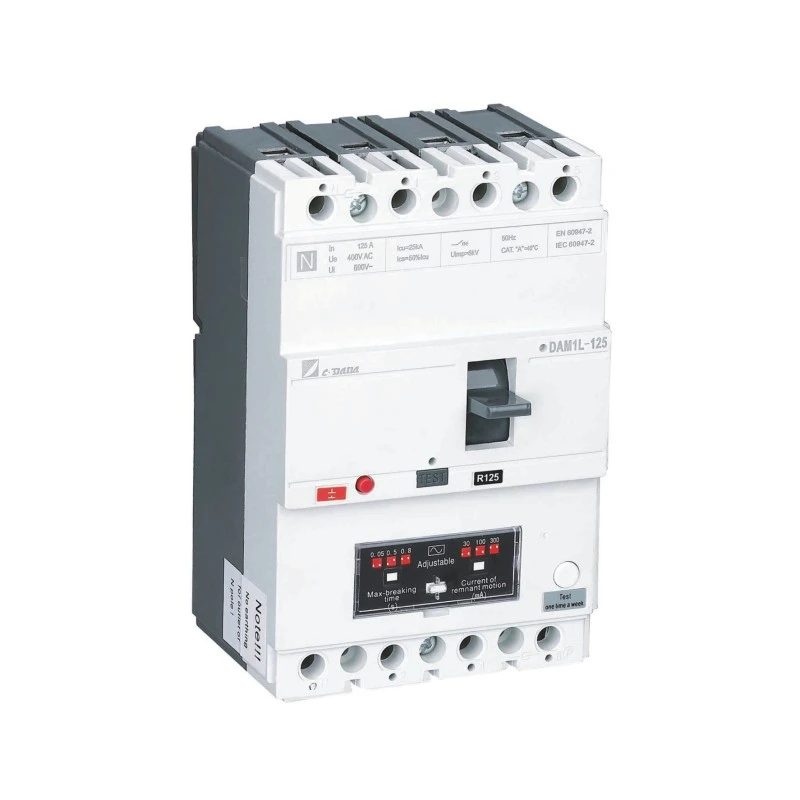

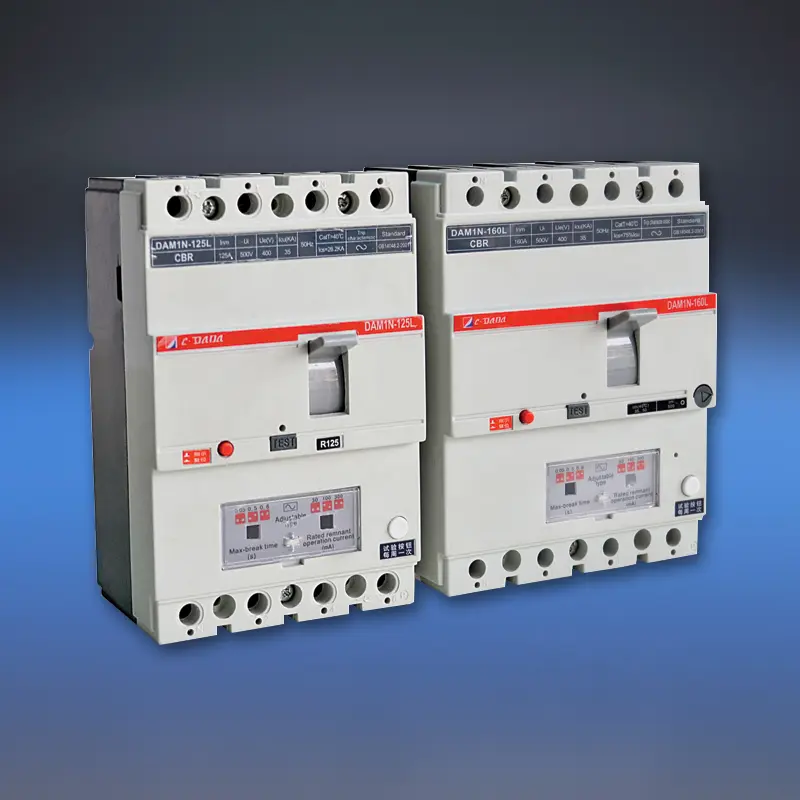

Imodeli: I-DAM1L Series - Earth Leakage MCCB (CBR-type MCCB)

Izigxobo: 4P (okujwayelekile; i-3P iyatholakala uma iceliwe)

Kukalwe Okwamanje (Ku): 10A – 500A

I-Voltage elinganiselwe: 400V / 415V AC, 50Hz

I-Insulation Voltage (Ui): 400V (≤160A), 690V (>250A)

Izilungiselelo Zamanje Ezisele (I△n): 30mA, 100mA, 300mA, 500mA, 1000mA

Ukulungiswa: Ukulungiswa kwendawo kwe-I△n nesikhathi sohambo (ngokuphazima kweso noma ukubambezeleka)

Izinhlobo Zekhono Lokuphulwa:

Uhlobo B: Okuyisisekelo (Inm <100A)

Uhlobo lwe-S: Okujwayelekile

H Uhlobo: Ukuphuka okuphezulu (>160A)

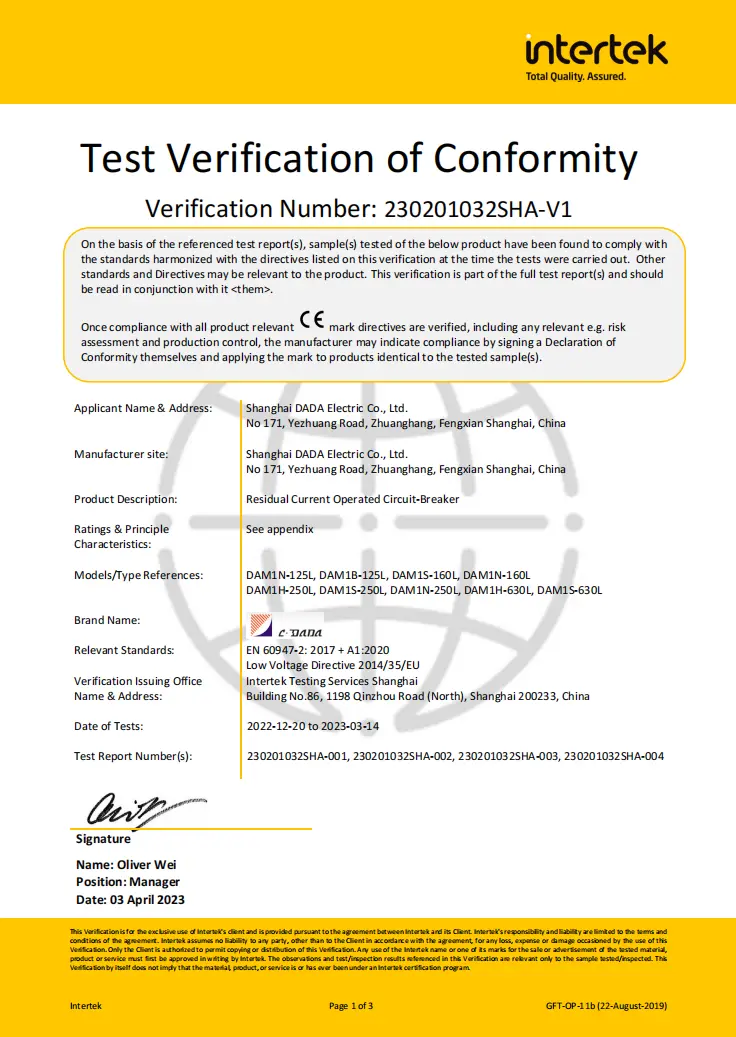

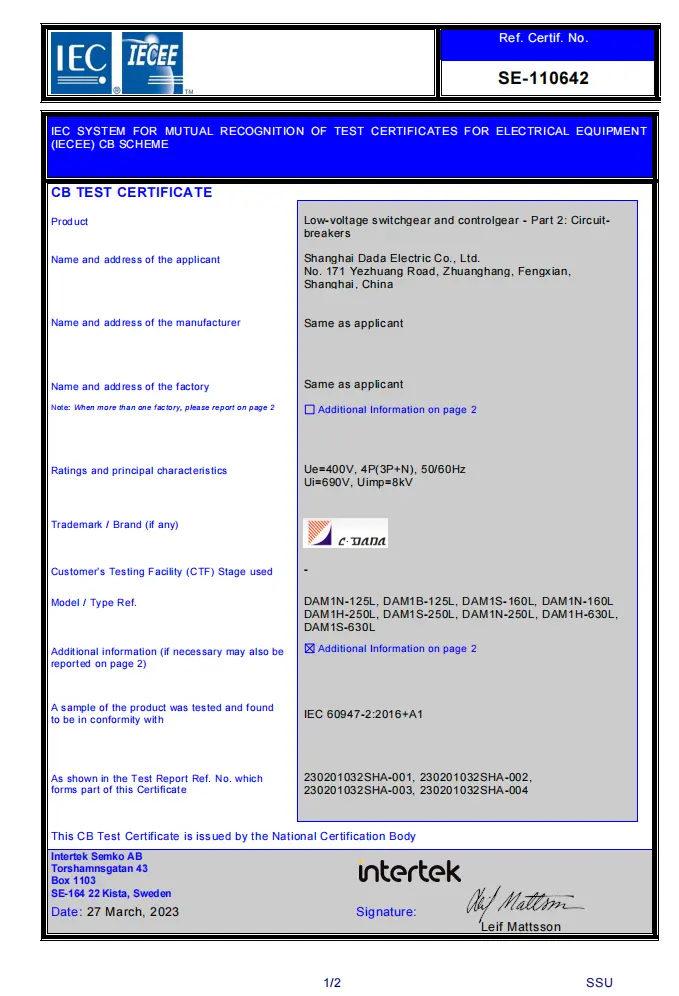

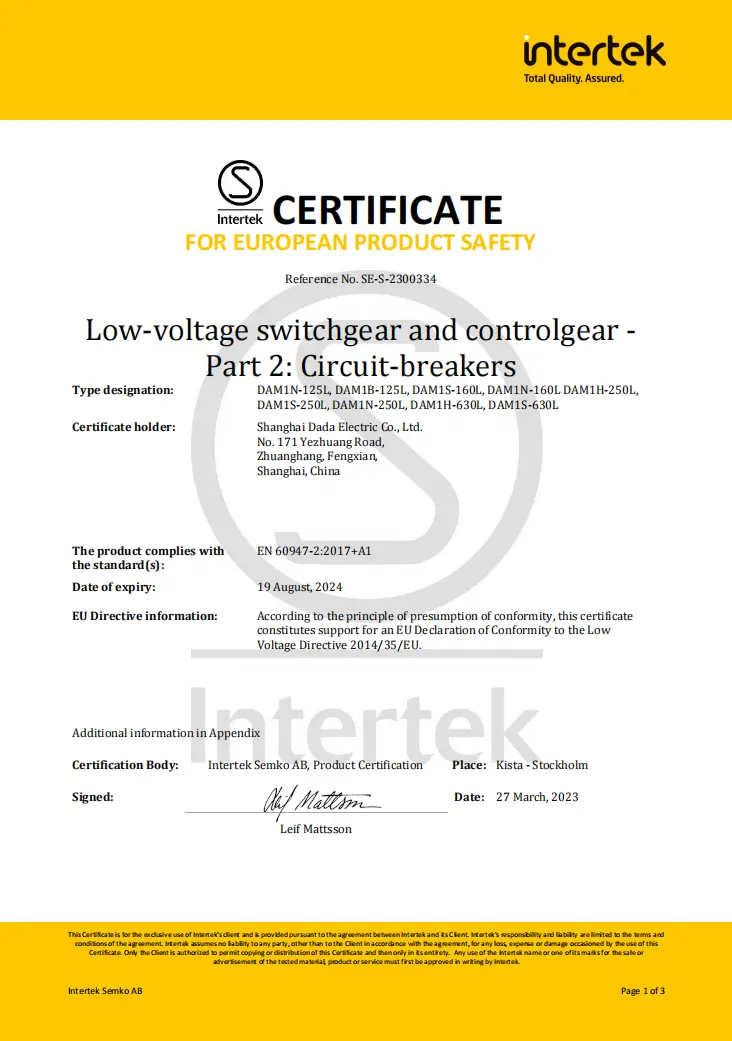

Izitifiketi: CE, CB, SEMKO

Izici Eziyinhloko:

★ Isekethe ye-RCD enezigaba eziningi → isebenza kuze kufike ku-50V

★ Hlukanisa othintana nabo abakhulu & be-arcing

★ Inkinobho yokuhlola yokusunduza ukuya ohambweni

★ Isilungiselelo sikazibuthe esilungisekayo (0.8–1.0×In)

★ I-EMI/RFI enamandla yokulwa nokuphazanyiswa

★ Uhla lwesesekeli olugcwele: uhambo lwe-shunt, oxhumana nabo abasizayo / be-alamu, isibambo esijikelezayo

Ishidi ledatha yobuchwepheshe

I-Earth-Leakage Circuit Breakers(ELCB)
Imodeli			I-DAM1-125L			I-DAM1-160L
Ikhodi Yekhono Lokwephula			B	N	S	B	N	S
Ilinganiselwe manje ngosayizi wozimele- Inm (A)			125A			160A
Ilinganiselwe manje-ngaphakathi(40,50 noma 55℃) (A)			10 - 12,5 - 16 - 20 - 25 - 32(30) - 40 - 50 - 63(60) - 80 - 100 - 125A			10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A
I-Ui (V)			690V			690V
I-Ue (V)			400V			400/415V
Inombolo yePole			4P			4P
Icu (KA)			25	35	50	25	35	50
I-Ics(KA)			12.5	17.5	37.5	12.5	26.25	37.5
Icm(ukuphakama)/cos ф (KA)			40/0.3	73.5/0.25	105/0.25	41/0.3	73.5/0.25	110/0.25
(I△m)KA/cosф			9/0.5			19/0.5
I-Residual current threshold(mA)			100-300-500			100-300-500
Ukubambezeleka kwesikhathi(ms)			50-500-800			50-500-800
I-Uimp (V)			10000			8000
Impahla ye-Dielectric (V)			2500			3000
ibanga le-lonization (mm)			≤30/0			≤30/0
Ukukhuthazela	Ingqikithi Yemijikelezo		8000			8000
	Ukuphila Kagesi		1000			1000
	Impilo Yemishini		7000			7000
Isigaba (EN 60947-2/IEC 60947-2)	Isifunda esikhulu		A/0			A/0
	Isifunda esisizayo		I-AC-15			I-AC-15
Ngaphansi Kokukhishwa Kwe-Voltage			√			√
Shunt Release			√			√
Oxhumana naye Osizayo			√			√
Oxhumana naye we-alamu			√			√
Oxhumana naye Osizayo kanye Nokuxhumana Nge-alamu			√			√
Bamba Operation Mechanism			√			√
I-Electrical Operation Mechanism			√			√
Ikhava yetheminali			√			√
Isihlukanisi sesigaba			√			√
	W (mm)	3P	-			-
		4P	101			120
	L (mm)	3P	-			-
		4P	155			120
	H (mm)	3P	-			-
		4P	70			70
Isisindo	Inguqulo engaguquki engu-3P/4P		-			-
	Inguqulo ye-plug-in 3P/4P		-			-
	Khipha inguqulo 3P/4P		-			-

Kungani Khetha i-CDADA MCCB enokuvikelwa kokuvuza?

★ Ukuphepha Okudidiyelwe Kweqiniso

Ngokungafani namamojula e-RCD engeziwe, i-DAM1L inokuvikelwa kokuvuza okwakhelwe ngaphakathi, okulinganiselwe efekthri—iqinisekisa ukusebenzisana okuphelele nokuqeda izinkinga zokuhambisana.

★ Multi-Phase Power for RCD Circuit

Ama-RCD angaphambi kwesikhathi ahlulekile uma kulahleka isigaba esisodwa. Idizayini ye-CDADA isebenzisa zonke izigaba ukuze inike amandla izinto zikagesi ezivikelayo, ngakho iqhubeka isebenza ngisho naphakathi nokulahlekelwa kwesigaba noma ukungasebenzi kahle kwamandla.

★ Imigomo Yokuvikela Ekabili Kudivayisi Eyodwa

◆ 30mA: Ihlangabezana nezimfuneko ze-IEC zokuvikela ukushaqeka komuntu siqu

◆ 100mA–1000mA: Ivimbela imililo ewohlokayo evela kumaphutha amancane, aqhubekayo

★ Field-Adjustable for Real-World Conditions

Ukuzwela kwe-Fine-tune kanye nokulibaziseka kwesikhathi ukuze kugwenywe ukuphazamiseka ezindaweni ezimanzi (isb., ukuwashwa kwezimoto, amapulazi) ngenkathi kugcinwa ukuphepha.

★ Ukwethenjelwa kwe-Industrial-Grade

Umthamo omkhulu wokuphuka (uhlobo lwe-H), ukuhlukaniswa kwe-arc okuqinile, nokuvikelwa kwetheminali ye-IP20+ kuyenza ifanelekele izilungiselelo zezentengiso nezimboni ezinokhahlo.

★ Ukuthobela Umhlaba Wonke, Inani Lendawo

Igunyazwe i-Europe (CE/CB), amazwe ase-Nordic (SEMKO)—ilungele amaphrojekthi okuthumela ngaphandle—ngamanani ancintisanayo avela kumkhiqizi othembekile wase-China.

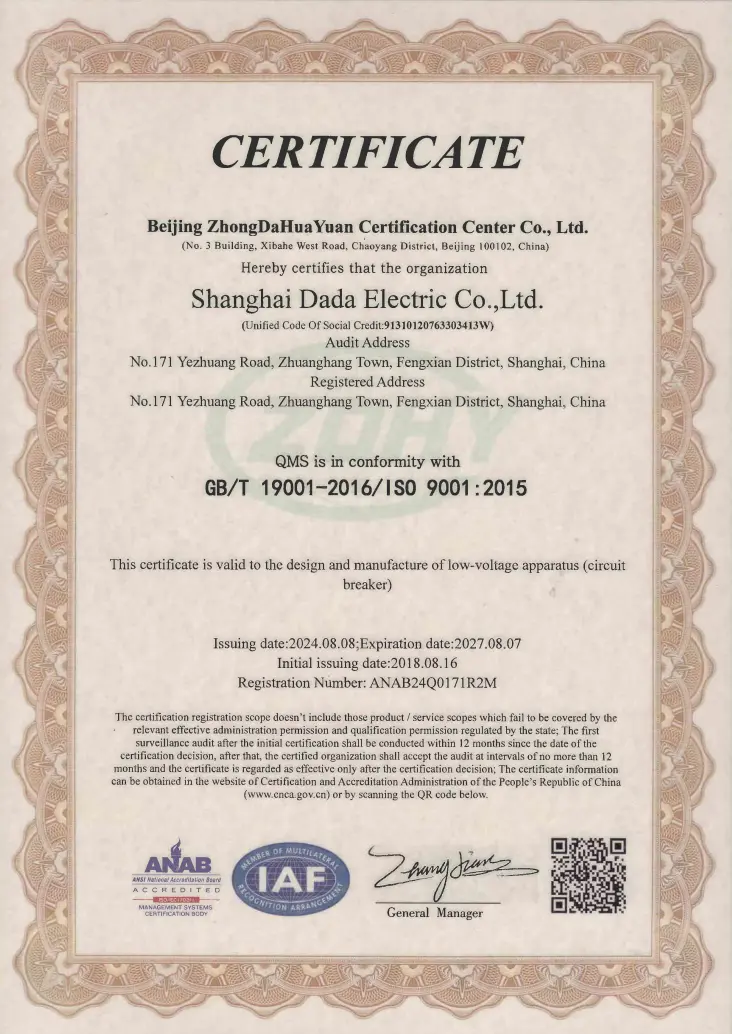

★ Isikhungo sethu sokukhiqiza sigunyazwe ngaphansi kwe-ISO9001:2015 Quality Management System.

Izicelo Ezijwayelekile

Indawo yokuhlala esezingeni eliphezulu: Umtholi omkhulu noma amaphaneli aphansi (300mA yokunciphisa ubungozi bomlilo)

Amahubhu nezitimela ezihamba ngaphansi: Ingqalasizinda ebalulekile edinga ukutholwa kokuvuza okuhlulekayo

Izibhedlela Nezikole: Ukuvikelwa okungu-30mA ezindaweni ezimanzi (amalebhu, izindlu zangasese)

Izitshalo Zezimboni: Iziphakeli zezimoto ezinokuqapha amaphutha aphansi

Izindawo Zokwakha: Ukusabalalisa amandla esikhashana ngokuvikelwa kwabasebenzi

FAQ

Q1: Uyini umehluko phakathi kwe-MCCB ejwayelekile ne-MCCB enokuvikelwa kokuvuza?

I-A1: I-MCCB ejwayelekile ivikela kuphela ekulayisheni ngokweqile namasekhethi amafushane. I-DAM1L yengeza ukutholwa kwensalela yamanje (ukuvuza komhlaba)—ukukhubeka lapho kuvuza kwamanje phansi (isb., ngomuntu noma okokuhlukanisa okonakele), ukuvimbela ukushaqeka kukagesi noma umlilo.

Q2: Ngingakwazi ukusebenzisa i-100A MCCB RCD ukuze ngivikelwe?

I-A2: Kuphela uma isethelwe ku-30mA. Isilinganiso samanje (100A) sichaza umthamo wokulayisha; isilungiselelo esisele (I△n) sichaza umsebenzi wokuphepha. Ngokuvikela ukushaqeka, i-I△n kufanele ibe ngu-≤30mA, kungakhathaliseki ukuthi i-In.

Q3: Kungani isifunda se-RCD sidinga amandla ezigaba eziningi?

I-A3: Uma inikwa amandla yisigaba esisodwa kuphela, ukwehluleka kwesigaba esisodwa kuzokhubaza ukuvikela ukuvuza. Idizayini yezigaba eziningi ze-CDADA iqinisekisa ukuthi i-RCD ihlala isebenza ngisho naphakathi kokulahlekelwa kwesigaba noma i-voltage ephansi (ehle iye ku-50V)—okubalulekile ukuqhubeka kokuphepha.

Q4: Ingabe i-MCCB yokuvuza kwe-4P ifanele amasistimu e-TT noma e-TN-S?

A4: Yebo—yenzelwe i-TT, TN-S, kanye nezinhlelo ze-IT. Idizayini ye-4P iphula zonke izigaba futhi ingathathi hlangothi, ibalulekile kumasistimu e-TT lapho ukungathathi hlangothi kungasekelwenga ngokuthembekile phezulu komfula.

I-Q5: Kungani ukhetha i-CDADA ngaphezu kwenhlanganisela ye-RCD + MCCB eyimojula?

I-A5: Izipesheli ze-CDADA DAM1L:

● Unyawo oluncane (okuhlanganisiwe uma kuqhathaniswa namadivayisi amabili)

● Ukuxhumana okuqinisekisiwe (abukho ubungozi bokungafani)

● Izindleko eziphansi nokuba yinkimbinkimbi kwezintambo

● Ukuthembeka okuphezulu (iyunithi evaliwe eyodwa)

● Ukulungiswa kwendawo akunakwenzeka ngama-RCD okuzwela okungaguquki
