Lo mhlahlandlela uchaza ukuthi i-6kA AC miniature breaker isebenza kanjani, ukuthi isilinganiso se-6kA sisho ukuthini, ukuthi amajika ohambo lwe-B, C, no-D akuthinta kanjani ukusebenza, nokuthi ungakhetha kanjani ukumiswa okulinganiselwe kwamanje kanye nesigxobo esifanelekile. Iphinde ihlonze amaphutha okuthenga ajwayelekile futhi inikeze uhlu lokuhlola olusebenzayo lonjiniyela, osonkontileka, nabathengi abahlola izixazululo ze-MCB ezivela kubakhiqizi abafanaInkampani engu-Inkampani engu-Inkampani engu-Inkampani engu-Shanghai DaDa Electric Co., Ltd.
Okuqukethwe
- Yini i-6kA AC Miniature Circuit Breaker?
- Kungani I-6kA Yokuphuka Ibalulekile?
- I-AC Miniature Circuit Breaker Iwuvikela Kanjani Isekethe?
- Yimaphi Amapharamitha Obuchwepheshe Abathengi Okufanele Bawahlole?
- Amajika Ohambo Lwe-B, C, kanye No-D Akuthinta Kanjani Ukukhetha?
- Zivame Kusetshenziswa kuphi Izinqamuli Zesekethe ze-6kA AC?
- Yiziphi Izinkinga I-MCB Elungile Engakwazi Ukuzivimbela?
- Abathengi Bangayikhetha Kanjani I-6kA MCB Efanelekayo?
- Amaphutha Okukhetha Avamile Okufanele Agwenywe
- Kungani Usebenza Nomkhiqizi We-MCB Onolwazi?
- imibuzo ejwayelekile ukubuzwa
- Xhumana ne-Inkampani engu-Inkampani engu-Inkampani engu-Shanghai DaDa Electric Co., Ltd.

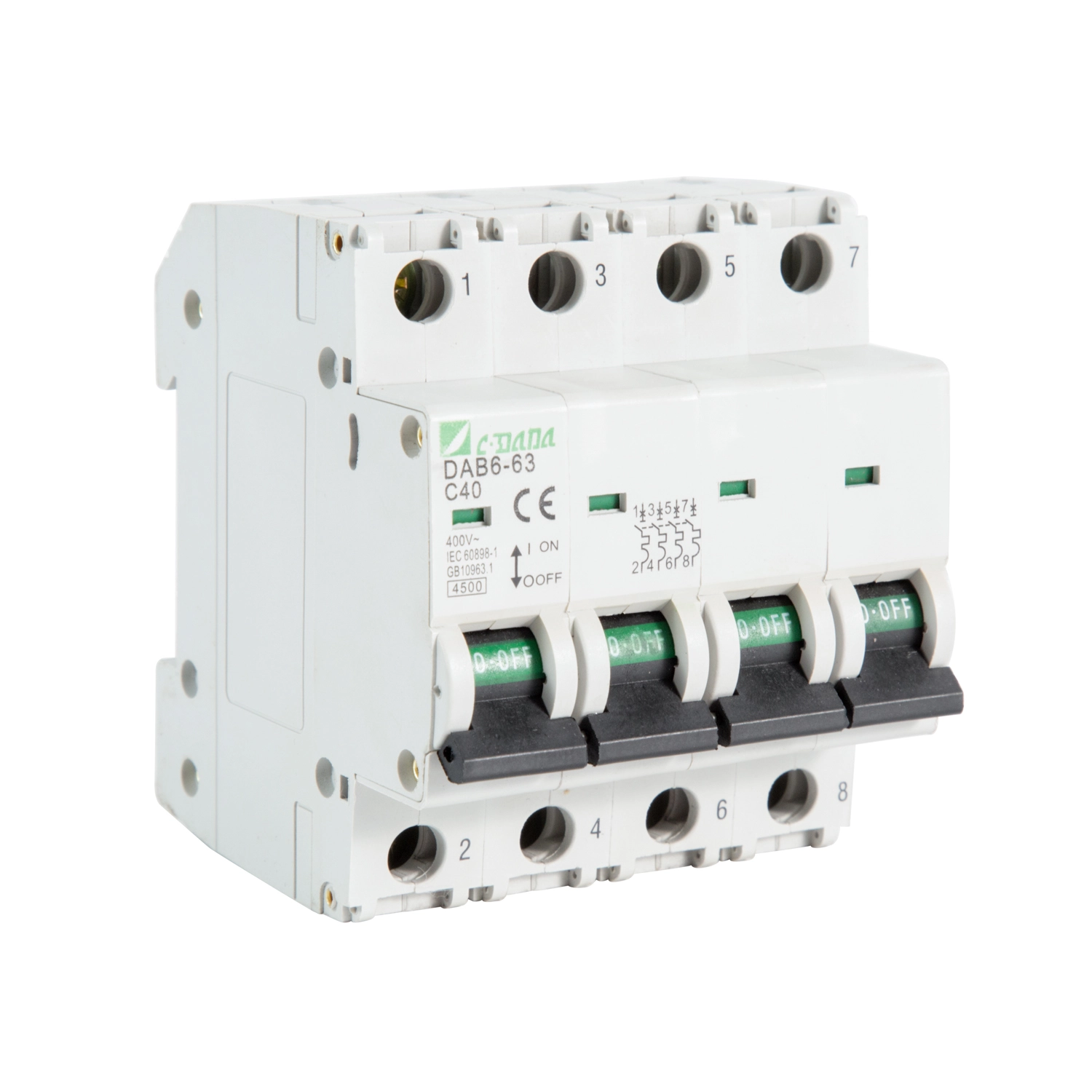

Yini i-6kA AC Miniature Circuit Breaker?
I-circuit breaker encane, evame ukubizwa ngokuthi i-MCB, iyisisetshenziswa esishintshayo esivikelayo esiklanyelwe ukunqamula ngokuzenzakalelayo isekethe kagesi uma kwenzeka izimo zamanje ezingavamile. Ngokungafani ne-fuse evamile, i-MCB ngokuvamile ingasethwa kabusha ngemva kokuba iphutha selisuliwe, okuyenza ilungele ukusebenza ngokuphindaphindiwe nokulungiswa.
Igama6kAibhekisela kumthamo womephuli wesilinganiso sokuphulwa kwesekethe emfishane ngaphansi kwemibandela yokuhlola esebenzayo. Ngamagama alula, i-6kA MCB yakhelwe ukuphazamisa ngokuphephile i-short-circuit current efika ku-6,000 ampere uma izidingo ezishiwo zihlangatshezwana nazo.
Imikhiqizo ethobelana ne-IEC/EN 60898-1 ivamise ukucacisa amapharamitha afana namanje akaliwe, ugesi olinganiselwe, imvamisa, umthamo wokuphuka, nezici zokukhubeka ngokushesha. Ububanzi be-MCB yezohwebo bungase bunikeze izilinganiso ezingu-6kA kuzo zonke izilinganiso zamanje ezihlukene kanye nokulungiselelwa kwesigxobo.
I-6kA ayiwona amandla ajwayelekile okusebenza kwe-breaker. I-16A MCB, isibonelo, ihloselwe ukuphatha amandla ayo alinganiselwe ngaphansi kwezimo ezithile, kuyilapho isibalo esingu-6kA sichaza amandla ayo okuphazamiseka kwesekethe emfushane. Lezi zincazelo ezimbili ziphendula imibuzo ehluke ngokuphelele yobunjiniyela.
Kungani I-6kA Yokuphuka Ibalulekile?
Amasekhethi amafushane angakhiqiza imisinga ephezulu kakhulu ngesikhathi esifushane kakhulu. Uma idivayisi evikelayo ingakwazi ukuphazamisa ngokuphephile ifault current etholakala endaweni yayo yokufaka, imiphumela ingabandakanya ukulimala okukhulu kokuxhumana, ukushisa okudlulele, ukwehluleka kwezisetshenziswa, noma i-arcing kagesi eyingozi.
Ngakho-ke, amandla okuphuka akufanele akhethwe ngoba i-6kA iyincazelo evame ukutholakala. I-current yesekethe emfishane ezoba khona endaweni yokufaka kufanele ihlolwe, futhi isinqamuli esikhethiwe kufanele sibe namandla okuphazamisa anele aleyo sistimu.
| Ipharamitha | Lokho Elikushoyo | Kungani Kubalulekile? |
|---|---|---|
| 6kA | Ilinganiswe ngomthamo wokuphuka kwesiyingi esifushane | Inquma ukuthi ingabe isinqamuli singaphazamisa ngokuphephile ileveli yamanje yephutha |
| Ikalwe okwamanje (iphakathi) | Isilinganiso samanje esijwayelekile se-MCB | Kumele ihambisane nomthamo wekhondatha kanye nomthwalo olindelekile |
| I-Voltage elinganiselwe (Ue) | I-voltage esebenzayo yohlelo lokusebenza | Kumele ihambisane nesistimu kagesi |
| Ijika Lohambo | Ichaza ububanzi obusheshayo bukazibuthe | Isiza ekuvimbeleni ukukhubeka kwenkathazo ngenkathi igcina ukuvikeleka kwamaphutha |
| Inombolo yamaPoles | Inani lamakhondatha ashintshiwe/avikelwe | Kumele ifane nokucushwa kwesekhethi |
Ukucaciswa komkhiqizi kubonisa ukuthi ama-MCB angu-6kA ayatholakala kuhlu lwezilinganiso zamanje nokulungiselelwa kwamandla kagesi, okuhlanganisa amasistimu okusabalalisa angu-230V kanye nama-400V AC avamile.
I-AC Miniature Circuit Breaker Iwuvikela Kanjani Isekethe?
I-MCB ejwayelekile ihlanganisa izindlela zokuvikela ezishisayo nezikazibuthe. Le misebenzi emibili ibhekana nezinkinga ezihlukene zikagesi.
- Ukuvikelwa kokushisa:Ukulayisha ngokweqile okuzinzile kushisa i-elementi ye-bimetallic. Lapho izinga lokushisa lifinyelela embundwini wokusebenza, umshini uyakhulula futhi uvule isifunda.
- Ukuvikela kazibuthe:Umsinga womjikelezo omfushane ophezulu udala umphumela ozibuthe onamandla owenza kusebenze indlela yohambo olusheshayo, inqamule isekethe ngokushesha.
- Ukushintsha mathupha:I-MCB ngokuvamile ingashintshwa mathupha ukuze ihlukaniselwe isekethe phakathi nomsebenzi wokulungisa noma wokufaka.
Le nhlanganisela yenza i-MCB ifanelekele amasekhethi lapho kokubili ukulayishwa okungaphezu kwesikhathi eside kanye namaphutha e-short-circuit engazelelwe kudingeka kulungiswe. Ububanzi bemikhiqizo yesimanje ye-MCB ngokuvamile buhlanganisa ukukhishwa okushisayo nozibuthe futhi kungase kunikeze izici ezingu-B, C, noma D kuye ngomthwalo ohlosiwe.
Yimaphi Amapharamitha Obuchwepheshe Abathengi Okufanele Bawahlole?
Abathengi bavame ukugxila esilinganisweni samanje nentengo kuyilapho bebheke ezinye izinhlaka. Ukuze uthole ukucaciswa kwephrojekthi okuthembekile, izici ezilandelayo kufanele zihlolwe ndawonye.
| Ukucaciswa | Ukucatshangelwa Okujwayelekile | Indawo yokuhlola umthengi |
|---|---|---|
| Ukuphula Amandla | 6kA | Qinisekisa ukuthi yanele esikhathini esizayo esingase sibe nephutha |
| Ikalwe okwamanje | Kuncike kuhlelo lokusebenza | Hlanganisa ngomthwalo kanye nomthamo we-conductor |
| I-Voltage elinganiselwe | Ama-voltage wokusabalalisa we-AC ajwayelekile | Qondanisa i-voltage yesistimu |
| Imvamisa | 50/60Hz evame ukucaciswa | Qinisekisa ukuhambisana negridi yendawo |
| Trip Character | B / C / D | Qondanisa ijika ukuze ulayishe izici ze-inrush |
| I-Pole Configuration | 1P, 1P+N, 2P, 3P, 4P kuye ngomkhiqizo | Qondanisa uhlelo lwezintambo |
| Ukukhweza | Isitimela se-DIN sivamile | Qinisekisa ukuhambisana nebhodi lokusabalalisa |
| Amazinga | I-IEC/EN 60898-1 noma elinye izinga elisebenzayo | Cela imibhalo yezobuchwepheshe kanye nesitifiketi lapho kudingeka khona |
Amadokhumenti omkhiqizo avela kubakhiqizi abaziwayo ngokuvamile ahlinzeka ngalezi mingcele ndawonye esikhundleni sokuphatha umthamo wokuphulwa njengokucaciswa okukodwa.
Amajika Ohambo Lwe-B, C, kanye No-D Akuthinta Kanjani Ukukhetha?
Ijika lohambo lingesinye sezinqumo ezibaluleke kakhulu uma ucacisa i-MCB. Uhlamvu luchaza isilinganiso sebanga lapho ukukhishwa okuzenzakalelayo kazibuthe kusebenza khona ngokuhlobene nesilinganiso samanje somephuli.
| Ijika | Ibanga Elijwayelekile Lokuhamba Ngamagnethi | Uhlelo lokusebenza olujwayelekile |
|---|---|---|
| B | 3–5 × Ngaphakathi | Imithwalo ye-inrush ephansi, ukukhanya, amasekhethi aphikisayo |
| C | 5–10 × Ngaphakathi | Imithwalo yenhloso evamile kanye ne-inductive ngokumaphakathi |
| D | 10–20 × Ngaphakathi | Imithwalo ye-inrush ephezulu njengama-motor nama-transformer athile |
Lobu bubanzi buvamise ukuhlotshaniswa nezici ze-IEC 60898-1 MCB.
Isibonelo, uma injini ikhiqiza amandla okuqala esikhashana aphezulu ngokuphindwe kaningi kunesikhathi sawo esivamile sokusebenza, ijika elizwela kakhulu lingase likhubeke kungenasidingo ngesikhathi sokuqalisa. Idivayisi ye-C-curve noma i-D-curve ingase ifaneleke kakhulu, kuye ngesisetshenziswa kanye nomklamo ophelele wesifunda.
Zivame Kusetshenziswa kuphi Izinqamuli Zesekethe ze-6kA AC?
I-6kA AC miniature circuit breaker ingafanelekela izinhlelo zokusebenza eziningi ezine-voltage ephansi uma izinga langempela lephutha, i-voltage, yamanje, kanye nezidingo zokufakwa zingena ngaphakathi kokucaciswa kwedivayisi.
- Ukusatshalaliswa kwezindawo zokuhlala:amasekhethi okukhanyisa, ama-socket circuits, izinto zikagesi zasendlini nezisekhethi zamagatsha.
- Izakhiwo zezentengiselwano:amabhodi okusabalalisa amahhovisi, izinhlelo zokukhanyisa, izindawo zokudayisa, namasekethe emishini emincane.
- Amaphaneli okulawula izimboni:izifunda ezisizayo, izinto zokulawula, izinjini ezincane, neminye imithwalo efanelekile yamandla aphansi.
- Amasevisi okwakha:Amasekhethi asizayo ahlobene ne-HVAC, amaphampu, izibani, nokusabalalisa kwamandla okuvamile lapho ukucaciswa kufanele.
- Amakhabethe okusabalalisa ugesi:ukuvikelwa kwegatsha nesekhethi kanye nezinhlelo zokusabalalisa eziyimodyuli.
Isicelo sangempela kufanele ngaso sonke isikhathi siqinisekiswe ngokumelene nemibhalo yomkhiqizo womkhiqizi kanye nezidingo zokufakwa. Isilinganiso esingu-6kA akufanele kuthathwe njengesifanele indawo yonke kagesi.
Yiziphi Izinkinga I-MCB Elungile Engakwazi Ukuzivimbela?
Okunye okukhathaza kakhulu ukuthenga akukhona nje ukuthi umephulaphuli uyasebenza yini, kodwa ukuthi usebenza ngokungaguquki ngaphansi kwezimo esikhethelwe zona.
1. Ukugcwala Okuphikelelayo
Isekhethi ethwala amandla amaningi isikhathi eside ingabangela ukushisisa kukakhondatha kanye nokonakala kwemishini ngaphambi kwesikhathi. Ukukhishwa kwe-thermal kuklanyelwe ukuphendula ezimeni eziqhubekayo zokugcwala ngokweqile.
2. Ukulimala Kwesifunda Esifushane
Umthamo wokuphuka ofanelekile uvumela i-MCB ukuthi iphazamise amandla amanje amaphutha amaningi ngaphandle kokudlula amandla okuphazamisa acacisiwe edivayisi.
3. Ukuhamba Kwenkathazo
Ijika lohambo elingafanele lingabangela ukuphazamiseka okungadingekile lapho okokusebenza kuqala. Ukufanisa izici B, C, noma D nomthwalo kusiza ukubhekana nale nkinga.
4. Isondlo Esinzima
I-MCB eyimojula ingahlinzeka ngokuzihlukanisa okuvamile, ukusiza abasebenza ngogesi ukuthi babone futhi basebenze kumasekhethi angawodwana ngaphandle kokuvala lonke uhlelo lokusabalalisa.
5. Ukungaqiniseki Kokuthengwa Kwempahla
Kumaphrojekthi we-B2B, ukucaciswa kobuchwepheshe okungaphelele kungaholela emikhiqizweni engalungile, ukugunyazwa ukubambezeleka, noma izindleko zokushintshwa. Imininingwane ecacile yomkhiqizo kanye nemingcele echaziwe yezobuchwepheshe inciphisa lezi zingozi.
Abathengi Bangayikhetha Kanjani I-6kA MCB Efanelekayo?
Inqubo yokukhetha engokoqobo ingahlukaniswa ngezinyathelo ezimbalwa. Lokhu kusiza onjiniyela namaqembu athengayo agweme ukukhetha umkhiqizo esihlokweni sekhathalogi kuphela.
-
Nquma i-voltage yesistimu.
Qinisekisa amandla kagesi we-AC nokuthi ingabe uhlelo lokusebenza luyisigaba esisodwa noma isigaba sesithathu. -
Bala noma uqinisekise umklamo wamanje.
Isilinganiso samanje se-MCB kufanele sihlanganiswe nomthwalo wesekethe olindelekile kanye nomsinga ovunyelwe wekhondakta. -
Nquma okungenzeka kube khona i-short-circuit current.
Hlola iphutha elikhona endaweni yokufaka bese uqinisekisa ukuthi umthamo okhethiwe wokuphuka we-6kA wanele. -
Linganisa inrush yokulayisha.
Khomba ukuthi ingabe isekethe iqukethe amamotho, ama-transformer, okokusebenza kwe-capacitive, izinsiza zamandla ezishintshayo, noma eminye imithwalo ekhiqiza amandla okuqalisa abalulekile. -
Khetha ijika lohambo elifanele.
Khetha u-B, u-C, noma u-D ngokusekelwe kumthwalo wangempela nezidingo zokuvikela esikhundleni sokuvele ukhethe inketho evame kakhulu. -
Khetha ukucushwa kwesigxobo.
Qinisekisa ukuthi iphrojekthi idinga i-1P, 1P+N, 2P, 3P, 3P+N, noma okunye ukulungiselelwa okusekelwa uchungechunge lomkhiqizo. -
Qinisekisa amazinga kanye nemibhalo.
Cela idatha esebenzayo, imininingwane yokuhlolwa, izitifiketi, imidwebo enobukhulu, kanye nemiyalelo yokufaka. -
Hlola ukuhambisana kwephaneli.
Qinisekisa ubukhulu be-DIN-rail, ukuhlelwa kwetheminali, ububanzi bekhondatha, izisetshenziswa, nendawo yokufaka etholakalayo.
- □ I-voltage elinganiselwe iqinisekisiwe
- □ Isilinganiso samanje siqinisekisiwe
- □ 6kA amandla okuphuka aqinisekisiwe
- □ Ijika le-B/C/D elikhethwe ngokomthwalo
- □ Ukucushwa kwesigxobo kuqinisekisiwe
- □ Izinga elisebenzayo liqinisekisiwe
- □ Ubukhulu nokukhwezwa kwe-DIN-rail kuhloliwe
- □ Isitifiketi kanye nemibhalo yokuhlola iceliwe
- □ Kubuyekezwe indawo yokusebenza
- □ Ukuxhumana nokuvikela okukhuphuka nomfula/phansi komfula kucatshangelwe
Amaphutha Okukhetha Avamile Okufanele Agwenywe
Ngisho nalapho ukucaciswa okuyisisekelo kubonakala kulungile, amaphutha ambalwa angadala izinkinga ngemva kokufakwa.
| Iphutha | Inkinga Engenzeka | Ukuzijwayeza Okungcono |
|---|---|---|
| Ukukhetha kuphela nge-amperage | Amanye amapharamitha abalulekile angase angafani | Linganisa i-voltage, ijika, amandla okuphuka, izigxobo, namazinga ndawonye |
| Uma sicabanga ukuthi wonke ama-breaker angu-6kA ayashintsheka | Imikhiqizo ehlukene ingaba nobukhulu obuhlukene kanye nezicaciso zokusebenza | Qhathanisa imininingwane egciniwe |
| Ukusebenzisa ijika lohambo elingalungile | Ukukhubeka kwenkathazo noma ukufaneleka kwesicelo okunganele | Linganisa ukungena komthwalo wangempela |
| Ukuziba okungenzeka kube khona iphutha | Amandla okuphula angase anganele | Qinisekisa ileveli yephutha endaweni yokufaka |
| Ukuxhumanisa komqhubi obheke phezulu | Ukuvikela kungase kungafani kahle nesistimu yezintambo | Qondisa ukulinganisa kwe-MCB namandla kakhondatha |
| Ukuthenga ngaphandle kwemibhalo | Ukugunyaza nokufaka kungase kube nzima | Cela imibhalo yezobuchwepheshe neyokuthobela ngaphambi kokuthenga |
Ukuxhumana okulungile phakathi kwamanje okulinganiselwe, umthamo we-conductor, isici sohambo, nezinga lephutha kuyisisekelo sokukhetha okuthembekile kwe-MCB.
Kungani Usebenza Nomkhiqizi We-MCB Onolwazi?
Ngokuthengwa kwevolumu enkulu, amaphrojekthi we-OEM, ubambiswano lokusabalalisa, nokukhiqizwa kwamaphaneli kagesi, ikhwalithi yomkhiqizo iwukucatshangelwa okukodwa kuphela. Abathengi futhi badinga ukucaciswa okungaguquki, ukukhiqizwa okuzinzile, ukuxhumana kwezobuchwepheshe okuphendulayo, kanye nemibhalo esekela ukugunyazwa kwephrojekthi.
Inkampani engu-Inkampani engu-Inkampani engu-Inkampani engu-Shanghai DaDa Electric Co., Ltd.ingabhekwa njengozakwethu wokukhiqiza wamakhasimende afuna izixazululo ze-circuit breaker encane kanye nemikhiqizo ehlobene ne-low-voltage yokuvikela kagesi. Kubathengi be-B2B, ukuhlola okuwusizo kakhulu komnikezeli wempahla kufanele kugxile olwazini lobuchwepheshe olulinganisekayo kunezimangalo zokumaketha zodwa.
- Sula ukucaciswa komkhiqizo kanye nemingcele yobuchwepheshe
- Ububanzi obulinganiselwe bamanje kanye ne-voltage
- Izinketho ezitholakalayo ze-breaking-capacity
- Ulwazi lwejika lohambo lwezimo ezihlukene zokulayisha
- Imidwebo yomkhiqizo nolwazi lokufaka
- Isitifiketi esisebenzayo kanye nemibhalo yokuthobela imithetho
- Ukukhiqiza okuzinzile kanye nezinqubo zokulawula izinga
- Ukuxhumana kobuchwepheshe ngezidingo eziqondene nephrojekthi
- Usekelo lwe-OEM/ODM lapho kufanele khona
Kubathengi abavela kwamanye amazwe nabasabalalisi bakagesi, lezi zici zingabaluleka ikakhulukazi uma imikhiqizo idinga ukuhlanganiswa kumasistimu okusabalalisa ahlukene noma ithengiswe ezimakethe eziningi.
imibuzo ejwayelekile ukubuzwa
I-6kA isho umthamo olinganiselwe wokuphulwa kwesekethe emfishane ngaphansi kwemibandela yokuhlola esebenzayo. Imele ama-ampere angu-6,000 futhi akufanele kudidaniswe nesilinganiso esivamile samanje se-MCB.
Cha. Ukufaneleka kuncike kulokho okuzoba khona i-short-circuit current, i-voltage yesistimu, umthamo olinganiselwe, isici sohambo, ukucushwa kwesigxobo, izimo zokufakwa, nemithethonqubo esebenzayo. Iphutha elikhona kufanele lihlolwe ngaphambi kokukhetha i-breaker.
Lezi zinombolo ezimbili zichaza amapharamitha ahlukene. I-6kA iyisilinganiso somthamo oweqayo, kuyilapho i-6A iyinani elilinganiselwe lamanje. I-breaker ingase ibe namandla amanje alinganiselwe angu-6A kanye namandla okuphuka angu-6kA.
Zihlonza izici ezihlukile zokuthi zigibele ngokushesha kazibuthe. Ngaphansi kwe-IEC 60898-1, i-B ivamise ukuhlotshaniswa nezikhathi ezilinganiselwe ezilinganiselwa ku-3-5 zamanje, C cishe izikhathi ezi-5-10, kanye no-D cishe izikhathi eziyi-10-20.
Amamotho angaba namandla okuqala amanje, ngakho-ke izici ze-C noma ze-D zingase zifaneleke ngokuya ngenjini nesekethe. Ukukhetha kokugcina kufanele kucabangele ukuqala okwamanje, i-fault current, i-cable impedance, nokuxhumana namanye amathuluzi okuvikela.
Hhayi ngokuzenzakalelayo. Uma i-short-circuit current idlula umthamo olinganiselwe wokuphuka wephula, idivayisi ye-6kA ingase ingafaneleki. I-breaker kufanele ikhethwe ngokuya ngezinga lephutha kanye nezidingo zokufaka ezisebenzayo.
Abathengi ngokuvamile kufanele bacele idatha yedatha enemininingwane, imininingwane yobuchwepheshe, imidwebo enobukhulu, imiyalelo yokufaka, imibhalo esebenzayo yokuhlola noma yezitifiketi, namazinga omkhiqizo afanelekile. Izidingo eziqondene nephrojekthi zingadinga imibhalo eyengeziwe.
Ukuvumelana phakathi kwamaqoqo okukhiqiza, ukulandeleka, imibhalo yobuchwepheshe, ukulawula ikhwalithi, amandla okulethwa, kanye nokusekelwa kobuchwepheshe ngemva kokuthengisa kungase kuthinte ngokuphawulekayo inani lezindleko nokuthembeka kwephrojekthi kagesi ye-B2B.
