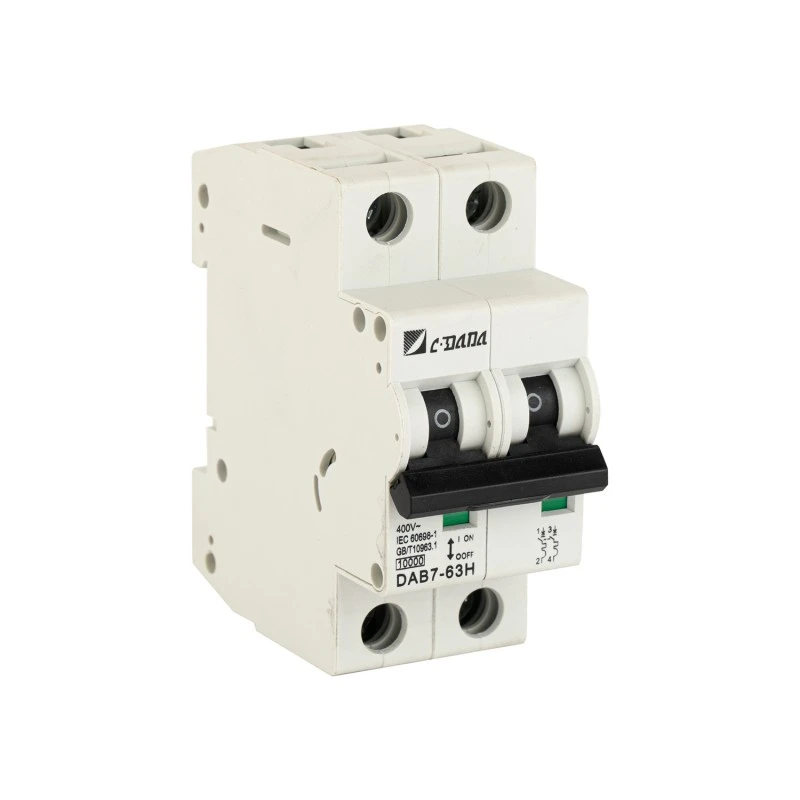

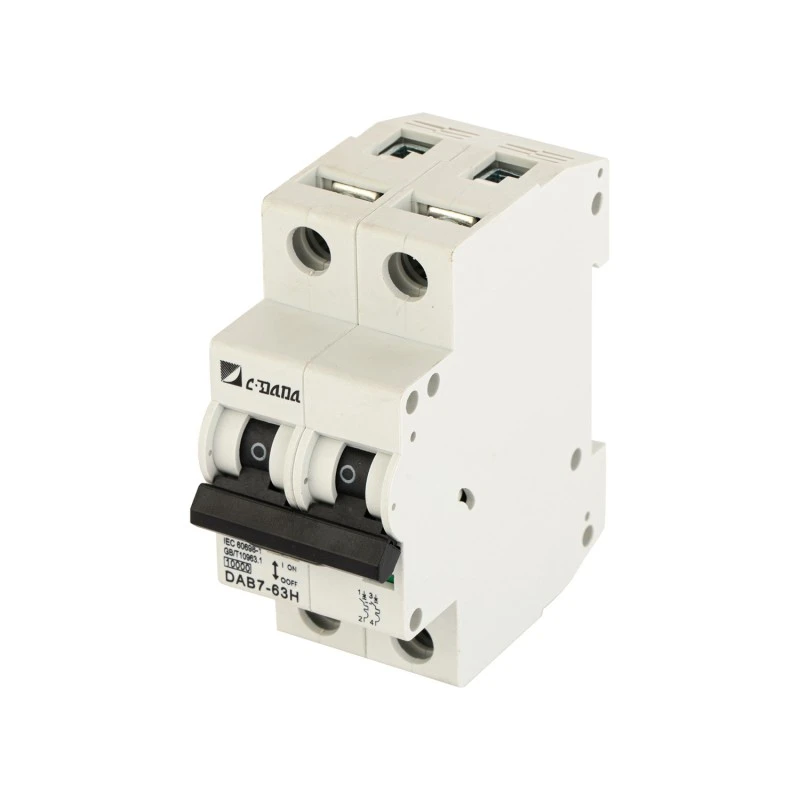

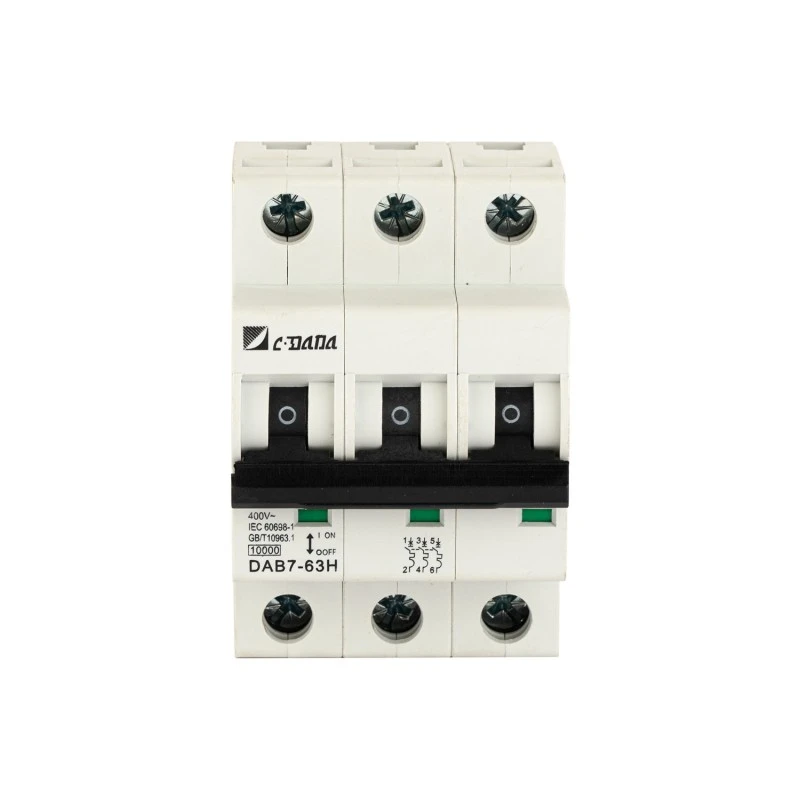

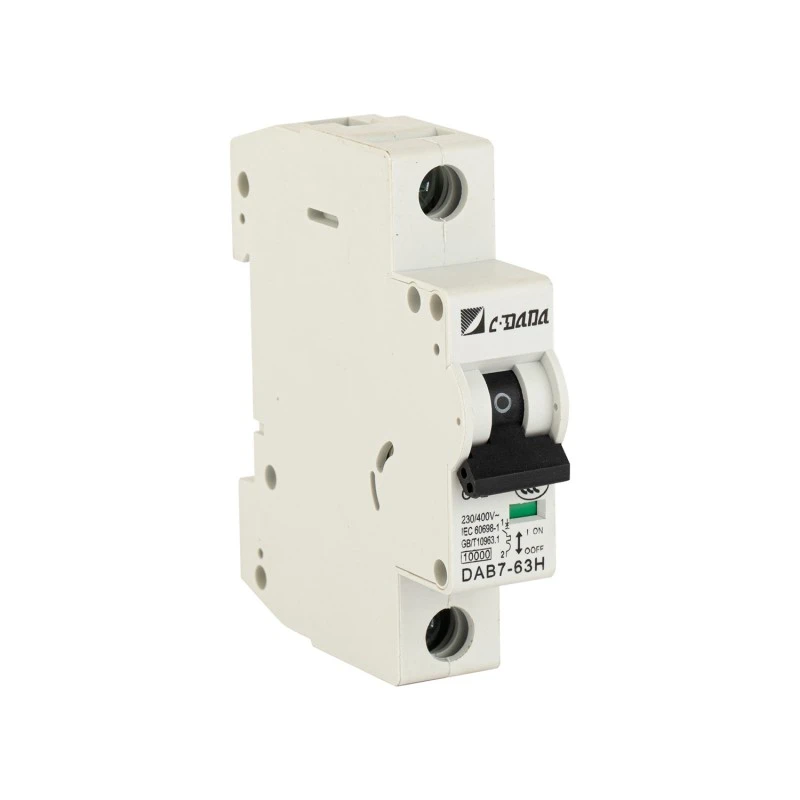

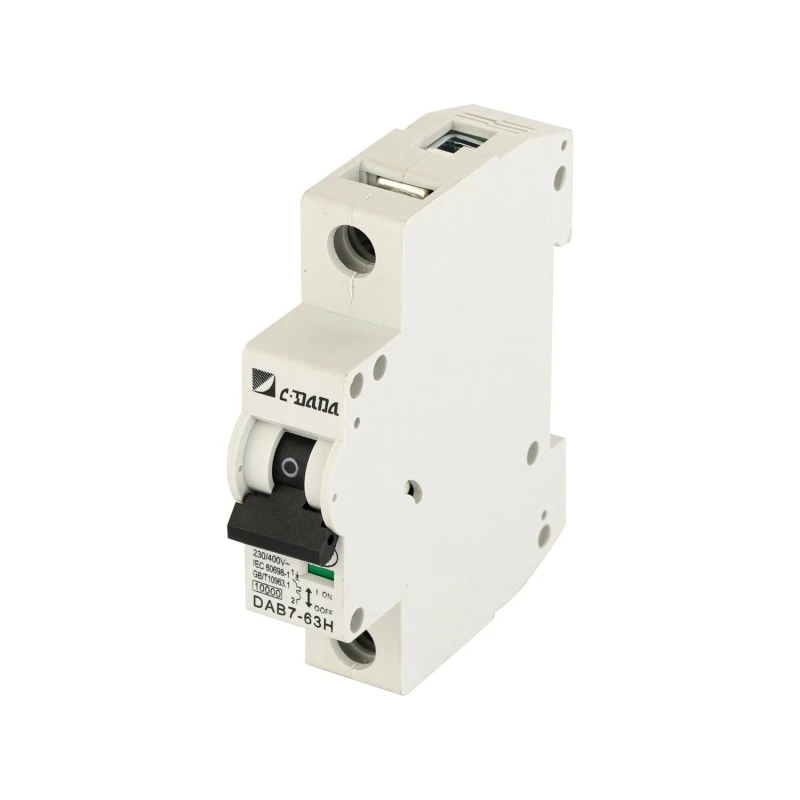

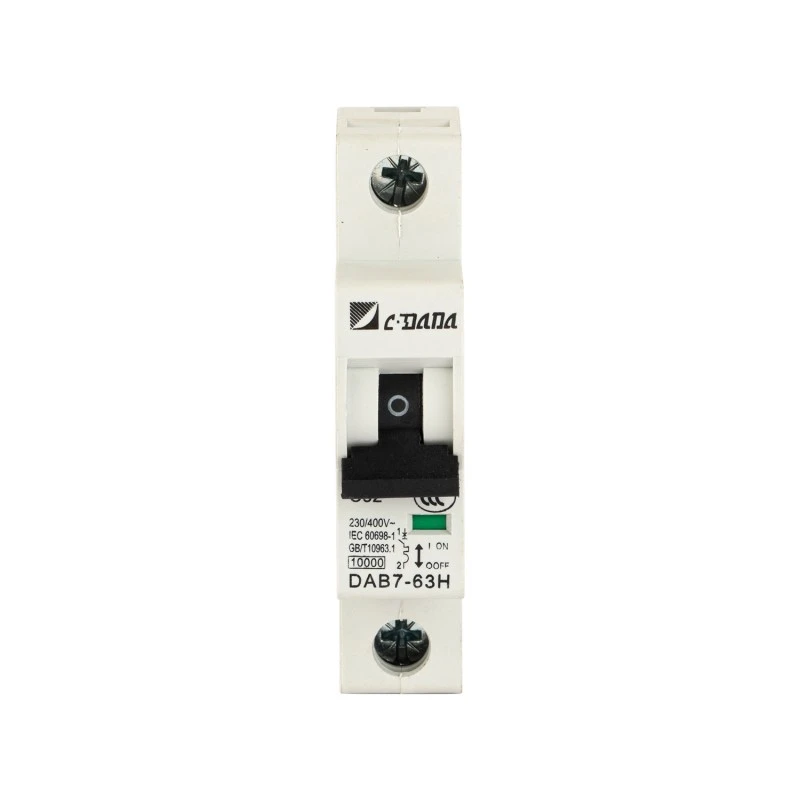

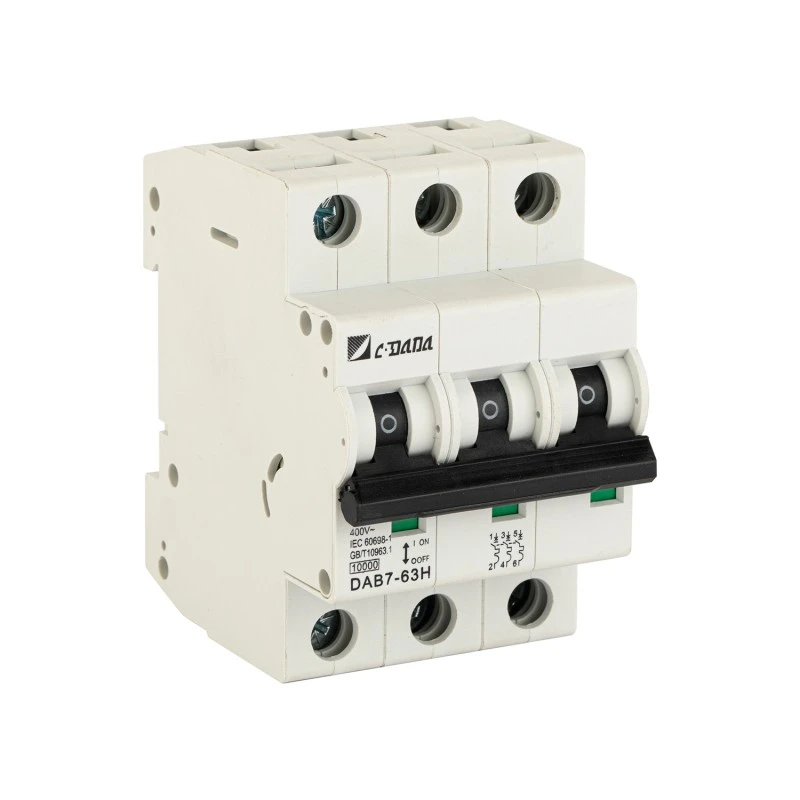

I-10KA AC Miniature Circuit Breaker

Kuzinhlelo zokusebenza ezifunayo lapho amaphutha aphezulu nokuphepha okuthuthukisiwe kungaxoxiswana ngakho, i-CDADA DAB7-63H 10KA AC Miniature Circuit Breaker iletha ukuvikelwa kwezinga lemboni ngefomethi encane. Iklanywe yi-Shanghai DADA Electric CO., LTD., lesi sihlukanisi sesekethe esincane esingu-10kA sidizayinelwe amaphaneli eqembu, amabhodi okusabalalisa ezindaweni zokuhlala, ezentengiselwano, nezilungiselelo zezimboni ezilula—enikeza ukuvikelwa okuthembekile kokushisa (ukulayishwa ngokweqile) kanye nozibuthe (i-short-circuit) kuzo zonke izilinganiso zamanje ezingu-8 (6A–63A) kanye ne-1P/2P/3P

Igunyazwe ku-CE, CB, ASTA, kanye ne-SEMKO, ihlangabezana nezindinganiso eziqinile zokuphepha zomhlaba wonke. Ngegumbi le-arc le-arc elithuthukisiwe le-13-plate, i-alloy yokuxhumana equkethe isiliva, kanye nezinketho zokuxhuma okubili (i-PIN/FORK), i-DAB7-63H iqinisekisa ukushabalala kwe-arc ngokushesha, ukulahlekelwa ukushisa okuphansi, nokuphila kukagesi okwandisiwe-ngisho nangaphansi kokushintsha njalo noma izinga lokushisa eliphezulu le-ambient.

Imininingwane Ebalulekile

Imodeli: DAB7-63H Series

Uhlobo: I-AC Miniature Circuit Breaker (MCB)

Amandla Okuphula: 10kA @ 230/400V AC

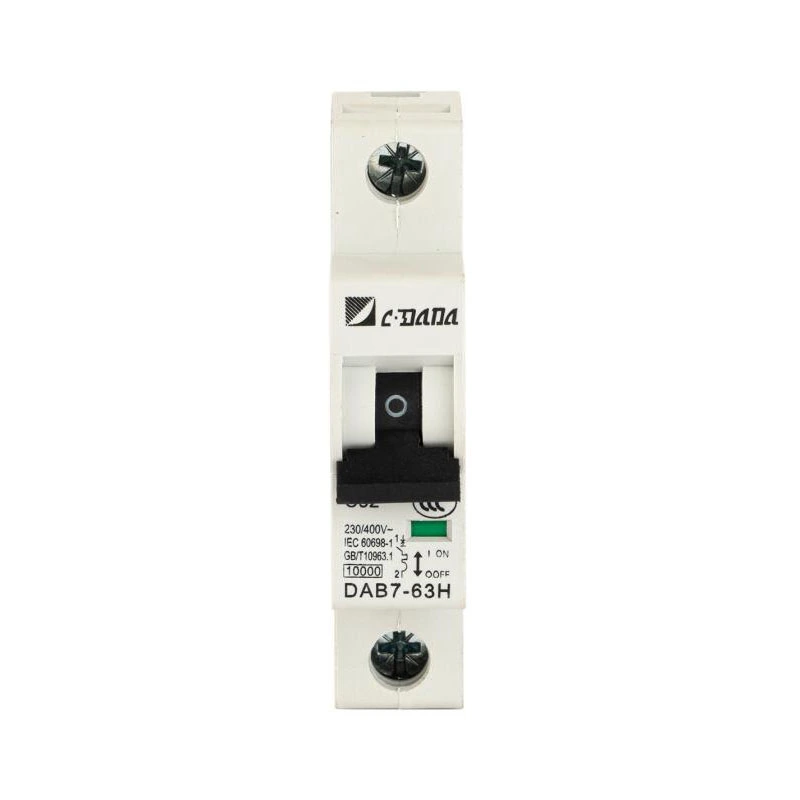

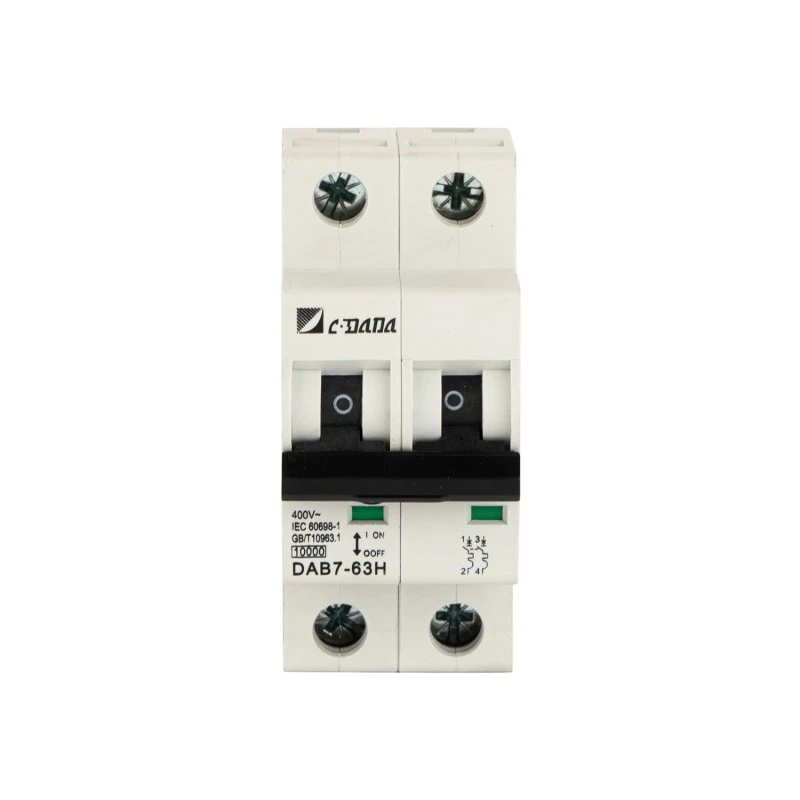

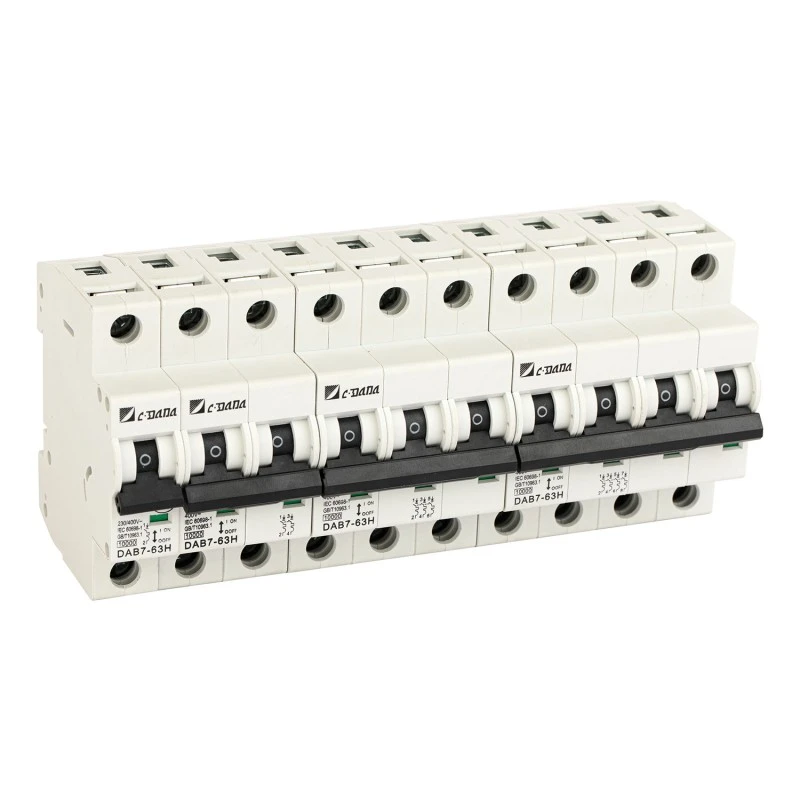

Izigxobo: 1P, 2P, 3P

Kukalwe Okwamanje (Ku): 1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

Izinga Lokushisa Lokusebenza: -40°C ukuya +50°C

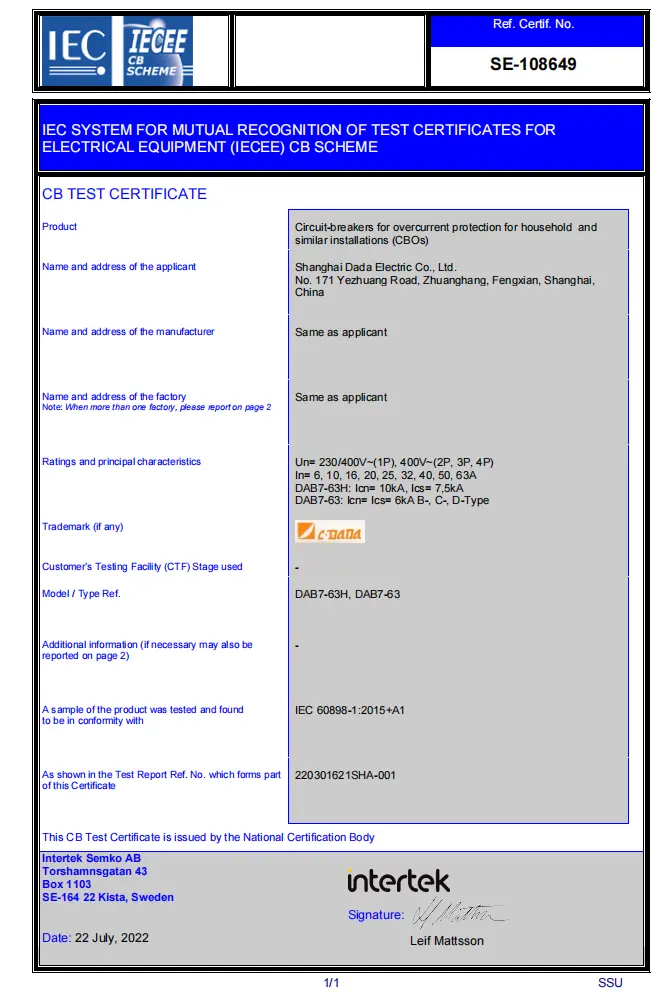

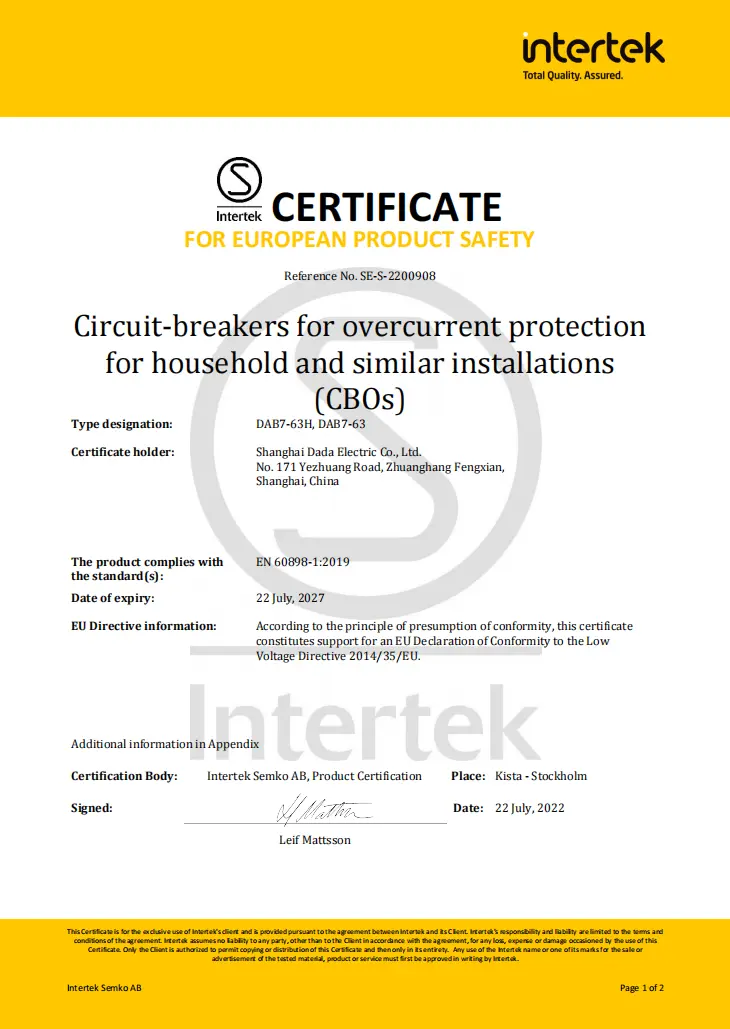

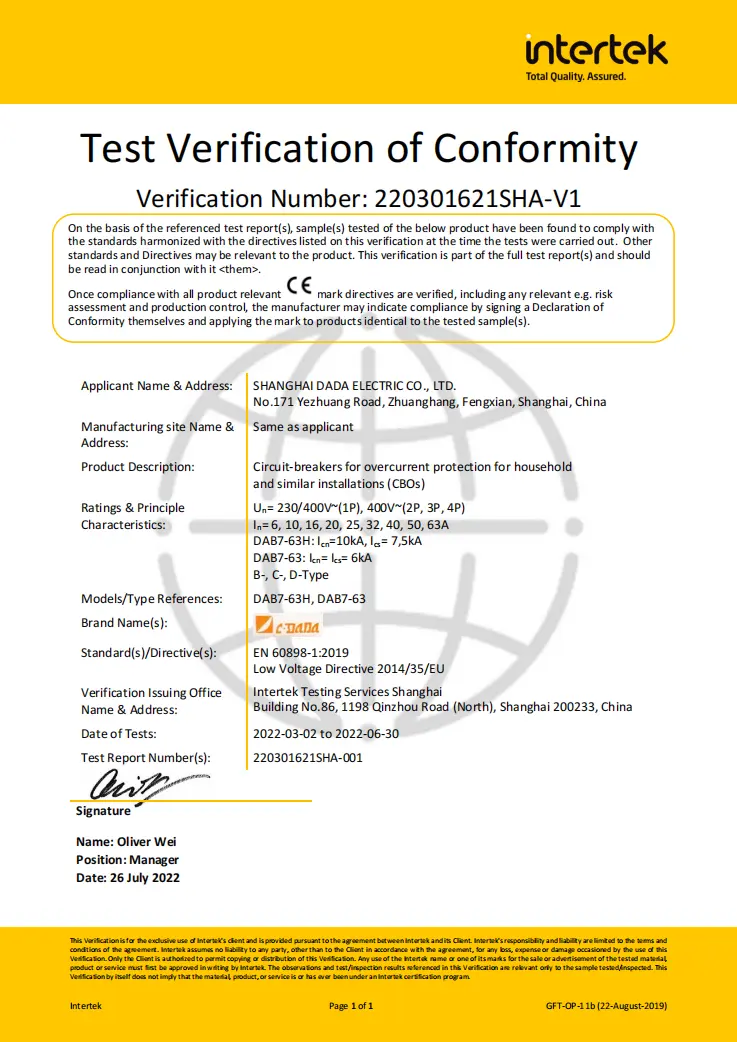

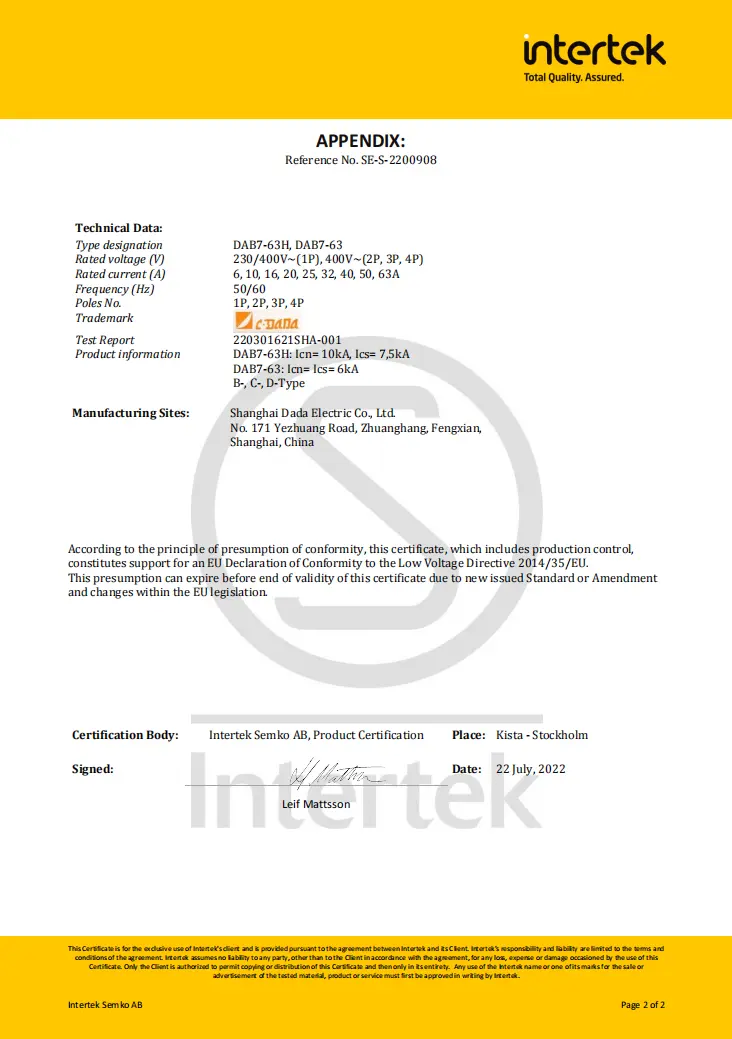

Izitifiketi: CE, CB, ASTA, SEMKO

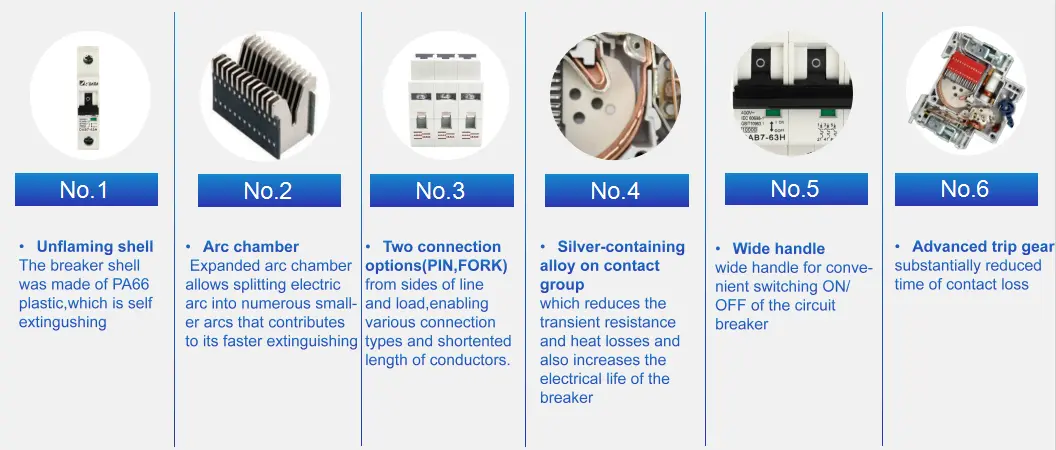

Izici Eziyinhloko Zomklamo:

Igumbi le-arc elinamapuleti angu-13 → ukuhlukaniswa kwe-arc okusheshayo nokushabalala

Oxhumana nabo be-Silver-alloy → ukumelana okuphansi, impilo ende

Izinketho zetheminali ezimbili: I-PIN noma i-FORK (umugqa nohlangothi lokulayisha)

Iwindi lesikhombi sohambo olubonakalayo VULIWE/Valiwe

Isibambo se-ergonomic esibanzi ukuze usebenze kalula

Izindlu ezingakhiqizi amalangabi, ezilwa nokuphuzi (okulingana ne-UL94 V-0)

Izikulufo ze-torque ezinkulu (zivivinywe ku-3 Nm) ezinamakhanda asebenza ngokuphambanayo angu-+/ –

Ilashi yesitimela ye-DIN enezindawo zokukhiya ezikabili → ukukhweza okuvikelekile

Ishidi Ledatha Yezobuchwepheshe

Kungani Khetha i-CDADA AC MCB 10kA?

★ Ukusebenza Kwezinga Lemboni Ngefomu Elincane

Nakuba ama-MCB ajwayelekile ehlinzeka ngo-6kA, isilinganiso esingu-10kA se-DAB7-63H siyenza ifanelekele izindawo eziseduze nendawo etholakalayo enkulu—njengamagumbi okusabalalisa angaphansi, iphansi lezentengiselwano, noma izindawo zokusebenzela ezilula zezimboni—lapho amaphutha angaba khona aphezulu.

★ Ukuphepha Okuthuthukisiwe Nokuqina

● Igobolondo elingavuthi limelana nokuvutha nokushintsha umbala

● Igridi yokucisha kabili ivimbela ukukhishwa kwegesi eshisayo

● Indlela yamahhala yohambo iqinisekisa ukunqanyulwa ngisho noma isibambo sicinyiwe

★ Izindleko Eziphansi Zokuphila

Oxhumana nabo be-Silver-alloy kanye namatheminali athuthukisiwe kunciphisa ukulahlekelwa okushisayo kanye nokushisela okuthintana naye, kunweba impilo yesevisi—ikakhulukazi ezinhlelweni zomjikelezo ophezulu.

★ Ukwamukelwa Kwembulunga yonke

Nge-ASTA (UK), SEMKO (Nordic), CE (EU), ne-CB (global), ama-CDADA MCBs amukelwa emazweni angaphezu kuka-70—alungele abakhi bamaphaneli abagxile ekuthekeliseni.

★ Idizayini Elungele Isifaki

★ Isibambo esibanzi = ukusebenza okulula

★ Izikulufo ezisebenza ngokuphambana = azikho izinsimbi eziwisiwe

★ Sula iwindi lesimo = ukuxilonga okubukwayo osheshayo

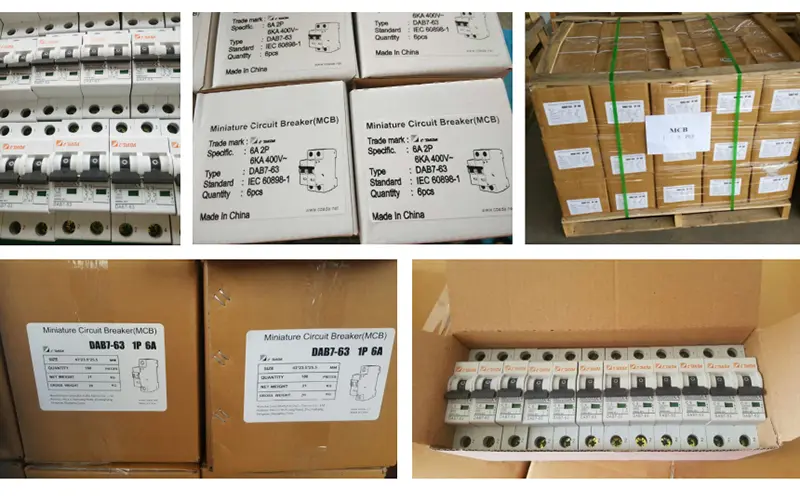

★ Amabhokisi anamandla aphezulu, ukuvikelwa kwephalethi, alungele ezokuthutha ezihamba ibanga elide

★ Quick ukulethwa isikhathi oda ehloniphekile.

Izicelo Ezikahle

Izakhiwo Zezentengiselwano: Amaphaneli okusabalalisa phansi, amakamelo amaseva, izindawo zokudayisa

Imboni Ekhanyayo: Amasekhethi okulawula umshini, iziphakeli zezimoto ezincane, amasokhethi okusebenzela

Ingqalasizinda Yomphakathi: Izikole, izibhedlela, amahhovisi kahulumeni

Indawo Yokuhlala Exinene Kakhulu: Amabhulokhi amafulethi anemitha emaphakathi

Thekelisa Amaphaneli: Okwamaphrojekthi adinga isitifiketi samazwe ngamazwe

imibuzo ejwayelekile ukubuzwa

Q1: Uyini umehluko phakathi kwe-6kA ne-10kA MCBs?

I-A1: Ama-MCB angu-10kA angaphazamisa ngokuphephile amafu amaphutha aphezulu—okuwenze afanelekele ukufakwa eduze kwe-transformer noma umtholi omkhulu, lapho amazinga esekethe emfishane edlula u-6kA. Sebenzisa i-10kA kumaphaneli amancane ezentengiso/ezimboni; I-6kA ngokuvamile yanele kumasekhethi okuphela emakhaya.

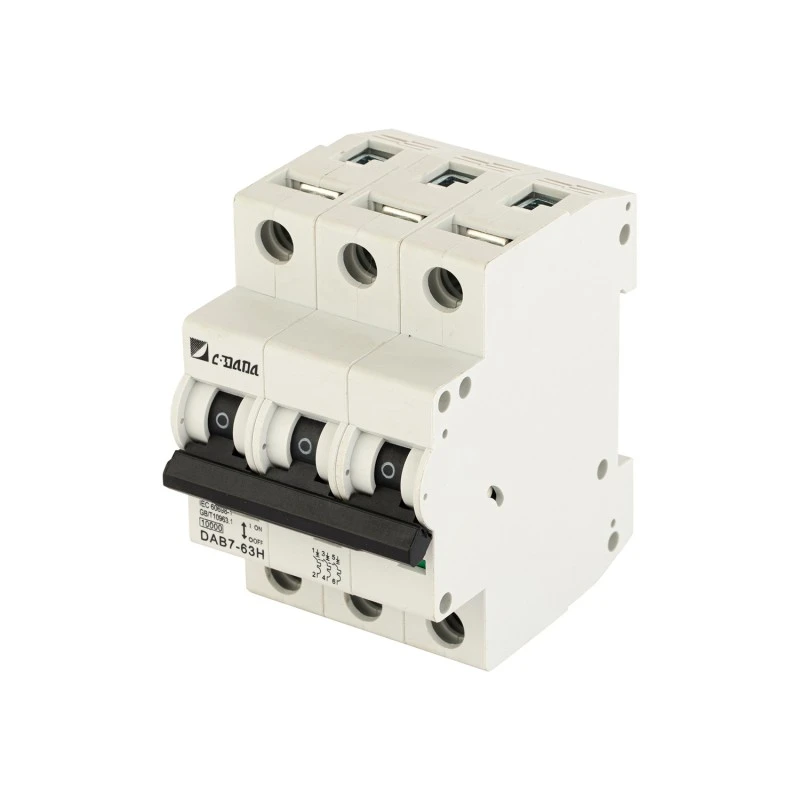

Q2: Ingabe i-10KA AC Miniature Circuit Breaker iyatholakala ku-3P kumasistimu ezigaba ezintathu?

A2: yebo! I-DAB7-63H itholakala ku-1P, 2P, naku-3P—ilungele ukukhanyisa kwezigaba ezintathu, i-HVAC, noma amasekhethi emishini.

Q3: Kusho ukuthini "ingxubevange equkethe isiliva koxhumana nabo" ekusebenzeni?

I-A3: Yehlisa ukumelana nokuxhumana, inciphisa i-arcing ngesikhathi sokushintsha, futhi inweba ukuphila kukagesi—ikakhulukazi kumasekethe asebenza njalo noma imithwalo ye-inductive.

Q4: Ngingakwazi ukusebenzisa izixhumi zohlobo lwemfologo ngale MCB?

A4: Impela! Isekela kokubili i-PIN kanye namatheminali e-FORK kulayini futhi ilayishe izinhlangothi—ivumela izintambo eziguquguqukayo, ezinephrofayili ephansi kanye nokugijima kwekhebula elifushane.

Q5: Kungani ukhetha i-CDADA kunezinye izinhlobo ze-10kA MCB?

A5: I-CDADA igqamile ngoba:

● Isilinganiso seqiniso esingu-10kA esinesitifiketi esigcwele (hhayi nje ukufunwa)

● Igumbi le-arc elithuthukisiwe (amapuleti angu-13) lokuphazamiseka okuphakeme

● Izinketho zetheminali ezimbaxambili azitholakali kuleli klasi

● -40°C kuya ku-+50°C ukusebenza—okubanzi kunezimbangi eziningi

● Ilungele i-OEM: ikhwalithi engaguquki, usekelo lwesiNgisi, intengo yenqwaba
