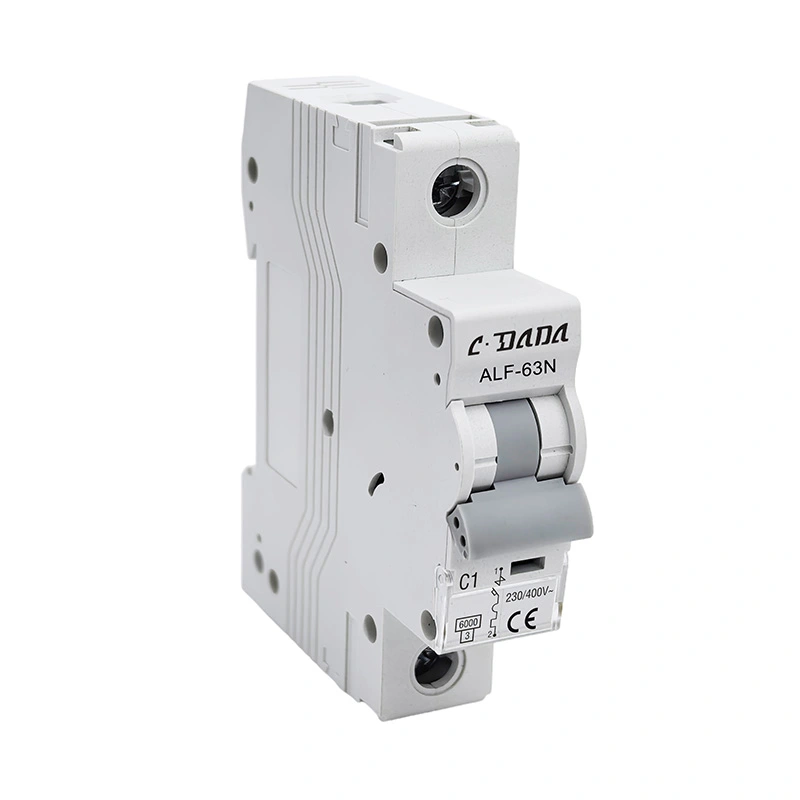

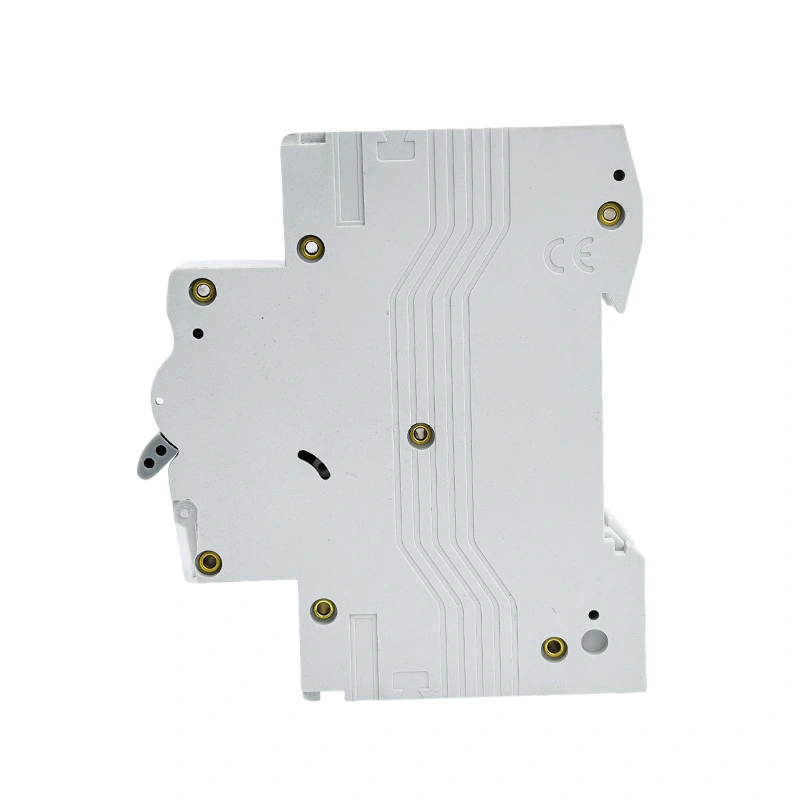

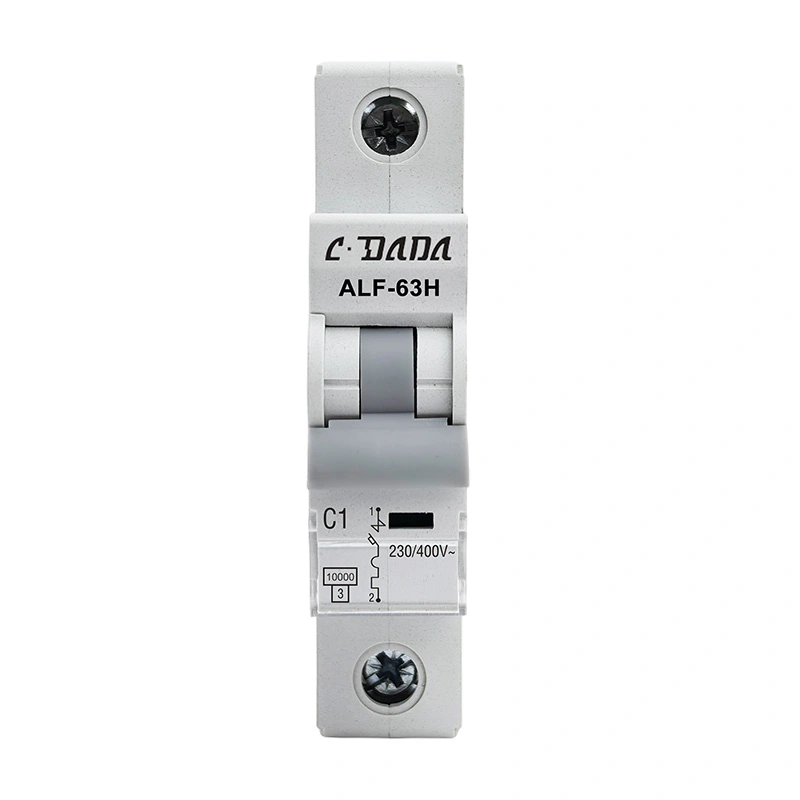

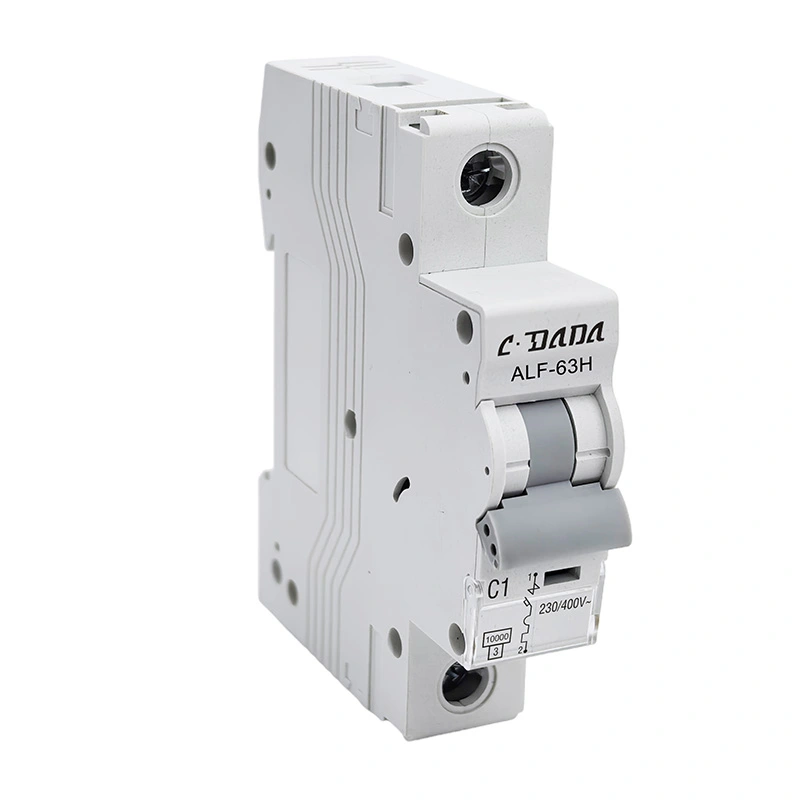

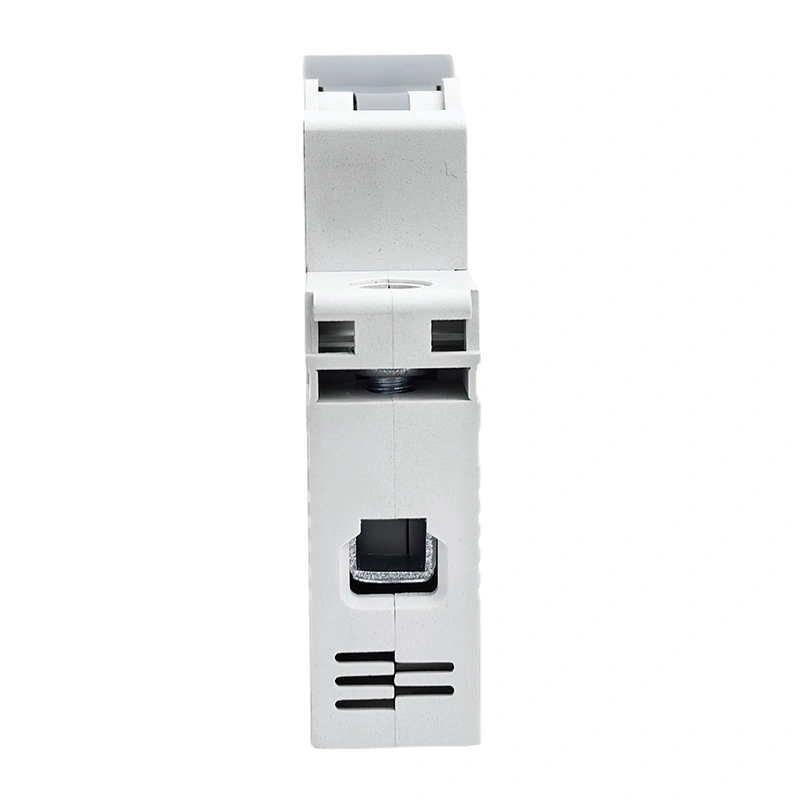

I-6KA 10kA I-Circuit Breaker encane

Uchungechunge lwe-ALF-63N/H oluphula kakhulu i-6KA 10kA Miniature Circuit Breaker (MCB), luhambisana nezinga le-IEC60898, i-MCB inesici sokusebenza okuthembekile, umsebenzi oqondile wokuvikela, isikhathi sokukhululwa esifushane, nomthamo omkhulu wekhefu, umthamo omncane futhi. Isetshenziswa kabanzi futhi ilayisha kakhulu ama-contactor, ama-switchgear, nezinto zikagesi.

Xhumana ne-CDADA bese usikhetha njengomkhiqizi wakho, singakunikeza ngezinsizakalo ze-OEM/ODM.

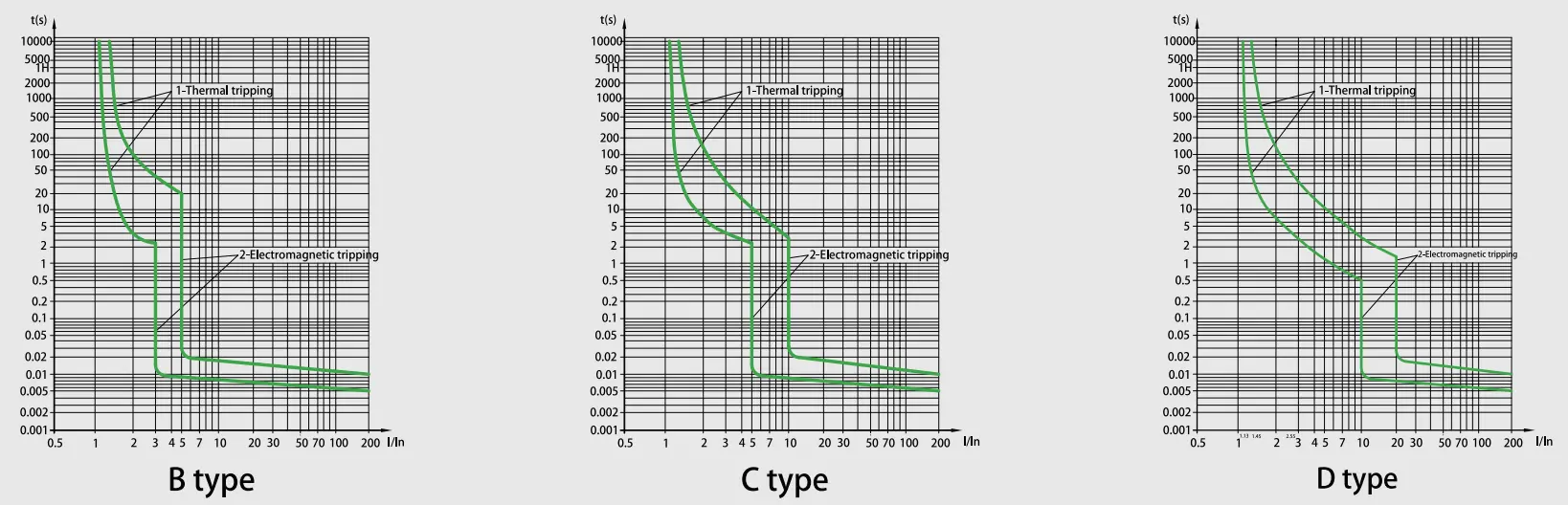

Ijika lesici

Ukucaciswa Kwezobuchwepheshe

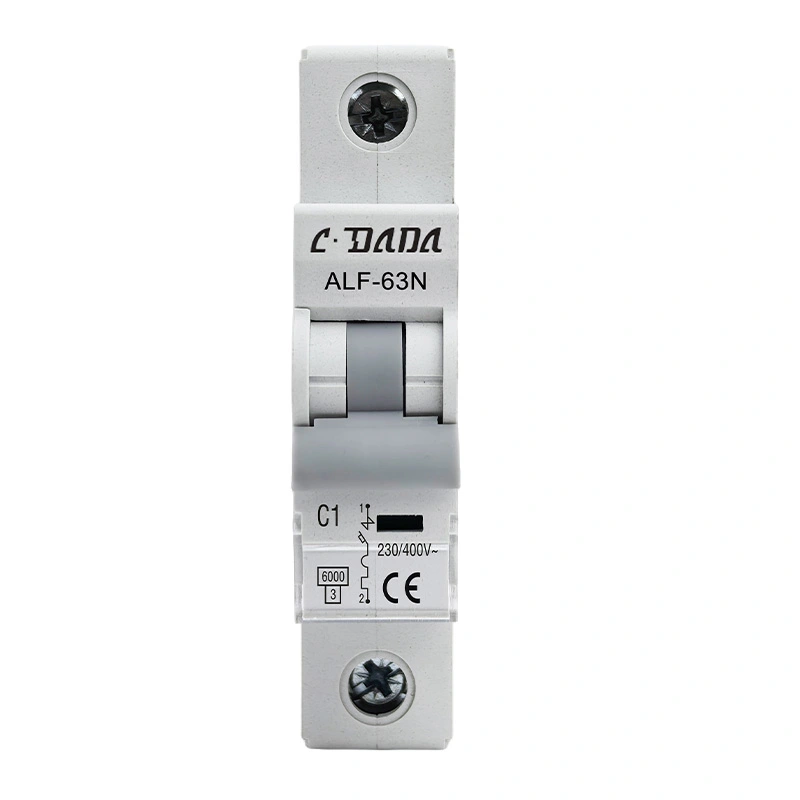

I-ALF-63N/H Uchungechunge 6KA 10kA I-Miniature Circuit Breaker
Okujwayelekile	EN/IEC60898-1
Amandla okuphula(kA)	6,10
Ukuvikelwa	Ngokumelene nokulayisha ngokweqile kanye nokujikeleza okufushane
Ilinganiselwe okwamanje(A)Ngaphakathi	1,2,3,4,6,10,13,16,20,25,32,40,50,63
I-voltage elinganiselwe(V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
I-impulse elinganiselwe imelana ne-voltage Uimp(kV)	4
Isilinganiso se-voltage engu-Ui(V)	500
Ikhasi elinciphisa amandla	3
Izinga lokushisa le-ambient(℃)	-25~+40, Max.95%umswakama
Umkhawulo wokusebenza oshisayo	1.13xln Akukho ukukhubeka phakathi nehora
	1.45xIn Ukuhamba phakathi nehora
Ukusebenza kwamagnetic	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Inombolo yezigxobo	1P,1P+N,2P,3P,3P+N kanye ne-4P
Uhlobo lohambo	Ukukhishwa kwe-thermal/magnetic
Umthamo wetheminali	16mm² evumelana nezimo noma 25mm² eqinile kufika ku-25A izilinganiso
	25mm² eguquguqukayo noma 35mm² eqinile ukusuka ku-32A ukuya ku-63A izilinganiso
Idigri yokuvikela	IP20
Ukufakwa	Igibelela kuloliwe we-DIN ongu-35mm
Ububanzi	17.8mm isigxobo ngasinye

Isici sokukhululwa kwe-circuit breaker

CHA.	Isilinganiso samanje sokukhishwa(A)	Isimo sokuqala	Hlola okwamanje	Isikhathi esishiwo	Umphumela uzotholakala	Ukuphawula
1	1-63	isimo esibandayo	1.13Ku	t≤1h	Okungelona uhambo
2	1-63	phezu kokuhlolwa kwangaphambilini	1.45ln	ngi <1h	uhambo	Ukusetha okwamanje kufika kunani elishiwo kancane kancane kumasekhondi angu-5
3	Ku≤32	isimo esibandayo	2.55In	1s	uhambo
	Kwe>32
4	1-63	isimo esibandayo	3ku	t≤0.1s	Okungelona uhambo	B uhlobo
			5ku	t<0.1s	uhambo	B uhlobo
			5 ngo10ln	t≤0.1s	Okungelona uhambo	C uhlobo
			10ku	t<0.1s	uhambo	C uhlobo
			20ln	t≤0.1s	Okungelona uhambo	D uhlobo
				t<0.1s	uhambo	D uhlobo

Ukubekezela(Imisebenzi)

Isigaba	Operation Cycles	Imvamisa yokusebenza	Ikalwe okwamanje
Ukukhuthazela kagesi	4000	240/h	1-32
		120/h	40-63
Ukukhuthazela komshini	10000	240/h	1-63

Izici

★ I-Ultra-High Short-Crcuit Breaking Capacity

Ubuchwepheshe bokulawula i-arc obuthuthukisiwe bufinyelela umthamo wokuphazamiseka ophezulu uma kuqhathaniswa namazinga omkhakha, okuqinisekisa ukuvikelwa okuthembekile kwamasistimu kagesi wezinga lezimboni ngaphansi kwezimo zamaphutha amakhulu.

★ I-Dual-Mode Connection Interface

Idizayini yetheminali eyingxube ehlanganisiwe isekela kokubili ukumiswa kwebha yebhasi eqinile kanye nokugoqa ikhebula okuguquguqukayo, okuvumela ukuzivumelanisa okungenamathuluzi kuzimo ezihlukahlukene zokufaka kuyilapho kunciphisa isikhathi sezintambo ngo-40%.

★ Amandla-Isitoreji Indlela Yokuphila Isikhathi Eside

Uhlelo lokusebenza olusizwa yintwasahlobo olunemijikelezo yemishini engu-10,000, ehlanganisa ubuchwepheshe bokunxeshezelwa

★ Advanced Composite Enclosure

enamakamelo okucisha i-arc ahlanganisa ukucisha i-arc ngemicimbi yamaphutha equkethwe.

★ I-Dynamic Current-Limiting Topology

Ukucindezelwa okuhlakaniphile kokuvumela ukudlula amandla kunciphisa ama-currents amaphutha aphezulu ngo-65-80%, kunika amandla ukulungiselelwa kokucaciswa kwedivayisi okuya phansi ngo-30% amandla ayo wonke okunciphisa izindleko zesistimu.

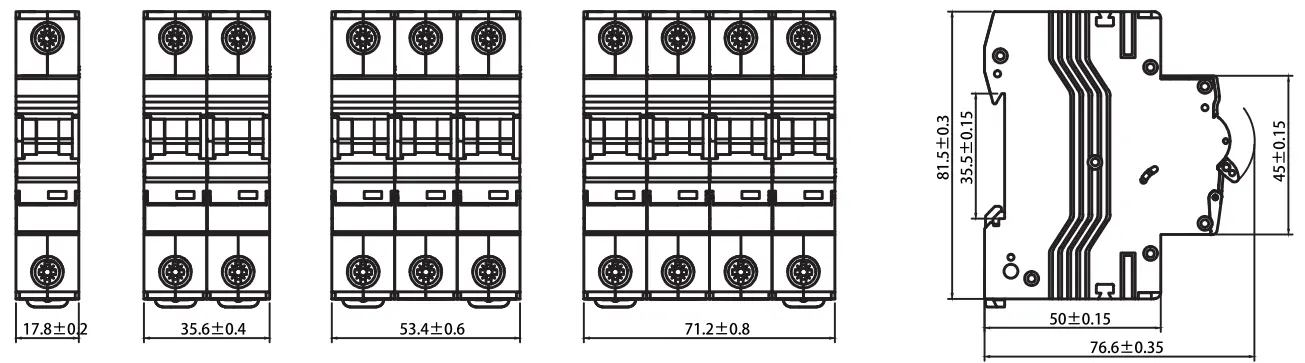

Izilinganiso zohlaka

Izimo zohlelo lokusebenza

★ Indawo yokuhlala: Iyunithi yabathengi namabhodi okusabalalisa okuphepha ekhaya.

★ Imboni: Ukuvikelwa koxhumana nabo, ama-switchgear, nezinsimbi ezisindayo zikagesi.

★ Ezohwebo: Izakhiwo zamahhovisi kanye nezitolo ezinkulu ezidinga ukuthembeka okuphezulu.

Ukulawula Ikhwalithi Nokuhlola Okujwayelekile

★ Yonke i-CDADA MCB ihlolwa kanzima ukuze kuqinisekiswe ukuthobela i-IEC60898-1:

★ Ukuhlolwa Kokuhamba Okushisayo: Kuqinisekiswe ku-1.13In (okungelona uhambo) no-1.45In (uhambo phakathi kwehora elingu-1).

★ Ukuhlolwa Kokuhamba Ngamagnetic: Ukuhlolwa okunembile kokukhishwa kwezici ze-B, C, kanye ne-D.

★ Ukukhuthazela Kagesi: Kuhlolelwe imijikelezo yokusebenza engu-4,000.

★ Ukukhuthazela Komshini: Kuqinisekiswe imijikelezo engu-10,000.

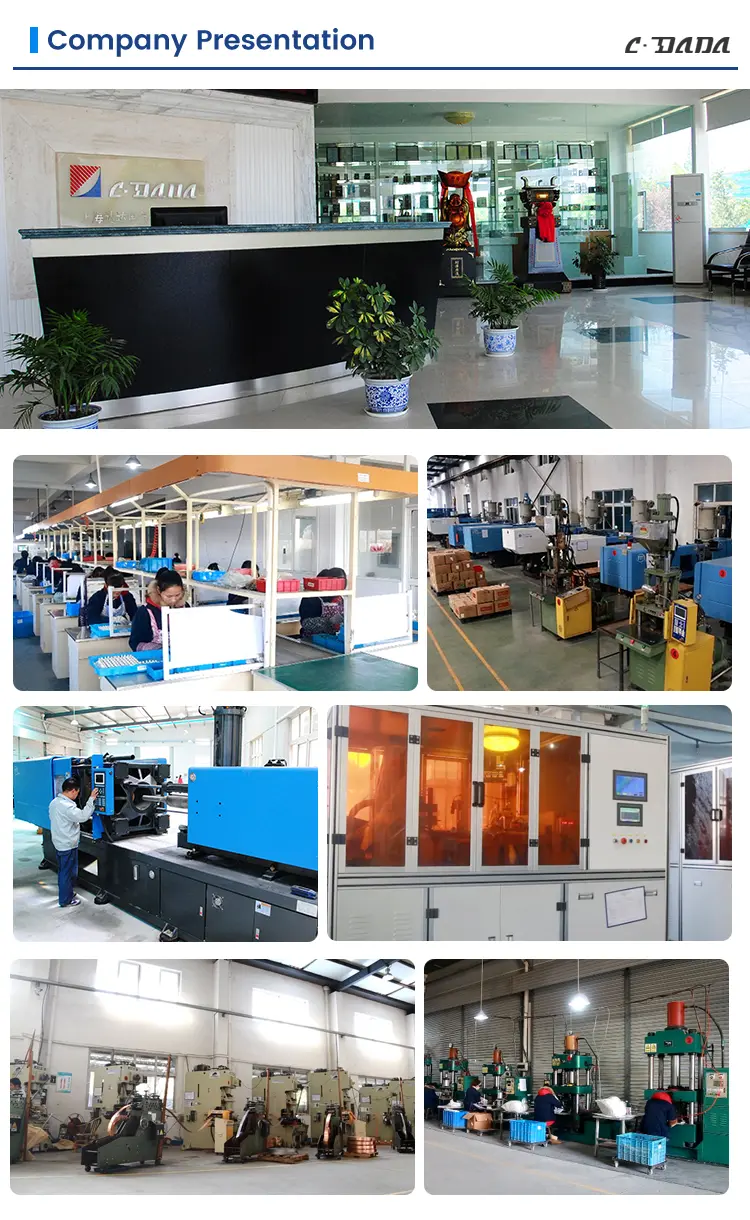

Amandla Efekthri Nosekelo

I-Shanghai DADA Electric Co., Ltd. ingumkhiqizi ohamba phambili onemigqa yokukhiqiza ethuthukisiwe kanye neqembu lobunjiniyela elichwepheshile. Sihlinzeka:

★ Izinsizakalo ezenziwe ngezifiso ze-OEM/ODM zemikhiqizo yomhlaba wonke.

★ Imishini yokuhlola esezingeni eliphezulu ukuze kuqinisekiswe ukulethwa kwe-zero-defect.

★ I-Global Logistics Support: Ukupakishwa okulungiselelwe kwempahla yasolwandle nomoya ukuze kuqinisekiswe ukuthi imikhiqizo ifika isesimweni esihle.
