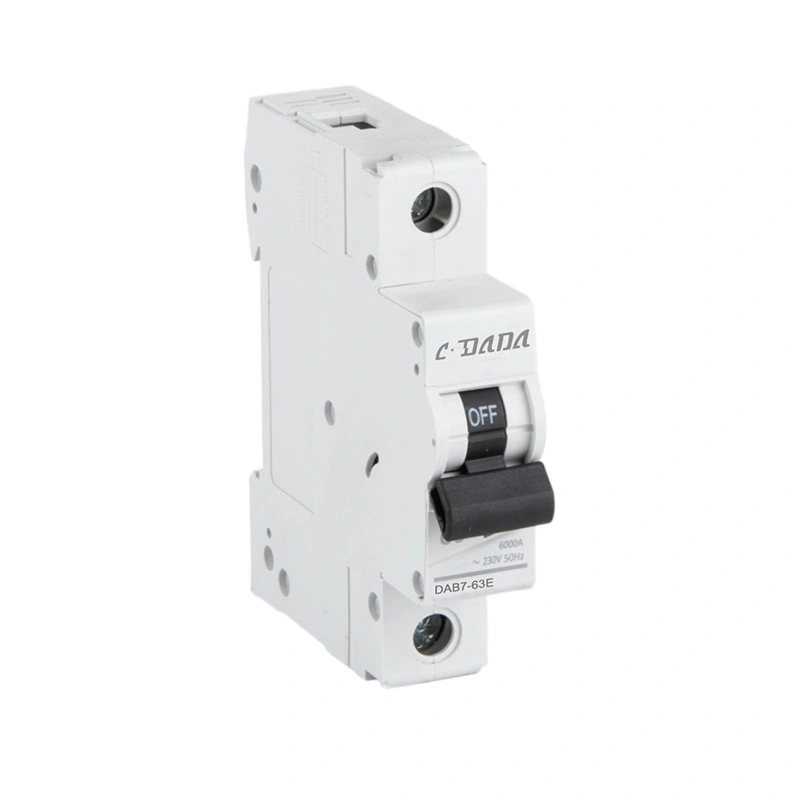

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Zizwe ukhululekile ukuthintana ne-CDADA, futhi uthole i-1P 6kA AC Miniature Circuit Breaker yethu enenani eliqondile lasefekthri, enikeza ukugcwala okuthembekile nokuvikelwa kwesekethe emfishane ngomklamo ohlangene we-DIN-rail. Lo mkhiqizo ufaka ukukhubeka okunembe kwe-thermal-magnetic kanye nenkomba ecacile yesimo, kulula ukuyifaka nokuyinakekela. Iletha ukusebenza okuzinzile kwamasekhethi okuhweba okuhlala kanye nelula, iqinisekisa ukunikezwa kwamandla okuphephile nempilo ende yesevisi.
I-CDADA 1P 6kA AC Miniature Circuit Breaker iyinqamuli yesekethe yezinga eliphezulu ye-single-pole miniature edizayinelwe amasistimu e-AC anevoltage ephansi. Inikeza isivikelo esinokwethenjelwa ngokumelene nokulayishwa ngokweqile kanye namasekhethi amafushane, ivikela ngokuphumelelayo amasekhethi kagesi kanye nemishini exhunyiwe. Yakhiwe ngezindinganiso zamazwe ngamazwe eziqinile, le AC MCB ilungele abasabalalisi, ama-OEM nosonkontileka bakagesi abafuna izixazululo zokuvikela ezihlala isikhathi eside, ezingabizi kakhulu.
Izici Zomkhiqizo & Izinzuzo
★ Idizayini Ehlangene: Isakhiwo esonga isikhala esifanele amabhodi okusabalalisa ajwayelekile
★ Ikhono Lokuphulwa Okuphezulu: 6kA amandla okuphazamiseka kwesifunda esifushane sokuphepha okuthuthukisiwe
★ Ukuhamba Ngokunemba: Iyunithi yohambo lwe-Thermal-magnetic iqinisekisa ukugcwala okunembile nokuvikelwa kwesiyingi esifushane
★ Isibonakaliso Esicacile Sesimo: Iwindi elibonakalayo IVULIWE/LIVALIWE lokuqinisekisa isimo sesifunda esisheshayo
★ I-Wiring Evikelekile: Amatheminali asezingeni eliphezulu anoxhumano oluzinzile, anciphisa ukumelana nokuxhumana
★ Ukwakhiwa Okuhlala isikhathi eside: Izindlu ezihlala e-flame-retardant ezinokumelana nokushisa okuphezulu
★ Ukufakwa Easy: Standard 35mm DIN-rail ukukhweza for umhlangano okusheshayo
★ Ikhwalithi Ethembekile: 100% ukuhlolwa okugcwele ngaphambi kokuthunyelwa, ukusebenza okungaguquki
Izinhlelo zokusebenza
★ I-CDADA 1P 6kA AC Miniature Circuit Breaker isetshenziswa kabanzi ku:
★ Izakhiwo zokuhlala, amafulethi kanye nama-villas
★ Izakhiwo zamahhovisi, izitolo ezinkulu kanye nezindawo zokuhweba
★ Imihlangano yokufundisa yezimboni elula nezitshalo zokukhiqiza
★ Izikhungo zokuthenga, amahhotela nezindawo zokudlela
★ Izinsiza zomphakathi kanye nemiklamo yengqalasizinda
★ Izifunda zokukhanyisa kanye nokuvikelwa kwemishini yamandla amancane
Imingcele Yezobuchwepheshe
|
Into |
Ukucaciswa |
|
Imodeli |
I-CDADA Series AC MCB |
|
Okujwayelekile |
I-IEC60898 |
|
Uhlobo |
I-AC MCB (I-Miniature Circuit Breaker) |
|
Izigxobo |
1P,2P,3P,4P |
|
Ukuphula Amandla |
6kA |
|
Ikalwe okwamanje |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Ijika Elijikayo |
B, C, D (kuyakhetheka) |
|
I-Voltage elinganiselwe |
I-AC 230V, 400V |
|
I-Insulation Voltage |
600V |
|
Impulse Voltage |
6kv |
|
Idigri Yokuvikela |
IP20 |
|
Ukufakwa |
35mm DIN Rail |
|
Izinga Lokushisa Lokusebenza |
-5℃ ~ +40℃ |
|
Impilo Yemishini |
≥20,000 ukusebenza |
|
Ukuphila Kagesi |
≥4,000 ukusebenza (okulinganiselwe okwamanje) |
|
Ukuthobela Amazinga |
I-IEC60898-1, IEC60898-2 |
I-Outline Dimensions
★ Ububanzi: 17.8mm isigxobo ngasinye (usayizi ojwayelekile wepali elilodwa)
★ Ubude: Cishe 85-92mm (kuyahlukahluka ngesilinganiso samanje)
★ Ukujula: Cishe 68-72mm
★ Umthamo Wezintambo: 1.5-16mm² intambo yethusi eguquguqukayo noma eqinile
★ Ukuhambisana Okujwayelekile: Ilingana nawo wonke amasistimu wesitimela we-DIN angu-35mm (TS35/7.5, TS35/15)
I-IEC 60898-1

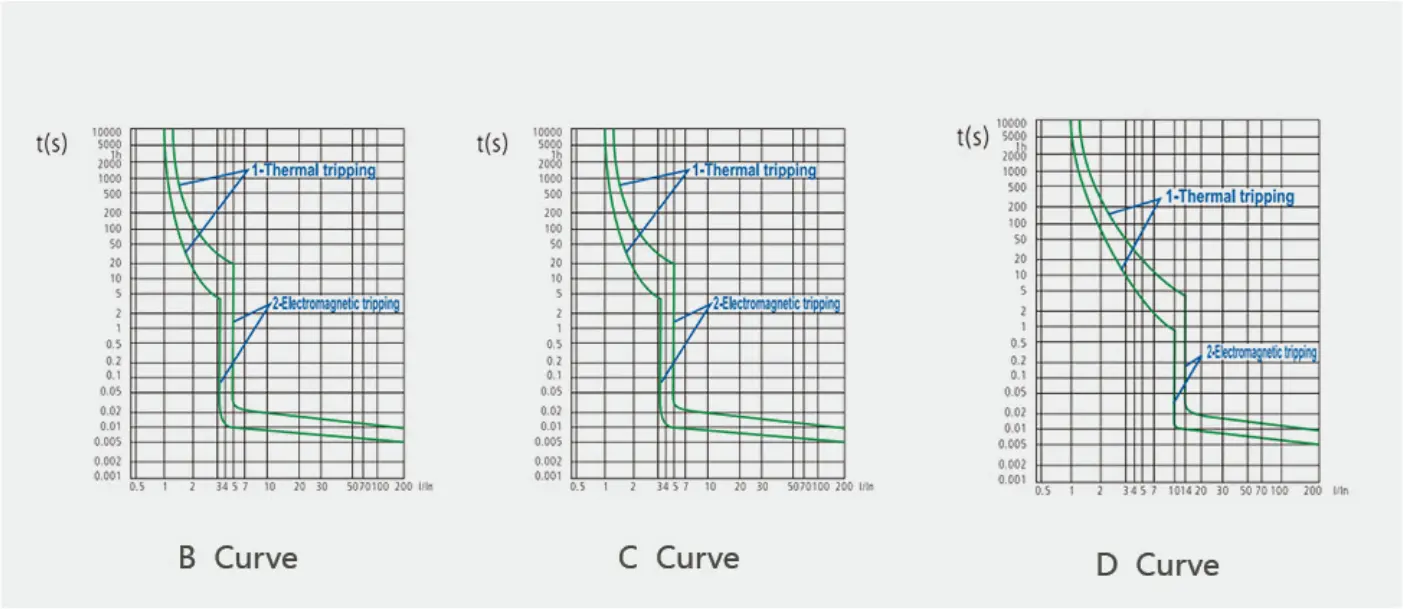

Ukukhishwa Kwezibuthe
Lapho kwenzeka isifunda esifushane, ukukhubeka ngokushesha kutholwa uzibuthe onomgogodla wensimbi. Ngokwezinga le-1EC60898, lo mkhiqizo ungahlukaniswa ngezinhlobo ezintathu: B, C, kanye no-D.
|
|
Hlola okwamanje |
Isikhathi sokuhamba |
Izinhlelo zokusebenza |
|
Ijika le-B |
3ln 5ln |
0.1 |
Uhlobo B lusebenza kuphela emithwalweni esebenzayo: -Isifudumezi sikagesi-Isifudumezi samanzi-Isifudumezi sikagesi |
|
C Ijika |
5ku 10ln |
0.1 |
Uhlobo C lufanele imithwalo evamile: -Isibani -Isokhethi yamandla -Injini yamandla amancane |
|
D Ijika |
10ln 20Ku |
0.1 |
Lawula futhi uvikele amasekhethi anamandla asheshayo (izinjini ezinkulu) |
Ukukhishwa Okushisayo
● Uma ukugcwala ngokweqile sekwenzekile kusekethe, umugqa we-bimetallic we-breaker circuit uzogoba ngenxa yokushisa, okubangele ukuthi abathintwayo banqanyulwe futhi kubangele ukukhubeka okushisayo;
● Izinga le-IEC lichaza ibanga lesikhathi lokugibeleka lama-currents ahlukene okugcwala ngokweqile;
●Izinga lokushisa lendawo yokuhlola inkomba ngu-30 °C.
|
Hlola okwamanje |
Isikhathi sokuhamba |
|
1.13ln |
t z 1h(ku-≦ 63A) |
|
1.45ln |
t<1h(Ku-≦ 63A) |
|
2.55ln |
1s<1h<60s(In≤32A)1s |

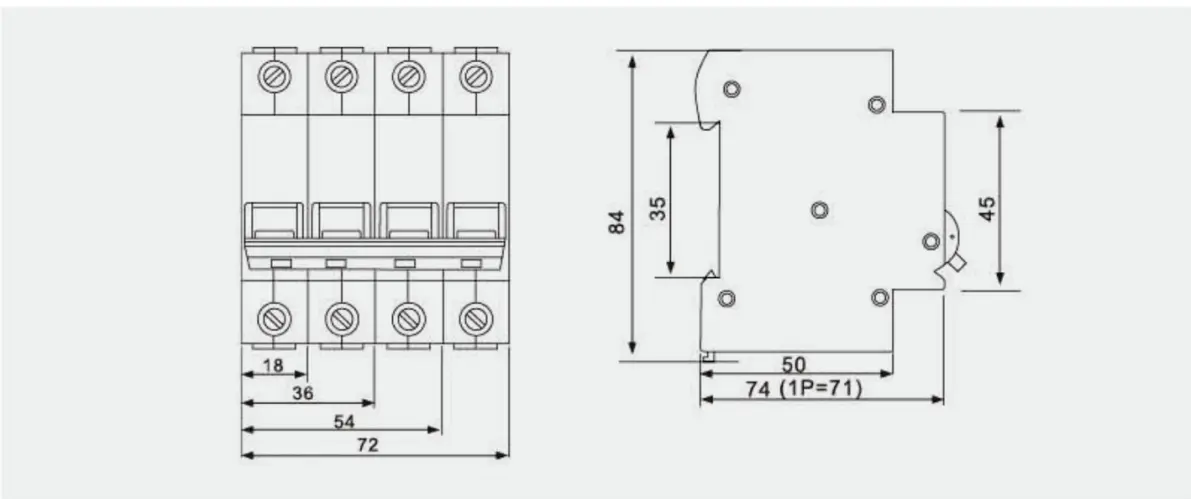

●Ubukhulu bomkhiqizo nokufaka(MM)
Umkhiqizo ugxunyekwe kumzila wesitimela okwazi ukuxhumana nomthamo omkhulu ongu-25mm2.
Ikhwalithi yokulawula
★ ISO9001 Ukukhiqiza Okuqinisekisiwe: Uhlelo oluqinile lokuphatha ikhwalithi kulo lonke ukukhiqizwa
★ Ukuhlola Okuphelele: Ukuhlolwa okungu-100% okuhlanganisa izici zokukhubeka, ukukhuphuka kwezinga lokushisa nokuhlolwa kwamandla kagesi
★ Ukukhiqizwa Kwangaphakathi: Amaphesenti angama-90 wezingxenye ezibalulekile ezikhiqizwa ngaphakathi ukuze zihambisane nekhwalithi
★ Ukuhlolwa Kwemvelo: Ukusebenza kokushisa okuphezulu / okuphansi, ukuqinisekiswa kokumelana nomswakama
★ Isiqiniseko Sokwethenjelwa: Ukuhlolwa kokuqina kwesikhathi eside kwempilo yesevisi enwetshiwe
Ukupakisha & Ukuthumela
★ Standard Export Packaging: Amabhokisi kathayela anokuvikelwa
★ Sula Ukulebula: Inombolo yemodeli, isilinganiso samanje, isibalo sezigxobo, inani kanye nolwazi lwesitifiketi
★ Ukupakisha Okuvikelekile: ibhokisi leqembu leyunithi engu-12 ukuvimbela umonakalo ngesikhathi sokuthutha
★ Izinketho Zokuthumela: Ilungele ezokuthutha zasolwandle, emoyeni nasemhlabeni; etholakalayo ukuthunyelwa ngobuningi
★ Ukupakisha Ngokwezifiso: Izinketho zokupakisha ze-OEM ezitholakalayo kozakwethu bomkhiqizo
Amacala Empumelelo Yekhasimende
★ I-CDADA 1P 6kA AC Miniature Circuit Breaker isungule ukubambisana kwesikhathi eside namakhasimende emhlabeni wonke:
★ Amaphrojekthi Ezindawo Zokuhlala: Inikezwe abathuthukisi bezindlu e-Southeast Asia, Middle East naseNingizimu Melika
★ Ukufakwa Kwezentengiselwano: Kuhlanganyele nezinkontileka zikagesi eYurophu, e-Afrika nase-Asia kumaphrojekthi okwakha ezohwebo
★ Ubambiswano lwe-OEM: Isebenzisana nemikhiqizo kagesi yomhlaba wonke yokulebula okuyimfihlo nezisombululo ezenziwe ngokwezifiso
★ Izicelo Zezimboni: Zihlinzekwe ezindaweni zokukhiqiza ukuvikela imishini nemishini
★ Amanethiwekhi Okusabalalisa: Ukusebenza nabasabalalisi besifunda emazweni angaphezu kuka-30 ukuhlangabezana nemakethe yendawo
