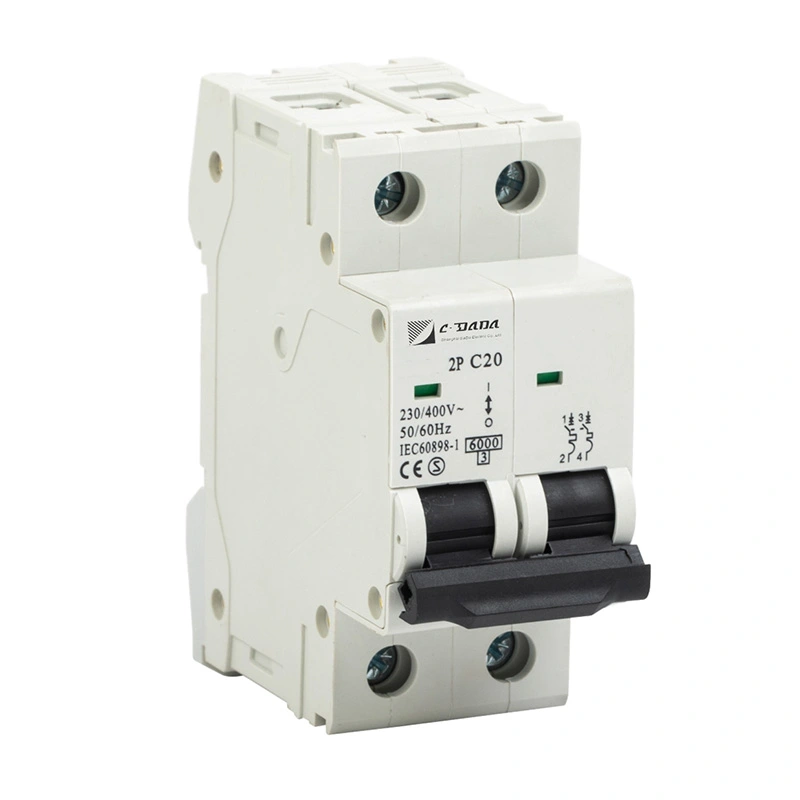

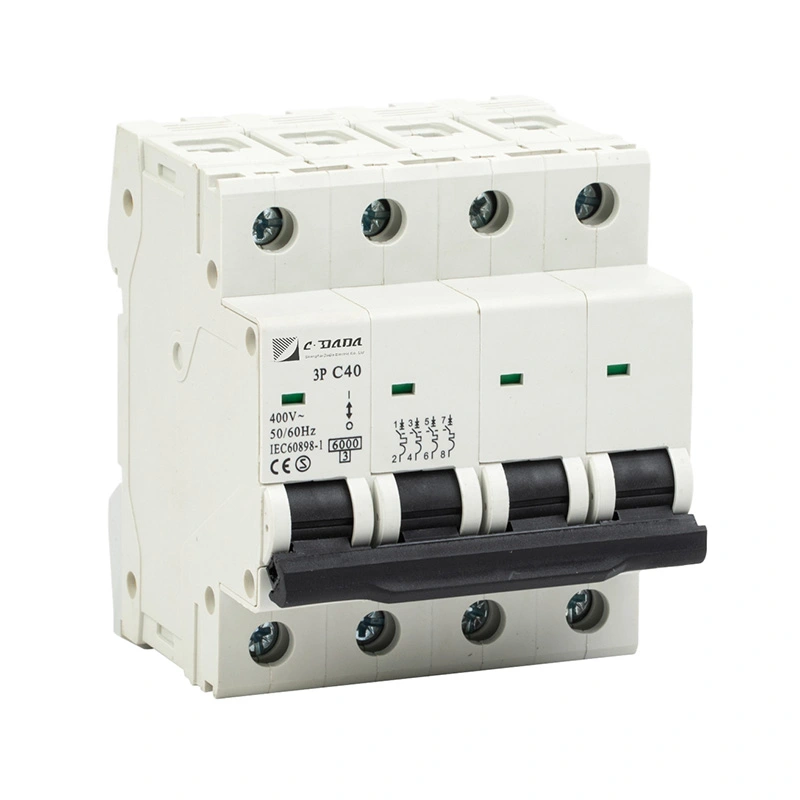

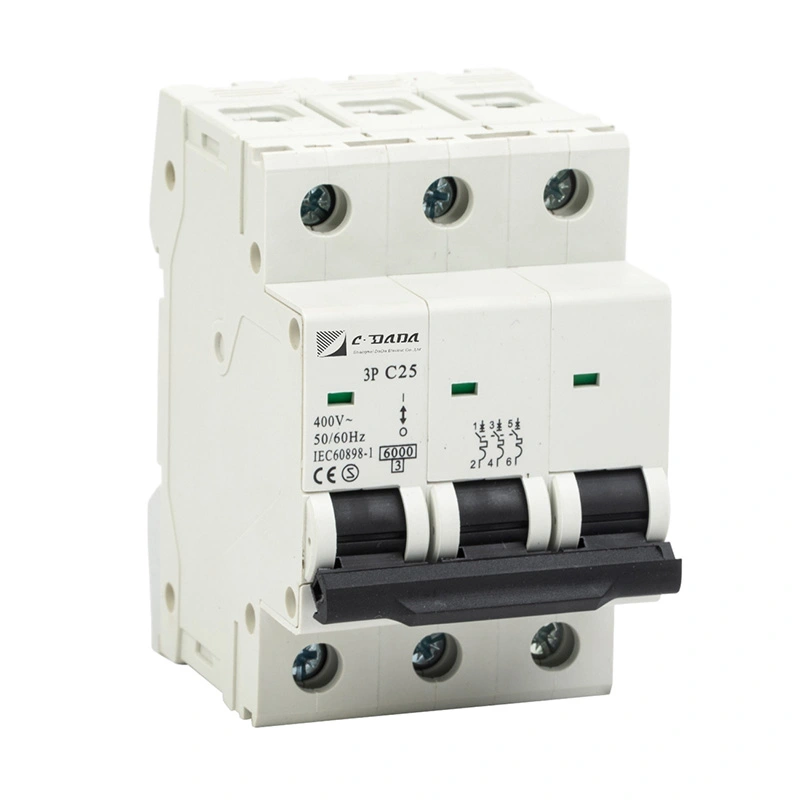

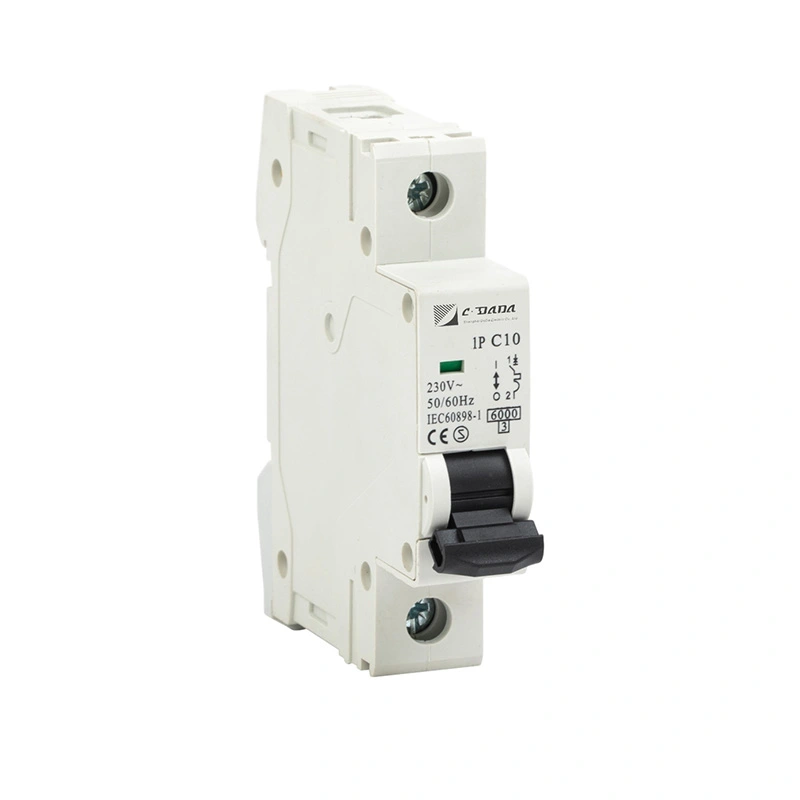

I-4.5kA 6kA I-Circuit Breaker encane
Model:ALFHA
I-CDADA ingumkhiqizi ochwepheshe we-4.5kA 6kA Miniature Circuit Breaker, egunyazwe nge-CCC ne-ISO9001 yokuvikela isekethe ephephile. Isebenzisa igobolondo elibuyisela amalangabi kanye nokuhamba okunembile kwe-thermal-magnetic, kulula ukuyibeka kumzila wesitimela we-DIN futhi kulula ukuyinakekela. Ihlanganisa ukusebenza okuzinzile nempilo ende yesevisi, ilungele ukusatshalaliswa kwamandla okuhlala, ezohwebo kanye nezimboni.
I-CDADA ALFHA 4.5kA 6kA Miniature Circuit Breaker iyi-high quality miniature breaker, ehlinzekwa yifekthri yethu ngamanani aqondile. Ihlinzeka ngokugcwala okuthembekile nokuvikelwa kwesekethe emfushane kumasistimu wamandla kagesi aphansi, namajika e-B/C/D agibelayo ukuze afane nemithwalo ehlukene.
Yakhelwe ngezinto ezibushela ilangabi kanye nezingxenye ezinembayo, iqinisekisa ukusebenza okuphephile kwezakhiwo, izimboni namabhodi okusabalalisa.
Izici Zomkhiqizo & Izinzuzo
★ Igobolondo elingavuthi ilangabi, ukumelana nokushisa okuphezulu, ukumelana nokuphuzi
★ Iwindi lenkomba ebonakalayo: okubomvu kokuthi ON, okuluhlaza okokucishiwe ukuze kucace isimo
★ Ama-rivets aphindwe kabili athuthukisa ukuqina kwe-casing kwezintambo eziphephile
★ Izinsimbi zokugcina izinqamuleli zinciphisa ukushisa futhi zithuthukise ukuqina kokuxhumeka
★ Ukukhiya kabili isiqeshana sesitimela se-DIN sokufakwa okusheshayo, okuqinile
★ 90% wezingxenye ezikhiqizwa endlini ngekhwalithi ezinzile
★ 100% ukuhlolwa okugcwele ngaphambi kokuthunyelwa
Izinhlelo zokusebenza
I-CDADA 4.5kA 6kA Miniature Circuit Breaker isetshenziswa kabanzi ku:
★ Izakhiwo zokuhlala, amafulethi, ama-villas
★ Amahhovisi, izitolo ezinkulu, izindawo zomphakathi
★ Ama-workshops embonini, amaphaneli okusabalalisa amandla
★ Amafeni, ama-compressor, amaphampu, izindlela zokuphakamisa
★ Izifunda zokukhanyisa kanye nemishini encane yamandla
Imingcele Yezobuchwepheshe
|
Into |
Ukucaciswa |
|
Imodeli |
I-ALFHA |
|
Okujwayelekile |
I-IEC60898 |
|
Ukuphula Amandla |
4.5kA, 6kA |
|
Ikalwe okwamanje |
1A,2A,3A,4A,5A,6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Izigxobo |
1P, 1P+N, 2P, 3P, 3P+N, 4P |
|
Ijika Elijikayo |
B / C / D |
|
I-Voltage elinganiselwe |
I-AC 230/400V, 400/415V |
|
I-Insulation Voltage |
500V |
|
Impulse Voltage |
4kV |
|
Idigri Yokuvikela |
IP20 |
|
Ukufakwa |
35mm DIN ujantshi |
|
ITemp Esebenzayo |
-5℃ ~ +40℃ |
|
Impilo Yemishini |
20,000 imijikelezo |
|
Ukuphila Kagesi |
4,000 ~ 8,000 imijikelezo |
|
Izitifiketi |
ISO9001, CCC, ASTA |
I-Outline Dimensions
★ Ububanzi obujwayelekile: 17.8mm isigxobo ngasinye
★ Ifanele 35mm DIN ukukhweza ujantshi
★ Isakhiwo esihlangene samabhokisi okusabalalisa ajwayelekile
★ Umthamo wezintambo: 1–35mm² ikhebula eguquguqukayo/eqinile
Ikhwalithi yokulawula
★ ISO9001 uhlelo lokuphathwa kwekhwalithi
★ 100% ukulinganisa kwefekthri: 1.13Okungelona uhambo, 1.45In uhambo, 2.55In ukuhlolwa
★ Ukuqinisekiswa okugcwele kwe-Magnetic kanye ne-thermal tripping
★ Ukuhlolwa kokukhuthazela kokushisa okuphezulu nokuphansi
★ Ukukhiqizwa okuzenzakalelayo nokunemba kwe-welding
Ukupakisha & Ukuthumela
★ Standard ukuthekelisa ibhokisi emaphaketheni
★ Ibhokisi ngalinye elibhalwe ngemodeli, lamanje, izigxobo, ubungako
★ Izinto zangaphakathi ezishaqisayo zokuthutha okuphephile
★ Ifanele ulwandle, umoya kanye nokuthutha komhlaba
Amacala Empumelelo Yekhasimende
I-CDADA 4.5kA 6kA Miniature Circuit Breaker inikezwe amaklayenti ase-Europe, Southeast Asia, Middle East, Africa and South America.
★ Amaphrojekthi wokwakha wezindawo zokuhlala e-UAE naseSaudi Arabia
★ Ukusabalalisa amandla ezentengiso eNigeria nase-Angola
★ Imishini yemboni yezimboni eJalimane naseTurkey
★ Ukubambisana kwe-OEM nemikhiqizo kagesi yomhlaba wonke
★ Ukunikezwa kwenqwaba yesikhathi eside kubasabalalisi nosonkontileka
