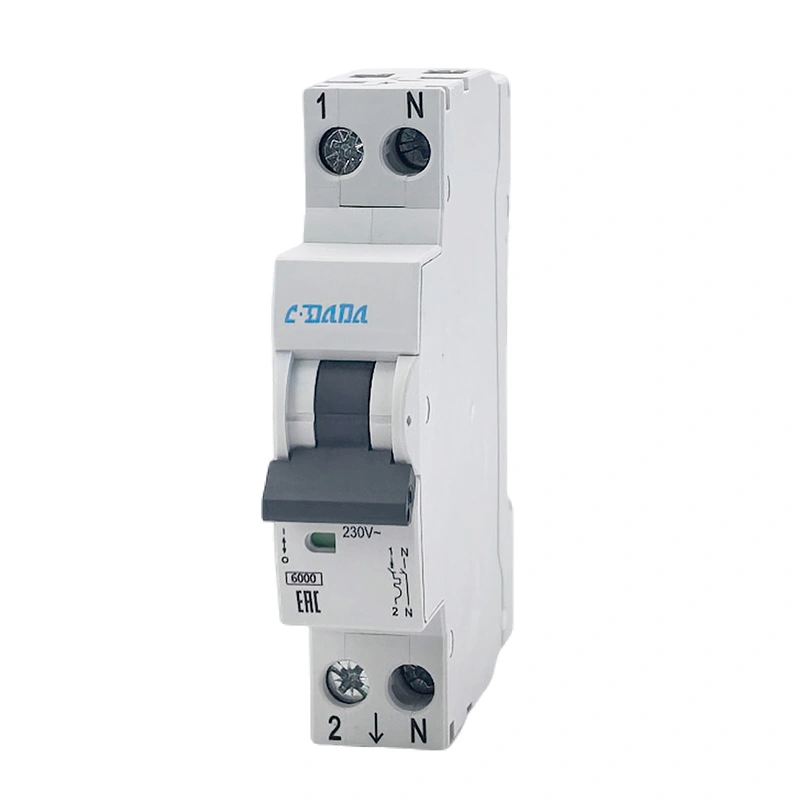

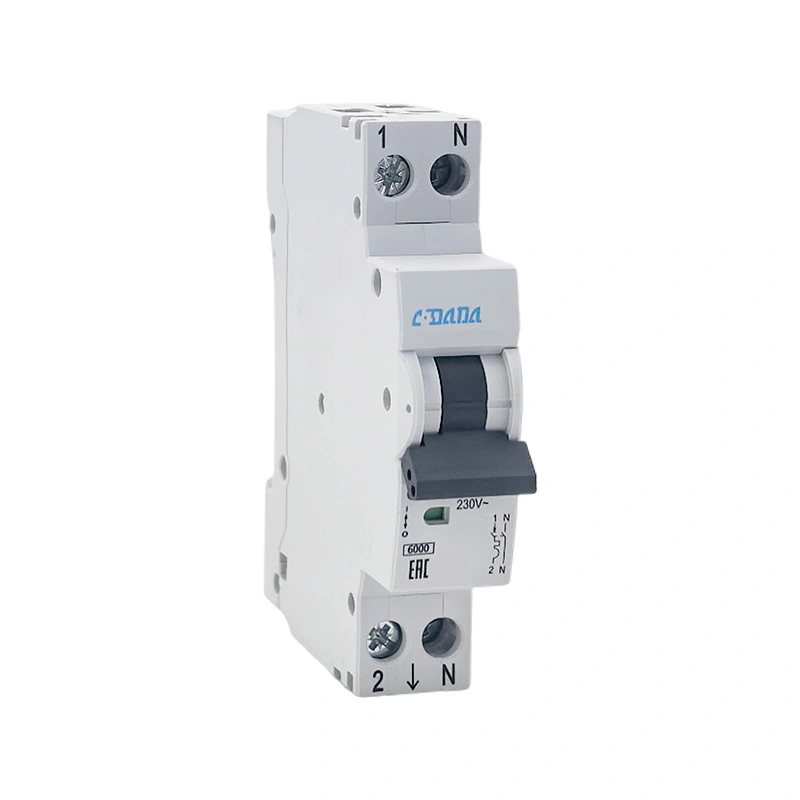

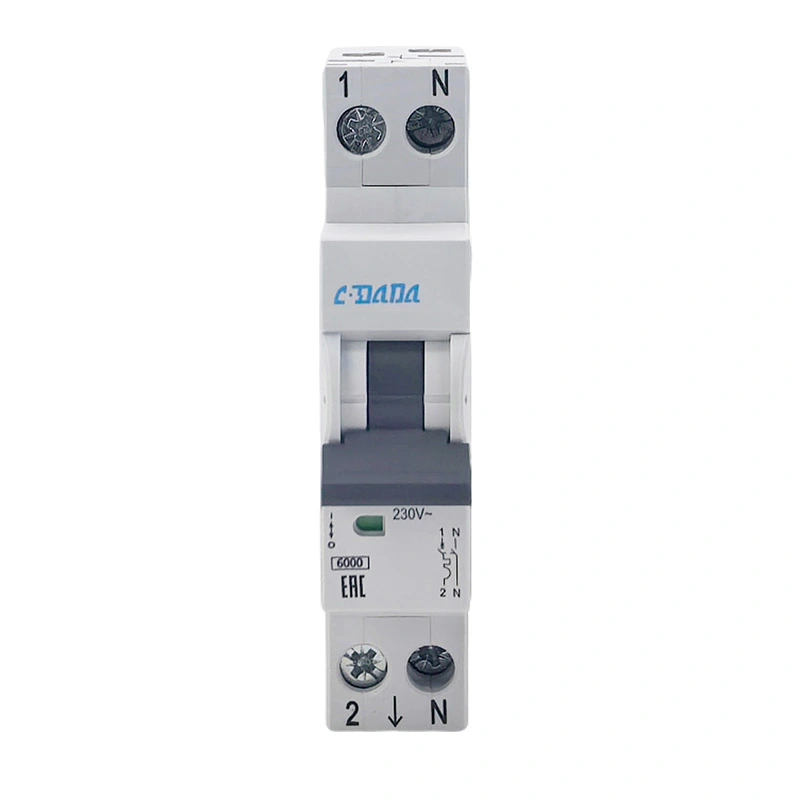

I-Miniature Circuit Breaker DPN 6KA
Model:DAB7N
I-CDADA Miniature Circuit Breaker DPN 6KA ilungele ukuthengwa kwempahla ngobuningi, i-1P+N miniature breaker yekhwalithi ephezulu ethobelana ne-IEC60898-1 yokuvikela okuphephile kwesekethe yasendlini neyokuhweba. Isebenzisa i-dual break-point kanye ne-thermal-magnetic tripping, kulula ukuyifaka ku-DIN ujantshi futhi kulula ukuyinakekela. Ihlanganisa isakhiwo esinokwethenjelwa nempilo ende yesevisi, iqinisekisa ukunikezwa kwamandla okuphephile kumasistimu ahlukahlukene wamandla aphansi.
I-CDADA DAB7N I-Miniature Circuit Breaker DPN 6KA iwuchwepheshe we-1P+N wekhefu elincane lekhefu elincane elithuthukiswe ngokuzimele yi-Shanghai DADA Electric, umkhiqizi onokwethenjelwa onolwazi lweminyaka engu-40+. Ngomthamo omkhulu wokuphuka okungu-6kA, ukusebenza ngokuvumelanisa, kanye nedizayini ye-N-pole “yenza kuqala, phuka kamuva”, ithuthukisa ngempumelelo ukusebenza kokucisha i-arc futhi ivikela amasekhethi nezinto zokusebenza ngokuphepha. Isetshenziswa kakhulu emabhokisini okusabalalisa, imihlobiso yasekhaya, amandla okuhweba, namasekhethi okukhanyisa, iyisinqumo sokuqala sabathengi bomhlaba wonke, abasabalalisi namakhasimende e-OEM.

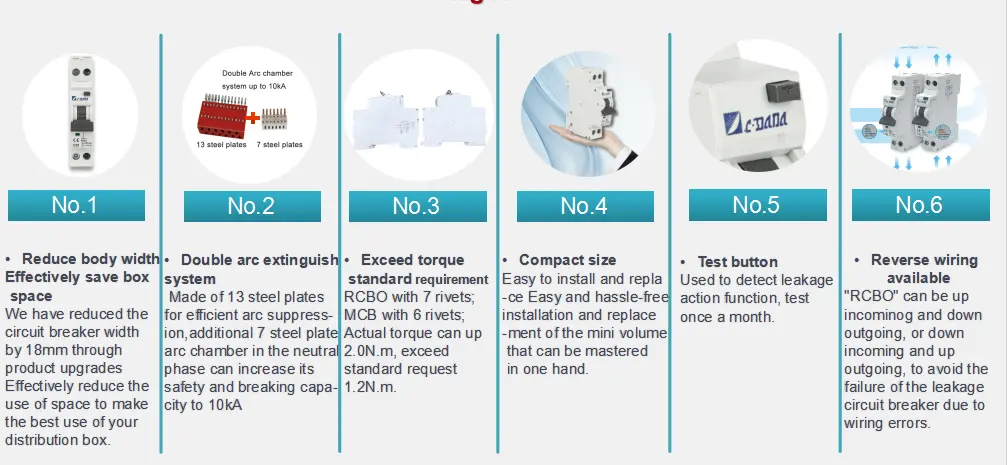

Yiziphi Izinzuzo ze-MCB DPN 6KA?
★ Isakhiwo se-DPN se-1P+N, amaphuzu wekhefu amabili, ephephile futhi enokwethenjelwa
★ I-N pole yenza kuqala bese iphuka kamuva, ithuthukisa amandla okuphuka kwe-arc
★ 6kA umthamo wangempela wokuphulwa, ukuvikelwa okuqinile kwe-short-circuit
★ Compact 17.8mm ububanzi, konga isikhala ikhabethe
★ Amajika e-B/C atholakalayo ngemithwalo ehlukene
★ Ibanga lokuvikela le-IP20, liphephile ukuthinta
★ Ibanga elibanzi lezintambo: 1–25mm² ikhebula eliguquguqukayo
★ Ukufakwa kwesitimela se-DIN, ukufakwa okusheshayo nokuzinzile
★ Ukumelana nokushisa okuphezulu nokuphansi: -25℃~+50℃
★ Impilo ende yemishini ifika ezikhathini ezingama-20,000
Izinhlelo zokusebenza
I-CDADA Miniature Circuit Breaker DPN 6KA isetshenziswa kabanzi ku:
★ Izakhiwo zokuhlala, amafulethi, ama-villas, umhlobiso wasekhaya
★ Amahhovisi, izitolo, amahhotela, izikole, izibhedlela
★ Izifunda zokukhanyisa, izisekelo zamandla, imishini encane yamandla
★ Imishini yasendlini: izifudumezi zamanzi, ama-air conditioner, ama-heater kagesi
★ Ukuthuthukiswa kwebhokisi lesekethe endala nokusabalalisa
★ Izinhlelo zokusabalalisa amandla ezentengiselwano nezomphakathi
Ithebula Lemingcele Yezobuchwepheshe
| Into | Ukucaciswa |
| Imodeli | I-DAB7N-40 |
| Igama Lomkhiqizo | I-MCB DPN 6KA |
| Okujwayelekile | I-IEC60898-1 |
| Izigxobo | 1P+N (2P) |
| Ukuphula Amandla | 6kA |
| Ikalwe okwamanje | 6A,16A,20A,25A,32A,40A |
| I-Voltage elinganiselwe | I-AC 220/230/240V |
| Imvamisa | 50/60Hz |
| Ijika Elijikayo | B / C |
| I-Insulation Voltage | 500V |
| Impulse Voltage | 4kV |
| Idigri Yokuvikela | IP20 |
| Impilo Yemishini | izikhathi ezingu-20,000 |
| Ukuphila Kagesi | izikhathi ezingu-6,000 |
| I-Terminal Torque | 1.5Nm |
| Umthamo Wezintambo | 1–25mm² |
| ITemp Esebenzayo | -25℃ ~ +50℃ |
| Ubukhulu | 82.5×73.2×17.8mm |

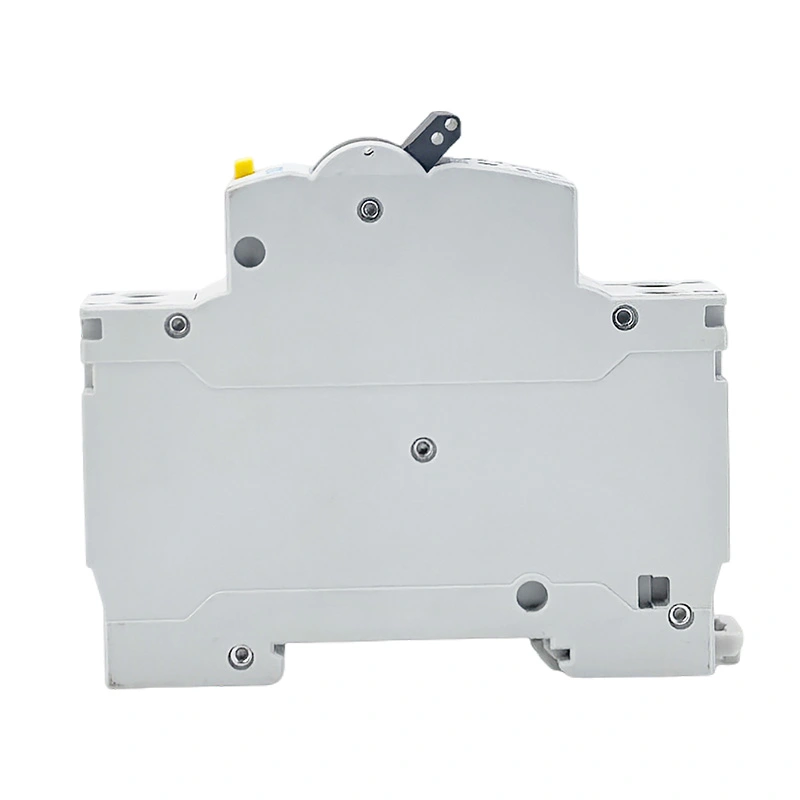

I-Outline Dimensions
★ Ubude: 82.5mm
★ Ukuphakama: 73.2mm
★ Ububanzi: 17.8mm (ububanzi bemojuli engu-1 evamile)

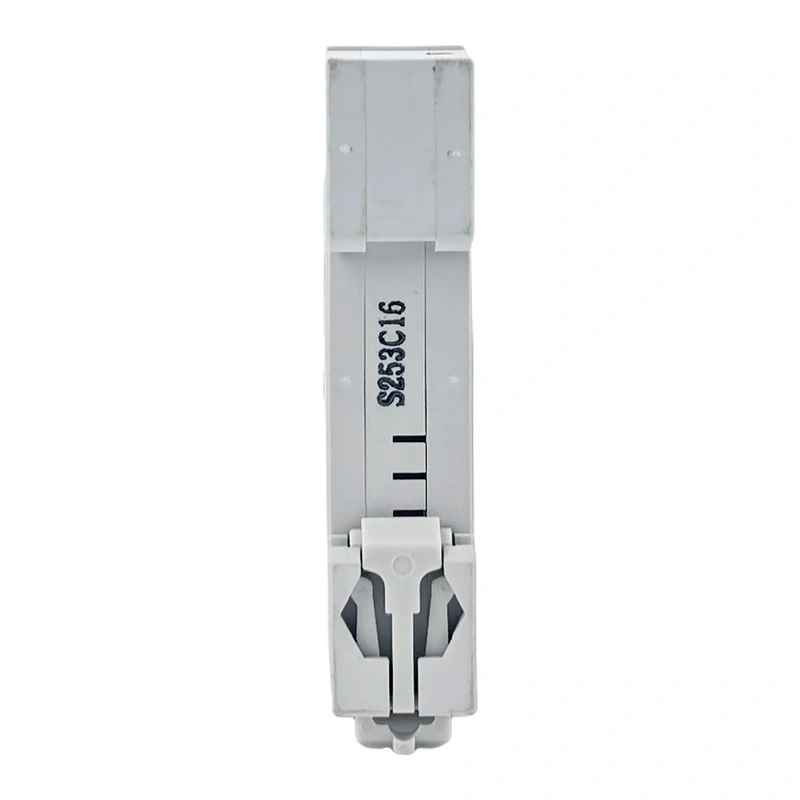

★ Ukukhweza: 35mm DIN ujantshi
★ Izintambo: zilungele ikhebula elingu-1–25mm² eliguquguqukayo/eliqinile
★ Ukujiya kwebhasi: 0.8-2mm
Izinto Ezijwayelekile Zokuhlola
★ 1.13Ekuhlolweni okungekona ukuhamba (≥1 ihora)
★ 1.45Ukuhlolwa kokuhamba (<1 ihora)
★ 2.55In overload action test
★ Ukuhlolwa kokugibela ngokushesha kukaMazibuthe (3In/5In yejika le-B/C)
★ I-Dielectric ukumelana nokuhlolwa kwe-voltage
★ Ukuhlolwa kokukhuphuka kwezinga lokushisa
★ Ukuhlolwa kwamandla okuphuka kwesiyingi esifushane (6kA)
★ Mechanical & kagesi ukuhlolwa ukuphila
★ Ukuhlolwa kokusebenza kokushisa okuphezulu nokuphansi

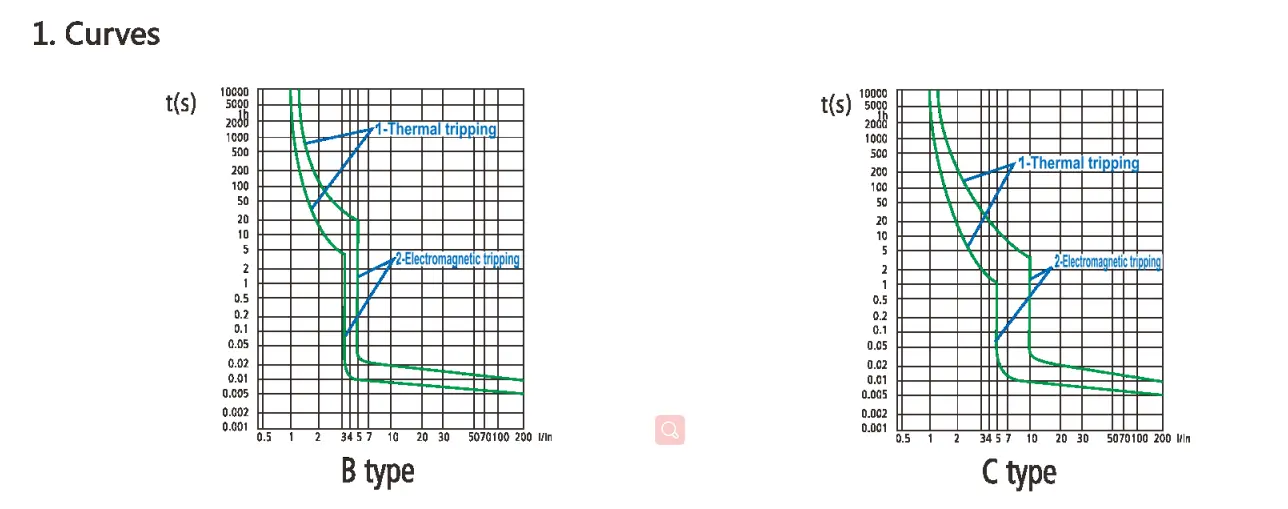

Tripping Characteristic Curves
I-IEC 60898-1
Ukukhishwa Kwezibuthe
Lapho kwenzeka isifunda esifushane, ukukhubeka ngokushesha kutholwa uzibuthe onomgogodla wensimbi. Ngokwezinga le-IEC60898, lo mkhiqizo ungahlukaniswa ngezinhlobo ezintathu: B, C, kanye no-D.
|
|
Hlola okwamanje | Isikhathi sokuhamba | Izinhlelo zokusebenza |
| Ijika le-B | 3 n5l |
0.1 |
Uhlobo B lusebenza kuphela emithwalweni esebenzayo: -I-heater kagesi-Isifudumezi samanzi-I-furmace kagesi |
| C Ijika | 5 ngo10ln |
0.1 |
Uhlobo C lufanele imithwalo evamile: -Isibani -Isokhethi yamandla -Injini yamandla amancane |
Ukukhishwa Okushisayo
● Uma ukugcwala ngokweqile sekwenzekile kusekethe, umugqa we-bimetallic we-breaker circuit uzogoba ngenxa yokushisa, okubangele ukuthi abathintwayo banqanyulwe futhi kubangele ukukhubeka okushisayo;
● Izinga le-IEC lichaza ibanga lesikhathi lokugibeleka lama-currents ahlukene okugcwala ngokweqile;
●Izinga lokushisa lendawo yokuhlola inkomba ngu-30 °C.
| Hlola okwamanje | Isikhathi sokuhamba |
| 1.13ln | t z 1h(ku-≦ 63A) |
| 1.45ln | t<1h(Ku-≦ 63A) |
| 2.55ln | 1s<1h<60s(In≤32A)1s |

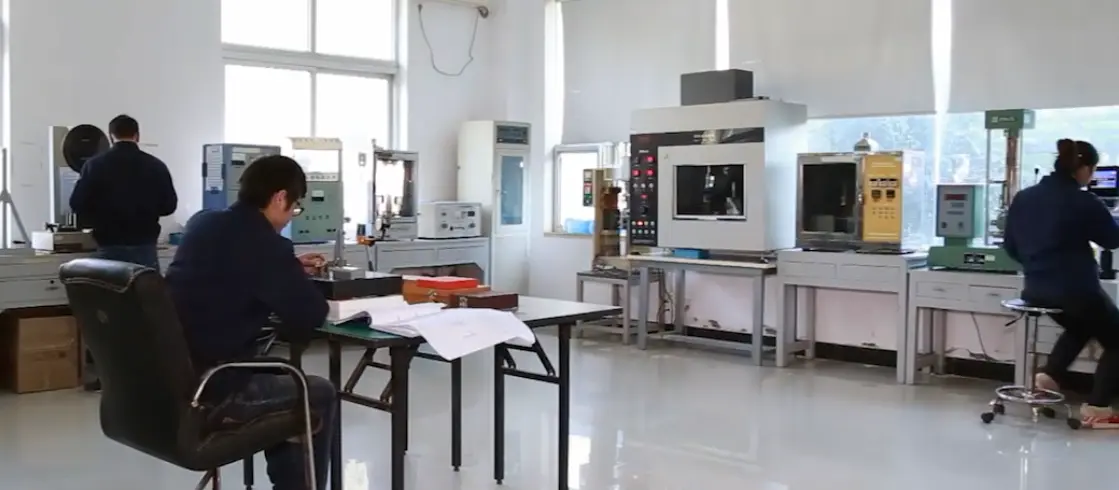

Inqubo Yokulawula Ikhwalithi
1. Ukuhlolwa kwempahla engavuthiwe nokuqinisekiswa kwesitifiketi
2. Ukubumba umjovo okuzenzakalelayo & ukunemba isitembu sensimbi
3. Ukuhlanganiswa komkhiqizo oqediwe kancane kanye nokulinganisa
4. Ukuhlolwa kwesici esigcwele esingu-100%.
5. Ukumelana nokuhlolwa kokusebenza kwe-voltage & ukwahlukanisa
6. Ukuhlolwa kokuguga kokushisa okuphezulu nokuphansi
7. Ukubukeka, ubukhulu kanye nokuhlolwa kwelogo
8. Ukupakishwa kokugcina nokuhlolwa kokuthunyelwa
Ukupakisha & Ukuthumela
★ Ibhokisi lokuthekelisa elijwayelekile eline-shockproof lining
★ Ibhokisi leqembu lipakishwe ukugwema ukuklwebheka
★ Sula ilebula: imodeli, yamanje, izigxobo, ubuningi, isitifiketi
★ Ifanele ukuhamba kolwandle, emoyeni nasemhlabeni
★ Ukusekela ukupakishwa kwe-OEM, ilogo yangokwezifiso kanye nelebula
Amacala Empumelelo Yekhasimende
I-CDADA MCB DPN 6KA ithunyelwe emazweni nasezifundeni ezingaphezu kuka-50:
★ Ukunikezwa kwenqwaba yesikhathi eside kubasabalalisi baseYurophu nabase-Asia
★ Amaphrojekthi wokulungisa isekethe yasekhaya eMpumalanga Ephakathi nase-Afrika
★ Ukubambisana kwe-OEM nemikhiqizo kagesi yamazwe ngamazwe eyaziwayo
★ Ukusekela ukusatshalaliswa kwamandla kubathuthukisi bezindlu ezithengiswayo
★ Ama-oda azinzile avela kosonkontileka bakagesi kanye nezihlanganisi zesistimu
Kungani Khetha i-DADA Electric?
★ Iminyaka engu-40+ yokuhlangenwe nakho kochwepheshe ku-circuit breaker R&D kanye nokukhiqiza
★ Izingxenye ezingu-90% eziyinhloko ezikhiqizwa endlini, ukulawulwa kwekhwalithi okuzinzile
★ ISO9001 eqinisekisiwe, ukuhambisana ngokugcwele nezindinganiso zamazwe ngamazwe
★ Izitifiketi eziphelele: CE, CB, CCC, njll.
★ Umthamo omkhulu wokukhiqiza, ukulethwa okusheshayo kwama-oda amaningi
★ Ukusekelwa kochwepheshe kwezobuchwepheshe kanye nensizakalo yokuthengisa emva kokuthengisa
★ Yamukela i-OEM & ODM ngokwezifiso ukuze uhlangabezane nezidingo zemakethe
★ Global Logistics uhlelo, ukulethwa okuphephile futhi ofika ngesikhathi
