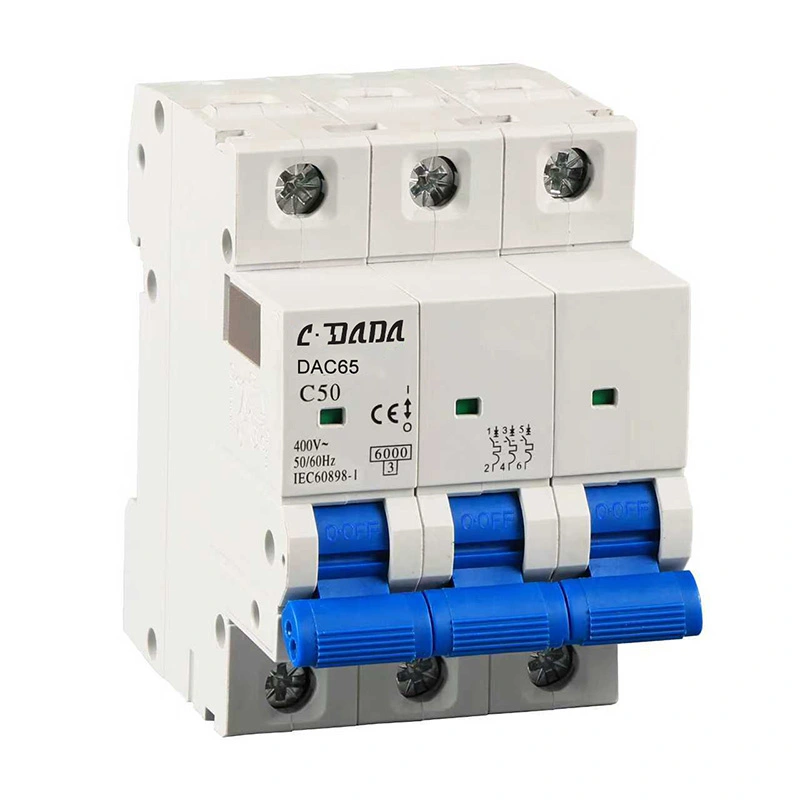

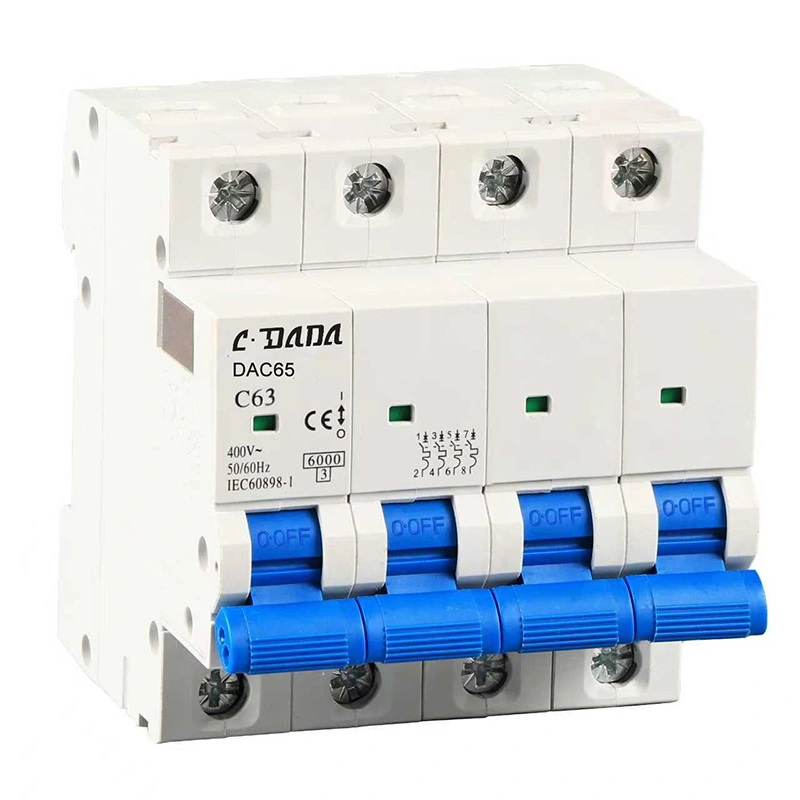

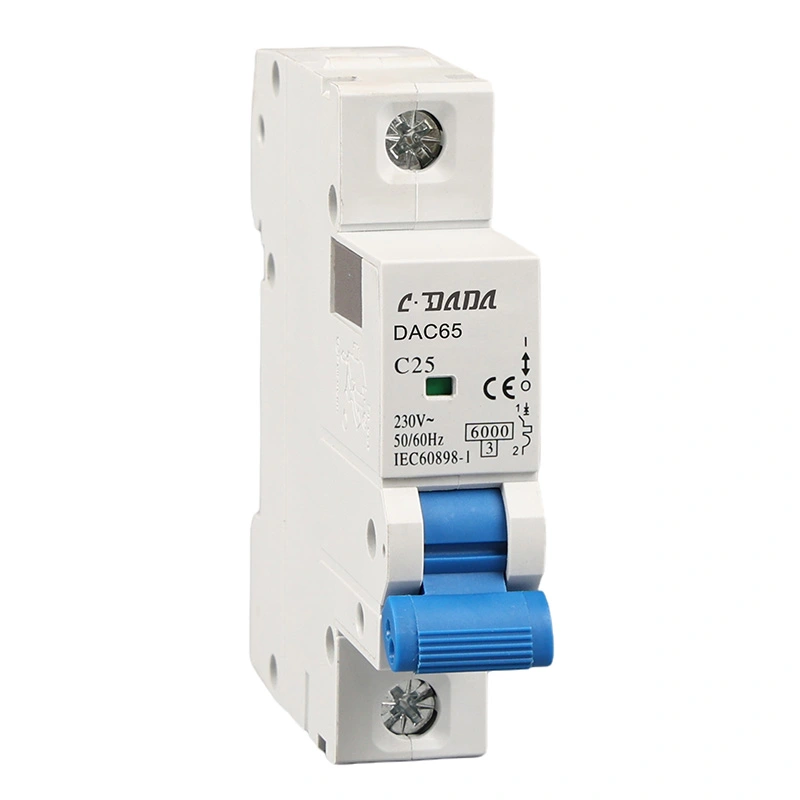

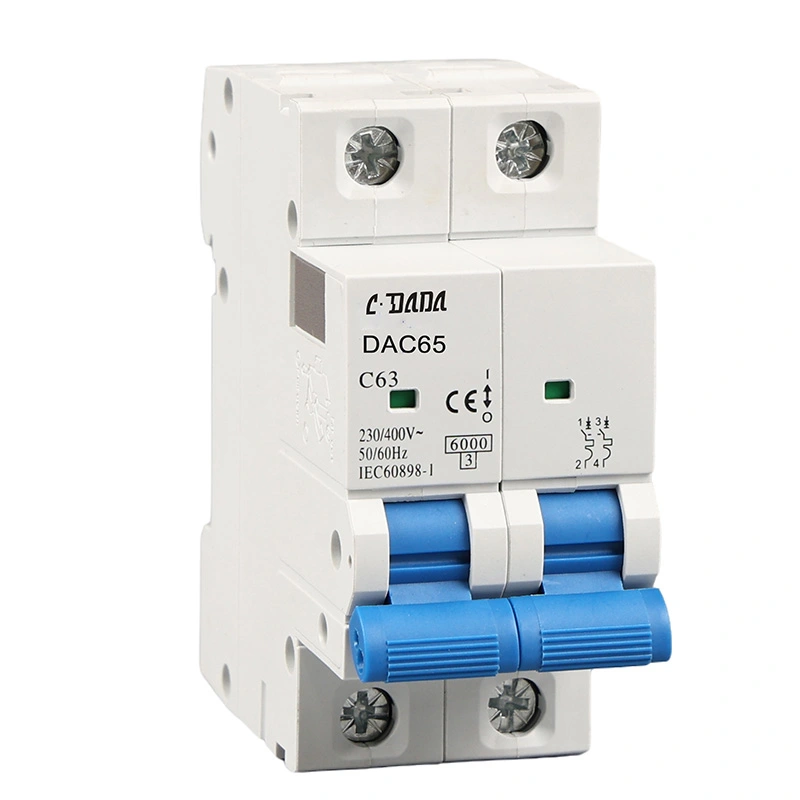

I-Miniature Circuit Breaker REAL 6KA
Model:DAC65
Xhumana ne-CDADA namuhla futhi usivumele sibe umphakeli wakho we-Miniature Circuit Breaker REAL 6KA, i-high quality miniature breaker ethobela i-IEC/EN60898 ukuze uthole ukuvikelwa kwesekethe okuthembekile. Ifaka ukukhubeka kukazibuthe okushisayo kanye negobolondo elibambezela ilangabi, kulula ukuyifaka kuloliwe we-DIN, futhi kulula ukuyinakekela. Ihlanganisa ukusebenza okuzinzile nokuklama okuhlala njalo, ukufeza impilo ende yesevisi yokusabalalisa amandla okuhlala kanye nezimboni.
I-CDADA DAC65 Miniature Circuit Breaker REAL 6KA iyisiphazamiso esincane esisebenza kahle esiklanyelwe amasistimu amandla e-AC 50/60Hz. Ihlinzeka ngokulayishwa okusebenzayo okusebenzayo kanye nokuvikelwa kwesekethe esifushane, ngamajika e-B/C/D okukhubeka ukuze ilingane imithwalo ehlukene. Isetshenziswa kakhulu kumabhodi okusabalalisa, izakhiwo zokuhlala, amafekthri, nezindawo zokuthengisa, iyinketho ephezulu kubathengi bomhlaba wonke kanye nabalingani be-OEM.
Izinzuzo Eziyinhloko
★ REAL 6kA high breaking umthamo wokuvikela ezinzile short-circuit
★ Ukukhishwa kwe-Thermal-magnetic kokuhamba okunembile nokushesha
★ Usayizi ohlangene: 17.8mm ngesigxobo ngasinye, ukonga isikhala samakhabethe
★ IP20 ukuvikelwa degree, iphephile ukuthinta futhi usebenze
★ Ububanzi bezintambo ezibanzi: isekela 0.5–63A, izintambo eziguquguqukayo neziqinile
★ Ukufakwa kwesitimela se-DIN ukuze kufakwe ngokushesha
★ igobolondo flame-retardant, izinga lokushisa eliphezulu ukumelana
★ Ukusebenza okuzinzile -5℃~+40℃ endaweni ezungezile
Izinhlelo zokusebenza
I-CDADA Miniature Circuit Breaker REAL 6KA isetshenziswa kabanzi ku:
★ Izakhiwo zokuhlala, amafulethi, ama-villas
★ Amahhovisi, izitolo ezinkulu, amahhotela, izakhiwo zomphakathi
★ Ama-workshops embonini, imishini encane yamandla
★ Izinhlelo zokukhanyisa, izisekelo zamandla, amaphaneli okusabalalisa
★ Abalandeli, amaphampu, ama-compressor namamotho amancane
★ Amaphrojekthi wokuvuselela ingqalasizinda kanye nogesi
Imingcele Yezobuchwepheshe
| Into | Ukucaciswa |
| Imodeli | I-DAC65 MCB REAL 6KA |
| Okujwayelekile | I-IEC/EN60898 |
| Ukuphula Amandla | 6kA |
| Ikalwe okwamanje | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Izigxobo | 1P,1P+N,2P,3P,3P+N,4P |
| Ijika Elijikayo | B(3-5In), C(5-10In), D(10-20In) |
| I-Voltage elinganiselwe | 1P:240V; 2P:240/415V; 3P/4P:415V |
| I-Insulation Voltage | 500V |
| Impulse Voltage | 6kv |
| Ikilasi Lokukhawula Amandla | 3 |
| Idigri Yokuvikela | IP20 |
| Ukufakwa | 35mm DIN ujantshi |
| Uhlobo Lwetheminali | Uhlobo lwe-Lug / Uhlobo lwephini |
| I-Ambient Temperature | -5℃ ~ +40℃ |

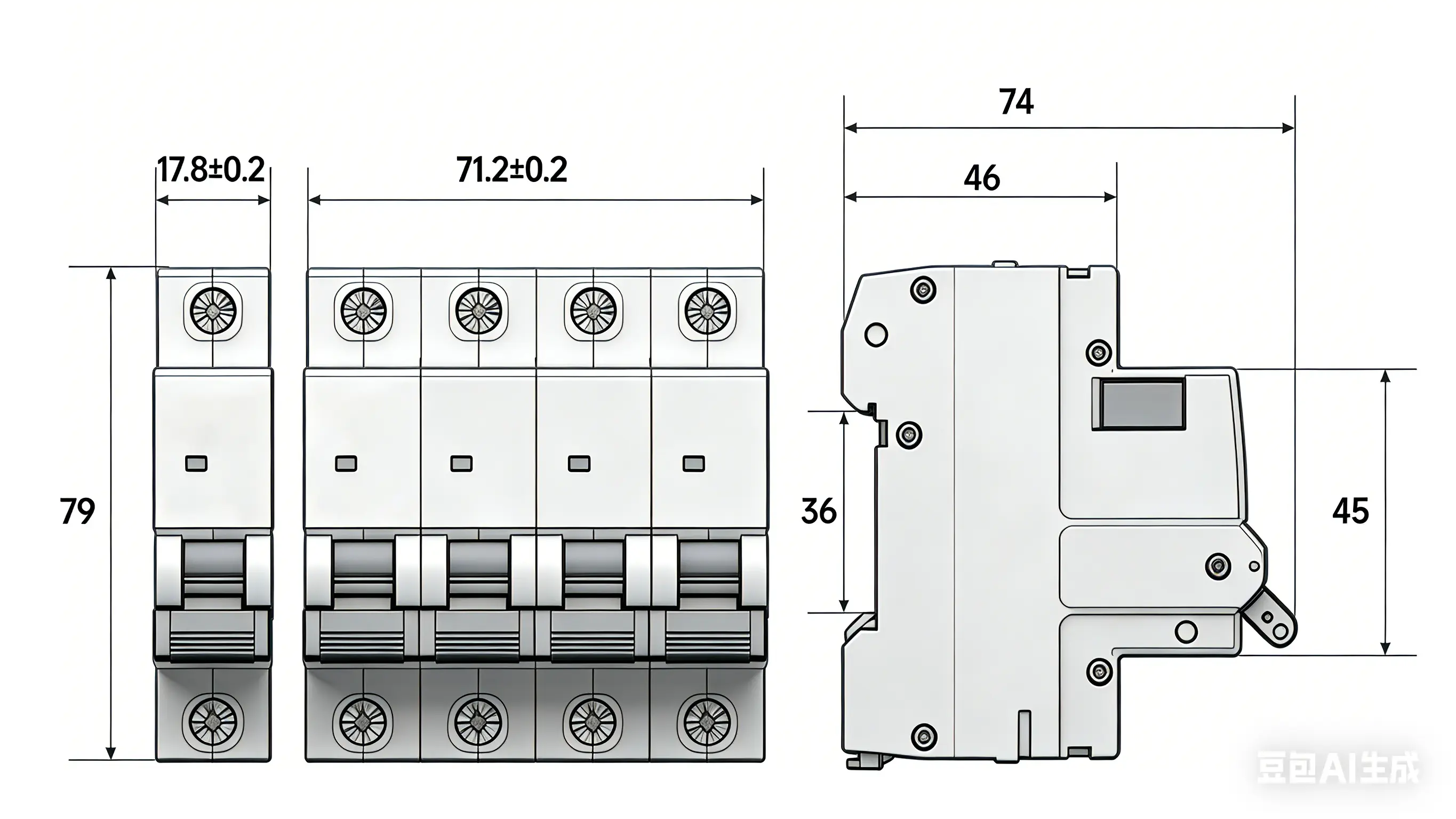

I-Outline Dimensions
★ Ububanzi: 17.8mm isigxobo ngasinye
★ Ukukhweza: Isitimela se-DIN esijwayelekile esingu-35mm
★ Umthamo wezintambo: Ikhebula eliqinile elingafika ku-35mm²
★ Isakhiwo esihlangene samabhokisi okusabalalisa ajwayelekile
Izinto Ezijwayelekile Zokuhlola
★ 1.13Ekuhlolweni okungekona ukuhamba (≥1h)
★ 1.45Ukuhlolwa kokuhamba (<1h)
★ Magnetic tripping isici test
★ Ukuhlolwa kokukhuphuka kwezinga lokushisa
★ I-Dielectric voltage ukumelana nokuhlolwa
★ Ukuhlolwa kwamandla okuphuka kwesiyingi esifushane (6kA)
★ Mechanical & kagesi ukukhuthazela test

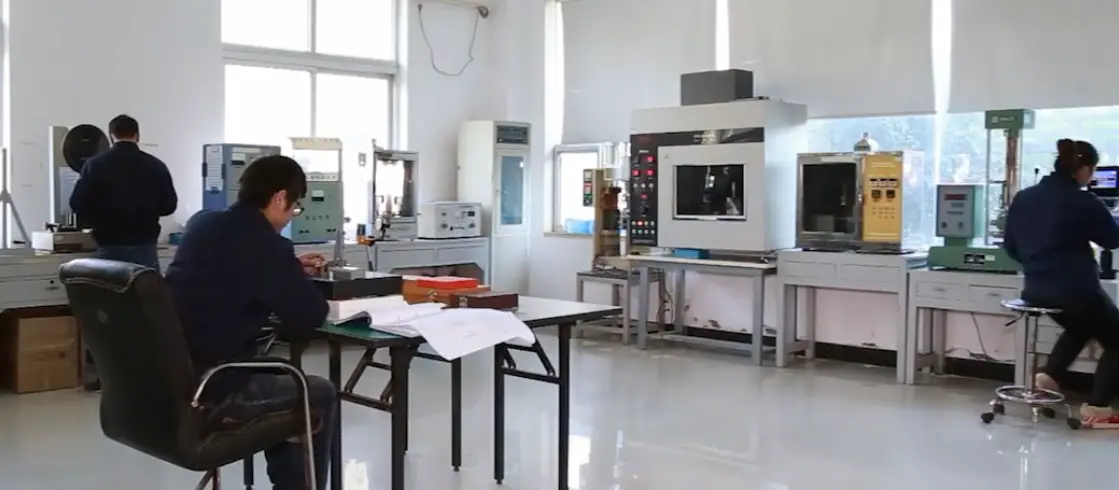

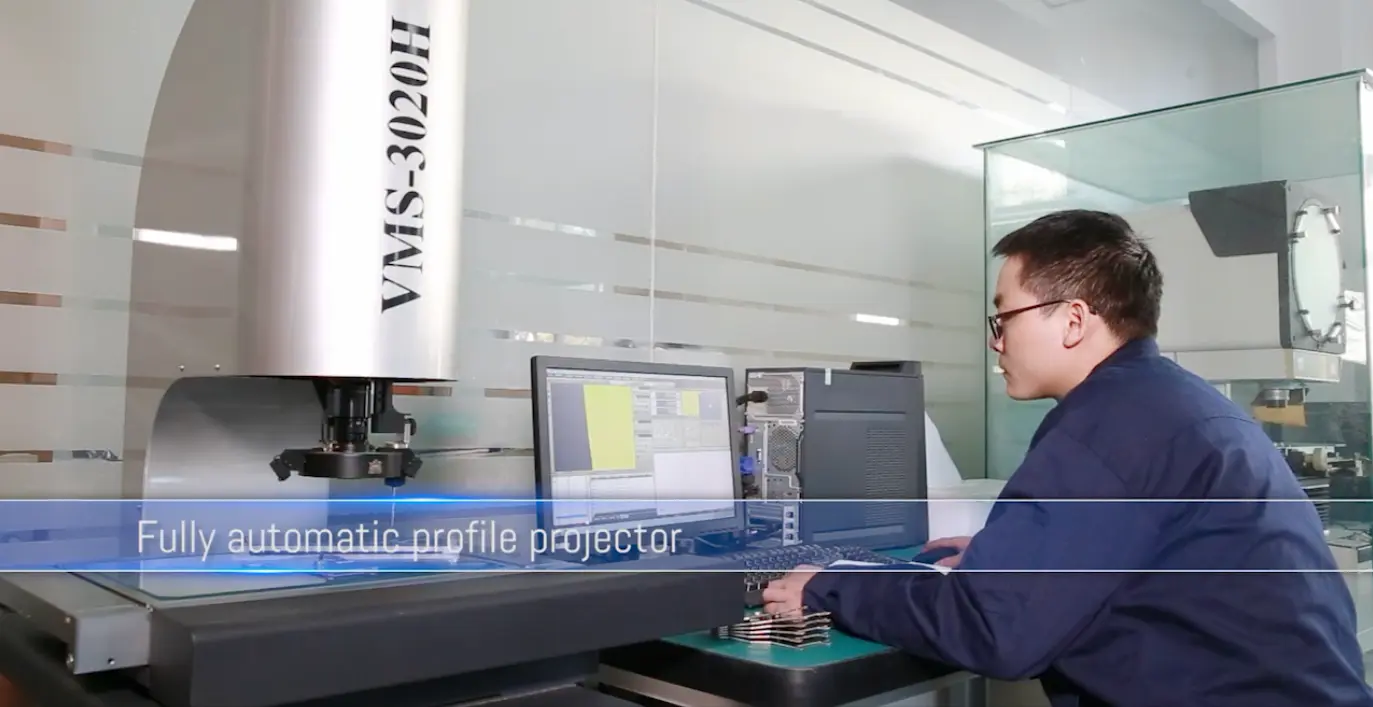

Inqubo Yokulawula Ikhwalithi
1. Ukuhlolwa okungenayo kwempahla eluhlaza
2. Ukukhiqiza okuzenzakalelayo & ukuhlanganisa ngokunemba
3.100% ukulinganisa okugcwele kokukhubeka
4. Ukuhlolwa okusebenzayo kokushisa okuphezulu/okuphansi
5. Ukumelana nokuhlolwa kwe-voltage nokufakwa kwe-insulation
6. Ukuhlolwa kokubukeka nobukhulu
7. Ukuhlolwa kokugcina ngaphambi kokupakishwa
Ukupakisha & Ukuthumela
★ Ibhokisi lokuthekelisa elijwayelekile eline-shockproof lining yangaphakathi
★ Sula ilebula: imodeli, yamanje, izigxobo, ubuningi, isitifiketi
★ Ukupakishwa kwebhokisi leqembu ukugwema ukuklwebheka nokulimala
★ Ifanele ukuhamba kolwandle, emoyeni nasemhlabeni
★ Ukusekela ilebula ye-OEM & ukupakisha ngokwezifiso
Amacala Empumelelo Yekhasimende
I-CDADA Miniature Circuit Breaker REAL 6KA inobambiswano lwesikhathi eside emhlabeni wonke:
★ Ukuhlinzekwa ngobuningi kubasabalalisi baseYurophu nosonkontileka
★ Amaphrojekthi ezindawo zokuhlala nezohwebo eMpumalanga Ephakathi nase-Afrika
★ Ukubambisana kwe-OEM nemikhiqizo kagesi yomhlaba wonke
★ Izinhlelo zokusabalalisa amandla eNingizimu-mpumalanga ye-Asia naseNingizimu Melika
★ Ama-oda wesikhathi eside avela kubangenisi nabadidiyeli bakagesi
